Twotrees TS5 7W Laser Engraver User Manual

1. Introduction

Thank you for choosing the Twotrees TS5 7W Laser Engraver. This advanced machine is designed for precise and versatile engraving on a wide range of materials, featuring an innovative 4-in-1 rotary system. This manual provides essential information for safe operation, setup, usage, and maintenance of your device. Please read it thoroughly before operating the engraver.

2. Safety Instructions

WARNING: Laser radiation can cause eye damage and skin burns. Always follow safety precautions.

• Eye Protection: The Twotrees TS5 features an integrated closed structure with special filtering materials to block harmful blue light. However, never look directly at the laser beam. Always ensure the protective enclosure is properly closed during operation.
• Skin Protection: Avoid direct exposure of skin to the laser beam.
• Ventilation: The integrated smoke and dust ejection system helps maintain a clean working environment. Ensure proper ventilation in your workspace.
• Flammable Materials: Do not engrave highly flammable materials without proper precautions. Keep a fire extinguisher nearby.
• Children and Pets: Keep the engraver out of reach of children and pets.
• Power Supply: Use only the provided power adapter. Ensure the power supply matches the specified voltage (100-240 V ~ 50/60 Hz).
• Emergency Stop: Familiarize yourself with the location of the emergency stop button.

3. Product Overview

The Twotrees TS5 7W Laser Engraver is a versatile and efficient tool for custom engraving. Its key features include:

• 4-in-1 Rotary System: The first enclosed 4-in-1 rotary laser engraver, including roller, chuck, sphere, and ring kits for engraving various shapes and objects.
• High Pre-assembly: 95% pre-assembled for quick and easy setup.
• Safety Enclosure: Integrated closed structure with light filtering materials and a smoke/dust ejection system for a safe and clean workspace.
• Magnetic Closure Design: Allows for easy access and efficient batch processing.
• Precise Focusing: Ensures accurate engraving positioning.
• Wide Compatibility: Supports popular engraving software like LaserGRBL (Windows) and LightBurn (macOS/Windows/Linux), and GRBL control systems.
• Versatile Materials: Capable of engraving on aluminum jewelry, leather, glass, wood, stainless steel, cups, wine glasses, and rings.

Figure 3.1: The Twotrees TS5 Laser Engraver shown with its various 4-in-1 rotary attachments for diverse engraving tasks.

Figure 3.2: Breakdown of the innovative 4-in-1 rotary system, illustrating the Roller, Chuck, Sphere, and Ring rotary attachments.

Figure 3.3: The individual components of the Twotrees TS5 rotary system, ready for assembly and interchangeability.

4. Setup

The Twotrees TS5 is 95% pre-assembled, making setup quick and straightforward.

1. Unpacking: Carefully remove all components from the packaging. Verify that all parts listed in the packing list are present.
2. Placement: Place the engraver on a stable, level surface in a well-ventilated area, away from flammable materials.
3. Power Connection: Connect the power adapter to the engraver and then to a suitable power outlet.
4. Software Installation: Install your preferred engraving software (LaserGRBL for Windows or LightBurn for macOS/Windows/Linux) on your computer. Links to download these can typically be found on the Twotrees official website or the software developers' sites.
5. USB Connection: Connect the engraver to your computer using a USB cable.
6. Rotary Attachment (if needed): If using a rotary attachment, select the appropriate kit (roller, chuck, sphere, or ring) and install it according to the specific instructions for that module.

5. Operating Instructions

Operating the Twotrees TS5 involves preparing your design, setting up the material, and initiating the engraving process.

5.1 Material Preparation

• Flat Materials: Place flat materials directly on the engraving bed.
• Cylindrical/Irregular Objects: For items like cups, wine glasses, spheres, or rings, install the appropriate rotary attachment.
• Securing Material: Ensure the material is securely fastened to prevent movement during engraving. The chuck and roller systems offer multiple clamping styles.

Figure 5.1: The engraver demonstrating multiple clamping styles for different objects, such as a wine glass on the roller and a mug on the chuck.

5.2 Focusing the Laser

Precise focusing is crucial for optimal engraving results.

1. Manual Focus: Adjust the laser module height until the laser spot is at its smallest and sharpest point on the material surface.
2. Assisted Focus: The TS5 features an effortless focus mechanism. Refer to the specific instructions for your model's focusing method.

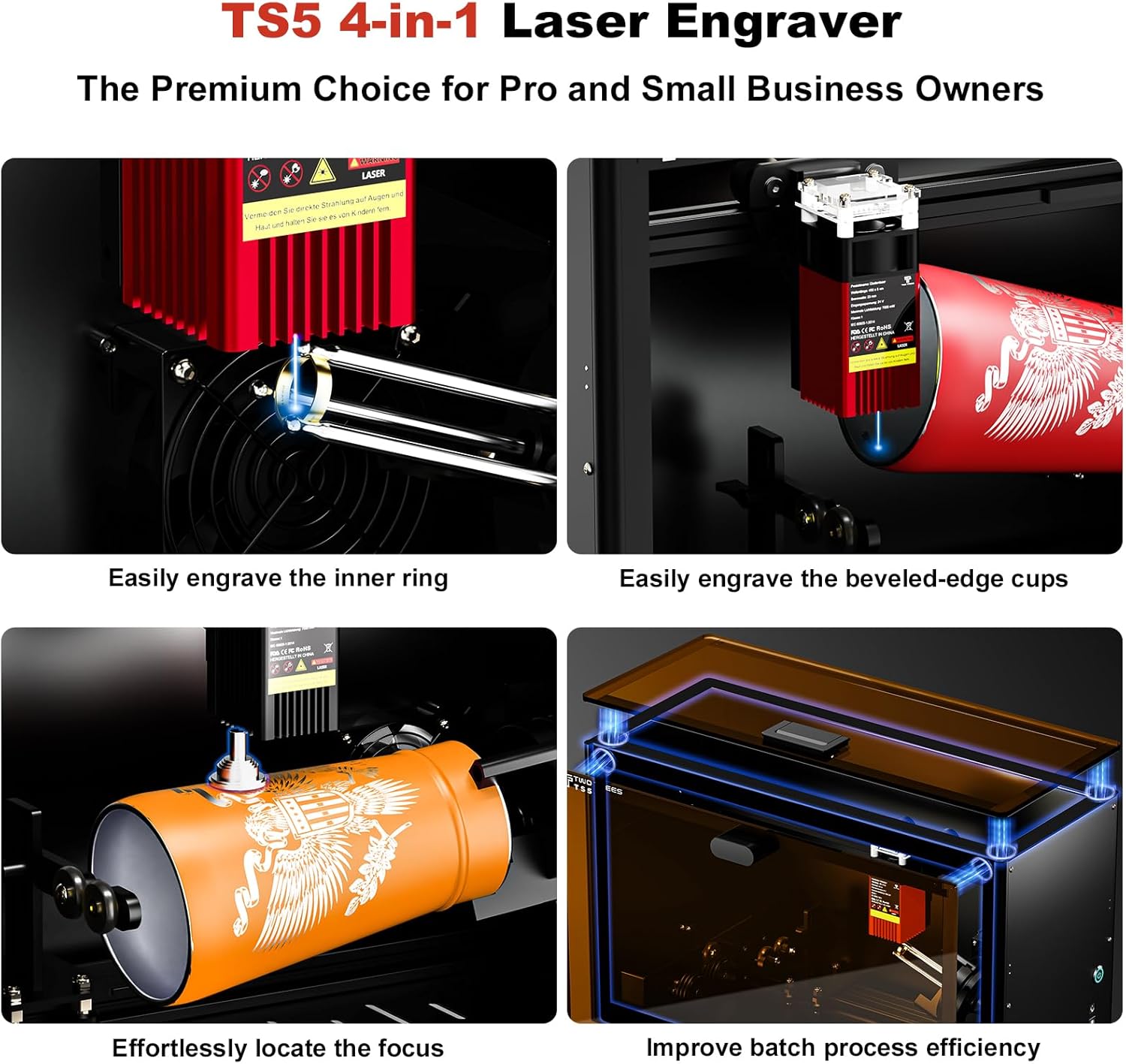

Figure 5.2: Visual guide demonstrating key operational aspects: engraving inner rings, handling beveled cups, effortless focus adjustment, and improving batch processing efficiency.

5.3 Software Operation (LightBurn/LaserGRBL)

• Import Design: Load your design file (LBRN, BMP, JPG, PNG, GCODE) into the software.
• Adjust Settings: Set engraving parameters such as laser power (adjustable), speed, and number of passes based on the material.
• Preview: Use the software's preview function to ensure the design is correctly positioned.
• Start Engraving: Close the protective enclosure, ensure all safety measures are in place, and initiate the engraving process from the software.

Figure 5.3: Examples of diverse engraving applications on materials such as aluminum jewelry, leather, glass, and wood.

Figure 5.4: The Twotrees TS5 actively engraving intricate patterns onto a wine glass using the roller rotary attachment.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Twotrees TS5 Laser Engraver.

• Cleaning the Lens: Periodically clean the laser lens with a soft, lint-free cloth and lens cleaning solution to maintain laser power and precision.
• Cleaning the Enclosure: Wipe down the interior and exterior of the enclosure to remove dust and debris.
• Lubrication: Lightly lubricate moving parts (rails, screws) as recommended by the manufacturer to ensure smooth operation.
• Firmware Updates: Check the Twotrees official website for any available firmware updates for your device.

7. Troubleshooting

Here are some common issues and their potential solutions:

8. Specifications

9. Warranty and Support

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Twotrees website. You may also contact your seller for assistance.

Manufacturer: Twotrees

Model Number (Article Reference): CTNTS5

ASIN: B0FP14B4CR

10. Additional Information

The Twotrees TS5 is designed to meet over 95% of mug customization needs and is ideal for custom engraving of irregular mugs and various other objects.

Figure 10.1: The Twotrees TS5 demonstrating its capability to engrave a wide variety of customized mugs and other items.

Figure 10.2: A comparison table illustrating the superior features of the Twotrees TS5 Laser Engraver, such as its 4-in-1 system and high pre-assembly, compared to other models.
