Philips Airfryer Series 4000 NA460/00 Instruction Manual

1. Introduction

Thank you for choosing the Philips Airfryer Series 4000 NA460/00. This vertical dual-basket air fryer is designed to provide healthier, faster, and more efficient cooking for a variety of dishes. Featuring RapidAir Technology and a space-saving design, it allows you to prepare two different meals simultaneously with ease. Please read this manual thoroughly before first use and keep it for future reference.

Image: Front view of the Philips Airfryer Series 4000 NA460/00.

2. Important Safety Information

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully.

• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.

3. Product Overview and Components

The Philips Airfryer Series 4000 NA460/00 features a compact vertical design with two independent cooking baskets. The intuitive digital control panel allows for easy operation and selection of various cooking functions.

Key Features:

• Space-Saving Design: Up to 45% less space compared to other Philips dual basket Airfryers.
• Dual 5L Baskets: Total 10L capacity for cooking different foods simultaneously.
• RapidAir Technology: Ensures even cooking and crispy results with up to 90% less fat.
• Sync Function: Automatically synchronizes cooking times for both baskets to finish together.
• 13 Cooking Modes: Air fry, bake, grill, roast, and more.
• 6 Preset Programs: For common dishes.
• Non-Stick Ceramic Coating: PFAS-free for healthier cooking and easy cleaning.
• Real-time Monitoring Windows: Observe cooking progress without opening baskets.

Image: The Philips Airfryer Series 4000 showing food cooking in both baskets.

4. Setup

Unpacking:

1. Carefully remove the Airfryer and all packaging materials from the box.
2. Remove any stickers or labels from the appliance.
3. Check that all parts are present and undamaged.

Before First Use:

1. Wipe the main unit with a damp cloth.
2. Clean the cooking baskets and crisper plates with hot water, dish soap, and a non-abrasive sponge. These parts are also dishwasher safe.
3. Dry all parts thoroughly.
4. Place the Airfryer on a stable, horizontal, and heat-resistant surface. Ensure there is at least 10 cm (4 inches) of free space behind and above the appliance for proper ventilation.

Image: The Philips Airfryer Series 4000 on a kitchen counter, illustrating its compact dimensions.

5. Operating Instructions

Powering On/Off:

Plug the power cord into a grounded wall outlet. The control panel will illuminate. Press the power button to turn the appliance on or off.

Setting Temperature and Time:

1. Select the desired basket (Basket 1 or Basket 2) if cooking separately.
2. Use the temperature control buttons (up/down arrows) to set the desired cooking temperature.
3. Use the time control buttons (up/down arrows) to set the desired cooking time.
4. Press the start/pause button to begin cooking.

Using Preset Programs:

The Airfryer comes with 6 preset programs for common dishes. To use a preset:

1. Press the preset button to cycle through the available programs.
2. Once the desired program is selected, the default temperature and time will be displayed.
3. You can adjust the temperature and time manually if needed.
4. Press the start/pause button to begin cooking.

Image: Close-up of the digital control panel, highlighting the 6 preset options.

Dual Basket Functionality (Sync & Copy):

• Sync Function: To ensure both baskets finish cooking at the same time, load both baskets with different foods and set their respective cooking parameters. Press the 'Sync' button. The Airfryer will automatically adjust the cooking time of the basket with the shorter duration to match the longer one, ensuring both are ready simultaneously.
• Copy Function: To duplicate the cooking settings from one basket to the other, set the desired temperature and time for one basket. Then, press the 'Copy' button to apply these settings to the second basket.

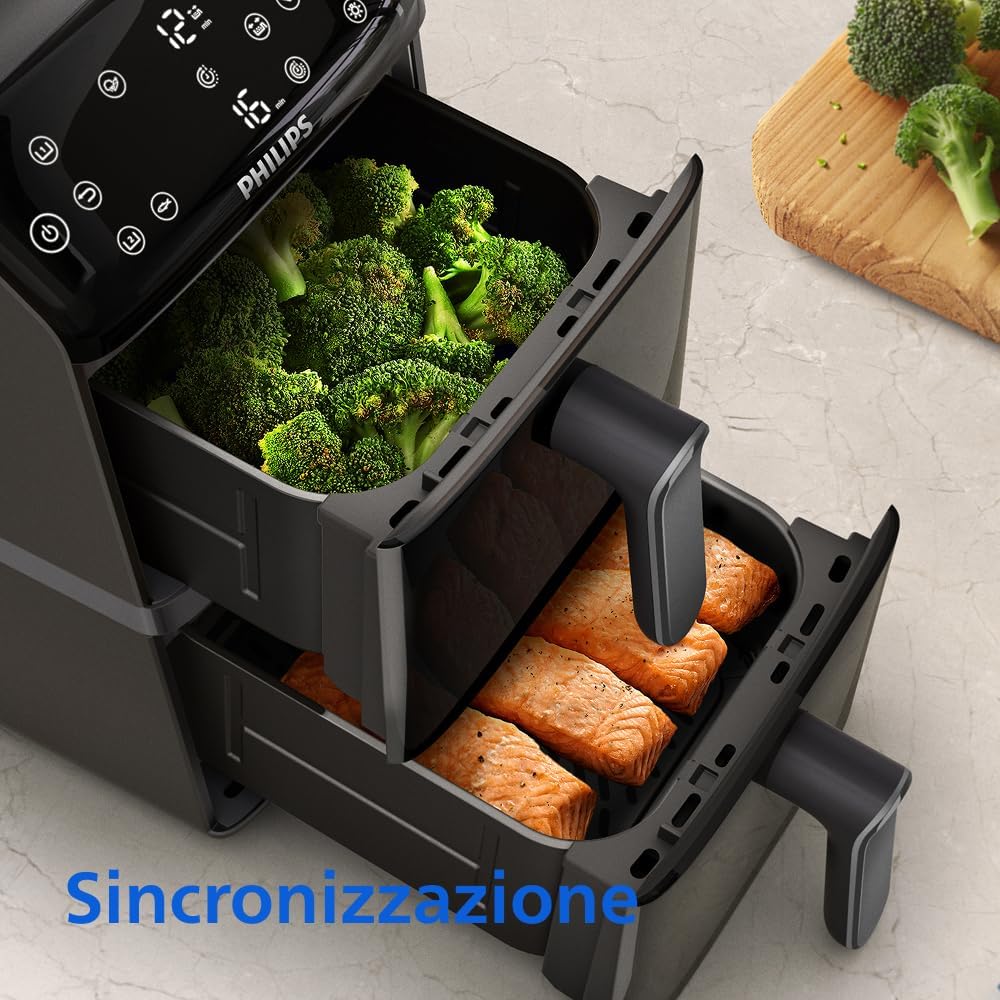

Image: The Philips Airfryer Series 4000 demonstrating synchronized cooking with different foods in each basket.

Monitoring Cooking & Shake Reminder:

• The transparent windows allow you to monitor the cooking progress without opening the baskets, preserving heat and cooking efficiency.
• For certain recipes, the Airfryer will emit an audible reminder to shake the basket. This ensures even browning and crispiness. Simply pull out the basket, shake the contents, and reinsert it to resume cooking.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your Airfryer.

Cleaning the Baskets and Crisper Plates:

1. Always unplug the Airfryer and allow it to cool completely before cleaning.
2. Remove the cooking baskets and crisper plates.
3. Wash them with hot water, dish soap, and a non-abrasive sponge. The ceramic non-stick coating is designed for easy cleaning.
4. Alternatively, the baskets and crisper plates are dishwasher safe.
5. For stubborn food residue, soak the baskets in hot water with dish soap for about 10 minutes before cleaning.

Cleaning the Main Unit:

1. Wipe the exterior of the Airfryer with a damp cloth. Do not use abrasive cleaners or scourers.
2. Clean the interior of the appliance with a damp cloth.
3. Never immerse the main unit in water or any other liquid.

Image: The removable baskets of the Philips Airfryer Series 4000 shown in a dishwasher, indicating ease of cleaning.

7. Troubleshooting

If you encounter issues with your Philips Airfryer, please refer to the following common problems and solutions:

For further assistance, please refer to the Philips support website or contact customer service.

8. Specifications

• Brand: Philips
• Model: NA460/00
• Color: Black
• Product Dimensions: 46.9 x 23.3 x 39.9 cm (Length x Width x Height)
• Capacity: 10 Liters (2 x 5L baskets)
• Wattage: 2750 watts
• Voltage: 240 Volts
• Material: Aluminum, Ceramic, Plastic
• Item Weight: 8.98 Kilograms
• Special Features: Sync Function, 13 cooking modes, RapidAir Technology, PFAS-free ceramic coating, Real-time monitoring windows.

9. Warranty and Support

Philips provides a manufacturer's warranty for this product. Please refer to the warranty card included in your product packaging or visit the official Philips website for detailed warranty terms and conditions specific to your region.

For technical support, spare parts, or service, please visit the Philips support page or contact their customer service directly. You can find contact information and FAQs on the official Philips website: www.philips.com/support
