1. Important Safety Information
Please read all instructions carefully before assembly and use. Retain this manual for future reference.
- Exercise caution around sharp edges during assembly to prevent injury.
- Do not exceed the maximum weight capacity of 1000 lbs. Overloading can cause structural damage and potential injury.
- Follow all assembly instructions precisely. Improper assembly can lead to instability and product failure.
- Ensure all connections are securely tightened before use. Periodically check and re-tighten fasteners.
- Keep small parts and packaging materials away from children to prevent choking hazards.
2. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact HITHOS customer support.
- 1 x Full Bed Frame
- 1 x Accessory Bag (containing hardware and tools)
- 1 x Installation Manual (this document)
- Headboard with integrated RGB LED light strips
- 2 x Storage Drawers
- Solid Wooden Slats
- 6 x Center Support Legs
Figure 2.1: Fully assembled HITHOS Full Upholstered LED Bed Frame with one storage drawer extended.
3. Assembly Instructions
Assembly typically requires two people and can be completed within 1-2 hours. Follow the detailed instructions provided in the accessory bag. The mattress is sold separately and is not included.
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches.
- Assemble Headboard: Attach the wingback sections to the main headboard panel. Ensure the LED light strips are correctly positioned and secured.
- Construct Side Rails: Connect the side rails to the headboard and footboard using the provided hardware. Do not fully tighten screws until all major components are aligned.
- Install Center Support Legs: Attach the 6 center support legs to the central beam of the bed frame. Adjust their height to ensure even support.
- Place Wooden Slats: Lay the 12 solid wooden slats across the bed frame. The EVA backing tape and plastic snap locks ensure a noiseless fit. Secure them according to the instructions.
- Assemble Storage Drawers: Follow the specific instructions for assembling the two large-capacity storage drawers. Ensure the wheels or glides are properly installed for smooth operation.
- Final Tightening: Once all components are in place and aligned, securely tighten all screws and fasteners. Do not overtighten.

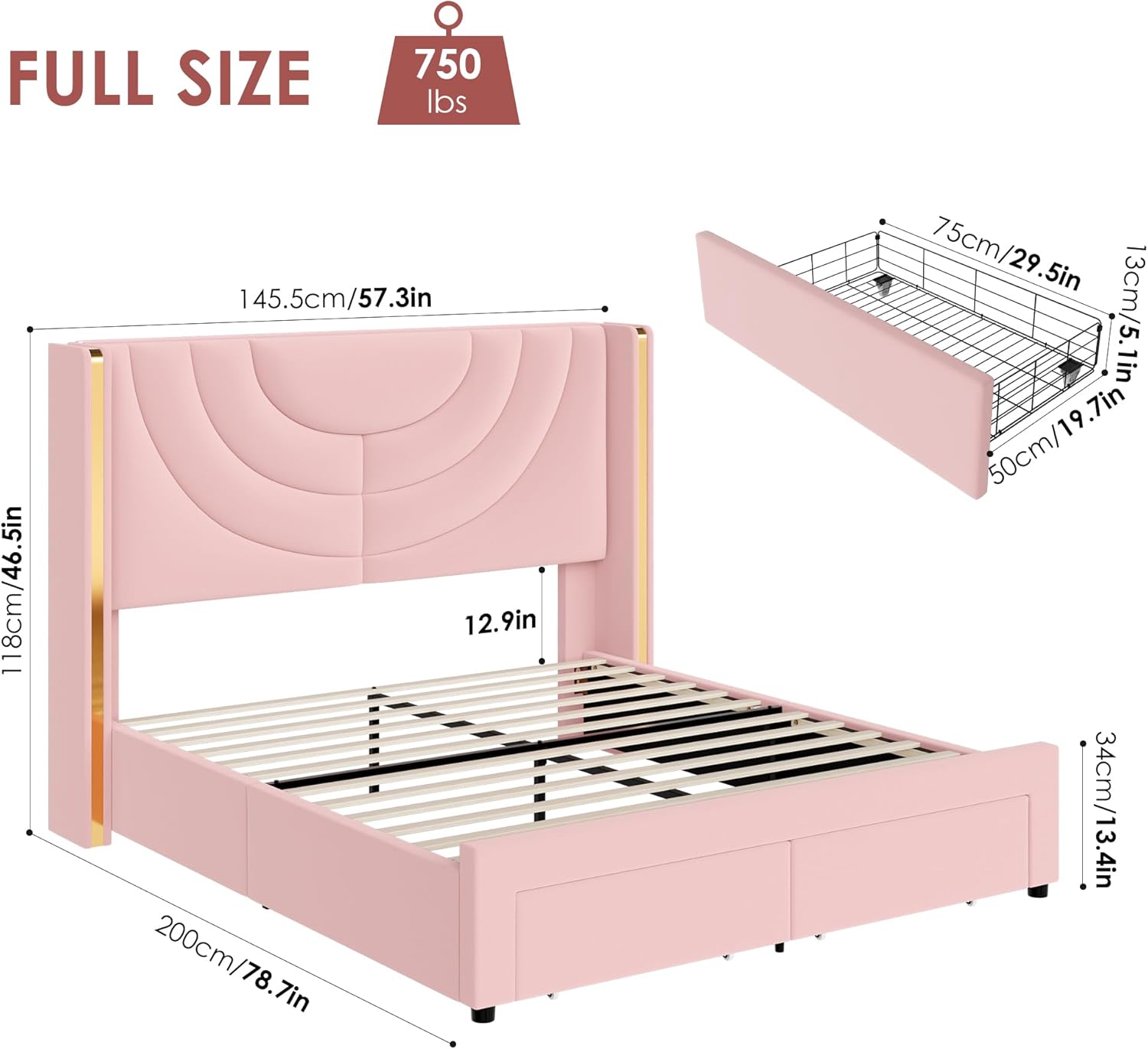

Figure 3.1: Full size bed frame dimensions and drawer dimensions.
Figure 3.2: Detail of the headboard construction, highlighting foam padding, wingback, and metal trim.
4. Operating Instructions
4.1. LED Lighting System
The headboard features integrated RGB LED light strips. These lights can be controlled via a dedicated remote control or a smartphone application.
- Power On/Off: Use the power button on the remote or within the app to turn the lights on or off.
- Color Selection: Choose from multiple colors and lighting effects using the remote or app.
- Brightness Adjustment: Adjust the brightness level to suit your preference.
- Timing Function: Set timers for the lights to automatically turn on or off.
- Music Sync/Flash Mode: Some modes allow the lights to react to music or flash in patterns.
- App Control: Download the recommended app (details in the accessory bag) to unlock advanced control features.
Figure 4.1: LED light control options via remote and smartphone app.
Figure 4.2: Visual representation of LED lighting effect in day and night settings.
4.2. Storage Drawers
The bed frame includes two integrated storage drawers located at the footboard for convenient storage.
- Opening/Closing: Gently pull the drawer handle to open. Push firmly to close until it is flush with the bed frame.
- Capacity: Utilize the drawers for storing linens, blankets, clothing, or other bedroom essentials.
- Maintenance: Keep the drawer tracks clean and free of obstructions for smooth operation.
Figure 4.3: Example of items stored within the bed frame's drawer.
5. Maintenance
- Upholstery Care: For velvet upholstery, gently vacuum with a brush attachment to remove dust. Spot clean with a damp cloth and mild detergent for spills, blotting gently. Avoid harsh chemicals.
- Frame Cleaning: Wipe the bed frame and metal accents with a soft, dry cloth.
- LED Lights: Ensure the LED strips are free from dust. Do not attempt to disassemble the LED components.
- Hardware Check: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten as necessary to maintain stability.
- Drawer Tracks: Keep drawer tracks clear of debris to ensure smooth operation.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or noisy. | Loose fasteners; uneven support legs; slats not properly seated. | Ensure all screws are tightened. Adjust center support legs for even contact with the floor. Verify all wooden slats are correctly placed and secured by the plastic snap locks. |
| LED lights are not working. | Power connection issue; remote control battery dead; app not connected. | Check power cable connection. Replace remote control batteries. Ensure Bluetooth/Wi-Fi connection for app control is active. |
| Storage drawers are difficult to open/close. | Obstruction in tracks; drawer not assembled correctly; overloaded. | Clear any debris from the drawer tracks. Re-check drawer assembly. Reduce load if overloaded. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | HITHOS |
| Model Number | led bed frame |
| Size | Full |
| Product Dimensions | 79"L x 42.5"W x 46.5"H |
| Weight Capacity | 1000 lbs |
| Color | Pink |
| Material | Velvet, Wood, Metal |
| Special Features | LED Lighting, No Box Spring Needed, 2 Storage Drawers, Upholstered Wingback Headboard |
| Assembly Required | Yes |
| Item Weight | 118 pounds |
8. Warranty and Support
For warranty information, please refer to the documentation included with your purchase or contact HITHOS customer service directly. If you encounter any issues or have questions regarding your HITHOS Full Upholstered LED Bed Frame, please reach out to the manufacturer for assistance.
You can often find contact information on the product packaging or the official HITHOS website.
