WINDHORSE Electric Bike Model W3 User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your WINDHORSE Electric Bike Model W3. Please read this manual thoroughly before your first ride and retain it for future reference.

Image 1.1: The WINDHORSE Electric Bike Model W3, a compact e-bike with a rear basket and dual suspension.

2. Safety Information

Always prioritize safety when operating your electric bike. Adhere to all local laws and regulations regarding electric bicycle use. Wear a helmet and appropriate safety gear. Ensure the bike is in good working condition before each ride.

• Age Recommendation: Suitable for individuals aged 14 and above.
• Weight Limit: Do not exceed the maximum load capacity of 330 lbs (150 kg).
• Weather Conditions: Avoid riding in heavy rain or extreme weather to prevent damage to electrical components and ensure rider safety.
• Speed Limits: Be aware of and comply with local speed regulations. The default factory speed setting is 15.5 MPH. Adjusting the top speed should only be done in accordance with local laws.

3. Setup and Assembly

Your WINDHORSE W3 Electric Bike comes largely pre-assembled. Follow these steps for final assembly and initial preparation:

1. Unpacking: Carefully remove all components from the packaging. Verify all included items are present: bike frame, basket, pedals, charger (adapter and AC line), tool kit, reflectors, and user manual.
2. Pedal Installation: Identify the left (L) and right (R) pedals. Thread the pedals into the crank arms. The left pedal threads counter-clockwise, and the right pedal threads clockwise. Tighten securely with the provided tool.
3. Seat Adjustment: Adjust the seat height to a comfortable and safe riding position. Ensure your feet can touch the ground when stopped. The seat is height-adjustable to accommodate various rider heights.
4. Handlebar Adjustment: The handlebar is foldable. Ensure it is securely locked in the upright position before riding.
5. Basket Attachment: Attach the rear basket to the designated mounting points above the rear wheel. Ensure it is securely fastened.
6. Initial Battery Charge: Before your first ride, fully charge the battery. Connect the charger to the bike's charging port and then to a power outlet. Charging typically takes 4-5 hours. The battery is UL 2849 certified.

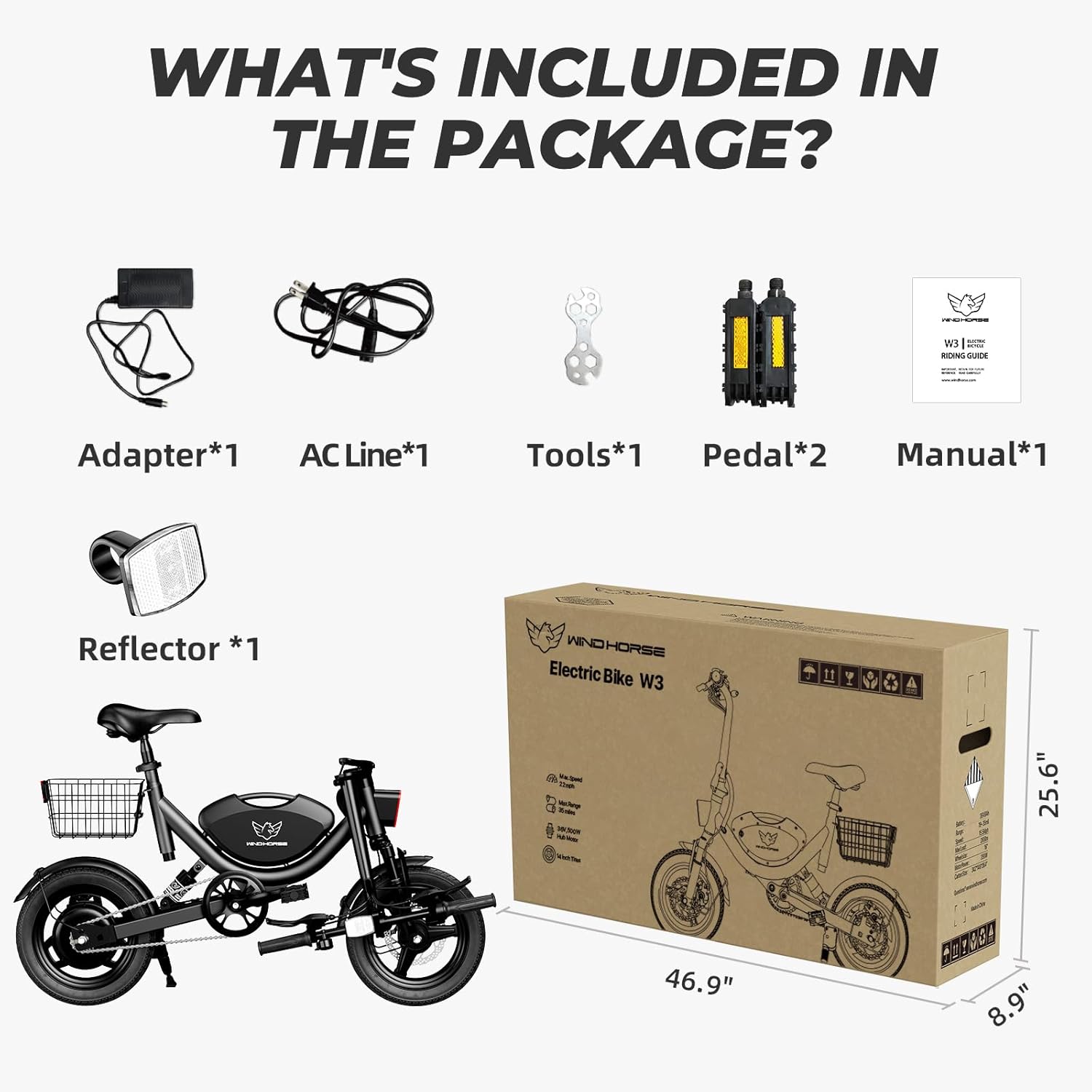

Image 3.1: Contents included in the WINDHORSE Electric Bike W3 package: adapter, AC line, tools, pedals, manual, reflector, and the bike itself.

Image 3.2: A person demonstrating the height-adjustable seat feature of the WINDHORSE W3 electric bike.

4. Operating Instructions

Familiarize yourself with the controls and functions of your electric bike before riding.

4.1 Powering On/Off

Insert the key into the ignition. Turn the key to the 'ON' position to activate the electric system. Turn the key to the 'OFF' position to power down the bike. The bike can also be ridden as a traditional bicycle when powered off.

4.2 Riding Modes

The WINDHORSE W3 offers two primary riding modes:

• Pedal-Assist System (PAS) Mode: When the bike is powered on and you begin pedaling, the motor will provide assistance, making pedaling easier. The level of assistance may be adjustable via the display.
• Electric-Only Mode (Throttle): Engage the throttle to propel the bike without pedaling. This mode provides full motor power up to the set speed limit.

You can also pedal and use the throttle simultaneously for an additional boost.

4.3 Lighting System

To activate the headlight, turn the key twice to the far right. The bike is also equipped with a rear reflector for enhanced visibility. Ensure lights are functional for nighttime riding.

Image 4.1: Illustration of the safety lights system, showing the bright front headlight and rear reflector for visibility.

4.4 Braking

The bike features dual disc brakes for reliable stopping power. Apply both front and rear brakes smoothly and evenly to maintain control. Test brakes before each ride.

Image 4.2: Close-up view of the front and rear disc brake design on the WINDHORSE electric bike, highlighting strong braking ability.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your electric bike.

• Battery Care: Charge the battery regularly, even if not in use, to maintain its health. Avoid completely draining the battery. Do not expose the battery to water or extreme temperatures.
• Tire Pressure: Check tire pressure before each ride. Maintain recommended pressure for optimal performance and safety.
• Brake Inspection: Regularly inspect brake pads and discs for wear. Ensure brake levers operate smoothly and provide adequate stopping power. Adjust or replace components as needed.
• General Cleaning: Keep the bike clean. Use a damp cloth to wipe down the frame and components. Avoid using high-pressure washers directly on electrical parts.
• Fastener Checks: Periodically check all bolts and fasteners for tightness, especially on critical components like handlebars, seat post, wheels, and brakes.

6. Troubleshooting

This section addresses common issues you might encounter. For problems not listed here, please contact customer support.

7. Specifications

Detailed technical specifications for the WINDHORSE Electric Bike Model W3:

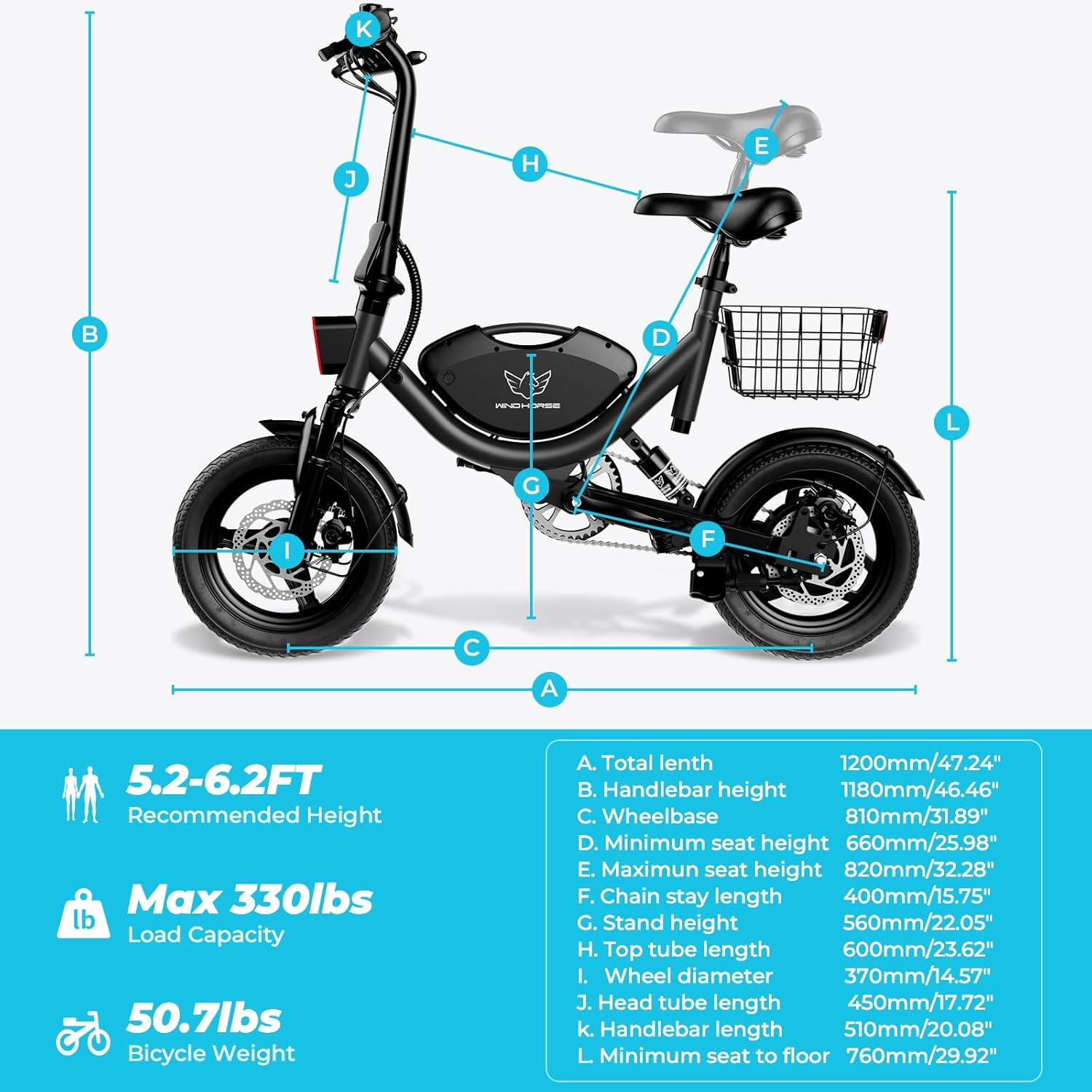

Image 7.1: Diagram illustrating the dimensions and key specifications of the WINDHORSE W3 electric bike, including recommended height and load capacity.

8. Warranty

The WINDHORSE Electric Bike Model W3 comes with a limited warranty. Please refer to the warranty card included in your package or contact customer support for specific terms and conditions.

9. Customer Support

For any questions, technical assistance, or warranty claims, please contact WINDHORSE customer support:

• Website: www.windhorse.com
• Email: SUPPORT@WINDHORSE.COM
• Service Availability: 24 hours after-sale support.

Image 9.1: Contact information for WINDHORSE customer service, including website, email, and a QR code for direct contact.
