Synoshi PRO Electric Spin Scrubber and Cone Brush Heads User Manual

Introduction

Thank you for choosing the Synoshi PRO Electric Spin Scrubber with Cone Brush Heads. This device is designed to simplify your cleaning tasks, offering efficient scrubbing for various surfaces. Please read this manual thoroughly before first use to ensure proper operation, maintenance, and safety.

Figure 1: Synoshi PRO Electric Spin Scrubber with Cone Brush Heads. The main unit is grey with a red power button, shown with a red cone brush attached and a white cone brush head separately.

Safety Information

• Read all instructions before using the appliance.
• Keep the appliance away from children.
• Do not immerse the main unit in water beyond its IPX5 rating. Avoid direct high-pressure water jets on charging port.
• Use only the provided charging cable and adapter.
• Do not operate the scrubber if it is damaged or malfunctioning.
• Ensure brush heads are securely attached before operation.
• Avoid contact with moving parts during operation.
• Store in a dry place when not in use.

Package Contents

Verify that all items are present in your package:

• Synoshi PRO Electric Spin Scrubber Main Unit
• Cone Brush Heads (2 Units)
• USB-C Charging Cable
• User Manual (this document)

Product Overview

The Synoshi PRO features a robust design for effective cleaning. Key components include:

• Main Unit: Contains the motor, battery, control buttons, and adjustable angle mechanism.
• Cone Brush Heads: Tapered brushes designed for reaching deep corners, tight gaps, and around fixtures. Two units are included, often in different colors to distinguish cleaning tasks.
• USB-C Charging Port: Located on the main unit for convenient recharging.

Figure 2: Key features of the Synoshi PRO, highlighting its long-lasting battery, two-speed motor, USB-C charging, and ergonomic design.

Figure 3: The adjustable handle of the Synoshi PRO, illustrating the 0°, 36°, and 72° lockable angles for versatile cleaning.

Setup

1. Charging the Device

1. Locate the USB-C charging port on the main unit.
2. Connect the provided USB-C cable to the scrubber and plug the other end into a compatible USB power adapter (not included).
3. The indicator light will show charging status. A full charge takes approximately 3.5 hours and provides up to 3 hours of continuous use.

2. Attaching Brush Heads

1. Align the cone brush head with the rotating base of the main unit.
2. Press firmly and twist clockwise until it clicks securely into place.
3. To remove, twist counter-clockwise and pull off.

Operating Instructions

1. Power On/Off and Speed Selection

• Press the power button once to turn on the scrubber at the low-speed setting.
• Press the power button a second time to switch to the high-speed setting (up to 14100 RPH).
• Press the power button a third time to turn off the device.

2. Adjusting the Angle

The Synoshi PRO features an adjustable handle with three lockable angles to reach various cleaning areas:

• 0° (Straight): Ideal for general scrubbing on flat surfaces.
• 36° (Angled): Suitable for reaching under fixtures or into slightly awkward spaces.
• 72° (Sharply Angled): Perfect for deep corners, behind toilets, or under sinks.

To adjust, press the angle release button (if present, or simply adjust the hinge) and move the handle to the desired position until it locks.

3. Cleaning Application

• Apply a suitable cleaning solution to the surface or directly to the brush head.
• Turn on the scrubber and select the desired speed.
• Gently guide the rotating brush over the surface to be cleaned. Do not apply excessive pressure; let the spin action do the work.
• The cone brush heads are particularly effective for:
  • Kitchen surfaces and corners
  • Bathroom tiles and grout lines
  • Floor crevices and edges
  • Window tracks and around appliances

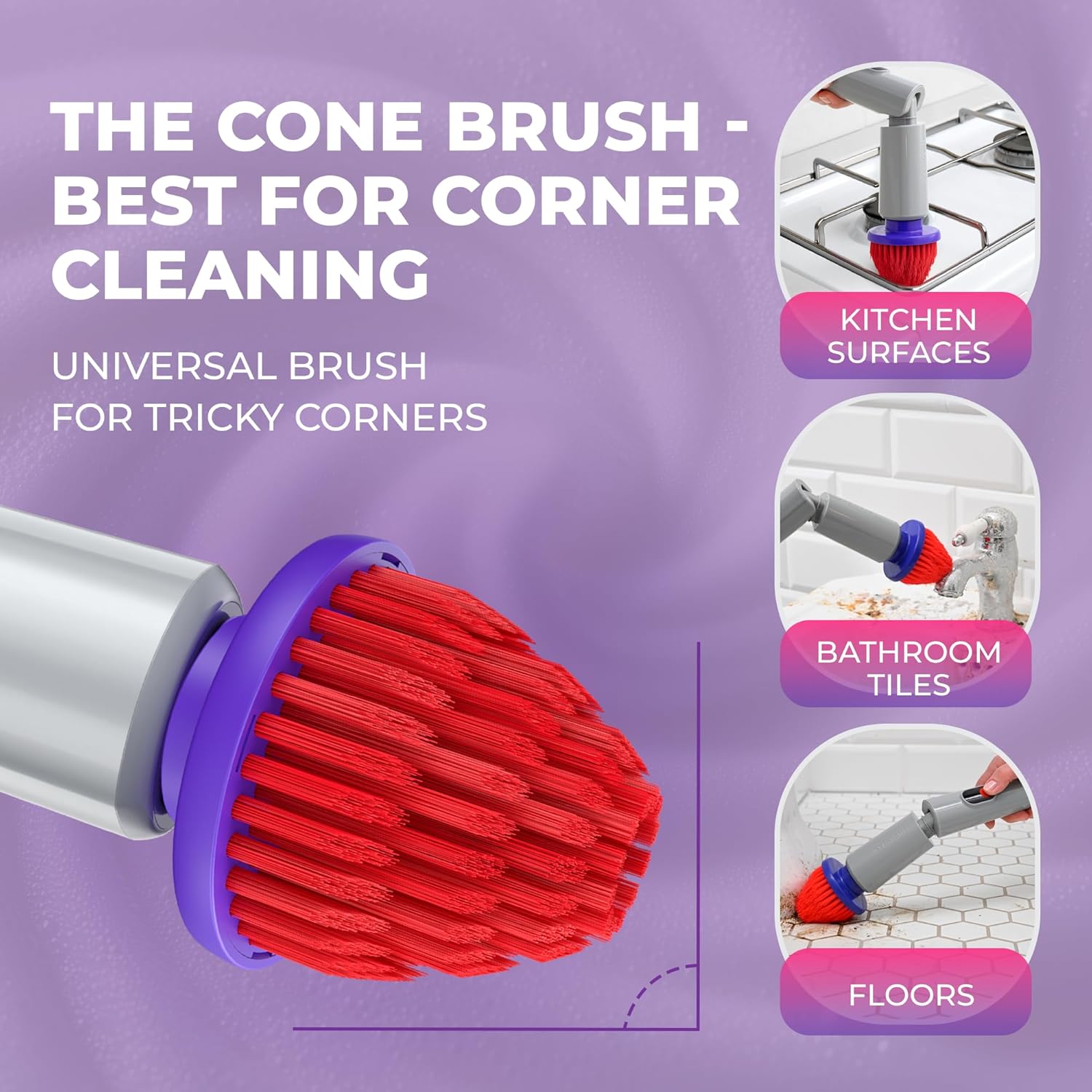

Figure 4: The cone brush head effectively cleaning various surfaces, including kitchen stovetops, bathroom tiles, and floor grout.

Maintenance

1. Cleaning the Scrubber

• After each use, wipe the main unit with a damp cloth.
• The device is IPX5 water-resistant, meaning it can withstand splashes and light water jets. Do not submerge the entire unit.
• Ensure the charging port cover is securely closed during cleaning to prevent water ingress.

Figure 5: The Synoshi PRO features an IPX5 waterproof design, allowing for confident cleaning in wet environments.

2. Cleaning Brush Heads

• Remove the brush head from the main unit.
• Rinse the brush head under running water to remove dirt and debris.
• For stubborn residue, use a mild soap and water solution.
• Allow brush heads to air dry completely before storing or reattaching.

3. Storage

Store the Synoshi PRO and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures.

Troubleshooting

If you encounter issues with your Synoshi PRO, refer to the following common problems and solutions:

• Device does not turn on:
  • Ensure the device is fully charged.
  • Check if the power button is pressed correctly.
• Brush head does not spin or spins slowly:
  • Verify the brush head is securely attached.
  • Check battery level and recharge if necessary.
  • Ensure no debris is obstructing the brush's rotation.
• Reduced cleaning performance:
  • Clean the brush head thoroughly.
  • Consider replacing worn-out brush heads.
  • Ensure sufficient cleaning solution is used.

If the problem persists, please contact customer support.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official SYNOSHI website. Keep your proof of purchase for warranty claims.
