1. Safety Information
Read all instructions carefully before installation and operation. Failure to follow these instructions can result in serious injury or death. Always disconnect power to the pump before performing any maintenance or service. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Ensure the pump is installed on a solid, level surface.
- Do not operate the pump if the power cord or plug is damaged.
- Keep children and pets away from the pump during operation.
- Never run the pump dry. Ensure it is filled with water before starting.
- Always turn off the pump and disconnect from power before changing the multi-port valve position or performing any maintenance.
2. Product Overview
The FOTING 1HP 4500GPH 16-inch Sand Filter Pump is designed for efficient filtration of above-ground pools up to 18,000 gallons. It features a powerful 1HP motor, a 7-function multi-port valve for versatile operation, and a built-in 24-hour timer for automated filtration cycles. The system includes a strain basket to capture larger debris and is constructed with durable, corrosion-resistant materials.

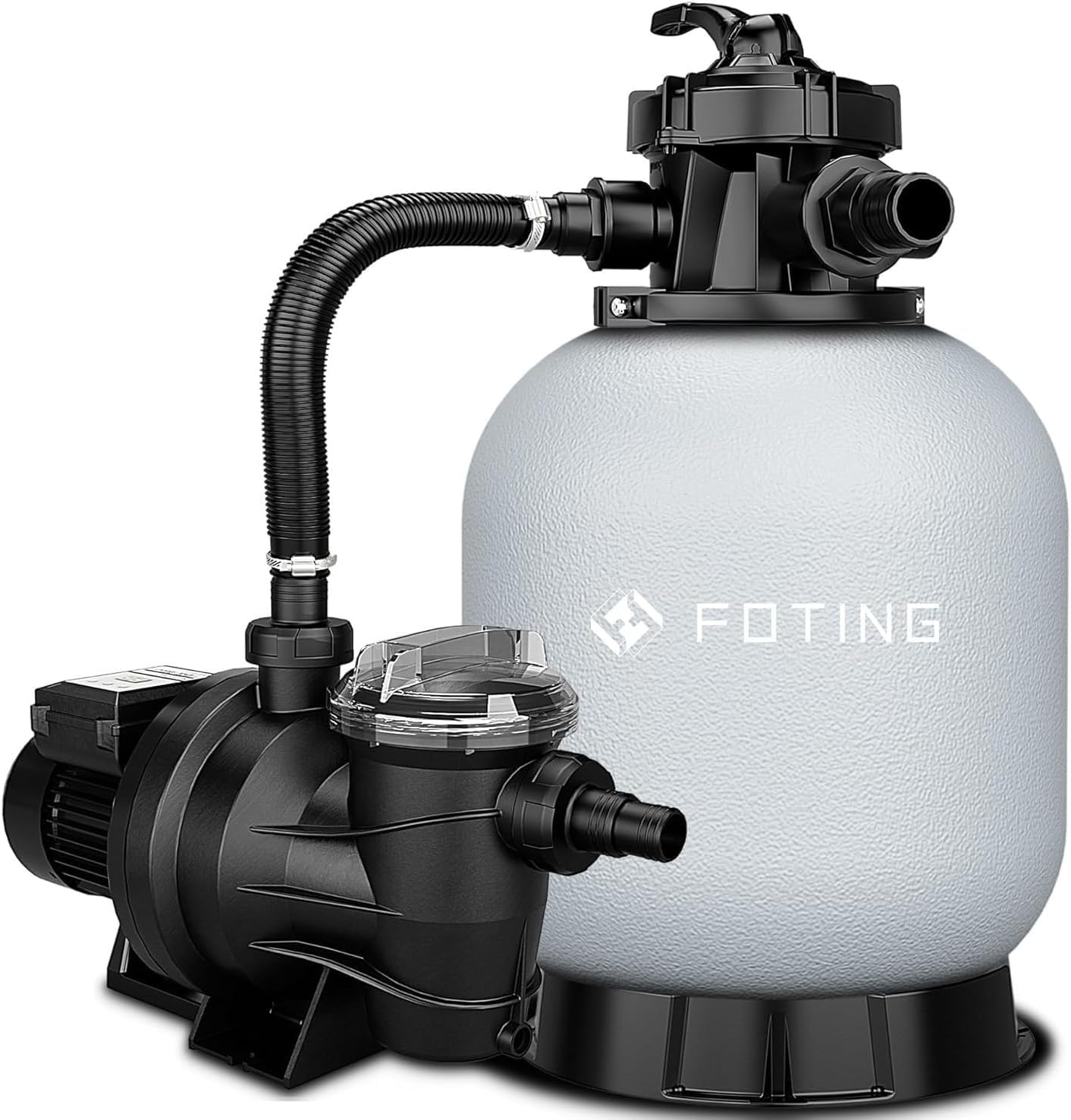

Image: The FOTING 1HP 4500GPH 16-inch Sand Filter Pump system, including the pump, filter tank, and multi-port valve.
3. Setup Instructions
3.1 Assembly
The sand filter pump comes pre-assembled with the pump, filter tank, multi-port valve, and pressure gauge. Ensure all connections are secure before proceeding.
3.2 Hose Connections
The sand filter pump connects easily to 1.5-inch or 1.25-inch hose fittings using the provided 2-in-1 hose adapters. Secure all hose connections with clamps to prevent leaks.
Image: Illustration showing the 1-1/4 inch and 1-1/2 inch hose adapters and how they connect to the pump for various hose sizes.
3.3 Filling the Pump with Water
Before initial use, or after any maintenance that drains the pump, it is crucial to fill the pump with water. Open the filter basket lid and pour water into the pump until it is full. This primes the pump and prevents dry running, which can cause damage.
Video: This video demonstrates the initial setup and operation of the sand filter pump, including filling the pump with water and setting the timer. It shows the pump in action, circulating water in a pool.
4. Operating Instructions
4.1 Multi-Port Valve Functions
The 7-way multi-port valve allows for various operational modes. Always turn off the pump and disconnect power before changing the valve position to prevent damage to the valve and pump.
Image: Diagram illustrating the seven functions of the multi-port valve: Filter, Backwash, Rinse, Recirculate, Waste, Closed, and Winter.
- 1. FILTER: Standard operation for cleaning pool water through the sand media.
- 2. BACKWASH: Reverses water flow to clean the filter sand. Perform when pressure gauge reads high.
- 3. RINSE: Clears debris from the filter after backwashing.
- 4. WASTE: Removes pool water directly, bypassing the filter. Useful for vacuuming heavy debris or lowering water level.
- 5. CLOSED: Stops water flow to the filter. Never use while the pump is running.
- 6. RECIRCULATE: Mixes pool water without filtering.
- 7. WINTER: Position for winterizing the filter to prevent freezing.
4.2 24-Hour Smart Timer
The built-in timer allows for automated filtration cycles, optimizing energy use and maintaining water clarity.
Image: Close-up of the 24-hour smart timer display, showing controls for continuous and single cycle modes.
- Continuous Cycle Mode: The pump will automatically turn on/off daily according to your set schedule.
- Single Cycle Mode: Customize a single filtration operation duration.
Refer to the detailed timer setting instructions in the separate timer manual for specific programming steps.
5. Maintenance
5.1 Detachable Strain Basket
The pump features a detachable strain basket designed to capture larger debris like leaves and hair before they reach the filter. Regularly inspect and clean the basket to ensure optimal pump performance.
Image: A close-up view of the detachable strain basket, showing captured leaves and debris, highlighting its easy-to-clean design.
5.2 Filter Media
This sand filter pump is compatible with both filter sand and filter balls for effective water purification. Choose the media that best suits your needs.
Image: An illustration showing the inside of a filter tank, with one side filled with filter sand and the other with filter balls, demonstrating the dual media compatibility.
Regular backwashing and rinsing (as described in Section 4.1) are essential to maintain the cleanliness and efficiency of your filter media. Replace filter sand every 3-5 years, or filter balls as recommended by their manufacturer, or when filtration efficiency decreases.
6. Troubleshooting
If you encounter issues with your FOTING Sand Filter Pump, consult the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump not starting | No power, clogged impeller, motor issue | Check power connection, clear impeller, contact support |
| Low water flow | Clogged strain basket, dirty filter media, air leak in suction line | Clean basket, backwash/rinse filter, check hose connections |
| Cloudy pool water | Insufficient filtration time, dirty filter media, improper chemical balance | Increase filtration time, backwash/rinse filter, test and adjust pool chemicals |
| Water leaking from pump/filter | Loose connections, damaged O-rings/gaskets | Tighten connections, inspect and replace O-rings/gaskets |
If the problem persists after attempting these solutions, please contact FOTING customer support.
7. Specifications
Key technical specifications for the FOTING 1HP 4500GPH 16-inch Sand Filter Pump:
- Brand: FOTING
- Model Number: FT-CLP8005AF-16in
- Horsepower: 1 HP
- Maximum Flow Rate: 4500 GPH (75 Gallons Per Minute)
- Voltage: 115 Volts
- Power Source: Corded Electric
- Material: Plastic
- Product Style: Sand Filter Pump
- Included Components: 16in Sand Filter Pump
- Compatibility: Above-ground pools up to 18,000 gallons
Image: A table providing pool selection tips, correlating tank size, maximum recommended pool size, max flow rate, and sand capacity for various FOTING sand filter pump models.
8. Warranty and Support
The FOTING 1HP 4500GPH 16-inch Sand Filter Pump comes with a 3-year manufacturer's warranty. For warranty claims, technical assistance, or any questions not covered in this manual, please contact FOTING customer support through the retailer where the product was purchased or visit the official FOTING website for contact information.
