HUACOCARE Kids Water Flosser and Electric Toothbrush Combo (Model H1&C1) Instruction Manual

1. Introduction and Overview

The HUACOCARE Kids Water Flosser and Electric Toothbrush Combo is an all-in-one oral care solution designed to make dental hygiene fun and effective for children aged 6-12. This kit combines a gentle giraffe-themed water flosser with a powerful monkey-themed sonic toothbrush, aiming to establish healthy brushing and flossing habits early on. The system is particularly beneficial for children with braces, offering specialized cleaning modes and tips.

Image: The HUACOCARE Kids Water Flosser and Electric Toothbrush Combo, showcasing both devices with their distinct animal designs, ready for use.

Key Features:

• 2-in-1 Oral Care: Combines a water flosser and an electric toothbrush for comprehensive cleaning.
• Kid-Friendly Design: Adorable giraffe water flosser and monkey sonic toothbrush encourage engagement.
• Effective Plaque Removal: Removes up to 10x more plaque than brushing alone.
• Multiple Modes: 3 gentle water flosser modes and 2 sonic brushing modes to suit various needs.
• Braces-Friendly: Specialized modes and nozzles for effective cleaning around orthodontic appliances.
• Cordless & Rechargeable: Both devices are USB rechargeable for convenience at home or while traveling.
• Waterproof Design: IPX7 waterproof rating ensures safe use in the shower and easy cleaning.

2. Product Components

Your HUACOCARE Kids Water Flosser and Electric Toothbrush Combo includes the following items:

• 1 x Giraffe Water Flosser
• 1 x Monkey Sonic Electric Toothbrush
• 6 x Electric Toothbrush Brush Heads
• 4 x Water Flosser Tips (various types for different needs)
• 1 x USB Charging Cable
• 1 x User Manual

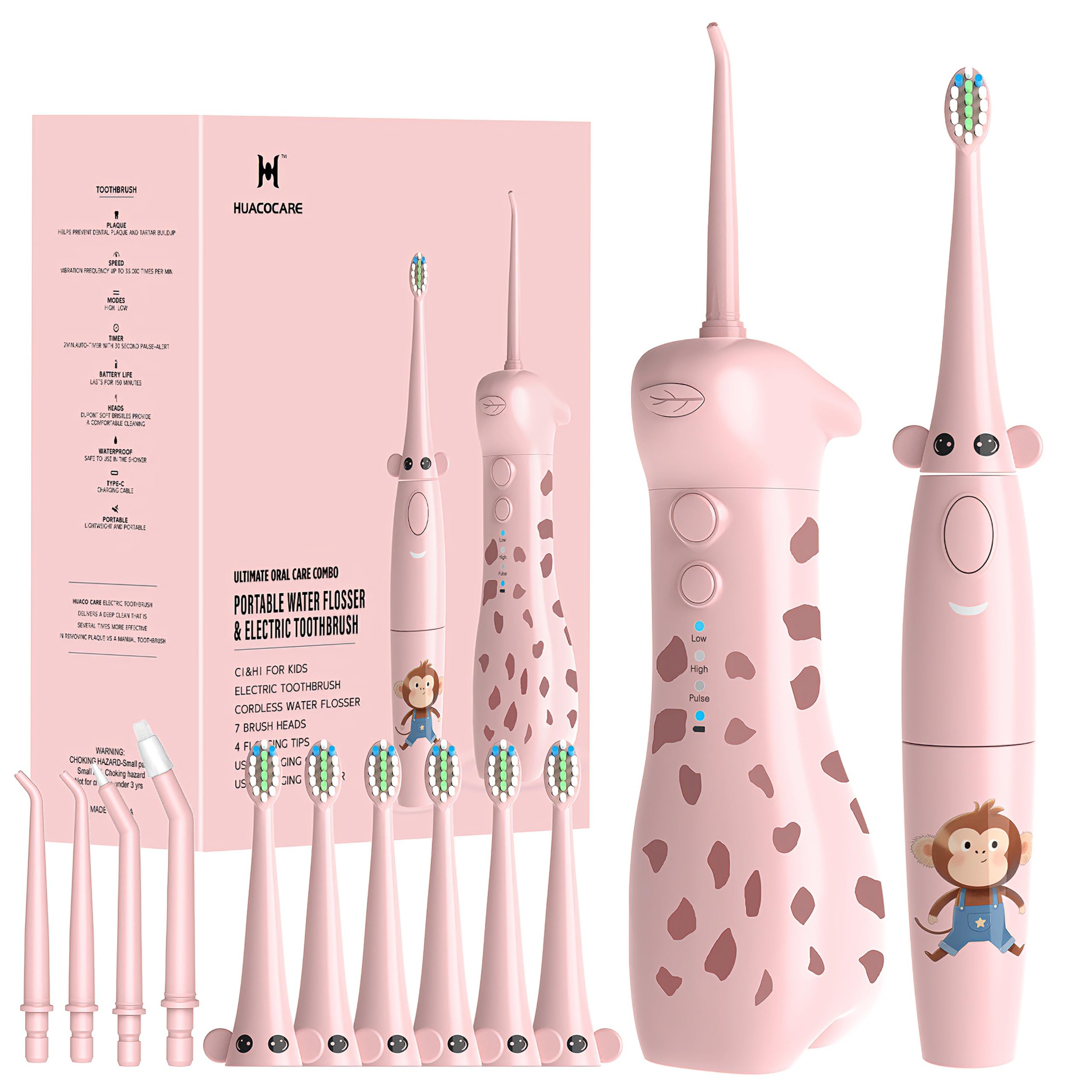

Image: A comprehensive view of all items included in the HUACOCARE Kids Oral Care Combo, including the main devices, multiple brush heads, flosser tips, and charging accessories.

3. Setup Instructions

3.1 Initial Charging

Before first use, fully charge both the Water Flosser and Electric Toothbrush. Connect the USB charging cable to each device and a compatible USB power adapter. The indicator lights will show charging status and turn solid when fully charged.

3.2 Attaching Brush Heads / Flossing Tips

• Electric Toothbrush: Align the brush head with the metal shaft on the toothbrush handle and push down firmly until it clicks into place.
• Water Flosser: Insert the desired flossing tip into the opening at the top of the water flosser handle. Push down until it locks securely. To remove, press the release button on the side of the flosser and pull the tip out.

3.3 Filling the Water Flosser

Open the water tank cover located at the bottom of the water flosser. Fill the 155ml tank with lukewarm water. Close the cover securely to prevent leaks.

Image: The HUACOCARE Kids Water Flosser with its various tips, illustrating the different options for cleaning.

4. Operating Instructions

4.1 Electric Toothbrush Operation

The sonic toothbrush features 35,000 micro-vibrations per minute for a thorough clean. It includes 2 customized brushing modes:

• Clean Mode: For daily comprehensive cleaning.
• Sensitive Mode: Gentle cleaning for sensitive teeth and gums.

To operate:

1. Apply a small amount of toothpaste to the brush head.
2. Place the brush head in your mouth before turning it on.
3. Press the power button to turn on the toothbrush. Press again to cycle through modes.
4. Brush all surfaces of your teeth. The built-in 2-minute timer with 30-second interval pulses will guide your child to brush each quadrant of their mouth evenly.
5. After 2 minutes, the toothbrush will automatically turn off.

Image: The HUACOCARE Kids Electric Toothbrush emphasizing its 2-minute smart timer feature for optimal brushing duration.

4.2 Water Flosser Operation

The water flosser offers three kid-safe pressure modes:

• LOW (Gentle): Ideal for beginners and sensitive gums.
• PULSE (Massage): Provides a refreshing gum massage.
• HIGH (Effective): For thorough cleaning, especially around braces.

To operate:

1. Fill the water tank with lukewarm water.
2. Select and attach the desired flossing tip.
3. Place the tip in your mouth, aiming it at the gumline.
4. Press the power button to turn on the flosser. Press the mode button to cycle through the pressure settings.
5. Guide the water stream along the gumline and between teeth.
6. Turn off the device when finished.

Image: The HUACOCARE Kids Water Flosser displaying its three distinct modes: Low for beginners, Pulse for gum massage, and High for effective cleaning around braces.

5. Maintenance and Care

Both the water flosser and electric toothbrush have an IPX7 waterproof rating, making them safe for use in the shower and easy to clean.

• Cleaning: After each use, rinse the brush head and flossing tip under running water. Wipe the device handles with a soft, damp cloth.
• Water Flosser Tank: Empty any remaining water from the tank after each use to prevent bacterial growth.
• Storage: Store devices in a dry, cool place away from direct sunlight.
• Replacing Brush Heads/Flossing Tips: Replace brush heads every 3 months or sooner if bristles are frayed. Flossing tips should be replaced as needed, typically every 3-6 months.

6. Troubleshooting

If you encounter any issues with your HUACOCARE Kids Water Flosser and Electric Toothbrush Combo, please refer to the following common solutions:

• Device not turning on: Ensure the device is fully charged. If the issue persists, try using a different USB charging port or cable.
• Weak water pressure (Water Flosser): Check if the water tank is sufficiently filled. Ensure the flossing tip is securely attached and not clogged.
• Reduced brushing effectiveness (Electric Toothbrush): Replace the brush head if it is old or worn. Ensure the brush head is securely attached.
• Water leakage: Verify that the water tank cover is tightly closed and the flossing tip is correctly inserted and locked.

If these steps do not resolve the issue, please contact HUACO CARE customer support for further assistance.

7. Specifications

8. Warranty and Support

The HUACOCARE Kids Water Flosser and Electric Toothbrush Combo is backed by a reliable 2-Year Warranty, ensuring peace of mind for parents.

For any product inquiries, technical support, or warranty claims, please contact HUACO CARE customer service. Refer to the product packaging or the official HUACO CARE website for the most up-to-date contact information.

Manufacturer: HUACO CARE
