Polibi S00215 Queen Over Twin Bunk Bed

Introduction

Thank you for choosing the Polibi S00215 Queen Over Twin Bunk Bed. This versatile furniture piece is designed to maximize space and functionality, featuring a queen-sized upper bed, a dismountable twin lower bed, a built-in desk, wardrobe, and shelves. This manual provides essential information for safe assembly, proper use, and maintenance of your new bunk bed.

Please read these instructions carefully before beginning assembly and retain them for future reference. Ensure all components are present and undamaged before proceeding.

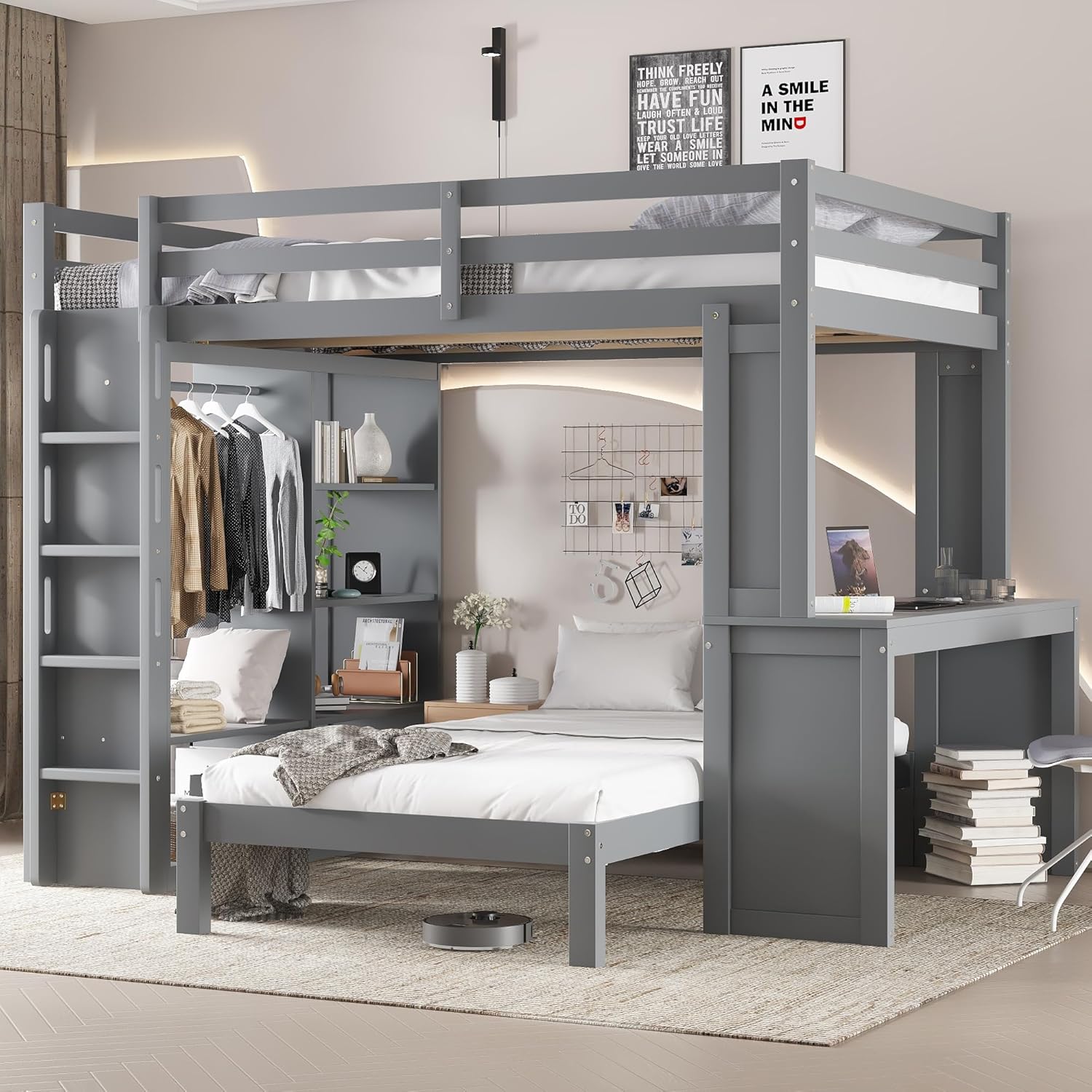

Figure 1: Polibi S00215 Queen Over Twin Bunk Bed (Grey)

Important Safety Information

• Weight Capacity: The upper bed has a maximum weight capacity of 500 lbs. Do not exceed this limit.
• Guardrails: Always use the provided guardrails on the upper bunk. Ensure they are securely fastened.
• Mattress Size: Use only mattresses that comply with the recommended dimensions for each bed.
• Ladder Safety: Always use the ladder for accessing the upper bunk. Do not jump on or off the bunk bed.
• Assembly: Assembly should be performed by at least two adults. Ensure all bolts and fasteners are tightened securely before use. Periodically check and retighten fasteners.
• Ventilation: Ensure adequate ventilation around the bed, especially if placed against a wall.
• Children: The upper bunk is not suitable for children under 6 years of age.
• Flammability: Keep the bed away from open flames or other heat sources.

Included Components and Hardware

Before assembly, verify that all parts listed in the packaging are present and undamaged. Refer to the assembly diagram for visual identification of parts.

(Note: A detailed list of specific hardware and wood components would typically be provided here, often with corresponding letters/numbers for identification. For this exercise, we will generalize.)

• Upper Queen Bed Frame components
• Lower Twin Bed Frame components
• Built-in Desk components
• Built-in Wardrobe and Shelf components
• Ladder components
• Slats for both beds
• All necessary bolts, screws, and connectors
• Assembly tools (e.g., Allen wrench)

Setup and Assembly

Assembly requires two adults. Clear a spacious area for assembly. Follow the steps below in sequence. Do not fully tighten bolts until instructed.

Step 1: Assemble the Lower Twin Bed Frame

1. Unpack all components for the lower twin bed.
2. Attach the side rails to the headboard and footboard using the specified hardware.
3. Insert the bed slats into the designated slots or attach them with screws.
4. Ensure all connections are snug but do not overtighten.

Figure 2: Lower Twin Bed Frame Assembly

Step 2: Assemble the Upper Queen Bed Frame and Support Structure

1. Begin by assembling the main support posts and crossbeams for the loft structure.
2. Attach the side rails and end panels for the upper queen bed.
3. Install the guardrails on all open sides of the upper bunk.
4. Securely attach the bed slats for the upper queen bed.

Figure 3: Upper Bed Frame and Slats

Step 3: Install the Built-in Desk, Wardrobe, and Shelves

1. Attach the desk panel to the designated support posts.
2. Assemble the wardrobe unit and shelving sections according to the diagrams.
3. Integrate these units into the main bunk bed structure, ensuring they are flush and securely fastened.

Figure 4: Integrated Desk, Wardrobe, and Shelves

Step 4: Attach the Ladder

1. Securely attach the ladder to the upper bunk frame using the provided hardware.
2. Ensure the ladder is stable and does not wobble.

Step 5: Final Tightening and Inspection

1. Once all components are in place, go back and fully tighten all bolts and screws. Do not overtighten.
2. Inspect the entire structure for stability and ensure all guardrails are secure.
3. Place the mattresses on both beds.

Figure 5: Fully Assembled Bunk Bed Configuration

Operating and Usage

Using the Bunk Bed

• Upper Bunk: Access the upper bunk using the ladder. Ensure guardrails are always in place.
• Lower Bunk: The lower twin bed can be used as a standard bed underneath the upper bunk.

Dismountable Lower Bed Feature

The lower twin bed is designed to be dismountable, allowing for flexible room arrangements. To detach the lower bed:

1. Remove the mattress from the lower bed.
2. Carefully unfasten any connecting hardware that secures the lower bed to the main loft structure.
3. Gently slide the lower bed out from underneath the upper bunk.
4. The lower bed can now be used as a standalone twin bed elsewhere in the room, converting the main structure into a loft bed.

To reattach, reverse these steps, ensuring all connections are secure.

Figure 6: Dismountable Lower Bed in Loft Configuration

Figure 7: Lower Bed Detached for Separate Use

Using the Built-in Desk, Wardrobe, and Shelves

• Desk: Utilize the spacious desk for studying, working, or creative activities. Keep the area clear for optimal use.
• Wardrobe: The built-in wardrobe provides space for hanging clothes. Do not overload the hanging rod.
• Shelves: Use the integrated shelves for books, decor, or other personal items. Distribute weight evenly.

Maintenance

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Fasteners: Periodically check all bolts, screws, and connections to ensure they remain tight. Retighten as necessary to maintain stability and safety.
• Wood Care: Protect the wood from direct sunlight and extreme temperature changes to prevent warping or fading.
• Damage: If any part of the bed becomes damaged, discontinue use immediately and contact customer support for replacement parts or advice.

Troubleshooting

Specifications

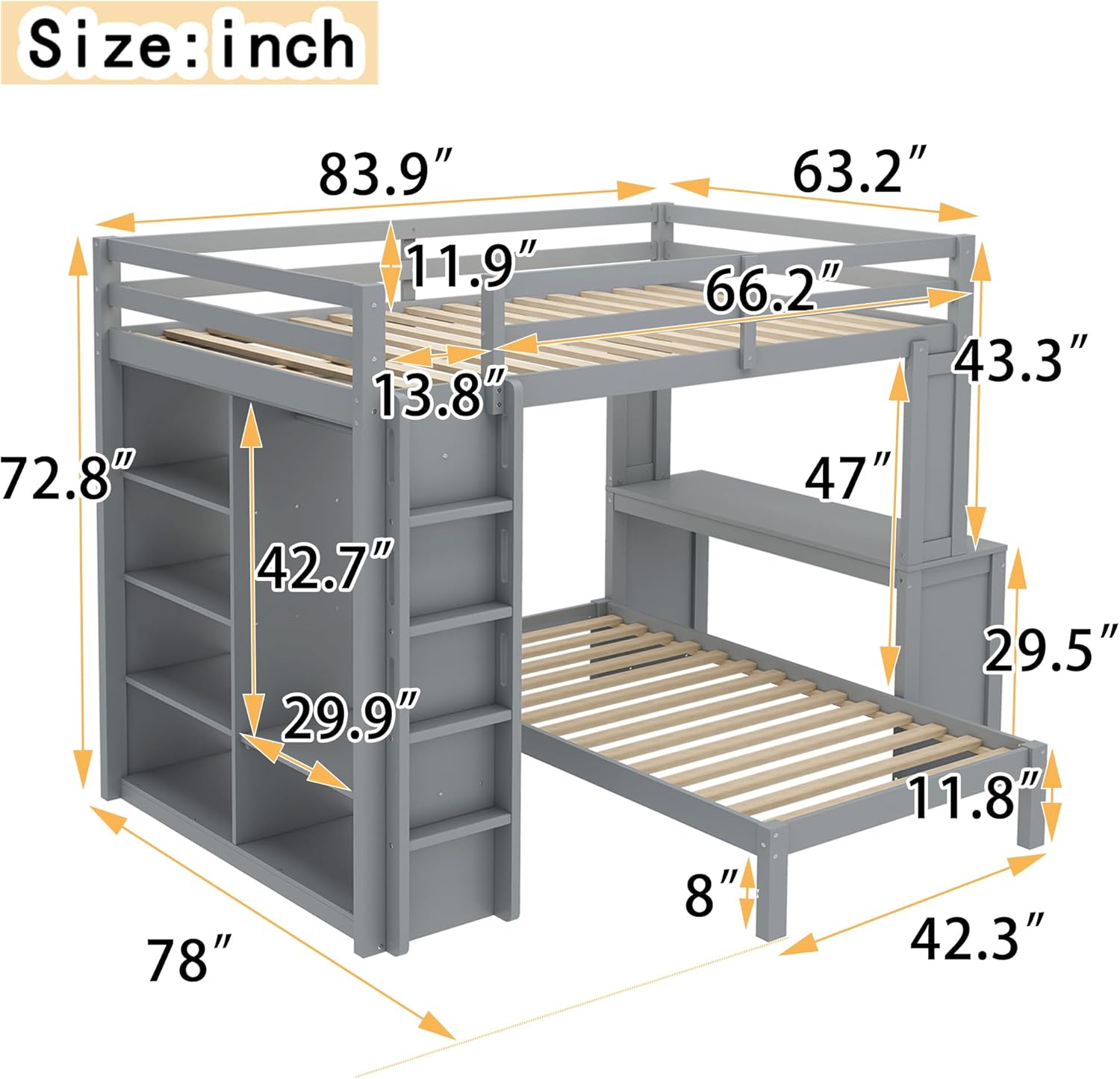

Figure 8: Product Dimensions Diagram

Warranty and Support

Polibi stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Polibi website. In most cases, a limited warranty covers manufacturing defects.

If you have any questions, require assistance with assembly, or need to order replacement parts, please contact Polibi customer support:

• Website: Visit the Polibi Store on Amazon (for general inquiries and product information)
• Email/Phone: (Please refer to your purchase documentation or the Polibi website for the most current contact information.)

When contacting support, please have your model number (S00215) and purchase date readily available.
