FOTING Pressure Washer Instruction Manual

1. Introduction

Thank you for choosing the FOTING Pressure Washer. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new pressure washer. Please read this manual thoroughly before use and retain it for future reference.

The FOTING Pressure Washer is designed for effective cleaning of various surfaces, including cars, decks, terraces, driveways, siding, and outdoor equipment. It features a powerful motor, a hose reel for convenient storage, and multiple quick-connect nozzles for versatile cleaning tasks.

Image 1.1: FOTING Pressure Washer highlighting key specifications like Max. Pressure 4500PSI and Max. Flow Rate 3.2GPM.

2. Safety Instructions

WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this pressure washer. Failure to follow all instructions may result in electric shock, fire, and/or serious injury.

• Always wear appropriate personal protective equipment, including safety glasses, gloves, and hearing protection.
• Never point the spray gun at people, pets, or electrical devices.
• Ensure the power cord and plug are in good condition before each use. Do not use if damaged.
• Connect the pressure washer to a grounded outlet only.
• Do not operate the pressure washer in the rain or near standing water.
• Keep children and bystanders away from the operating area.
• Always engage the trigger safety lock when the spray gun is not in use.
• The Total Stop System (TSS) automatically shuts off the pump when the trigger is not engaged, saving energy and prolonging pump life.

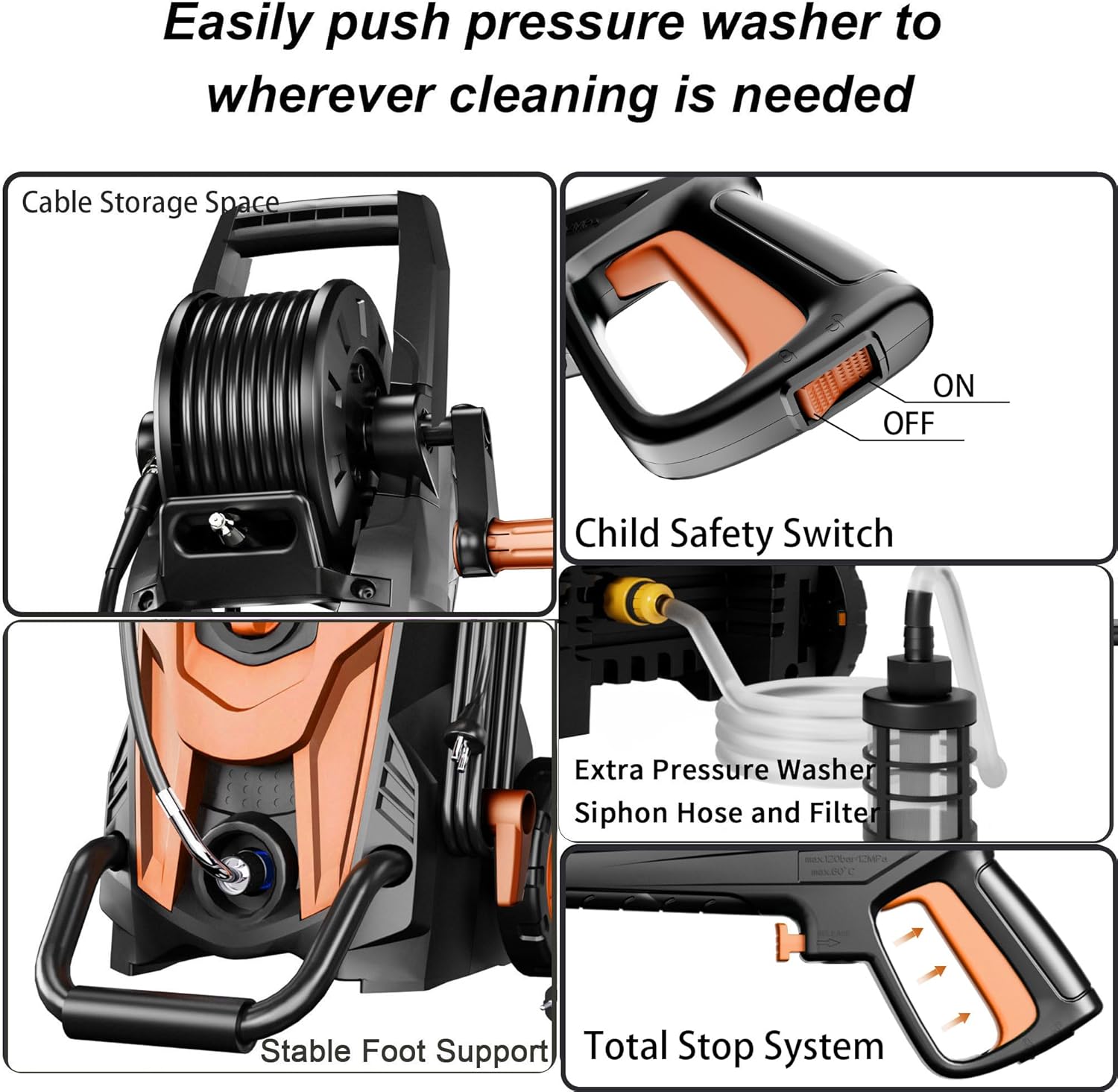

Image 2.1: Close-up view of the pressure washer's child safety switch on the spray gun and the Total Stop System (TSS) mechanism.

3. Product Components

Your FOTING Pressure Washer package includes the following components:

• Pressure Washer Main Unit with Hose Reel
• High-Pressure Spray Gun
• High-Pressure Water Pipe (Hose)
• Inlet Hose with Filter
• Foam Cannon (Detergent Bottle)
• 4 Quick-Connect Nozzles (0°, 15°, 25°, 40°)
• Various Connectors and Adapters

Image 3.1: All included accessories for the FOTING Pressure Washer, including the spray gun, hose, nozzles, and foam cannon.

4. Setup Instructions

Follow these steps for proper assembly and initial setup of your pressure washer:

1. Mounting the Handle: Secure the handle to the main unit using the provided swivel screws.
2. Mounting the Bracket: Attach any necessary mounting brackets for accessories to the main unit.
3. Connecting the Nozzle: Insert the desired quick-connect nozzle into the spray gun until it clicks into place.
4. Install the Water Outlet Pipe: Connect the high-pressure hose to the water outlet on the pressure washer unit. Ensure it is securely tightened.
5. Install the Water Inlet Pipe: Connect the garden hose (not included) to the water inlet on the pressure washer. Attach the inlet hose with filter to the garden hose. Ensure all connections are tight to prevent leaks.
6. Power Connection: Plug the power cord into a grounded electrical outlet.

Image 4.1: Visual guide demonstrating the six key steps for assembling and connecting the FOTING Pressure Washer.

5. Operating Instructions

Before starting, ensure all connections are secure and the water supply is turned on.

1. Purge Air from System: Squeeze the spray gun trigger to allow water to flow through the system and expel any trapped air. Continue until a steady stream of water emerges.
2. Turn On Power: Rotate the power switch to the 'ON' position. The pump will start, and pressure will build.
3. Select Nozzle: Choose the appropriate quick-connect nozzle for your cleaning task.
• 0° Red Nozzle: For concentrated, high-impact cleaning on cracks and hard surfaces. Use with caution.
• 15° Yellow Nozzle: For intense cleaning on concrete and brick.
• 25° Green Nozzle: For general cleaning on fences and wood decks.
• 40° White Nozzle: For gentle cleaning on windows and vehicles.
4. Apply Detergent (Optional): Fill the foam cannon with pressure washer-safe detergent. Attach the foam cannon to the spray gun. The pressure washer will draw detergent automatically.
5. Begin Cleaning: Hold the spray gun firmly and squeeze the trigger to start the high-pressure spray. Maintain a safe distance from the surface being cleaned.
6. Shut Down: When finished, turn the power switch to 'OFF'. Turn off the water supply. Squeeze the trigger to release any remaining pressure in the system. Engage the trigger safety lock.

Image 5.1: Illustration of the five spray modes (0°, 15°, 25°, 40°, and detergent bottle) and their recommended uses for various cleaning tasks.

Image 5.2: Demonstration of the foam spray function using the detergent bottle for rich foam application on a vehicle.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your pressure washer.

• Nozzle Cleaning: If a nozzle becomes clogged, use the included nozzle cleaning tool to clear any debris.
• Inlet Filter: Regularly check and clean the water inlet filter to prevent debris from entering the pump.
• Hose and Connections: Inspect the high-pressure hose and all connections for wear, cuts, or leaks before each use. Replace damaged parts immediately.
• Storage: Store the pressure washer in a dry, frost-free environment. Use the integrated hose reel and cable hook for tidy storage.
• Winterization: If storing in freezing temperatures, drain all water from the pump and hoses. Consider using a pump protector solution to prevent damage.

7. Troubleshooting

Refer to this section for common issues and their solutions.

8. Specifications

9. Warranty and Support

FOTING is committed to providing quality products. For warranty information, technical support, or replacement parts, please contact FOTING customer service through the retailer where the product was purchased or visit the official FOTING brand store online. Please have your model number (FT-KLC-T3-RD-NEW-002) and purchase date available when contacting support.
