Amzany NG09 Pro Waterless Scent Diffuser User Manual

1. Introduction

Thank you for choosing the Amzany NG09 Pro Waterless Scent Diffuser. This advanced aromatherapy device utilizes cold-air diffusion technology to transform fragrance oils into a fine, dry nano mist, ensuring superior and long-lasting scent coverage. Designed for various environments including homes, offices, hotels, and spas, it offers a customizable and elegant aromatherapy experience.

This manual provides detailed instructions for the safe and efficient operation, setup, and maintenance of your diffuser. Please read it thoroughly before use and retain it for future reference.

2. Safety Information

• Always use the diffuser in an upright position to prevent oil leakage and ensure proper operation.
• Only use the original power cord supplied with the diffuser. Using unauthorized power cords may cause damage or safety hazards.
• Keep the diffuser out of reach of children and pets. While natural scents are generally safe, direct contact with concentrated oils or the device itself should be avoided.
• Do not immerse the diffuser in water or any other liquid.
• Do not block the mist outlet during operation.
• Unplug the device from the power outlet before cleaning or when not in use for extended periods.
• Do not attempt to disassemble or repair the diffuser yourself. Contact customer support for assistance.

3. Package Contents

Please check the package contents upon unboxing to ensure all items are present and undamaged.

• Amzany NG09 Pro Waterless Scent Diffuser Unit
• Power Adapter (Original Power Cord)
• Remote Control
• 5 x Essential Oil Bottles (pre-filled or empty, depending on package)
• User Manual (this document)

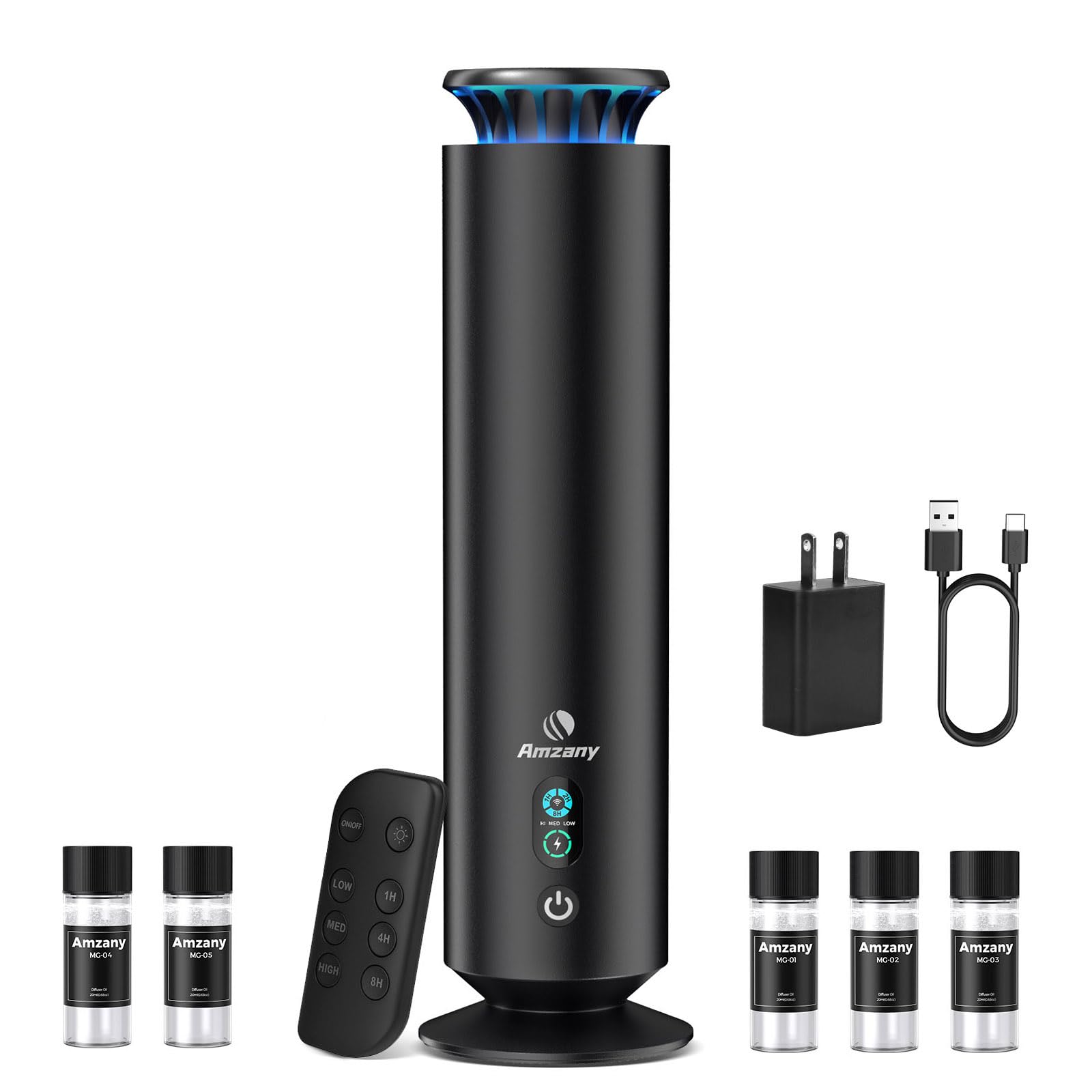

Image 1: Amzany NG09 Pro Waterless Scent Diffuser with included accessories. The image shows the sleek black cylindrical diffuser unit, a remote control, and several small bottles, likely containing essential oils.

4. Product Features

• Elegant Design: Crafted from premium aluminum alloy, blending seamlessly with various decor styles.
• Advanced Cold-Air Diffusion: Converts fragrance oil into a dry nano mist for superior, long-lasting coverage up to 2000 sq.ft.
• Customizable Scent Modes: Features 3 cold air diffusion modes (LOW / MED / HIGH) to adjust fragrance concentration.
• Integrated Night Light: Offers 7 different light colors and breathing light modes to enhance ambiance.
• Ultra-Quiet Operation: Ensures a peaceful and undisturbed environment.
• Remote Control Functionality: Effortlessly manage settings from a distance.
• Timer Settings: Customizable 1H/4H/8H timers for automated operation.
• Included Essential Oils: Comes with 5 essential oil bottles for an immediate aromatherapy experience.

5. Setup Guide

1. Unpack the Diffuser: Carefully remove all components from the packaging.
2. Place the Diffuser: Position the diffuser on a flat, stable surface in an upright position. Ensure it is away from direct sunlight, heat sources, and out of reach of children and pets.
3. Install Essential Oil:
   • Gently twist and remove the top cover of the diffuser.
   • Unscrew the cap from one of the provided essential oil bottles.
   • Carefully screw the essential oil bottle into the designated port at the base of the diffuser's internal mechanism. Ensure it is securely fastened to prevent leaks.
   • Replace the top cover, ensuring it is properly aligned.
4. Connect Power: Insert the original power adapter into the power port at the back or bottom of the diffuser, then plug the adapter into a standard electrical outlet.
5. Remote Control Battery: If the remote control is not pre-installed with a battery, open the battery compartment and insert the included CR2 battery, observing polarity.

Image 2: A close-up view illustrating how to insert an essential oil bottle into the base of the diffuser after removing the top cover. The bottle is shown being screwed into the internal mechanism.

6. Operating Instructions

6.1. Power On/Off

• Press the Power button on the diffuser or the remote control to turn the device on.
• Press the Power button again to turn the device off.

6.2. Adjusting Scent Intensity (Diffusion Modes)

The diffuser offers three cold air diffusion modes: LOW, MED, and HIGH. Use the corresponding button on the diffuser or remote control to cycle through these settings.

• LOW: For subtle scent and smaller areas.
• MED: Standard diffusion for medium-sized rooms.
• HIGH: Maximum diffusion for larger areas or stronger scent preference.

6.3. Night Light and Breathing Light Modes

The diffuser features 7 different light colors and a breathing light mode. Press the Light button on the diffuser or remote control to:

• Cycle through the 7 static colors.
• Activate the breathing light mode (colors fade in and out).
• Turn off the light feature.

6.4. Timer Settings

Set the diffuser to operate for a specific duration using the timer function. Press the Timer button on the remote control to select:

• 1H: Diffuser operates for 1 hour, then automatically shuts off.
• 4H: Diffuser operates for 4 hours, then automatically shuts off.
• 8H: Diffuser operates for 8 hours, then automatically shuts off.
• Continuous: If no timer is set, the diffuser will operate continuously until manually turned off or the oil runs out.

Image 3: A depiction of the remote control for the Amzany NG09 Pro diffuser, highlighting buttons for power, scent intensity (LOW/MED/HIGH), light modes, and timer settings (1H/4H/8H).

7. Maintenance

Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your Amzany NG09 Pro diffuser.

1. Cleaning the Exterior:
   • Unplug the diffuser from the power outlet.
   • Wipe the exterior surface with a soft, damp cloth. Do not use abrasive cleaners or solvents.
   • Ensure the diffuser is completely dry before plugging it back in.
2. Cleaning the Oil Nozzle:
   • If you notice a decrease in mist output or plan to switch essential oils, clean the nozzle.
   • Remove the essential oil bottle.
   • Fill an empty essential oil bottle with a small amount of rubbing alcohol (isopropyl alcohol).
   • Screw the alcohol-filled bottle into the diffuser.
   • Run the diffuser on the LOW setting for 15-30 minutes in a well-ventilated area. This will help clear any oil residue from the nozzle.
   • Remove the alcohol bottle and allow the diffuser to air dry before installing a new essential oil bottle.
3. Storage: When not in use for an extended period, unplug the diffuser, clean it thoroughly, and store it in a cool, dry place.

8. Troubleshooting

If you encounter any issues with your diffuser, please refer to the following common problems and solutions before contacting customer support.

9. Specifications

10. Warranty and Support

Amzany is committed to providing high-quality products. This product comes with a standard manufacturer's warranty against defects in materials and workmanship under normal use. Please refer to the warranty card included in your package for specific terms and conditions, or visit the official Amzany website for more details.

For technical support, troubleshooting assistance, or warranty claims, please contact Amzany Customer Service through the retailer where you purchased the product or via the contact information provided on the official Amzany website.

Please have your model number (NG09 Pro) and purchase date ready when contacting support.
