Introduction
Welcome to your new HeroSet Criss Cross Chair. This manual provides essential information for assembly, operation, and maintenance to ensure optimal use and longevity of your chair. The HeroSet Criss Cross Chair (Model MP345) is designed for versatility and comfort, featuring a 6-in-1 design, scratch-resistant PU leather, adjustable armrests, a stable base, and a dual-layer memory foam cushion.
Image: The HeroSet Criss Cross Chair in black, showcasing its design with a wide seat, adjustable armrests, and a wheeled base.
Safety Information
- Please read all instructions carefully before assembly and use.
- Do not stand on the chair.
- Ensure all screws are tightened securely before use. Regularly check and re-tighten screws as needed.
- Do not use the chair if any parts are damaged or missing. Contact customer support for replacement parts.
- Keep children away from small parts during assembly to prevent choking hazards.
- The maximum weight capacity for this chair is 300 lbs (approximately 136 kg). Do not exceed this limit.
Package Contents
Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact HeroSet customer support.
- Backrest (1)
- Seat Cushion (2)
- Base Plate (3)
- Foot Stool (4) x 5
- Central Base Tube (5)
- Air Rod (7)
- Castors (8) x 5
- T-Hexagon Wrench (9)
- M6*20mm Screws (10) x 10
- M6*30mm Screws (12) x 2
Image: All chair components, including the seat, backrest, base, wheels, and hardware, laid out on a white surface before assembly.
Assembly Instructions
Follow these steps to assemble your HeroSet Criss Cross Chair. An assembly video is provided for visual guidance.
Video: Detailed assembly guide for the HeroSet Criss Cross Chair, demonstrating each step from unboxing to final setup.
- Assemble the Base: Insert the 5 Foot Stools (4) into the Central Base Tube (5) as shown in the video. Align with the pre-drilled holes on both sides.
- Secure the Base: Tighten 10 M6*20mm Screws (10) using the T-Hexagon Wrench (9) to firmly secure the foot stools to the central base tube.
- Attach Castors: Insert the 5 Castors (8) into the ends of the foot stools and press them in firmly until they click into place.
- Insert Air Rod: Place the Air Rod (7) into the hole of the central base tube.
- Attach Base Plate to Seat Cushion: Fix the Base Plate (3) to the bottom of the Seat Cushion (2) using 4 M6*20mm Screws (10). Ensure the "FRONT" label on the base plate aligns with the front of the seat cushion.
- Attach Backrest to Seat Cushion: Attach the bottom of the Backrest (1) to the back of the Seat Cushion (2). Tighten the 2 M6*30mm Screws (12) firmly with the T-Hexagon Wrench (9).
- Connect Seat to Base: To connect the assembled seat and backrest to the base, insert the Air Rod (7) into the hole on the Base Plate (3). The installation is now complete.
Operating Instructions
Your HeroSet Criss Cross Chair offers several adjustable features for personalized comfort and functionality.
Height Adjustment
To adjust the chair's height, locate the lever on the right side beneath the seat. Pull the lever upwards while seated to lower the chair, or stand up and pull the lever upwards to raise the chair. Release the lever at your desired height.
Tilt Function and Tension Control
The chair features a 90°-120° tilt function. Use the lever on the left side to lock or unlock the tilt mechanism. To adjust the tilt tension, rotate the round knob located beneath the seat. Turn clockwise to increase tension (making it harder to recline) and counter-clockwise to decrease tension (making it easier to recline).
Image: An illustration highlighting the tilt lock/unlock lever and the resistance knob for adjusting tilt tension, located beneath the chair seat.
Adjustable Armrests (0-90 Degrees)
The armrests can be adjusted from 0 to 90 degrees to accommodate various sitting postures and activities. They can also bear a maximum weight of 180 lbs.
- Unlock: Gently push the upright armrest inward to release the locking mechanism.
- Flatten: Lower the armrests to a flat position, extending the seat area.
- Raise and Lock: Raise the armrests to your desired angle. They can be locked at 5 different levels, including the upright position.
Image: A visual guide demonstrating how to adjust the armrests, showing the process of unlocking, flattening, and raising to five lockable positions.
Multi-functional Use
The chair's design supports various activities and postures:
- Working Hours: Use in an upright position for desk work.
- Reading Time: Recline slightly for comfortable reading.
- Rest Time: Fully recline and extend the armrests for a relaxed posture.
- Leisure Time: Sit cross-legged or in other comfortable positions for relaxation or hobbies.
Maintenance
Proper care and maintenance will extend the life and appearance of your HeroSet Criss Cross Chair.
- Cleaning: The chair is upholstered with scratch-resistant and waterproof PU leather. For general cleaning, wipe the surface with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or solvents, as these can damage the material.
- Spills: In case of spills, wipe them immediately with a clean, dry cloth to prevent staining.
- Pet-Friendly: The PU leather is designed to be pet-friendly and resistant to cat scratches. It also resists pet hair from sticking, making cleaning easier.
- Hardware Check: Periodically check all screws and bolts to ensure they are tight. Re-tighten as necessary to maintain stability and safety.

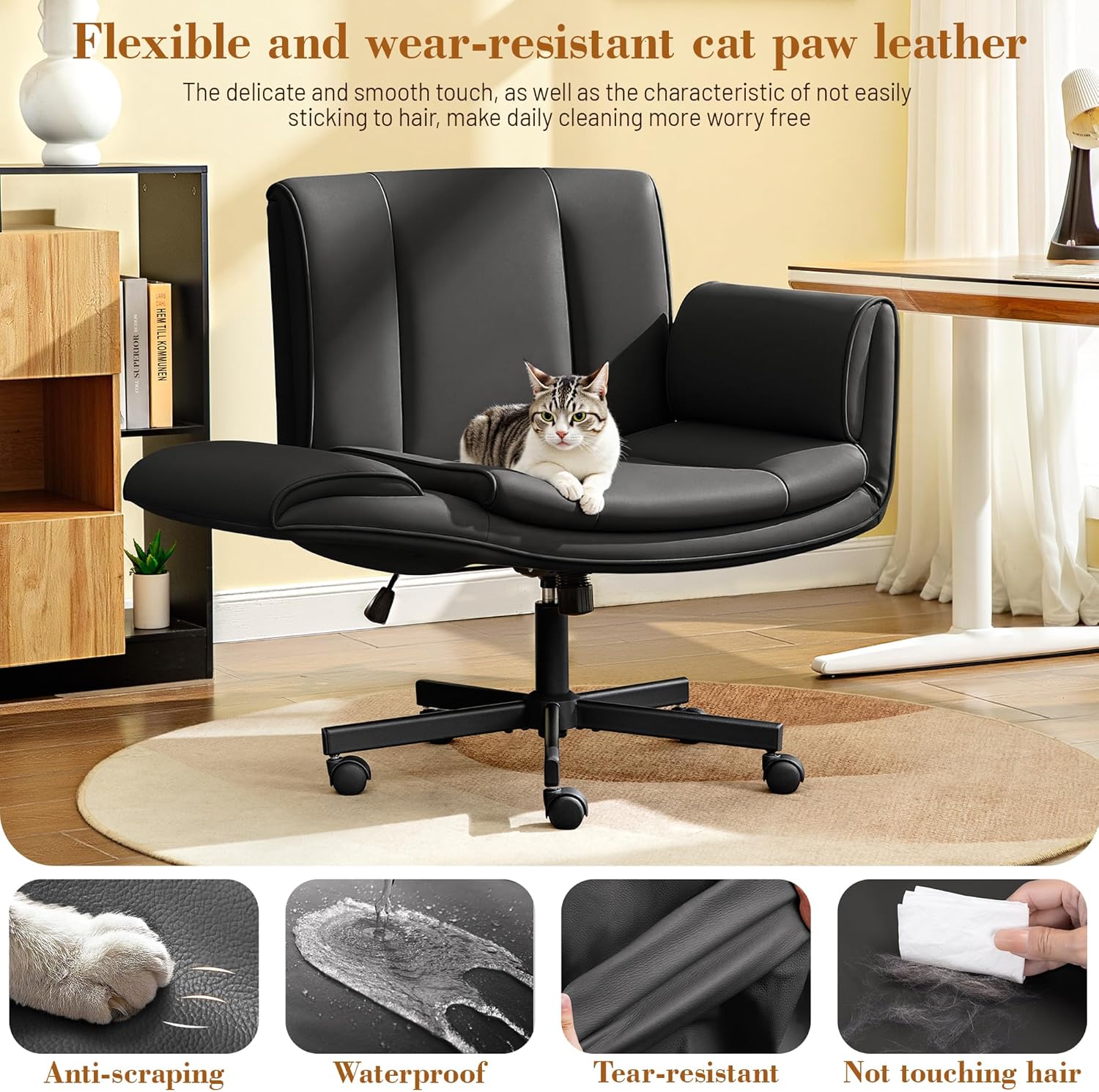

Image: A cat resting on the chair, illustrating the chair's pet-friendly and scratch-resistant PU leather material.
Troubleshooting
If you encounter any issues with your chair, refer to the following common solutions:
- Chair not adjusting height: Ensure the gas lift lever is fully engaged. Check if the air rod is correctly inserted into the base plate and central base tube. If the issue persists, the gas lift cylinder may need replacement.
- Wheels not rolling smoothly: Check for any debris (hair, dust, etc.) caught in the castor wheels. Clean them if necessary. Ensure all castors are fully inserted into the foot stools.
- Chair feels unstable or wobbly: Re-tighten all assembly screws, especially those connecting the foot stools to the central base tube and the base plate to the seat cushion. Ensure the air rod is securely seated.
- Armrests not adjusting: Verify that the armrest is pushed inward to unlock before attempting to adjust its angle. Check for any obstructions in the adjustment mechanism.
If these steps do not resolve the issue, please contact HeroSet customer support for further assistance.
Specifications
Detailed specifications for the HeroSet Criss Cross Chair (Model MP345):
| Feature | Detail |
|---|---|
| Brand | HeroSet |
| Model Number | MP345 |
| Color | Black |
| Product Dimensions | 32"D x 12.7"W x 20.86"H (81.3cm D x 32.3cm W x 53cm H) |
| Back Style | Solid Back |
| Arm Style | 5-position Adjustable, Fully Wrapped Armrests (0-90 degree adjustment) |
| Seat Depth | 19.7 inches (50 cm) |
| Item Weight | 40.5 pounds (18.4 kg) |
| Maximum Load Capacity | 300 lbs (136 kg) |
| Material | Scratch-Resistant PU Leather, Engineered Wood Base, Dual-Layer Memory Foam Cushion |
Image: A detailed diagram illustrating the key dimensions of the HeroSet Criss Cross Chair, including height, width, and seat depth.
Warranty and Support
The HeroSet Criss Cross Chair (Model MP345) comes with a 5-year after-sales guarantee, ensuring peace of mind regarding your purchase.
For any questions, technical support, or warranty claims, please contact us through the following methods:
- Email: cs@herosets.com
- Phone: +1 (978) 647-3329
- Amazon Account: You can also contact us directly through your Amazon account. Simply log in, navigate to 'Your Orders', find your HeroSet Criss Cross Chair order, and click on 'Contact Seller'.
Image: A graphic detailing the steps to contact HeroSet customer support via Amazon, email, or phone.
