CUSIMAX CMHF-08T Mini Space Heater and Fan Instruction Manual

Important Safety Instructions

Please read and understand all instructions before using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.

• DO NOT COVER: Ensure the heater is never covered, as this can lead to overheating and fire hazards. The unit has a clear "DO NOT COVER" label.
• Tip-Over Protection: The appliance is equipped with a safety switch that automatically shuts off the unit if it is accidentally knocked over. Place on a stable, flat surface.
• Overheat Protection: An automatic shutoff system will activate if the heater overheats. Unplug the unit and allow it to cool before restarting.
• Power Source: Only plug the heater directly into a 120V AC electrical outlet. Do not use with extension cords or power strips.
• Placement: Keep combustible materials such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
• Moisture: Do not use the heater in wet or moist locations like bathrooms or laundry areas.
• Children and Pets: Always supervise children and pets when the heater is in operation.

Product Overview

The CUSIMAX CMHF-08T is a versatile 2-in-1 appliance designed to provide both heating and cooling comfort year-round. Its compact and portable design makes it ideal for personal spaces such as offices, bedrooms, or desks. Featuring advanced PTC ceramic heating technology, it delivers instant warmth, while the fan mode offers refreshing airflow.

Key Features:

• Heater & Fan Combo: Unique folding design allows seamless switching between heating and cooling functions.
• Fast Heating: 800W PTC ceramic heating element provides rapid warmth in seconds.
• Energy Saving: Efficiently heats personal spaces, reducing the need to heat entire rooms.
• Quiet Operation: Operates at less than 42dB, suitable for use during sleep or work.
• Multi-Protection: Includes overheat and tip-over protection for enhanced safety.
• 7-Hour Timer: Customizable timer settings (1h, 2h, 4h, or combinations up to 7h) for automatic shut-off.

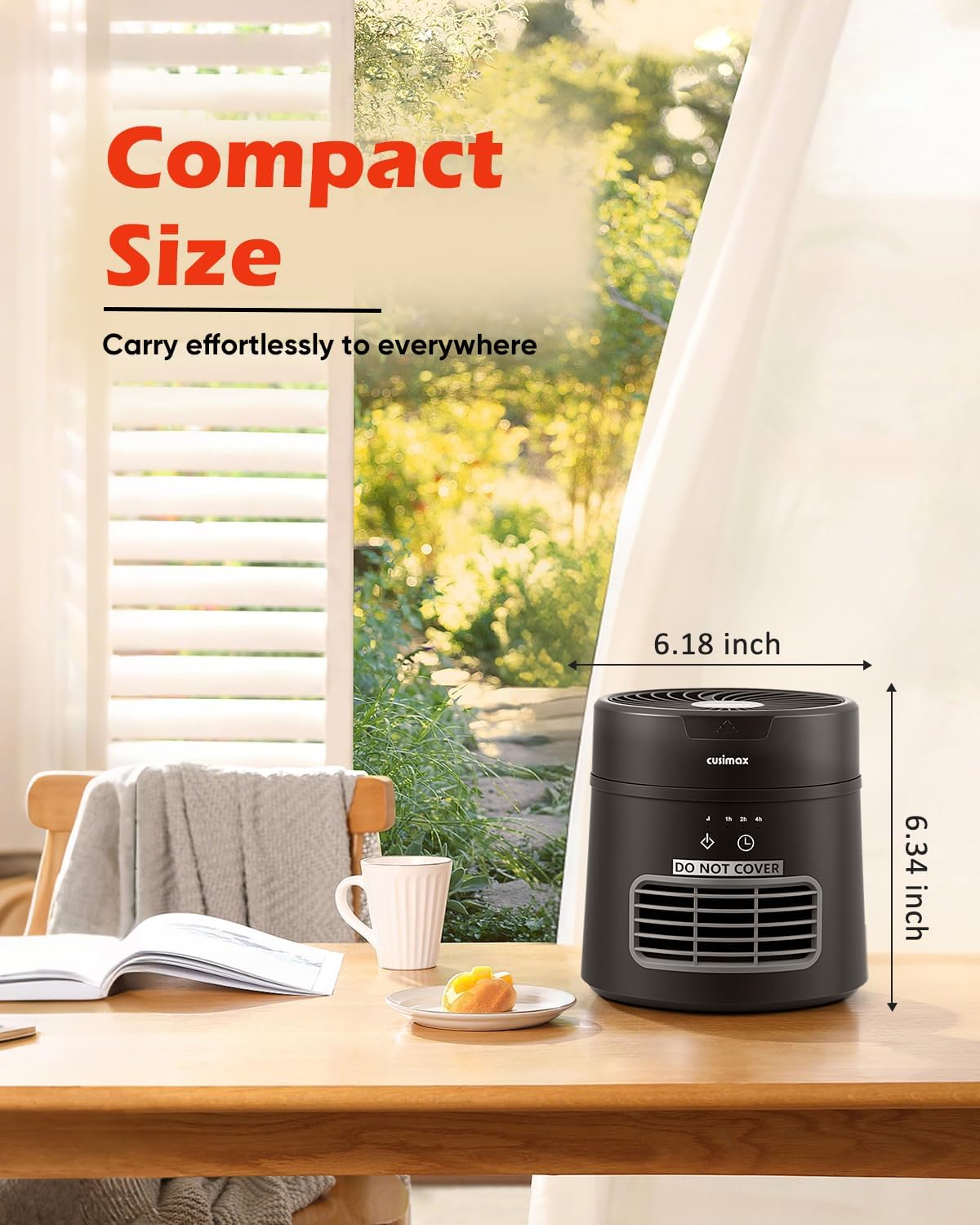

• Portable Design: Lightweight and compact for easy relocation to any desired area.

Setup

• Unboxing: Carefully remove the CUSIMAX CMHF-08T from its packaging. Retain packaging for future storage or transport.
• Placement: Place the unit on a firm, level surface. Ensure there are no obstructions to the air intake (top) or outlet (front). Maintain at least 3 feet (0.9 m) clearance from walls, furniture, and other objects.
• Power Connection: Plug the power cord directly into a standard 120V AC wall outlet. Do not use extension cords or power strips.

Operating Instructions

Power On/Off

• To turn the unit ON, press the power button (⏻) once. The default mode is typically heating.
• To turn the unit OFF, press the power button (⏻) again. The unit will enter a cool-down phase for approximately 30 seconds before fully shutting off.

Switching Between Heater and Fan Modes

• Heater Mode: Keep the top fan section folded down. The unit will operate as a space heater, emitting warm air from the front grille.
• Fan Mode: Gently lift and fold open the top section of the unit. The heater function will automatically turn off, and the fan will activate, providing cool airflow from the top.

Adjusting Heat Levels / Fan Speed

• In Heater Mode, press the mode button (often integrated with the power button or a separate fan icon) to cycle between two heating levels (e.g., low heat, high heat). The indicator lights will show the selected level.
• In Fan Mode, press the mode button to cycle between two fan speeds (e.g., low speed, high speed).

Setting the Timer

• Press the timer button (◷) to set the automatic shut-off time. Available settings include 1 hour, 2 hours, and 4 hours.
• Combine these settings to achieve up to a 7-hour timer (e.g., pressing 1h and 2h for 3 hours, or 1h, 2h, and 4h for 7 hours).
• The corresponding indicator lights (1h, 2h, 4h) will illuminate to show the active timer setting.

Safety Features in Operation

• Tip-Over Protection: If the unit is accidentally tipped or knocked over, it will automatically shut off and emit a beeping sound. Return the unit to an upright position to resume operation.
• Overheat Protection: If the internal components reach an unsafe temperature, the heater will automatically shut down. Unplug the unit and allow it to cool for at least 10-15 minutes before plugging it back in and restarting.

Maintenance

• Cleaning: Always unplug the heater before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or allow water to drip into the interior of the heater.
• Air Intake/Outlet: Periodically check the air intake and outlet for dust or debris. Use a vacuum cleaner with a brush attachment to gently remove any accumulation.
• Storage: When not in use, store the heater in a cool, dry place. It is recommended to store it in its original packaging to protect it from dust and damage.

Troubleshooting

• Unit Does Not Operate:
  • Ensure the power cord is securely plugged into a working 120V AC outlet.
  • Check if the unit has tipped over. If so, place it upright.
  • Verify that the overheat protection has not been activated. Unplug and allow to cool for 10-15 minutes.
• No Heat/Fan:
  • Confirm the correct mode (heater or fan) is selected by checking the folding position of the top section.
  • Ensure the power and mode settings are correctly selected on the control panel.
• Unit Shuts Off Unexpectedly:
  • This is likely due to the tip-over or overheat protection. Refer to the safety features section for details.
  • Check if the timer function is active. The unit will shut off automatically once the set time expires.

Specifications

Warranty & Support

The CUSIMAX CMHF-08T electric space heater is backed by an 18-Month Hassle-Free Warranty. For any problems or inquiries, please feel free to contact CUSIMAX customer support via Amazon or e-mail. Refer to your purchase documentation for specific contact details.
