Important Safety Information
Please read all instructions carefully before using the appliance. Retain this manual for future reference.
- Ensure the appliance is properly grounded before use.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- This appliance is intended for household use only.
Product Overview
The Aspes ACHH4500EDC is a horizontal chest freezer designed for efficient food preservation. It features a 418-liter capacity, Dual Cooling technology, and an Inverter motor for reduced energy consumption and noise. The appliance is rated with an E energy efficiency class.
This freezer is equipped with an electronic control system and an LED display for precise temperature management. It includes two internal baskets for organized storage of frozen items.
Setup and Installation
Unpacking
- Remove all packaging materials, including foam and adhesive tape.
- Inspect the freezer for any damage incurred during transit. Report any damage immediately to your retailer.
- Clean the interior and exterior of the freezer with a damp cloth before use.
Placement
- Place the freezer on a firm, level surface to ensure stability and proper operation.
- Allow adequate space around the freezer for proper ventilation (at least 10 cm on sides and back).
- Avoid placing the freezer in direct sunlight or near heat sources such as stoves, radiators, or heaters, as this will increase energy consumption.
- Ensure the ambient temperature is within the recommended range for the freezer's climate class (T/ST/N/SN).
Electrical Connection
- Connect the freezer to a dedicated, properly grounded electrical outlet.
- The voltage (220 Volts) and frequency must match the specifications on the rating plate of the appliance.
- Do not use extension cords or multiple socket adapters.
Operating Instructions
Control Panel
The electronic control panel allows for precise temperature adjustments and activation of special functions. The LED display shows the current temperature setting.
- Temperature Display: Shows the set temperature inside the freezer.
- Super Mode Indicator: Illuminates when the Super Mode is active.
- Temperature Adjustment Button (TEMP): Press to cycle through temperature settings.
Initial Startup
- After connecting the power, allow the freezer to stand for at least 2-4 hours before plugging it in. This allows the refrigerant to settle.
- Plug in the freezer. The display will light up.
- Set the desired temperature using the TEMP button. For initial cooling, it is recommended to set a lower temperature.
- Allow the freezer to operate for several hours (e.g., 4-6 hours) to reach the set temperature before loading food.
Temperature Adjustment
To adjust the temperature, press the 'TEMP' button on the control panel. Each press will cycle through available temperature settings. The display will show the selected temperature. Release the button to confirm the setting.
Super Mode Function
The Super Mode function is designed to rapidly cool newly added food items, helping to preserve their texture, flavor, and quality from the first minute. This is ideal for maintaining the cold chain without effort.
- Activation: Refer to your control panel for specific button press sequence to activate Super Mode. Typically, it involves pressing and holding the TEMP button or a dedicated 'Super' button.
- Usage: Activate Super Mode several hours before adding a large quantity of fresh food to be frozen, or immediately after adding it.
- Deactivation: The Super Mode will automatically deactivate after a set period (e.g., 24-48 hours) or can be manually deactivated.
Maintenance
Cleaning
- Always unplug the freezer before cleaning.
- Clean the interior with a solution of mild detergent and warm water. Rinse thoroughly and dry completely.
- Clean the exterior with a soft cloth and mild detergent.
- Regularly clean the condenser coils at the back of the freezer (if accessible) with a soft brush or vacuum cleaner to ensure efficient operation.
Defrosting
This freezer features manual defrosting. Defrost the freezer when the frost layer reaches a thickness of about 5-10 mm.
- Unplug the freezer from the power outlet.
- Remove all food items and store them in another freezer or cooler.
- Leave the lid open to allow the frost to melt naturally. Place towels or a shallow pan at the bottom to collect water.
- Do not use sharp objects or heating devices to remove frost, as this can damage the appliance.
- Once defrosted, clean and dry the interior thoroughly before plugging the freezer back in and returning food items.
Storage Baskets
The freezer includes two removable baskets for convenient organization of smaller or frequently accessed items. These baskets can be lifted out for easier access to items stored below.
Troubleshooting
Before contacting service, check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer does not operate | No power supply; Power cord not plugged in; Circuit breaker tripped. | Check power connection; Ensure plug is firmly in outlet; Reset circuit breaker. |
| Temperature is not cold enough | Temperature setting too high; Door opened too frequently; Large amount of warm food added; Poor ventilation. | Adjust temperature to a colder setting; Minimize door openings; Allow food to cool before placing in freezer; Ensure adequate space around freezer. |
| Excessive frost buildup | Door not sealed properly; High humidity; Frequent door openings. | Check door gasket for damage or obstruction; Reduce frequency of door openings; Defrost the freezer. |
| Unusual noise | Freezer not level; Objects vibrating against the freezer; Compressor noise (normal). | Adjust leveling feet; Ensure nothing is touching the freezer; Compressor noise is normal during operation. |
Specifications
- Model: ACHH4500EDC
- Type: Horizontal Chest Freezer
- Capacity: 418 Liters
- Energy Efficiency Class: E
- Noise Level: 44 dB
- Motor Type: Inverter Motor
- Cooling System: Cyclic technology, Dual Cooling
- Refrigerant: R600a
- Control: Electronic with LED Display
- Defrosting: Manual
- Dimensions (W x D x H): 141.6 cm x 75 cm x 82.5 cm
- Weight: 59 kg
- Voltage: 220 Volts

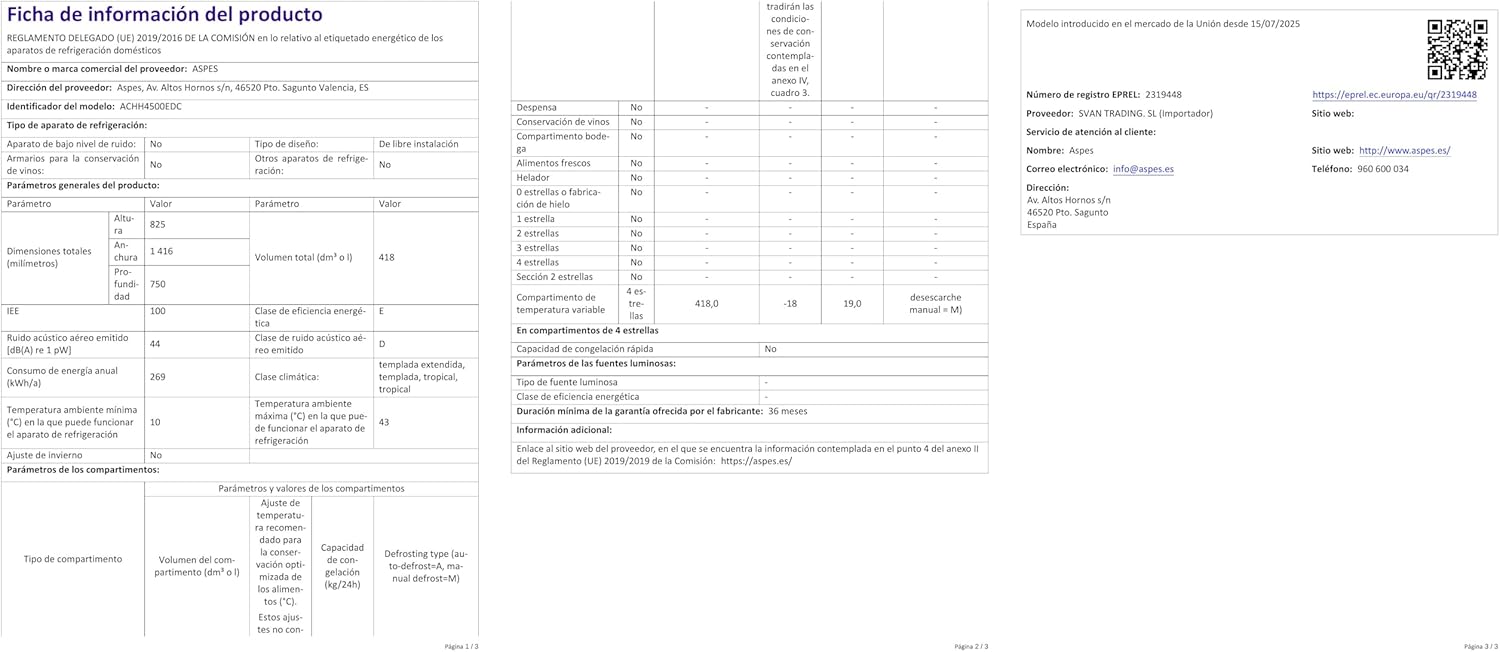

For detailed product information and energy efficiency data, please refer to the EPREL database: https://eprel.ec.europa.eu/qr/2319448
Warranty and Support
The Aspes ACHH4500EDC Horizontal Freezer comes with a standard manufacturer's warranty. The Inverter Motor specifically benefits from a 10-year warranty, ensuring long-term reliability.
For warranty claims, technical assistance, or spare parts, please contact Aspes customer support or your authorized retailer. Keep your proof of purchase for warranty validation.
- Manufacturer: Aspes
- Service and Support: Refer to the contact information provided with your purchase documentation or visit the official Aspes website.
