Hotone EC-2 Pulze Control Wireless Bluetooth MIDI Foot Controller

1. Introduction

The Hotone EC-2 Pulze Control is a compact MIDI command center designed for musicians. It offers both wireless and wired connectivity options, programmable footswitches, and integration with a dedicated mobile application. This controller facilitates switching channels on compatible amplifiers, toggling effects on processors, or triggering samples in Digital Audio Workstation (DAW) software.

2. Key Features

• Wireless MIDI Connectivity: Utilizes Bluetooth MIDI for cable-free control of compatible devices, offering low-latency performance up to 24 feet.
• Programmable Footswitches: Features two durable footswitches, each capable of sending up to 16 MIDI messages (32 in A/B groups). Supports Program Change (PC), Control Change (CC), and Note On/Off commands.
• Dedicated Mobile App: The Pulze Control app (iOS/Android) allows for configuration. It includes a "Simple Mode" for quick pairing with Hotone gear and a "Pro Mode" for detailed customization of trigger actions and MIDI mapping.
• Versatile Dual Connectivity: Equipped with a 1/4" TRS jack for MIDI output or external expression pedal/momentary footswitch input. A USB-C port is included for charging and wired MIDI connection to computers.
• Durable and Portable Design: Constructed with a lightweight metal chassis (215g) for portability and durability.
• Long Battery Life: Features an internal rechargeable lithium-ion battery providing up to 12 hours of continuous operation.

3. Device Overview

Familiarize yourself with the physical components of the EC-2 Pulze Control.

Image 3.1: Top-down view of the Hotone EC-2 Pulze Control. This image shows the two footswitches labeled A and B, the central display with POWER, STATUS, APP, and DEV indicators, and the 'HOTONE' branding.

Image 3.2: Front view of the Hotone EC-2 Pulze Control. This image highlights the two footswitches and the overall compact design from a straight-on perspective.

Image 3.3: Rear view of the Hotone EC-2 Pulze Control. This image displays the RESET button, POWER button, CTRL/MIDI 1/4" jack, and DC 5V/USB-C port.

Image 3.4: Hotone EC-2 Pulze Control shown alongside a smartphone displaying the Pulze Control mobile application interface, demonstrating app integration.

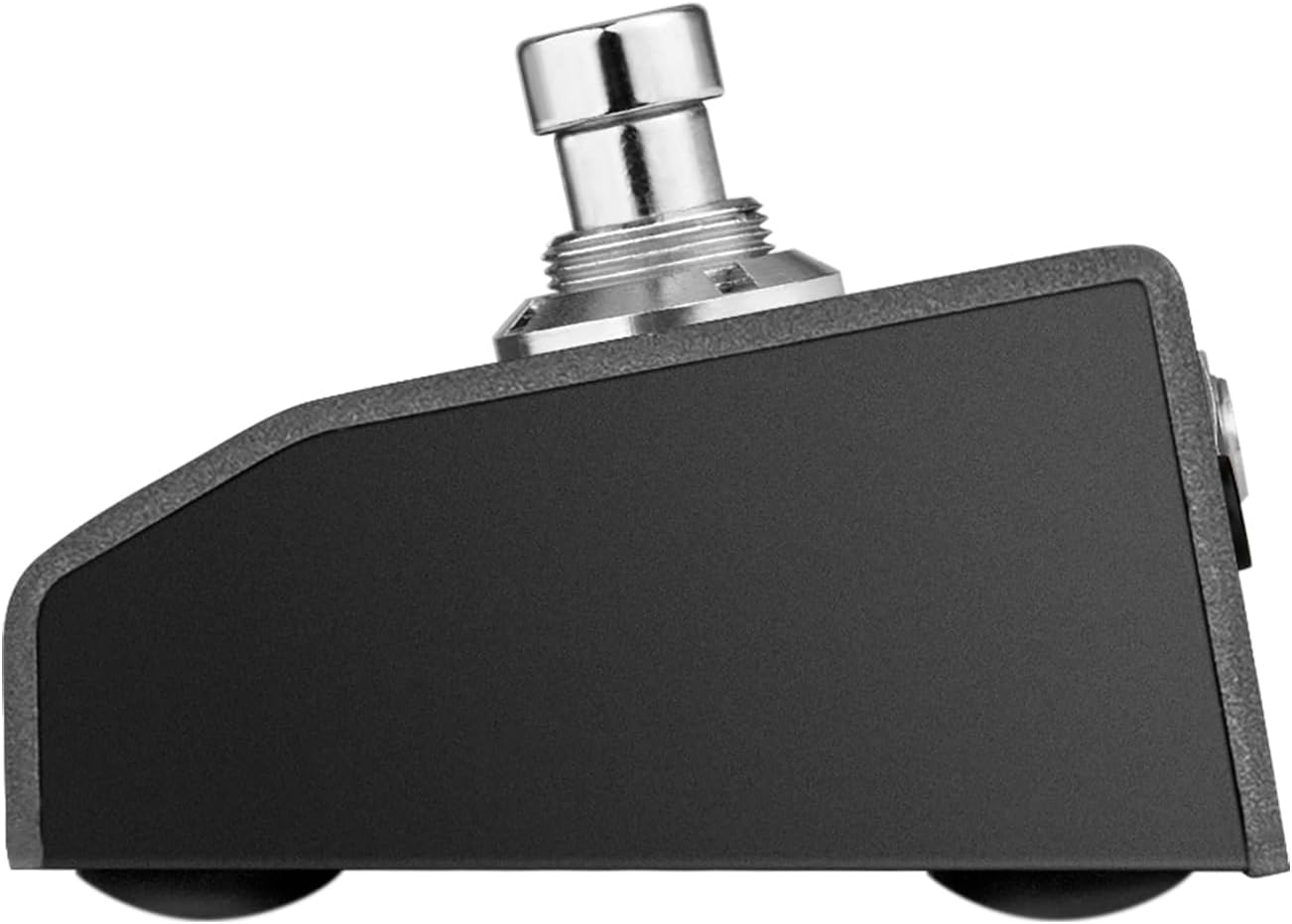

Image 3.5: Side view of the Hotone EC-2 Pulze Control, illustrating its low-profile design and the angle of the footswitches.

4. Setup

4.1 Powering On/Off and Charging

• Power On: Press and hold the POWER button located on the rear panel until the display illuminates.
• Power Off: Press and hold the POWER button until the display turns off.
• Charging: Connect a standard USB-C cable to the DC 5V/USB port on the rear panel and plug the other end into a 5V USB power adapter (not included) or a computer. The internal lithium-ion battery provides up to 12 hours of continuous use on a full charge.

4.2 Bluetooth Pairing

1. Ensure the EC-2 is powered on.
2. Download and install the "Pulze Control" mobile app from your device's app store (iOS/Android).
3. Open the Pulze Control app on your mobile device.
4. Follow the in-app instructions to search for and connect to the EC-2 Pulze Control via Bluetooth. The 'PAIR' indicator on the EC-2's display will confirm connection status.

4.3 Wired Connections

• USB-C MIDI: Connect the EC-2 to a computer (PC/Mac) using a USB-C cable. This connection provides both power and wired MIDI communication.
• TRS MIDI Output: Use a 1/4" TRS to MIDI cable (not included) to connect the CTRL/MIDI jack to legacy MIDI hardware.
• Expression Pedal/External Footswitch: Connect a standard expression pedal or momentary footswitch to the CTRL/MIDI jack for additional real-time control.

5. Operating Instructions

5.1 Basic Footswitch Operation

The EC-2 features two footswitches, A and B. Each footswitch can be programmed to send various MIDI messages based on different actions:

• Single Tap: A quick press and release.
• Double Tap: Two quick presses in succession.
• Long Press: Press and hold for a specified duration.

Programming of these actions is done via the Pulze Control mobile app.

5.2 Using the Pulze Control Mobile App

The mobile app is central to customizing the EC-2's functionality.

• Simple Mode: Provides plug-and-play compatibility with Hotone devices like Pulze amplifiers and Ampero II Stage processors. This mode simplifies setup for common functions.
• Pro Mode: Offers advanced customization. In Pro Mode, you can assign complex MIDI strings, including Program Change (PC), Control Change (CC), and Note On/Off commands, to each footswitch action (tap, double-tap, long-press).

Refer to the in-app help or Hotone's official website for detailed guides on specific MIDI programming within the app.

5.3 Expression Pedal / External Footswitch Control

When an expression pedal or momentary footswitch is connected to the CTRL/MIDI jack, its function can be assigned via the Pulze Control app. This allows for real-time control over parameters such as wah, volume, or other assignable MIDI parameters.

6. Maintenance

• Cleaning: Use a soft, dry cloth to clean the exterior of the unit. Avoid using abrasive cleaners, solvents, or waxes.
• Storage: Store the EC-2 in a dry environment away from extreme temperatures and direct sunlight.
• Battery Care: For optimal battery life, avoid fully discharging the unit frequently. If storing for extended periods, charge the battery to approximately 50% every few months.

7. Troubleshooting

• Device Not Powering On: Ensure the battery is charged. Connect the EC-2 to a USB power source and attempt to power on.
• Bluetooth Connection Issues: Make sure Bluetooth is enabled on your mobile device. Restart both the EC-2 and your mobile device. Ensure no other devices are actively connected to the EC-2 via Bluetooth. Try resetting the EC-2 using the RESET button on the rear panel (use a thin object like a paperclip).
• MIDI Messages Not Being Sent/Received: Verify that the EC-2 is correctly paired (Bluetooth) or connected (USB/TRS MIDI). Check the MIDI settings within the Pulze Control app to ensure messages are correctly assigned and the target device is configured to receive them.
• Footswitches Not Responding: Confirm the unit is powered on. If issues persist after checking app settings, perform a factory reset if available (refer to app or Hotone support for instructions).

8. Specifications

9. Warranty and Support

For warranty information and technical support, please refer to the official Hotone website or contact Hotone customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

Hotone Official Website: www.hotoneaudio.com
