MOONCOOL Electric Tricycle User Manual

1. Safety Information

Before operating your MOONCOOL Electric Tricycle, please read this manual thoroughly and retain it for future reference. Always prioritize safety during assembly, operation, and maintenance.

• Always wear a helmet and appropriate safety gear when riding.
• Ensure all nuts, bolts, and quick releases are securely tightened before each ride.
• Check brake functionality before each use. Do not ride at night without proper lighting.
• Adhere to all local traffic laws and regulations. Yield to pedestrians and obey traffic signals.
• Avoid riding on sidewalks unless permitted by local regulations.
• The battery is charged with a dedicated charger. Do not use other chargers.
• Do not expose the battery to water, fire, or extreme temperatures.
• Keep the battery out of reach of children.

2. Package Contents

Verify all components are present and undamaged upon unboxing. If any parts are missing or damaged, please contact customer support.

• Main Frame with Battery
• Rear Frame
• Front Wheel with Motor
• Rear Wheels (x2)
• Fenders (Front and Rear)
• Saddle with Seat Post
• Handlebar
• Pedals (Left and Right)
• Rear Basket
• Front Basket
• Charger
• Assembly Tools (Wrenches, Screwdriver)
• User Manual

3. Assembly Instructions

Follow these steps carefully to assemble your electric tricycle. It is recommended to have a second person assist with certain steps.

3.1 Unboxing and Initial Setup

Carefully open the packaging and remove all components. Ensure all protective packaging material is removed.

3.2 Front Wheel Installation

1. Install the front wheel onto the fork. Pay close attention to the correct sequence of the gasket and nut. Ensure the brake rotor is centered within the brake caliper and does not rub against the brake pads.
2. Connect the motor wires. Align the arrows on the connectors and push firmly until they click into place.
3. Install the front disc brake caliper onto the fork. Secure it with the provided bolts and tighten using an Allen key.
4. Install the front mudguard. Attach it to the fork using the provided screws and tools.
5. Secure the motor wires along the fork using zip ties to prevent them from interfering with the wheel or moving parts.
6. Connect the front light wires. Align the arrows on the connectors and push firmly.

3.3 Handlebar Installation

1. Insert the handlebar stem into the head tube of the main frame. Adjust the height to your preference and ensure the handlebars are perpendicular to the front wheel.
2. Tighten the top bolt on the handlebar stem to secure it.

3.4 Rear Mudguards Installation

1. Attach the rear mudguards to the rear frame using the provided screws and tools. Ensure they are securely fastened and do not rub against the tires.

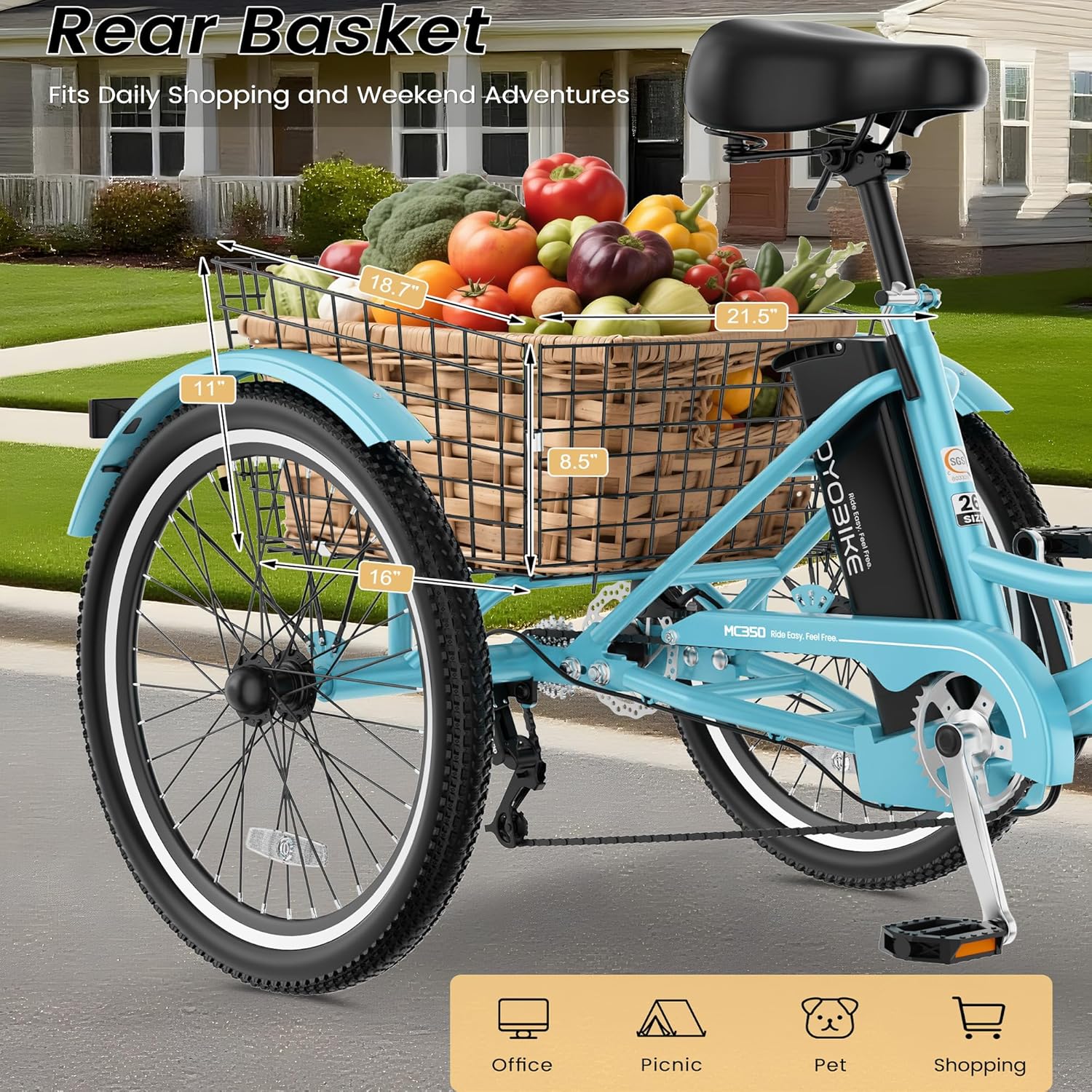

3.5 Rear Basket Installation

1. Assemble the rear basket by connecting its sides and bottom.
2. Mount the assembled basket onto the rear frame, aligning the slots and securing it with the provided bolts and nuts.

3.6 Front Basket Installation

1. Attach the front basket to the designated mounting points on the front of the frame. Secure it with the provided hardware.

3.7 Pedals Installation

1. Identify the left (L) and right (R) pedals.
2. Thread the left pedal into the left crank arm and the right pedal into the right crank arm. Tighten securely with a wrench.

3.8 Saddle Installation

1. Insert the saddle post into the seat tube. Adjust the height to your preference.
2. Tighten the quick-release lever or bolt on the seat tube to secure the saddle firmly.

3.9 Battery Installation and Removal

The battery is removable for charging and security.

1. To install: Slide the battery into its housing on the frame until it clicks into place. Use the key to lock it.
2. To remove: Unlock the battery with the key, then slide it out of the housing.

4. Operating Instructions

Your MOONCOOL Electric Tricycle offers versatile riding options.

4.1 Riding Modes

• Pure Electric (Throttle): Engage the throttle for motor-powered propulsion without pedaling.
• Pedal-Assist (PAS): The motor provides assistance as you pedal, making riding easier, especially uphill. Adjust assist levels via the LCD display.
• Traditional Pedaling: Ride the tricycle like a regular bicycle, using only pedal power.

4.2 Smart LCD Display

The LCD display allows you to monitor key information and adjust settings:

• Monitor battery life and remaining charge.
• Adjust pedal-assist levels (1-5).
• Track real-time speed and distance traveled.
• Turn the integrated LED headlight on/off.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your tricycle.

• Tires: Check tire pressure regularly and inflate to the recommended PSI. Inspect for wear and punctures.
• Brakes: Periodically check brake pads for wear and ensure brake levers engage smoothly. Adjust as needed.
• Chain: Keep the chain clean and lubricated to prevent rust and ensure smooth gear changes.
• Bolts and Nuts: Regularly inspect all bolts and nuts for tightness, especially after the first few rides.
• Battery: Charge the battery fully after each ride. Store the battery in a cool, dry place if not used for extended periods.
• Cleaning: Clean the tricycle with a damp cloth. Avoid using high-pressure water jets directly on electrical components.

6. Troubleshooting

If you encounter any issues, refer to the following common problems and solutions. For complex issues, contact customer support.

• Tricycle not powering on: Check if the battery is fully charged and properly installed. Ensure the key is turned to the 'ON' position.
• Motor not assisting: Verify the pedal-assist level on the LCD display. Check all motor cable connections.
• Brakes feel loose: Inspect brake cables for tension and adjust as necessary. Check brake pads for wear.
• Unusual noises: Inspect the chain, gears, and wheels for any obstructions or loose parts.

7. Specifications

8. Warranty and Support

MOONCOOL products come with a manufacturer's warranty covering defects in materials and workmanship. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact MOONCOOL customer service through the retailer where you purchased the product or visit the official MOONCOOL website.
