BTF-LIGHTING WS2811 Dual IC RGBCCT FCOB LED Strip User Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your BTF-LIGHTING WS2811 Dual IC RGBCCT FCOB LED Strip. This LED strip features addressable RGB and Tunable White (3000K-6000K) lighting, high density FCOB technology for uniform illumination, and is designed for indoor use.

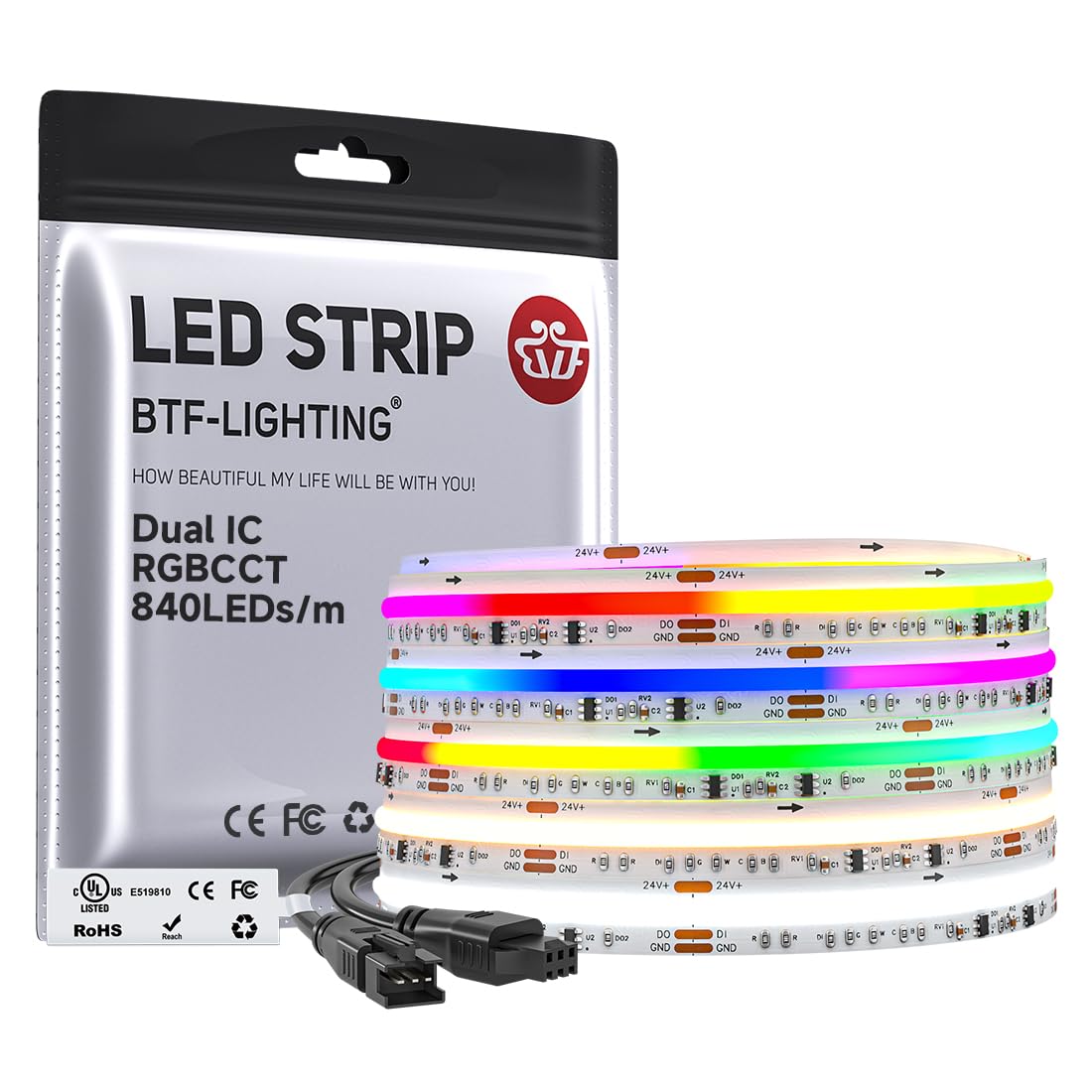

Figure 1: BTF-LIGHTING WS2811 Dual IC RGBCCT FCOB LED Strip.

2. Safety Information

• UL Listed: This product is UL Listed, ensuring compliance with safety standards.
• Voltage: Operate only with a DC24V power supply. Using an incorrect voltage can damage the strip and pose a safety risk.
• Indoor Use: This LED strip has an IP30 rating, meaning it is non-waterproof and intended for indoor applications only. Avoid exposure to moisture or high humidity.
• Heat Dissipation: Ensure adequate ventilation around the LED strip, especially when operating at full brightness, to prevent overheating and prolong lifespan. Mounting in an aluminum channel is recommended for optimal heat dissipation.
• Cutting: Only cut the LED strip at designated cut marks to avoid damaging the circuit.
• Coiling: Do not operate the LED strip when coiled or rolled up, as this can lead to excessive heat buildup.

Figure 2: Safety and efficiency highlights, including UL Listing and 65,000+ hours lifespan.

3. Package Contents

Verify that all items are present in the package:

• 1x 16.4FT WS2811 IC RGBCCT 840LED/m Light Strip
• 1X 3 pin JST connector

Note: A DC24V power supply and a compatible controller (e.g., SP530E or SP630E) are required for operation and are sold separately.

4. Setup

4.1 Preparation

• Ensure the installation surface is clean, dry, and smooth for optimal adhesion.
• Unroll the LED strip completely before testing or installation.

4.2 Physical Installation

The LED strip features a strong self-adhesive backing for easy mounting. It is flexible and can be bent to fit various shapes and corners.

• Adhesive Mounting: Peel off the protective layer from the 3M adhesive tape on the back of the strip and firmly press the strip onto the desired surface.
• Clips Fixed: For added security, especially on uneven surfaces or for long-term installations, use mounting clips (sold separately) to secure the strip.
• Cutting: The strip can be cut at designated marks, approximately every 2.5 inches (62.5mm), to adjust its length. Ensure cuts are made precisely on the copper pads.

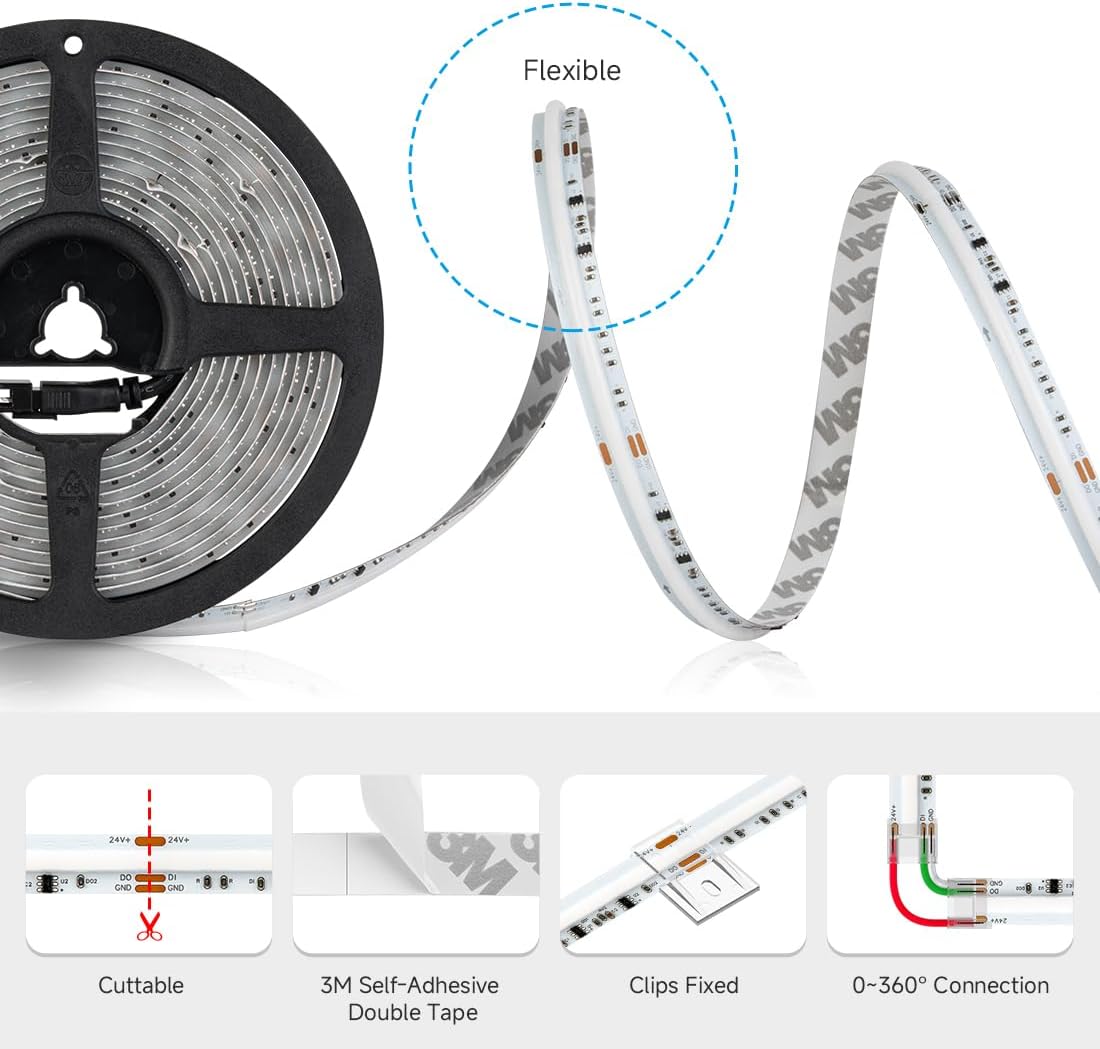

Figure 3: Features for physical installation: flexibility, cuttable sections, 3M adhesive, and clips.

4.3 Electrical Connection

This LED strip requires a DC24V power supply and a compatible addressable LED controller (e.g., SP530E or SP630E) for full functionality.

• Connect to Controller: Connect the 3-pin JST connector of the LED strip to the corresponding output on your compatible controller. Pay attention to the data direction arrow on the strip.
• Power Supply: Connect the DC24V power supply to the controller. Ensure the power supply capacity meets the strip's power requirements.
• Series Connection: Multiple strips can be connected in series. Ensure the total length and power draw do not exceed the controller and power supply limits.
• Parallel Connection: For longer installations or to maintain consistent brightness, use a signal amplifier and connect strips in parallel to the power supply.

Figure 4: Recommended controller connection diagram (SP630E shown).

Figure 5: Example wiring diagram for connecting the LED strip.

Figure 6: Different connector types for LED strip installation.

5. Operating Instructions

This LED strip is designed for use with specific controllers (SP530E, SP630E) to unlock its full range of features.

• Color Control: The strip supports 16 million RGB colors and tunable white light from 3000K (warm white) to 6000K (cool white).
• Chasing Effects: When paired with a compatible controller, the dual external ICs (28 ICs/m, driving 60 LEDs per dual-chip) enable dynamic chasing, fade-in/fade-out, and other animated lighting effects.
• Controller Usage: Refer to your specific controller's manual (SP530E or SP630E) for detailed instructions on selecting colors, adjusting brightness, and activating various lighting modes.

Figure 7: Examples of RGB and CCT chasing effects.

5.1 FCOB Technology Benefits

Flip-chip on board (FCOB) technology provides a high-density light-emitting unit, resulting in brighter, softer, and more uniform light compared to traditional SMD LED strips. This eliminates visible hotspots and creates a seamless glow.

Figure 8: FCOB RGBCCT IC vs. SMD RGBCCT IC comparison.

Figure 9: FCOB Dual IC RGBCCT strip details and benefits.

6. Maintenance

• Cleaning: Gently wipe the LED strip with a dry, soft cloth to remove dust. Do not use liquid cleaners or abrasive materials.
• Heat Management: To maximize the lifespan of the LED strip (rated for over 65,000 hours), ensure it is installed in a location with good airflow. For prolonged use at high brightness, consider mounting the strip in an aluminum profile to aid heat dissipation.
• Inspection: Periodically check connections for any signs of wear or damage.

7. Troubleshooting

• Strip Not Lighting Up:
  • Ensure the DC24V power supply is correctly connected and functioning.
  • Verify the controller is compatible (SP530E or SP630E) and properly connected to the strip.
  • Check the data direction arrow on the strip and ensure it aligns with the controller's output.
  • Confirm the controller is powered on and set to an active mode.
• Inconsistent Colors or Effects:
  • Ensure all connections are secure and free from corrosion.
  • If using WLED, ensure correct settings are applied: FW1906 GRBCW + RGB order + Swap WW & CW. Adjust length parameter as needed.
  • Check for voltage drop on longer runs. Consider power injection or a signal amplifier for consistent performance.
• Strip Gets Hot:
  • This is normal to some extent, especially at high brightness. However, excessive heat indicates poor heat dissipation.
  • Ensure the strip is not coiled or covered.
  • Consider mounting the strip in an aluminum channel to dissipate heat more effectively.
• Cut Section Not Working:
  • Ensure the cut was made precisely on the designated copper pads.
  • Verify the connector used for the cut section is properly installed and making good contact.

8. Specifications

9. Warranty and Support

BTF-LIGHTING provides a 12-month worry-free warranty for this product. For troubleshooting, replacement, or any questions regarding purchase or installation, please contact BTF-LIGHTING customer service. They offer 24/7 support to assist you.

For further assistance, please visit the BTF-LIGHTING Store on Amazon or refer to the contact information provided with your purchase.

10. Product Video
