EcoSummer 16 Quart Commercial Food Processor User Manual

1. Introduction

Thank you for choosing the EcoSummer 16 Quart Commercial Food Processor. This powerful and versatile appliance is designed for efficient food preparation in commercial and home kitchen environments. With its robust 1400W motor and large 15L (63-cup) stainless steel capacity, it is ideal for chopping, grinding, mixing, and blending a wide variety of ingredients, including meats, vegetables, fruits, grains, and nuts.

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your food processor. Please read it thoroughly before first use and retain it for future reference.

Image: The EcoSummer 16 Quart Commercial Food Processor, highlighting its 1400W motor and professional design.

2. Important Safety Instructions

WARNING: To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions.

• Read all instructions before using the appliance.
• Do not immerse the motor base in water or other liquids. Clean with a damp cloth only.
• Always unplug the appliance from the outlet before assembling, disassembling, or cleaning.
• Avoid contact with moving parts. Blades are extremely sharp. Always handle the S-curve blade with extreme care, especially when removing or inserting it, and during cleaning. Use the provided protective gloves.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Keep hands and utensils away from the moving blade while processing food to prevent the risk of severe injury to persons or damage to the food processor. A scraper may be used but only when the food processor is not running.
• Ensure the lid is securely locked in place before operating the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Image: The food processor unit, showing the included protective gloves and the S-blade, emphasizing safety during handling.

3. Product Components

Familiarize yourself with the parts of your EcoSummer Commercial Food Processor:

• Base Unit: Contains the powerful 1400W motor and control panel.
• Stainless Steel Bucket (15L/16QT): The large capacity processing bowl.
• Lid: Transparent lid with a feeding chute for adding ingredients during operation.
• S-Curve Stainless Steel Blade: The primary cutting attachment for chopping, grinding, and mixing.
• Protective Gloves: Included for safe handling of sharp blades.

Image: An exploded view illustrating the detachable components: Lid, Blade, Bucket, and Base, highlighting ease of cleaning.

4. Setup and Assembly

Before first use, wash all parts that will come into contact with food (bucket, lid, blade) in warm, soapy water. Rinse thoroughly and dry. Ensure the base unit is unplugged.

1. Place the motor base on a stable, flat, and dry surface.
2. Carefully place the S-curve blade onto the spindle inside the stainless steel bucket. Ensure it is seated firmly.
3. Place the bucket with the blade onto the motor base. Rotate the bucket slightly until it locks securely into place. The magnetic switch and buckles on the side of the base ensure the bucket is tightly fixed for operation.
4. Place the lid onto the bucket and rotate it clockwise until it clicks into a locked position. The appliance will not operate unless the lid is properly secured.
5. Plug the power cord into a standard 110V electrical outlet.

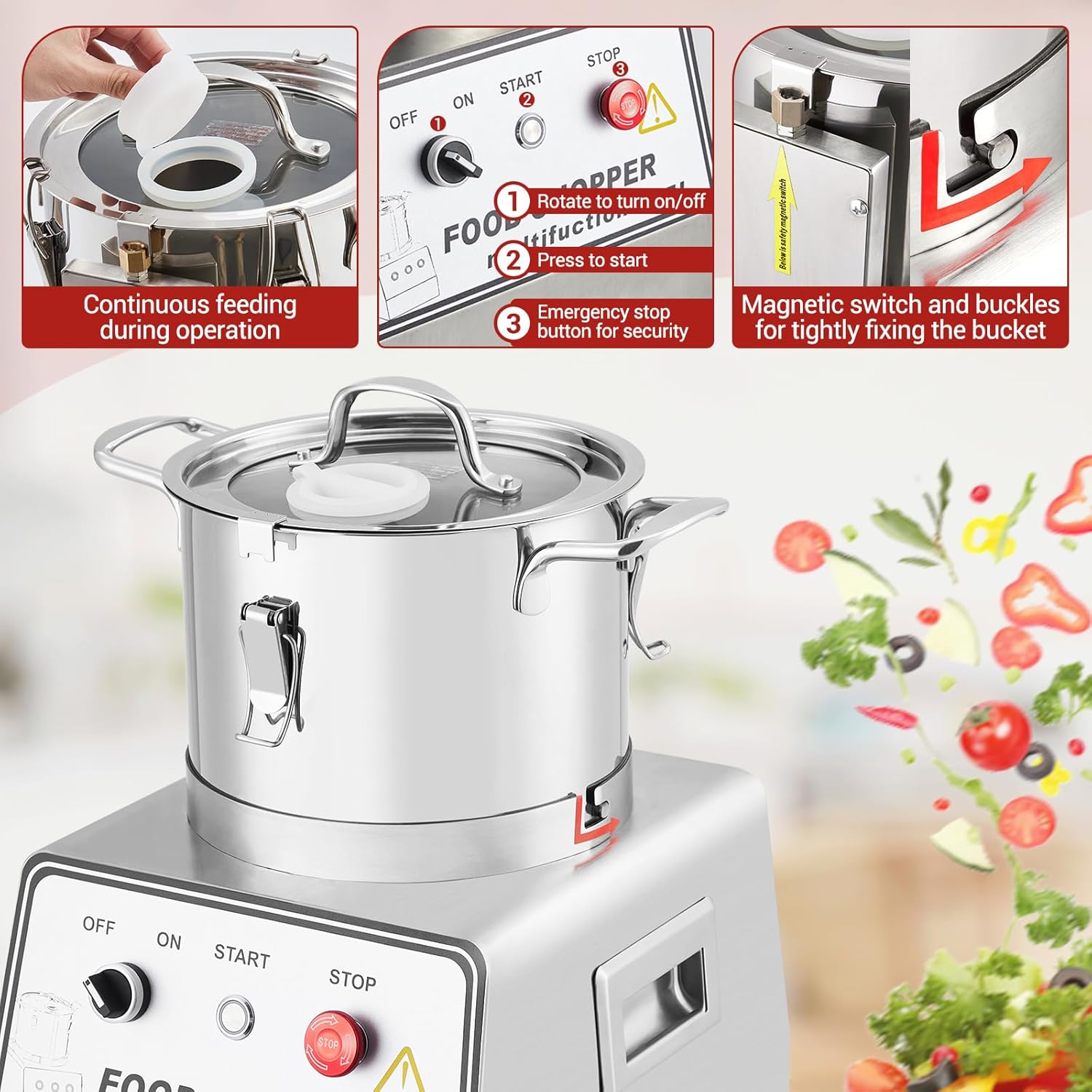

Image: Detail showing the control panel (OFF, ON, START, STOP) and the magnetic switch mechanism for securing the bucket, crucial for safe operation.

5. Operating Instructions

This food processor is designed for efficient batch processing. Always ensure the unit is properly assembled and locked before operation.

1. Preparation: Cut large ingredients into smaller, manageable pieces (e.g., 1-inch cubes) to ensure even processing and prevent overloading. Do not overfill the bucket; ensure ingredients are below the maximum fill line.
2. Loading: Place prepared ingredients into the stainless steel bucket.
3. Secure: Ensure the bucket is securely locked onto the base and the lid is properly closed and locked.
4. Start Operation:
   • Rotate the main knob from "OFF" to "ON".
   • Press the "START" button to begin processing. The blade will rotate at 1400 RPM.
5. Continuous Feeding: For certain ingredients, you can add them through the feeding chute on the lid while the machine is running. Use the provided pusher if necessary, but never your fingers or other utensils.
6. Stop Operation:
   • Press the red "STOP" button to immediately halt operation.
   • Rotate the main knob from "ON" to "OFF" to completely power down the unit.
7. Unloading: Once the blade has completely stopped, unlock and remove the lid, then carefully remove the blade (using protective gloves). You can then remove the processed food from the bucket.

Note: The appliance features an emergency stop button for immediate cessation of operation in case of an emergency.

6. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your food processor. Always unplug the unit before cleaning.

1. Disassembly: Unplug the unit. Remove the lid, then carefully remove the S-curve blade (using protective gloves). Unlock and remove the stainless steel bucket from the base.
2. Cleaning Components: Wash the lid, blade, and bucket in warm, soapy water. The stainless steel components are durable and easy to clean. Rinse thoroughly and dry immediately to prevent water spots.
3. Cleaning Base Unit: Wipe the motor base with a damp cloth. Do NOT immerse the base unit in water or any other liquid. Ensure no liquid enters the motor housing.
4. Drying: Ensure all parts are completely dry before reassembling or storing.
5. Storage: Store the food processor in a clean, dry place, away from direct sunlight and extreme temperatures.

Image: The food processor's lid, blade, and bucket are shown detached, illustrating the ease with which these components can be cleaned.

7. Troubleshooting

If you encounter issues with your food processor, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact EcoSummer customer support.

8. Specifications

Image: A detailed diagram illustrating the product's dimensions and the materials used for its base and bucket.

9. Warranty and Support

EcoSummer products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please contact your retailer or the manufacturer directly. Please have your model number (eraHFoF6il-AOKbbV0aYNwyC2I) and purchase date available when contacting support.

For the latest information and support, please visit the official EcoSummer website or refer to your purchase documentation.
