Tastyle K330MF Single Serve Coffee Maker Instruction Manual

1. Introduction

Thank you for choosing the Tastyle K330MF Single Serve Coffee Maker. This manual provides essential information for the safe and efficient operation of your new appliance. Please read all instructions carefully before use and retain this manual for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and personal injury, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or personal injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.

3. Package Contents

Your Tastyle K330MF Single Serve Coffee Maker package includes the following items:

• Tastyle Single Serve Coffee Maker
• Built-in Detachable Milk Frother
• Capsule Holder
• Reusable Ground Coffee Filter
• Removable Drip Tray (2 adjustable sizes)
• Instruction Manual (this document)
• Recipe Book
• Stainless Steel Coffee Stencil

4. Components Overview

Familiarize yourself with the main components of your coffee maker:

Figure 1: Overall view of the Tastyle K330MF Single Serve Coffee Maker, highlighting its compact design, control panel, detachable milk frother, and visible water reservoir.

• Control Panel: Features ON/OFF, HOT BREW, BOLD, OVER ICE buttons, and indicators for cup sizes (6/8/10/12/16/24 oz) and DESCALE reminder.
• Water Reservoir: A 40-oz transparent, removable tank for easy filling and monitoring of water levels.
• Brew Head: Area where K-Cups or ground coffee filter are inserted.
• Detachable Milk Frother: Built-in and rechargeable, it can be used attached or independently to create rich milk foam.
• Drip Tray: Two adjustable and removable drip trays to accommodate various cup and travel mug sizes, minimizing splashes.

5. Setup

Before first use, clean all removable parts with warm, soapy water. Rinse thoroughly and dry.

1. Place the Coffee Maker: Position the coffee maker on a clean, stable, and level surface.
2. Fill Water Reservoir: Remove the 40-oz water reservoir from the back of the unit. Fill it with fresh, cold water up to the 'Max' line. Reattach the reservoir securely to the coffee maker.

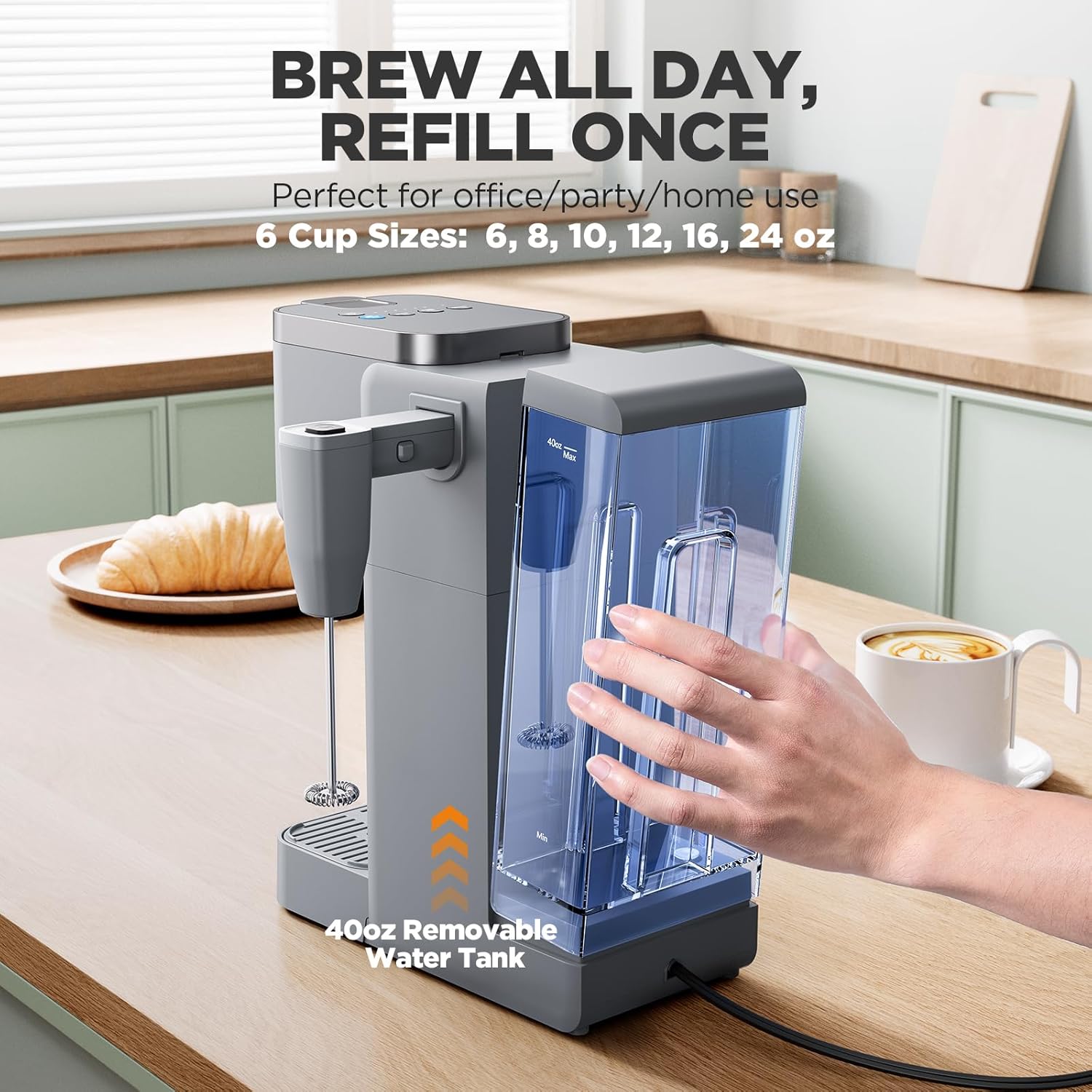

   Figure 2: Demonstrates filling the 40-oz removable water reservoir with fresh water.

3. Adjust Drip Tray: Select the appropriate drip tray for your cup or travel mug. The drip trays are adjustable and removable to fit mugs up to 7.3 inches tall.


   Figure 3: Illustrates the different drip tray positions to accommodate various cup heights, including travel mugs.

4. Power On: Plug the coffee maker into a standard 120V electrical outlet. Press the ON/OFF button on the control panel.

6. Operating Instructions

6.1 Brewing Coffee (K-Cup or Ground Coffee)

Your Tastyle K330MF supports both K-Cup pods and ground coffee.

1. Prepare Coffee:
   • For K-Cup: Insert a K-Cup pod into the capsule holder.
   • For Ground Coffee: Fill the reusable ground coffee filter with your desired amount of ground coffee. Place the filled filter into the brew head.
2. Close Brew Head: Close the brew head lid firmly until it clicks into place.

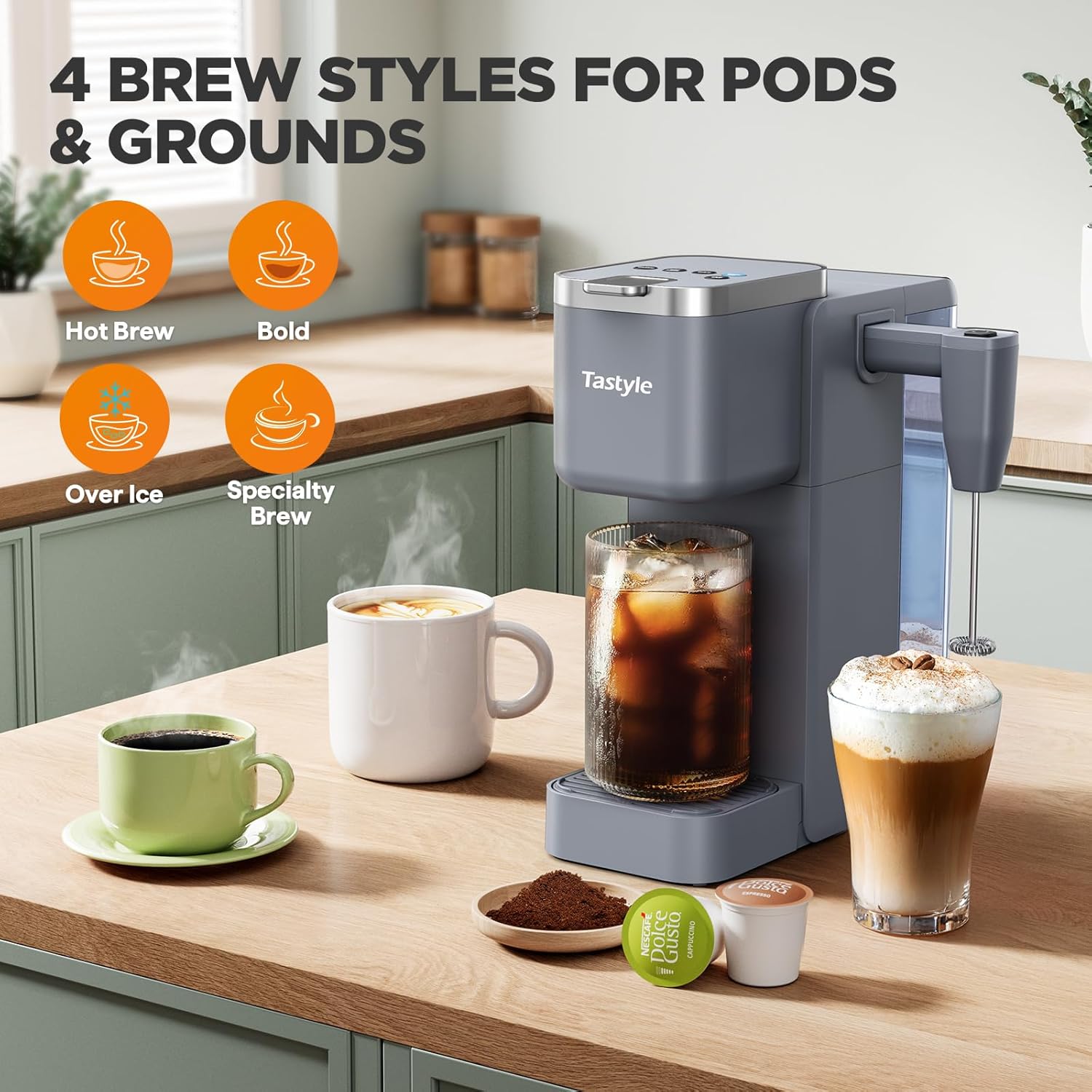

3. Select Brew Style: Choose your desired brew style from the control panel:
   • HOT BREW: For a standard hot coffee.
   • BOLD: For a stronger, more intense hot coffee.
   • OVER ICE: For iced coffee. Fill your cup with ice before placing it under the dispenser.
   • SPECIALTY BREW: For specific coffeehouse-style drinks (refer to recipe book).


   Figure 4: The control panel showing the HOT BREW, BOLD, and OVER ICE buttons, along with cup size indicators.

4. Select Cup Size: Press the 'OZ' button repeatedly to cycle through the available cup sizes (6/8/10/12/16/24 oz). The corresponding indicator light will illuminate.
5. Start Brewing: Once your selections are made, the brewing process will begin automatically. The machine will auto shut off after 10 minutes of inactivity.

6.2 Using the Detachable Milk Frother

The built-in detachable milk frother allows you to create rich foam for lattes, cappuccinos, and other specialty drinks.

1. Froth Directly (Attached): Place a small amount of milk in a suitable container (e.g., a frothing pitcher). Position the container under the frother. Press and hold the power button on the frother to activate it. Froth until desired consistency is achieved.


   Figure 5: Close-up of the detachable milk frother, showing its integration with the coffee maker.

2. Froth Separately (Detached): To detach the frother, press the release button on the back of the connecting lever and pull it out. You can then use the frother independently with any container of milk. The frother is USB-C rechargeable for individual use.


   Figure 6: A user demonstrating the use of the detachable milk frother to create foam in a pitcher.

6.3 Official Product Video

Watch this official video from Tastyle for a visual guide on using your coffee maker and frother:

7. Maintenance

Regular cleaning and descaling will ensure the longevity and optimal performance of your coffee maker.

1. Daily Cleaning: The drip tray, capsule holder, and ground coffee filter are dishwasher-safe. The milk frother whisk can be rinsed directly under water, but avoid immersing the frother housing.
2. Descaling: The 'DESCALE' indicator light on the control panel will flash red when the machine needs descaling. To initiate the cleaning function, press and hold the 'OVER ICE' button for 3 seconds.


   Figure 7: The control panel indicating the 'DESCALE' light and instructions for activating the cleaning function.

8. Troubleshooting

If you encounter any issues with your coffee maker, please refer to the following common problems and solutions:

• Coffee not brewing: Ensure the water reservoir is filled, the brew head is properly closed, and the machine is powered on.
• Weak coffee: Try selecting the 'BOLD' brew option or using more ground coffee.
• Frother not working: Ensure the frother is charged (if detached) or properly seated in its charging port (if attached).
• Descaling light is on: Perform the descaling procedure as described in the Maintenance section.

For further assistance, please contact customer support.

9. Specifications

10. Warranty and Support

Tastyle is committed to providing high-quality products and excellent customer service.

• Warranty: This product comes with an 18-month commitment.
• Customer Support: 24-hour customer support is available for any inquiries or issues.
• Technical Support: Enjoy lifetime technical support for your Tastyle K330MF coffee maker.
• Return Policy: A 30-day refund/replacement policy is available for this product.

For support, please refer to the contact information provided with your product packaging or visit the official Tastyle website.
