Miele Guard S1 Canister Vacuum Cleaner User Manual

1. Introduction

Thank you for choosing the Miele Guard S1 Bagged Canister Vacuum Cleaner. This manual provides essential information for the safe and efficient use, maintenance, and care of your appliance. Please read these instructions carefully before first use to prevent accidents and ensure optimal performance.

The Miele Guard S1 (Model 41TAE033CDN) is a compact, high-performance bagged canister vacuum designed for effective cleaning of hard floors and low-pile carpets. It features a powerful 1200W motor, AirClean filtration, and a HyClean 3.5L dustbag system for superior dust retention and cleaner exhaust air.

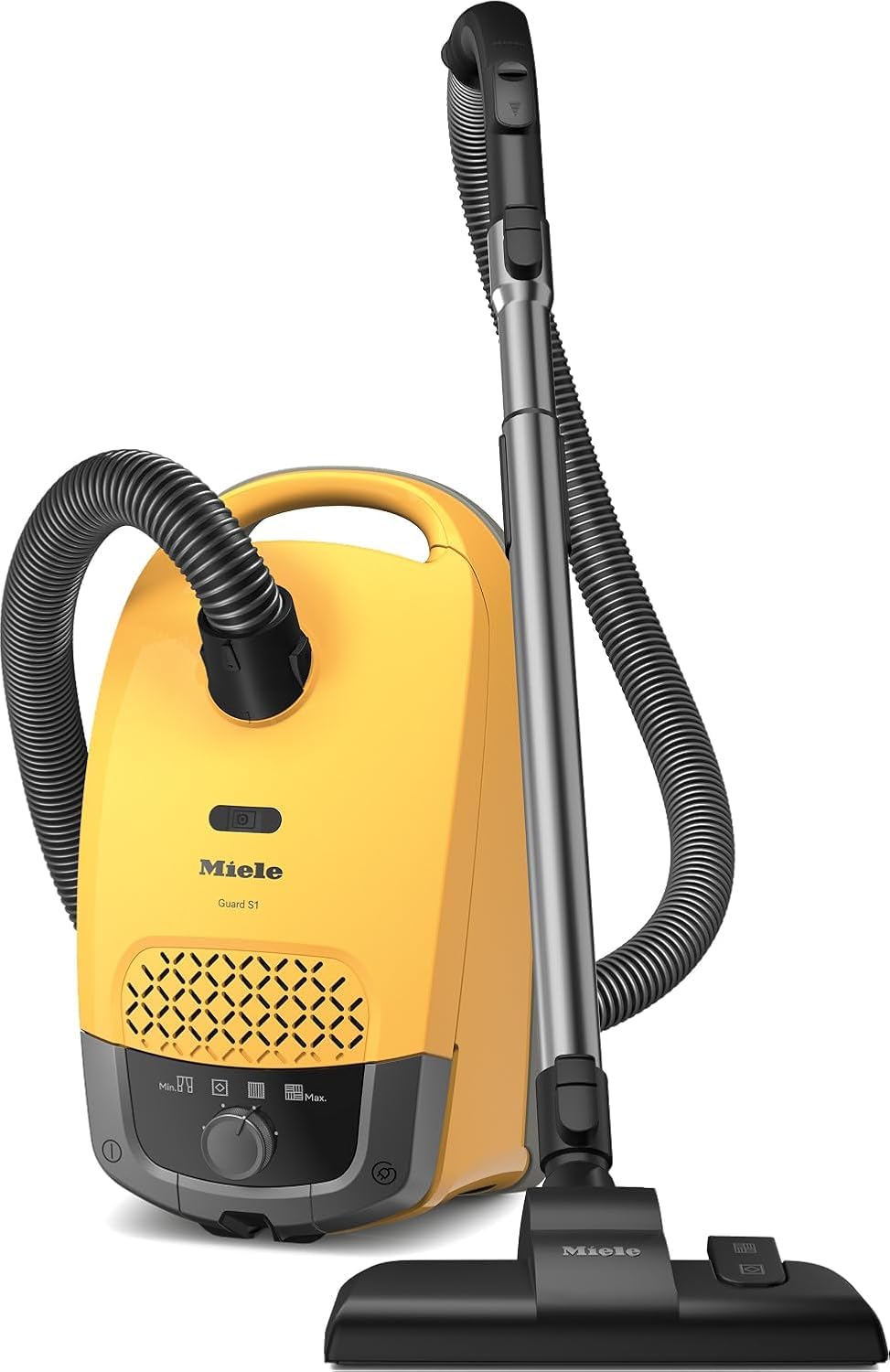

Image: The Miele Guard S1 Canister Vacuum Cleaner in Sunset Yellow, showcasing its compact design.

2. Safety Information

Please observe the following safety instructions to prevent injury or damage to the appliance:

• Read all instructions before using the appliance.
• Do not use the vacuum cleaner without the dustbag and filters correctly installed.
• Do not vacuum up water, liquids, or damp dirt.
• Do not vacuum up burning or glowing objects (e.g., cigarettes, ashes).
• Do not vacuum up fine dust such as plaster, cement, or toner without a special filter.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Unplug the appliance from the power outlet before cleaning or performing maintenance.
• Do not use the appliance if the power cord is damaged. Contact Miele Service for repair.
• This appliance is intended for domestic use only.

3. Setup and Assembly

3.1 Unpacking and Package Contents

Carefully remove all components from the packaging. Ensure all parts are present and undamaged. The package should contain the following:

• Miele Guard S1 Canister Vacuum Unit
• Suction Hose
• Telescopic Suction Wand
• Universal Floorhead SBD 355-3
• 3-Piece Accessory Set (Crevice Tool, Dusting Brush, Upholstery Nozzle) with VarioClip
• HyClean Air TU Vacuum Cleaner Bag (pre-installed or included)
• AirClean Filter (integrated)

Image: Contents included with the Miele Guard S1, featuring the vacuum unit, FiberTeQ Universal Floorhead, 3-piece accessories with VarioClip, AirClean Filter, and HyClean Air TU Vacuum Cleaner Bag.

3.2 Assembling the Vacuum Cleaner

1. Attach the Suction Hose: Insert the hose connector into the suction opening on the vacuum unit until it clicks securely into place. To detach, press the release buttons on the side of the connector.
2. Connect the Telescopic Suction Wand: Insert the wider end of the telescopic wand into the handle of the suction hose until it clicks.
3. Attach the Floorhead: Connect the Universal Floorhead SBD 355-3 to the narrow end of the telescopic wand until it clicks.
4. Attach Accessories: The 3-piece accessory set (crevice tool, dusting brush, upholstery nozzle) can be attached to the VarioClip for convenient storage on the suction wand or directly to the hose handle for use.

Image: The convenient accessory clip keeps the crevice tool, dusting brush, and upholstery nozzle always within reach.

Image: The seamless cleaning comfort feature allows the telescopic wand to adjust to your height for ergonomic use.

4. Operating Instructions

4.1 Powering On/Off and Cord Management

• Power Cord: Pull the power cord out to the desired length. The yellow mark indicates the recommended maximum length, and the red mark indicates the absolute maximum length.
• Plug In: Insert the power plug into a suitable wall socket.
• Power On: Press the On/Off foot switch on the vacuum cleaner unit.
• Power Off: Press the On/Off foot switch again.
• Cord Rewind: Gently tap the foot switch for cord rewind. The cord will automatically retract into the appliance.

4.2 Adjusting Suction Power

The Miele Guard S1 features a Multistage Rotary Control to adjust the suction power according to the cleaning task.

Image: The Multistage Rotary Control allows you to easily select the right power level for different surfaces.

• Min: For light-duty cleaning, curtains, or delicate fabrics.
• Medium: For upholstery, rugs, or lightly soiled hard floors.
• Max: For heavily soiled hard floors, durable carpets, or general vacuuming.

4.3 Using the Floorhead and Accessories

• Universal Floorhead SBD 355-3: This floorhead is suitable for both hard floors and low-pile carpets. Use the foot switch on the floorhead to switch between carpet mode (brushes retracted) and hard floor mode (brushes extended).
• Crevice Tool: Ideal for cleaning in corners, crevices, and along edges.
• Dusting Brush: For dusting shelves, furniture, and delicate objects.
• Upholstery Nozzle: Designed for cleaning upholstery, mattresses, and cushions.

5. Maintenance and Care

Regular maintenance ensures the longevity and optimal performance of your Miele Guard S1 vacuum cleaner. Always unplug the appliance before performing any maintenance.

5.1 Replacing the Dustbag

The HyClean Pure TU dustbag has a 3.5-liter capacity. Replace the dustbag when the dustbag change indicator (if present) signals or when suction power noticeably decreases.

1. Open the dustbag compartment lid by pressing the release button.
2. The dustbag collar will automatically close when the lid is opened, preventing dust from escaping.
3. Carefully remove the full dustbag by pulling it upwards from the holder.
4. Insert a new Miele HyClean Pure TU dustbag into the holder, ensuring it sits correctly.
5. Close the dustbag compartment lid until it clicks securely.

Image: Replacing the HyClean Air TU Dust Bag. The design prevents dust from escaping for a hygienic bag change.

5.2 Filter Maintenance

The Miele Guard S1 is equipped with an AirClean exhaust filter that traps 99.99% of fine particles. This filter is integrated and typically replaced with every fifth dustbag change, or as indicated by the filter change indicator (if present).

• Refer to the specific instructions in your vacuum's filter compartment for replacement.
• Only use genuine Miele AirClean filters to maintain filtration performance.

Image: The AirClean filter system captures 99.99% of dust, ensuring cleaner air after vacuuming.

5.3 Cleaning the Appliance

• Wipe the exterior of the vacuum cleaner with a dry or slightly damp cloth. Do not use abrasive cleaners or solvents.
• Clean the floorhead regularly, removing any tangled hair or debris from the brushes.

6. Troubleshooting

Before contacting Miele Service, please consult the following table for common issues and their solutions.

7. Specifications

Image: Illustration of the powerful motor and streamlined airflow engineered for thorough cleaning performance.

Image: The space-saving and lightweight design makes the Miele Guard S1 easy to carry and store.

8. Warranty and Support

Miele products are designed with durable German engineering and backed by trusted performance standards. For specific warranty details, please refer to the warranty card included with your product or visit the official Miele website.

For technical assistance, spare parts, or service, please contact Miele Customer Service. You can find contact information on the Miele website or in the documentation provided with your appliance.

Online Resources: For additional support, FAQs, and product registration, visit the official Miele website: www.miele.com
