Chefman 1.1 cu. ft. 1500W Digital Mirror Stainless Steel Microwave Oven User Manual

Introduction

Thank you for choosing the Chefman 1.1 cu. ft. 1500W Digital Mirror Stainless Steel Microwave Oven. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and retain it for future reference.

Important Safety Instructions

WARNING: To reduce the risk of fire, electric shock, injury to persons, or exposure to excessive microwave energy, observe the following basic precautions:

• Read all instructions before using the appliance.
• Do not attempt to operate this oven with the door open, as this can result in harmful exposure to microwave energy.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
• The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
• Ensure the appliance is properly grounded.
• Do not use corrosive chemicals or vapors in this appliance.
• Do not heat liquids or other foods in sealed containers as they are liable to explode.
• Always use oven mitts when removing items from the microwave.
• This appliance is UL approved, ensuring advanced safety technology.

Product Overview

The Chefman 1.1 cu. ft. microwave oven features a sleek digital mirror stainless steel design, offering both functionality and modern aesthetics for your kitchen.

Image Description: A front view of the Chefman 1.1 cubic foot microwave oven. It features a black digital mirror finish door and control panel, with a grey casing. The digital display shows "5:15". The control panel on the right includes various preset buttons, number pad, and start/stop buttons.

Key Features:

• Capacity: 1.1 Cubic Feet (31.1 Liters)
• Power Output: 1500 Watts
• Power Levels: 10 adjustable power levels
• Preset Menus: 8 automatic menus for common foods (Popcorn, Potato, Pizza, Vegetable, Beverage, Meat, Reheat, Fish)
• Control Panel: Intuitive digital control panel with easy-to-use buttons.
• Turntable: Removable glass turntable for even cooking.
• Special Functions: +30 seconds quick start, Eco Mode, Mute option, Memory function, Multi-stage cooking, Child Safety Lock.
• Material: Stainless Steel exterior.

Image Description: An interior view of the Chefman microwave oven, illustrating the 1500 Watts of power. A bowl of food is shown inside, with visual effects suggesting rapid heating. This highlights the microwave's high power output and efficient cooking capabilities.

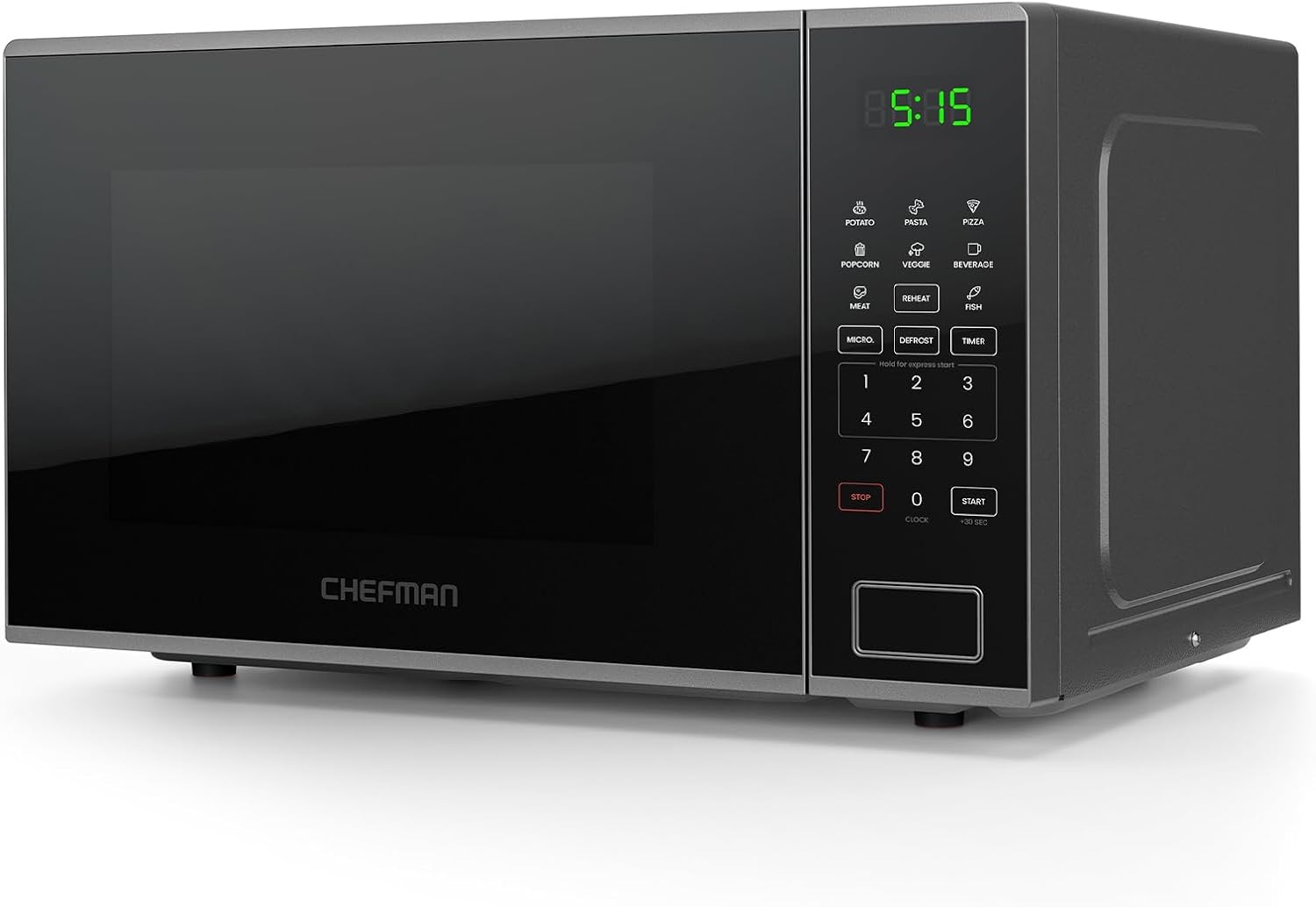

Image Description: An angled view of the Chefman 1.1 cubic foot microwave oven, showing the front and right side. The digital display shows "5:15". The control panel is visible on the right, featuring various cooking presets and a numeric keypad. The overall design is sleek with a dark, reflective door and a grey body.

Setup

1. Unpacking: Carefully remove the microwave oven and all packing materials from the carton. Check the oven for any damage, such as dents or a misaligned door. Do not operate the oven if it is damaged.
2. Placement:
   • Place the microwave on a flat, stable surface that can support its weight.
   • Ensure adequate ventilation. Leave a minimum of 3 inches (7.5 cm) of space on the top, back, and sides for proper airflow.
   • Do not place the oven near heat sources or in a damp area.
3. Electrical Connection:
   • Plug the microwave into a dedicated 120V, 60Hz, AC outlet with proper grounding. Do not use an extension cord.
   • Ensure the electrical circuit is rated for 1500W to prevent overloading.
4. Turntable Installation:
   • Place the turntable ring inside the oven cavity.
   • Position the glass turntable plate securely on top of the turntable ring, ensuring it sits properly on the center hub.

Image Description: An angled view of the Chefman 1.1 cubic foot microwave oven with dimensions overlaid. The width is approximately 51 cm, depth is approximately 36.7 cm, and height is approximately 30.4 cm. This image helps in planning the placement of the microwave.

Operating Instructions

Setting the Clock:

1. Press the "CLOCK" button.
2. Use the number pad to enter the current time (e.g., 12:30).
3. Press "CLOCK" again to confirm.

Basic Microwave Cooking:

1. Place food in a microwave-safe container on the turntable.
2. Close the door securely.
3. Enter the desired cooking time using the number pad.
4. Press "POWER" repeatedly to select the desired power level (1-10). Level 10 is 100% power.
5. Press "START" to begin cooking.

Quick Start (+30 Seconds):

For quick heating at 100% power, simply press the "+30 SEC" button. Each press adds 30 seconds to the cooking time. You can press it multiple times for longer durations.

Preset Menus (Express Cook):

The microwave features 8 automatic preset menus for convenient cooking:

• Popcorn: For various popcorn bag sizes.
• Potato: For baking potatoes.
• Pizza: For reheating pizza slices.
• Vegetable: For cooking fresh or frozen vegetables.
• Beverage: For heating drinks.
• Meat: For cooking various meat types.
• Reheat: For warming up leftovers.
• Fish: For cooking fish.

To use a preset: Press the corresponding preset button (e.g., "POPCORN"), then press "START". The oven will automatically set the time and power level.

Image Description: The Chefman microwave oven with its door open, revealing the interior and a bowl of popcorn. The control panel highlights the 8 preset options: Potato, Pasta, Pizza, Popcorn, Veggie, Beverage, Meat, Reheat, and Fish. A hand is shown reaching for popcorn, illustrating the ease of use for these functions.

Defrosting:

The microwave offers defrosting functions. Place frozen food on the turntable. Press the "DEFROST" button, then enter the weight of the food using the number pad. Press "START". The oven will calculate the defrosting time.

Multi-Stage Cooking:

This feature allows you to program two different cooking stages. For example, you can defrost food and then cook it in one sequence.

1. Program the first stage (e.g., defrost by weight).
2. Then, program the second stage (e.g., cooking time and power level).
3. Press "START". The oven will automatically switch from the first stage to the second.

Memory Function:

Save frequently used settings for quick access. Consult the full user guide for detailed instructions on programming and recalling memory settings.

Eco Mode:

To conserve energy, activate Eco Mode. This mode turns off the LED display when the microwave is not in active use. To activate/deactivate, refer to the specific instructions in the full user manual.

Mute Option:

For quieter operation, the microwave offers a mute option to silence beeps and alarms. Refer to the full user manual for instructions on how to enable or disable this feature.

Child Safety Lock:

To prevent accidental operation by children, activate the child safety lock. To engage the lock, press and hold the "STOP/CANCEL" button for 3 seconds. The display will indicate that the lock is active. To deactivate, press and hold "STOP/CANCEL" again for 3 seconds.

Image Description: A close-up view of the Chefman microwave's control panel, emphasizing the "STOP" button and the child safety lock feature. Text on the image indicates that pressing and holding "STOP" for 3 seconds activates or deactivates the lock, preventing unintended use.

Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your microwave oven.

• Interior Cleaning: After each use, wipe the interior with a damp cloth. For stubborn food splatters, place a bowl of water with lemon slices inside and microwave for 2-3 minutes. The steam will loosen the residue, making it easier to wipe clean.
• Exterior Cleaning: Wipe the exterior surfaces with a soft, damp cloth. For the stainless steel finish, use a non-abrasive stainless steel cleaner if necessary.
• Door Seals: Keep the door seals and sealing surfaces clean. Do not use harsh detergents or abrasive cleaners.
• Turntable: The glass turntable and turntable ring can be removed and washed in warm, soapy water or in the dishwasher. Ensure they are completely dry before placing them back in the oven.
• Odor Removal: To remove odors, combine 1 cup of water with several tablespoons of lemon juice or vinegar in a microwave-safe bowl. Microwave on high for 5-7 minutes.

CAUTION: Always unplug the microwave oven before cleaning. Do not immerse the appliance in water or other liquids.

Troubleshooting

If you encounter any issues with your microwave oven, please refer to the following common problems and solutions:

If the problem persists after checking these solutions, please contact Chefman Customer Support.

Specifications

Warranty and Support

Your Chefman 1.1 cu. ft. 1500W Digital Mirror Stainless Steel Microwave Oven is backed by a 1-year limited warranty provided by Chefman.

This warranty covers manufacturing defects and ensures the product is free from defects in material and workmanship under normal use and conditions.

For warranty claims, technical support, or any questions regarding your product, please contact Chefman Customer Service. Please have your model number (RJ55-MR-11-MX) and proof of purchase ready.

For the most up-to-date support information, please visit the official Chefman website or refer to the contact details provided in your purchase documentation.
