Zomee 3-in-1 Lactation Massager (Model AC-WCLM) Instruction Manual

Introduction

Thank you for choosing the Zomee 3-in-1 Lactation Massager. This device is designed to provide soothing comfort and support during breastfeeding and pumping, offering heat, cooling, and gentle vibration therapy. Please read this manual thoroughly before use to ensure safe and effective operation.

Important Safety Warnings

• WARNING: Do not use in the shower or bath.
• Avoid contact with water while charging.
• Do not use on any other body part.
• Consult your healthcare provider before use if pregnant or have any health conditions.
• Do not block ventilation airways during use.
• If the device malfunctions or the battery begins to flash rapidly, indicating low power, discontinue use and charge the device.

Product Overview

The Zomee 3-in-1 Lactation Massager combines three therapeutic functions: warming, cooling, and vibration. Its ergonomic design and soft silicone material ensure comfort and ease of use.

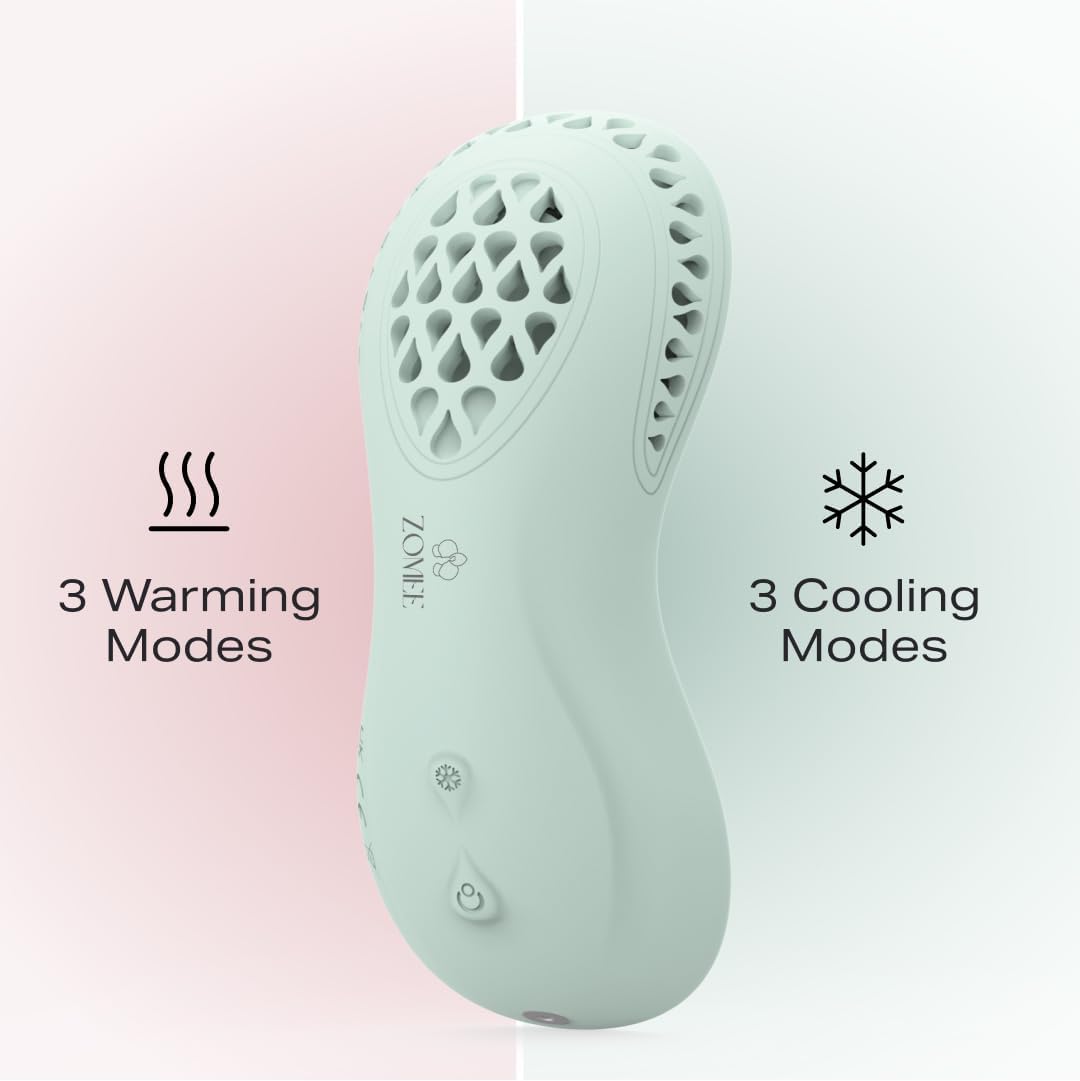

Image: The Zomee 3-in-1 Lactation Massager, highlighting its three warming and three cooling modes.

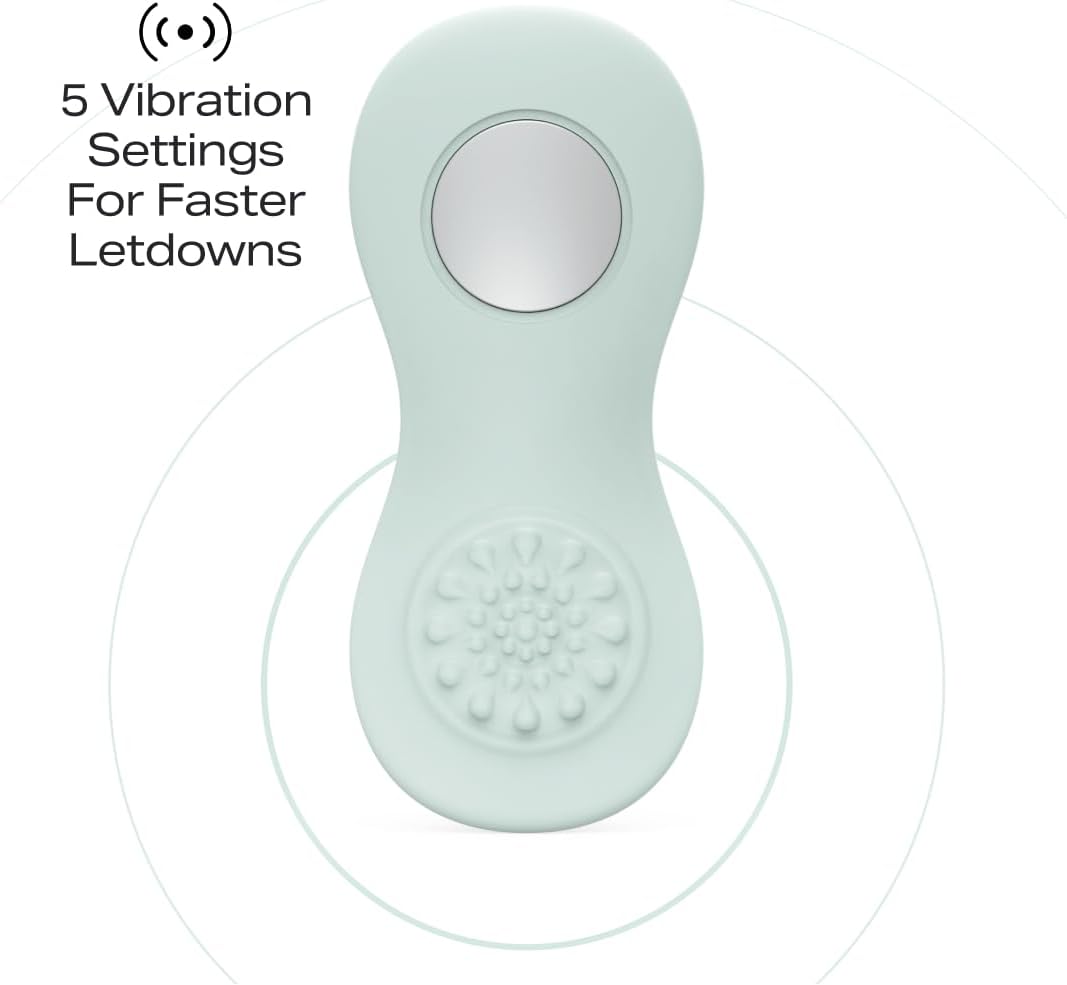

Image: The Zomee 3-in-1 Lactation Massager, illustrating its five vibration settings for faster letdowns.

Setup

Charging the Device

1. Place the massager on a flat surface to ensure the magnetic charging cable remains securely attached.
2. Connect the USB magnetic charging cable to the device and a power source (power brick not included).
3. While charging, the indicator light on the device will flash green.
4. Once fully charged (approximately 3 hours), the green light will remain solid, no longer flashing.
5. If the battery is low, the green light will begin to flash rapidly to indicate it needs charging.
6. Before using the device, ensure it is fully charged and unplugged from any power source.

Image: Quick Start Guide for the Zomee Lactation Massager, detailing charging and operational steps.

Operating Instructions

Power On/Off

• To turn on: Long press the power button for 2 seconds until you feel a short vibration and the green light turns on. The device is now in standby mode.
• To turn off: Long press the power button again.

Cooling Mode

• Press the cooling button (snowflake icon) to activate cooling mode.
• Press it again to cycle through 3 intensity levels, indicated by 1 to 3 white lights.
• Recommended Use: Use cooling after nursing or pumping to help reduce pain, inflammation, and engorgement, soothing soreness and supporting recovery.
• Cooling mode will automatically turn off after 20 minutes of use.

Warming Mode

• Long press the cooling button (snowflake icon) for 2 seconds to switch to warming mode.
• Short press the button again to adjust the warming intensity from level 1 to 3, indicated by 1 to 3 red lights.
• Recommended Use: Use warming before or during nursing or pumping to stimulate letdown, improve milk flow, and help relieve clogged ducts for faster, more efficient sessions.
• Warming mode will automatically turn off after 20 minutes of use.

Vibration Mode

• To turn vibration mode on or off, short press the power button while the device is in standby.
• Short press the power button again to cycle through the 5 available vibration intensity settings.
• Recommended Use: Vibration helps relieve engorgement, stimulates letdown, and supports better milk flow. For increased benefits, use warming or cooling in combination with vibration mode.
• Vibration mode will automatically turn off after 30 minutes of use.

General Usage Tips

• Gently massage any clogged ducts on your breast using light, circular motions with your hand.
• When using warming or cooling mode, apply the massager to the breast area, applying gentle circular pressure.
• When using vibration, gently massage the breast using light pressure, moving from the outer areas toward the nipple.
• Limit application to 5 minutes per area and no more than 20 minutes per session.

Maintenance

Cleaning

• After each use, wipe down the exterior of the device with a clean cloth and mild soap and warm water.
• Do not submerge the device in water.
• Ensure the device is completely dry before storing or recharging.

Storage

• Store the massager in the provided carry pouch to protect it from dust and damage.
• Keep the device in a cool, dry place away from direct sunlight.

Specifications

Warranty and Support

Specific warranty details for the Zomee 3-in-1 Lactation Massager (Model AC-WCLM) are not provided in this manual. For comprehensive warranty information, product support, or to address any concerns, please visit the official Zomee website or contact their customer service directly.

Manufacturer: Zomee

ASIN: B0FM9TGLXX

Global Trade Identification Number: 00850066890141
