1. Introduction and Safety Information
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Einhell TE-VC 2580 SACL Wet and Dry Vacuum Cleaner. Please read this manual thoroughly before using the appliance for the first time and keep it for future reference.
General Safety Warnings
- Always disconnect the appliance from the power supply before cleaning, maintenance, or when not in use.
- Do not vacuum flammable or explosive liquids, gases, or dust.
- Do not vacuum hot ashes, burning cigarettes, or sharp objects.
- Ensure all filters are correctly installed before operation.
- This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities unless supervised or instructed.
- Keep children away from the appliance.
- Use only original accessories and spare parts.
2. Product Overview
The Einhell TE-VC 2580 SACL is a powerful wet and dry vacuum cleaner designed for versatile cleaning tasks in workshops, homes, and construction sites. It features robust construction and a range of functions for effective debris and liquid removal.

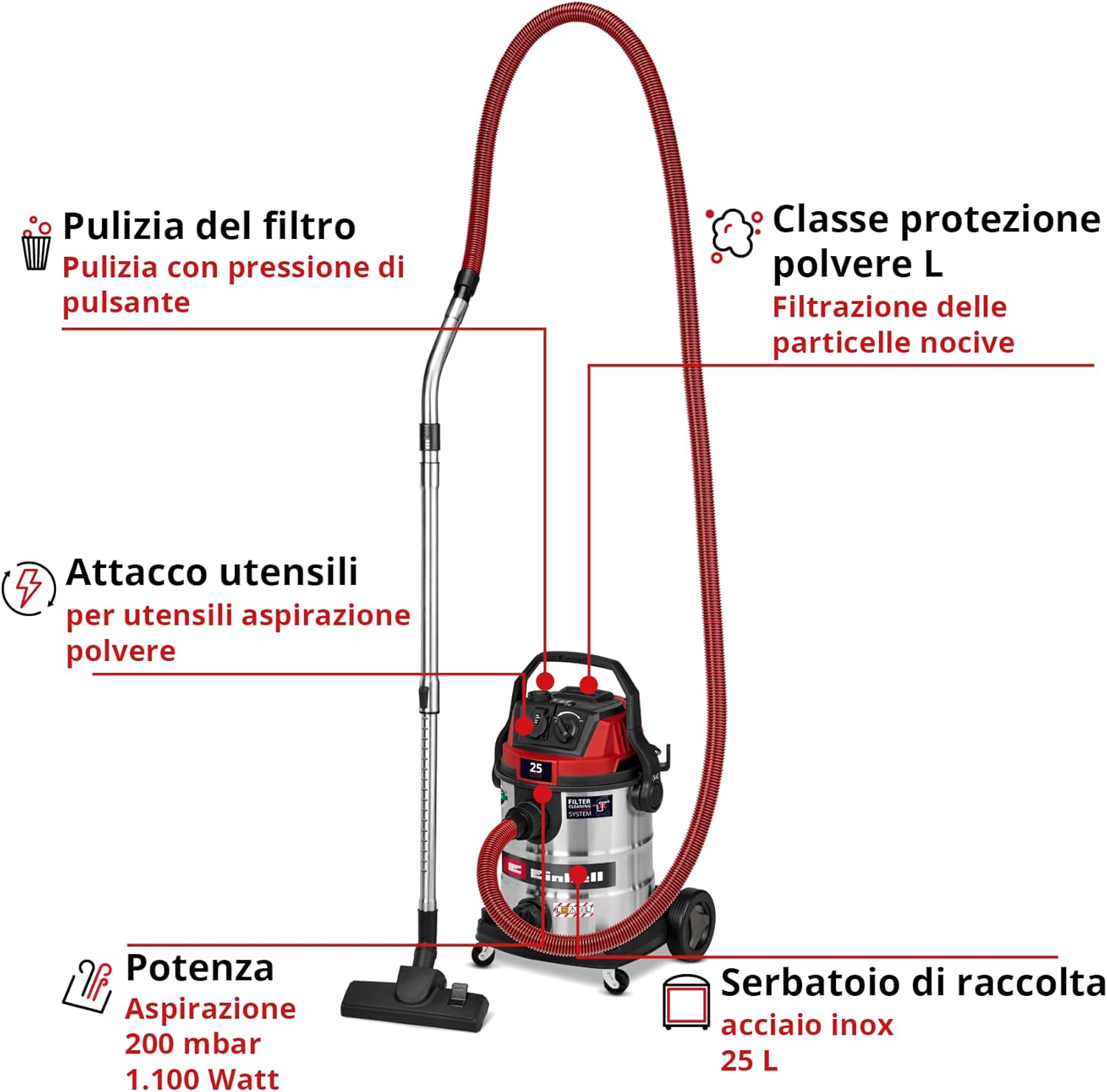

This diagram illustrates the main components and features of the Einhell TE-VC 2580 SACL vacuum cleaner, including its powerful suction, dust protection class L, filter cleaning system, and stainless steel collection tank.
Key Features:
- Powerful Performance: 1100 W motor with 200 mbar suction power.
- Dust Protection Class L: Filters 99% of harmful dust particles, suitable for plaster, lime, soil, and sand.
- Integrated Filter Cleaning System: Restores suction power quickly.
- Automatic Power Outlet: Connect electric tools (up to 2200 W); vacuum starts/stops with the tool.
- Variable Suction Power: Continuously adjustable for different cleaning needs.
- High Mobility: Equipped with wheels and castors for easy transport.
- Extended Operating Range: 3m flexible suction hose and 6m power cable provide an 8m total reach.
- Integrated Storage: Cable winding, suction hose holder, and accessory compartments.
- Durable Tank: 25-liter stainless steel collection tank with a water drain plug.
This graphic explains the high filtration performance for clean exhaust air, specifically mentioning Dust Class L, which filters 99% of harmful dust particles like household dust, plaster, lime, soil, and sand.
3. Setup and Assembly
Before initial use, assemble the vacuum cleaner components as described below.
3.1 Unpacking and Component Check
- Carefully remove all parts from the packaging.
- Check that all components listed in the 'Included Components' section of the specifications are present and undamaged.
3.2 Attaching the Wheels and Castors
Attach the large wheels and smaller castors to the base of the vacuum cleaner for mobility.
3.3 Filter Installation
The type of filter required depends on whether you are performing wet or dry vacuuming.
- For Dry Vacuuming: Install the HEPA pleated filter and the non-woven dust bag (25 L) into the tank. Ensure the bag is properly seated around the inlet.
- For Wet Vacuuming: Remove the non-woven dust bag. Install the foam filter over the motor housing. The HEPA pleated filter should also be removed for wet vacuuming to prevent damage.
3.4 Connecting the Suction Hose and Accessories
- Connect the flexible suction hose to the inlet port on the vacuum cleaner. Ensure it clicks securely into place.
- Attach the telescopic suction tube to the end of the hose.
- Select the appropriate nozzle (e.g., combination nozzle, crevice nozzle, brush nozzle) for your cleaning task and attach it to the telescopic tube.
This image demonstrates how to securely connect the flexible suction hose to the vacuum cleaner's inlet port.
Various nozzles and filters are included for both dry and wet vacuuming, such as a combination nozzle, crevice nozzle, brush nozzle, HEPA pleated filter, non-woven bag, and foam filter.
4. Operating Instructions
Familiarize yourself with the operating modes and controls before starting.
4.1 Powering On/Off and Suction Adjustment
- Plug the power cable into a suitable electrical outlet.
- Turn the main switch to the 'ON' position to start the vacuum cleaner.
- Adjust the suction power continuously using the rotary dial on the top of the unit to suit your cleaning requirements.
- To turn off the vacuum cleaner, set the main switch to the 'OFF' position.
A hand is shown turning the rotary dial to continuously adjust the suction power of the vacuum cleaner, allowing for versatile cleaning tasks.
4.2 Dry Vacuuming
For dry vacuuming, ensure the HEPA pleated filter and the non-woven dust bag are correctly installed. The vacuum cleaner is suitable for collecting dry debris, dust, and fine particles.
4.3 Wet Vacuuming
For wet vacuuming, remove the non-woven dust bag and ensure the foam filter is installed. The vacuum cleaner will automatically shut off when the maximum liquid level is reached in the tank. Empty the tank immediately after wet vacuuming.
4.4 Using the Automatic Power Outlet for Tools
The integrated power outlet allows you to connect electric tools (up to 2200 W) directly to the vacuum cleaner. When the tool is switched on, the vacuum cleaner will automatically start, and when the tool is switched off, the vacuum cleaner will stop after a short delay to clear the hose.
This image shows the integrated automatic power outlet, which allows for connecting electric tools. The vacuum cleaner automatically starts or stops when the connected tool is switched on or off.
4.5 Blowing Function
The vacuum cleaner can also be used as a blower. To activate this function, connect the suction hose to the exhaust port on the back of the unit. This is useful for clearing debris from hard-to-reach areas or blowing leaves.

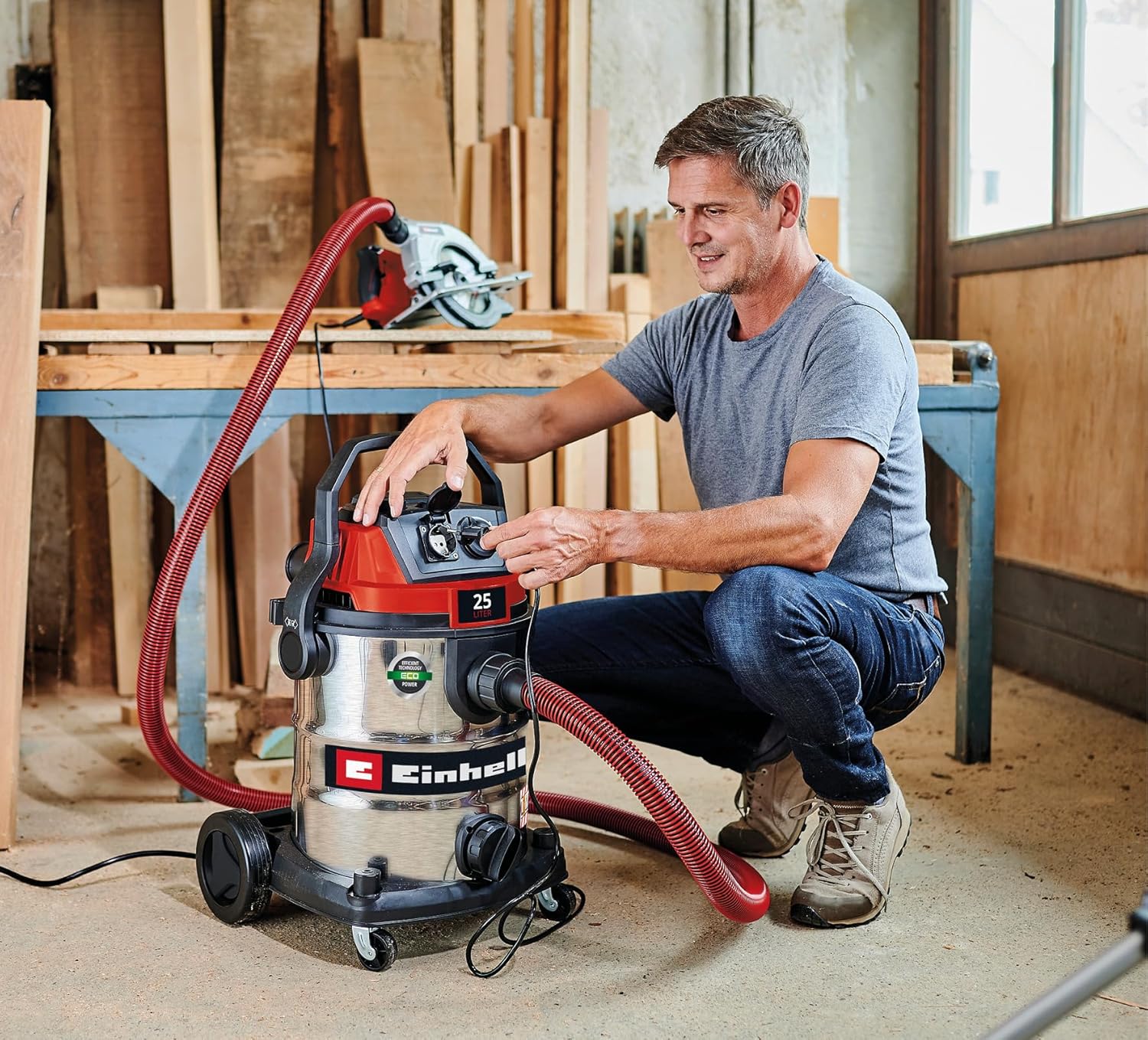

A user is shown adjusting the settings on the Einhell TE-VC 2580 SACL vacuum cleaner, demonstrating its use in a practical workshop environment for cleaning debris.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your vacuum cleaner.
5.1 Filter Cleaning
The Einhell TE-VC 2580 SACL features an integrated filter cleaning system. To clean the filter:
- Ensure the vacuum cleaner is switched on.
- Press the filter cleaning button several times. This will generate a pulse of air to dislodge dust from the HEPA pleated filter, restoring suction power.
A hand is pressing the filter cleaning button, which activates the integrated filter cleaning system to restore suction power by clearing accumulated dust from the filter.
For thorough cleaning, the HEPA pleated filter can be removed and gently tapped or brushed to remove stubborn dust. The foam filter should be rinsed with water and allowed to dry completely before reinstallation.
5.2 Emptying the Collection Tank
- For Liquids: Use the water drain plug at the bottom of the tank to easily empty collected liquids.
- For Solids: Disconnect the motor head from the tank and carefully empty the contents. Dispose of the non-woven dust bag when full.

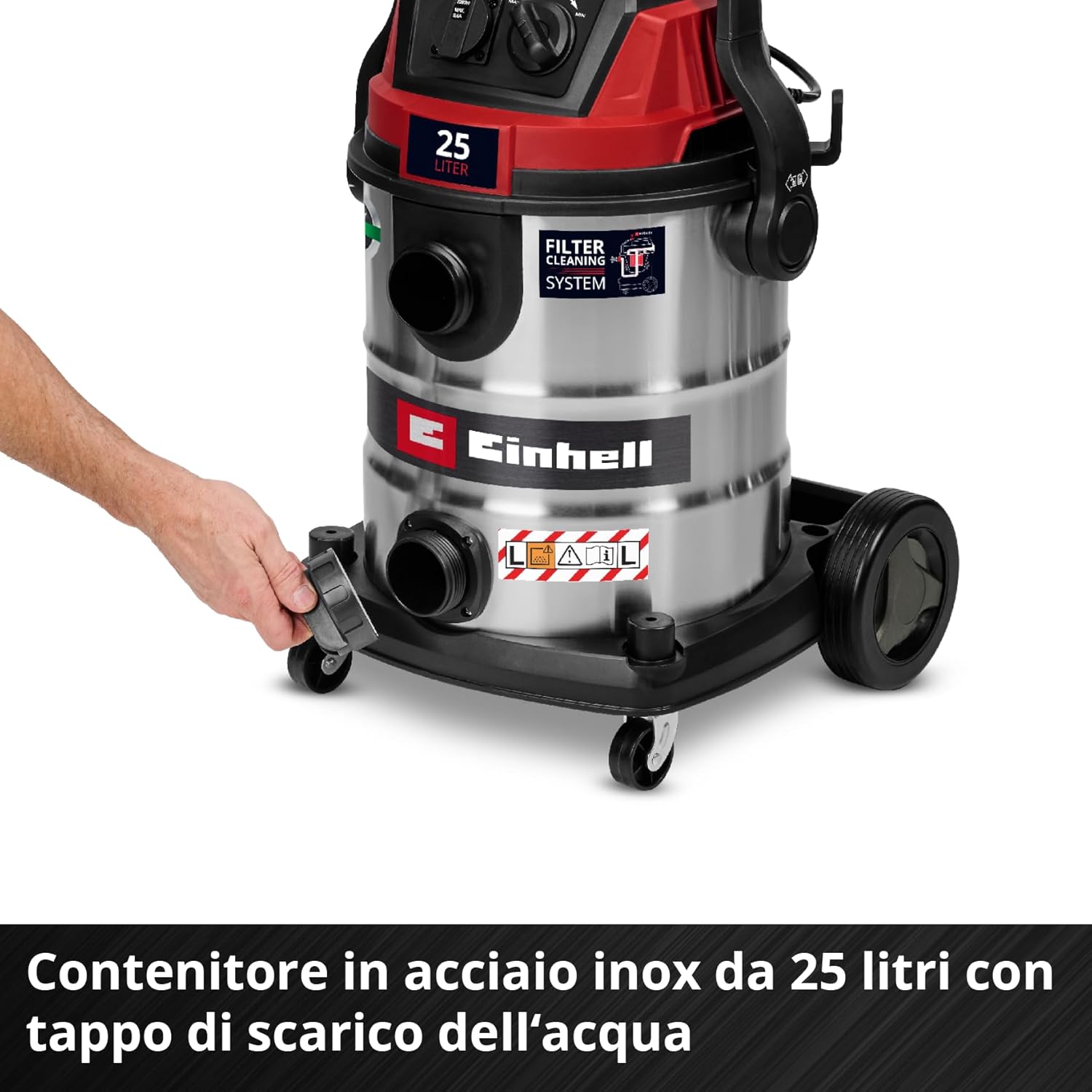

A hand is shown opening the drain plug located at the bottom of the 25-liter stainless steel tank, facilitating easy emptying of collected liquids.
5.3 Cleaning the Appliance and Accessories
- Wipe the exterior of the vacuum cleaner with a damp cloth. Do not use abrasive cleaners.
- Clean nozzles and tubes as needed to ensure unobstructed airflow.
5.4 Storage
Store the vacuum cleaner in a dry, frost-free place. Utilize the integrated storage compartments for the hose, cable, and accessories to keep everything organized.

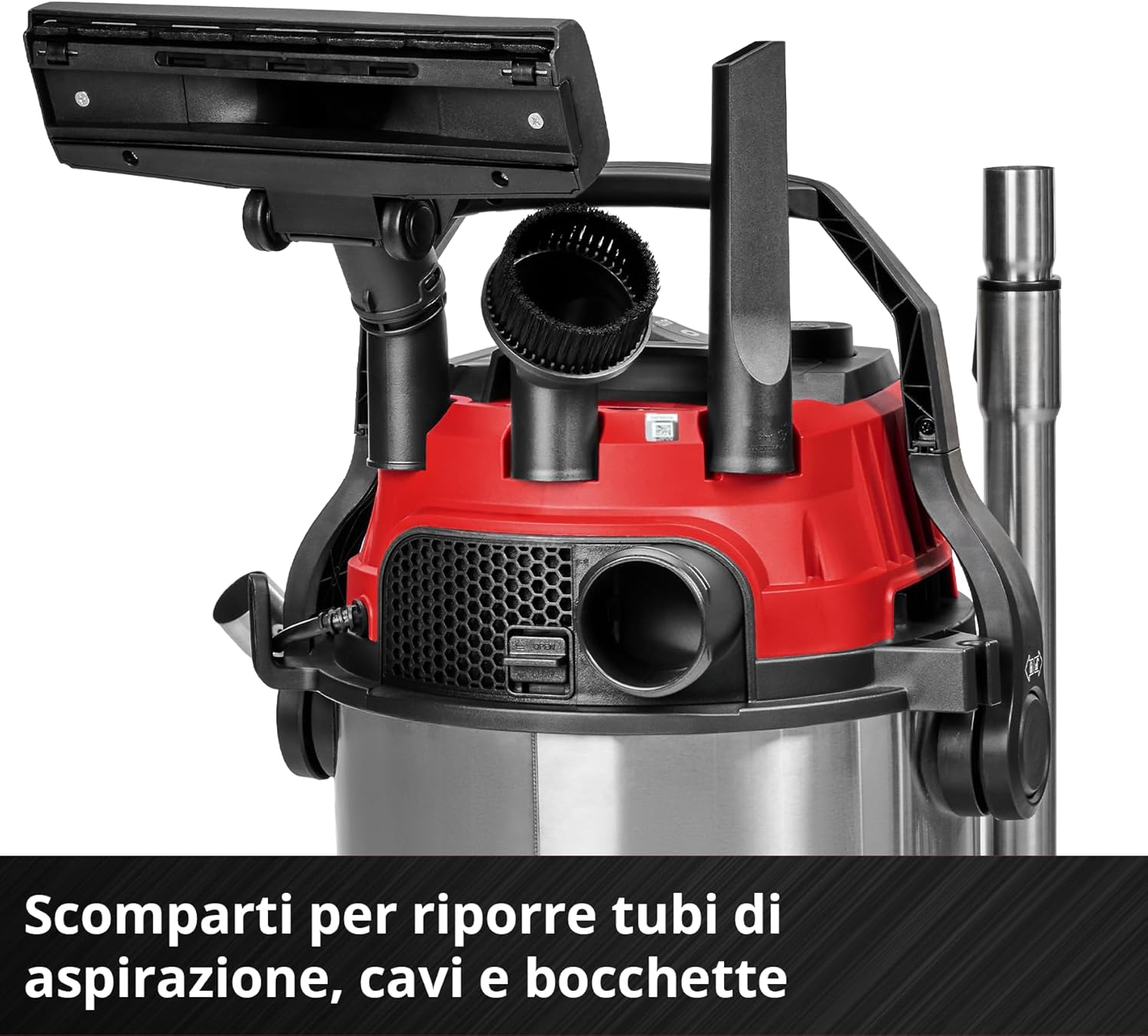

This image displays the convenient storage compartments on the vacuum cleaner for keeping suction tubes, cables, and various nozzles organized and readily accessible.
A person is shown easily transporting the vacuum cleaner using its robust carrying handle, highlighting its mobility features including large wheels.
6. Troubleshooting
If you encounter issues with your vacuum cleaner, refer to the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum cleaner does not start. | No power supply; main switch off; faulty power cable. | Check power connection; turn main switch on; inspect power cable for damage. |
| Loss of suction power. | Filter clogged; hose/nozzle blocked; dust bag full (dry vacuuming); tank full (wet vacuuming). | Clean filter using the integrated system or manually; clear blockages; empty/replace dust bag; empty tank. |
| Motor switches off during wet vacuuming. | Maximum liquid level reached. | Empty the collection tank. |
| Unusual noise during operation. | Foreign object in hose/motor; damaged component. | Check and remove foreign objects; if noise persists, contact customer support. |
If the problem persists after attempting these solutions, please contact Einhell customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | 2347435 |
| Product Dimensions | 58 x 39.2 x 64.5 cm |
| Item Weight | 6.9 kg |
| Power Source | AC (Corded Electric) |
| Power Consumption | 1100 W |
| Suction Power | 200 mbar |
| Dust Protection Class | L (Euronorm) |
| Tank Capacity | 25 Liters (Stainless Steel) |
| Hose Length | 3 m |
| Cable Length | 6 m |
| Recommended Surfaces | Hardwood, Carpet, Upholstery |
| Filter Type | Foam, HEPA Pleated |
| Included Components | Wet and dry vacuum cleaner, HEPA pleated filter, non-woven bag (25 L), foam filter, robust suction hose (3 m), telescopic suction tube, combination nozzle with rollers, crevice nozzle, upholstery nozzle, adapter for tool connection. |
8. Warranty and Support
For warranty information, please refer to the documentation provided with your product or visit the official Einhell website. Warranty terms and conditions may vary by region.
If you require technical assistance, spare parts, or have any questions regarding your Einhell TE-VC 2580 SACL vacuum cleaner, please contact Einhell customer support. You can find contact details on the official Einhell website or through your local retailer.
