LotFun Large Metal Chicken Coop with Run (Model HKHW-QBJL) - Instruction Manual

Model: HKHW-QBJL | Brand: LotFun

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your LotFun Large Metal Chicken Coop with Run. Please read this manual thoroughly before beginning assembly or use to ensure proper setup and safe operation. This coop is designed to provide a secure and spacious outdoor environment for poultry such as chickens, ducks, and rabbits.

An assembled LotFun Large Metal Chicken Coop with a pointed roof and wire mesh walls, with various chickens and other poultry inside and around it.
Image: An overview of the LotFun Large Metal Chicken Coop, showcasing its spacious design and suitability for various poultry.

Safety Information

  • Always wear appropriate safety gear, such as gloves, during assembly.
  • Ensure all connections are securely fastened before placing animals inside.
  • Regularly inspect the coop for any damage or loose parts to prevent injury to animals or people.
  • Position the coop on level ground to maintain stability.
  • Clear snow accumulation from the roof promptly to prevent structural damage.

Components List

Before assembly, verify that all components are present and undamaged. Refer to the packaging for a complete list of parts. Key components include:

  • Galvanized Steel Pipes (25mm thickened) for the frame.
  • PVC-Coated Hexagonal Metal Wire Mesh.
  • PE Tarpaulin Cover (Waterproof & Anti-UV).
  • Double Lockable Doors.
  • Ground Nails/Stakes for securing the structure.
  • Elastic Cords for attaching the cover.
Detailed view of coop components: sturdy construction, double doorlock, metal hexagonal net, sturdy frame clamps and ground nails.
Image: Close-up details of the coop's construction, including the galvanized steel pipe, double door latch, hexagonal wire mesh, and ground anchoring system.

Setup and Assembly

Assembly requires two people and basic tools (not included). Follow these general steps:

  1. Prepare the Site: Choose a level, clear area for the coop. Ensure adequate drainage.
  2. Assemble the Frame: Connect the galvanized steel pipes according to the included diagram (refer to the separate assembly diagram for specific pipe connections). The triangular support design enhances stability.
  3. Attach the Wire Mesh: Secure the PVC-coated hexagonal metal wire mesh to the assembled frame. Ensure the mesh is taut and fully encloses the structure to prevent predator entry.
  4. Install the Doors: Mount the double lockable doors into the designated frame opening. Test the locking mechanism to ensure it functions correctly.
  5. Install the Cover: Drape the PE tarpaulin cover over the pointed roof structure. Secure it using the elastic cords, ensuring it is taut and covers the entire roof area for optimal waterproofing and UV protection.
  6. Anchor the Coop: Use the provided ground nails/stakes to firmly anchor the coop to the ground, especially in areas prone to strong winds.

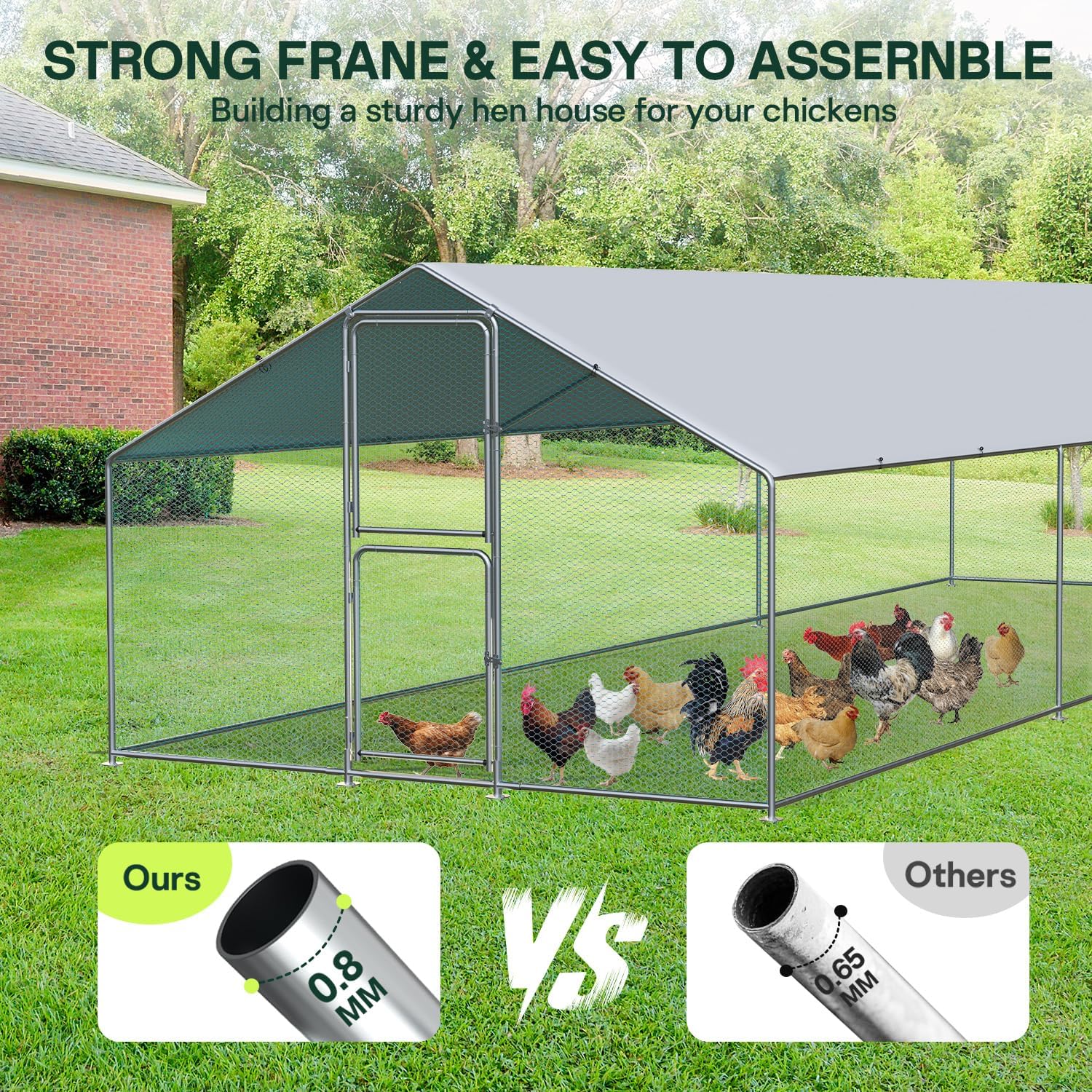

Comparison of pipe thickness, showing 0.8mm for LotFun and 0.65mm for others, highlighting the sturdy frame.
Image: Illustration of the thickened galvanized steel pipes (0.8mm) used in the LotFun coop, emphasizing structural integrity compared to thinner alternatives.
Diagram showing durable wire mesh, thick steel pipe, elastic cord, ground stakes, and durable metal bottom.
Image: Visual representation of the thickened and sturdy structure, detailing the durable wire mesh, thick steel pipes, elastic cords, ground stakes, and durable metal bottom.

Operating Instructions

The LotFun chicken coop is designed for ease of use and animal safety.

  • Accessing the Coop: Utilize the double-door opening design for convenient entry and exit. The secure locking system ensures animals remain safely inside and deters predators.
  • Feeding and Cleaning: The dual doors facilitate easy access for feeding your poultry and performing routine cleaning tasks without the risk of escape.
  • Capacity: This 13.1 x 9.8 x 6.6 FT model can comfortably accommodate 6-10 chickens, ducks, rabbits, or other small poultry breeds. Adjust the number of animals based on their size and specific needs to ensure adequate space.
  • Weather Protection: The pointed roof and PE tarpaulin cover provide protection against rain, snow, and harmful UV rays. The design promotes quick water drainage.
Man feeding chickens through the double doors of the coop, illustrating the 180-degree opening for easy access.
Image: A person feeding chickens through the double doors, demonstrating the wide opening for convenient access.
Various poultry including chickens, ducks, rabbits, and geese inside and around the spacious coop.
Image: The spacious coop accommodating various poultry, including chickens, ducks, rabbits, and geese, highlighting its multi-functional use.
Comparison image showing a fully enclosed chicken coop in rain versus a semi-enclosed coop with exposed chickens in rain.
Image: A visual comparison emphasizing the superior protection of a fully enclosed coop against adverse weather conditions.

Maintenance

Regular maintenance ensures the longevity and safety of your chicken coop.

  • Daily Checks: Inspect the coop daily for any signs of damage, loose mesh, or compromised door latches.
  • Cleaning: Regularly clean the interior of the coop to maintain a hygienic environment for your poultry. The double doors provide easy access for this task.
  • Frame Inspection: Periodically check the galvanized steel frame for any signs of rust or structural weakness. Although treated for rust resistance, harsh conditions may require more frequent inspection.
  • Mesh Integrity: Ensure the PVC-coated hexagonal metal wire mesh remains intact and free from holes or tears that could allow predators to enter.
  • Cover Care: The PE tarpaulin cover is waterproof and UV-resistant. Ensure it remains securely attached and free from tears. In snowy conditions, clear snow accumulation promptly to prevent excessive weight on the roof structure.
Diagram showing the coop cover's waterproof and UV-resistant properties, with water droplets and UV symbols.
Image: Visual representation of the cover's all-weather protection, highlighting its waterproof and UV-resistant features.
Diagram showing waterproof, snow proof, UV protection, and heat regulative features of the coop cover.
Image: Visual representation of the cover's features, including waterproofing, snow protection, UV resistance, and heat regulation.
Comparison of a peaked roof chicken coop versus a flat roof coop, highlighting benefits like no water/snow accumulation and avoiding direct sunlight for the peaked roof.
Image: A comparison illustrating the advantages of the peaked roof design, such as preventing water and snow accumulation, over a flat roof.

Troubleshooting

IssuePossible CauseSolution
Predator IntrusionLoose mesh, unsecured doors, gaps in structure.Ensure all mesh is tightly secured to the frame. Verify door latches are fully engaged. Check for any gaps at the base and reinforce if necessary. The narrow door gap design helps reduce entry points.
Water Accumulation on RoofCover not taut, improper installation, excessive snow.Re-secure the PE tarpaulin cover using elastic cords to ensure it is taut. The pointed roof design is intended for quick drainage; ensure no sags. Clear snow promptly.
Coop InstabilityUneven ground, insufficient anchoring, loose frame connections.Relocate the coop to level ground. Ensure all ground nails/stakes are firmly driven into the soil. Double-check all pipe connections for tightness.
Image showing a fox and a wolf near the chicken coop, with text indicating 'NARROW DOOR GAP' to reduce predator entry.
Image: The coop's narrow door gap design, illustrated with predators outside, emphasizing its role in preventing intrusion.
Image showing a chicken coop with a protective shield icon, and a fox outside, with text 'METAL HEXAGONAL NET Keeps out wildlife'.
Image: The metal hexagonal net providing protection against wildlife, ensuring the safety of poultry.

Specifications

FeatureDetail
Model NameHKHW-QBJL
BrandLotFun
Dimensions (L x W x H)13.1 x 9.8 x 6.6 FT (approx. 157 x 118 x 79 inches)
MaterialAlloy Steel (Galvanized), PVC-Coated Hexagonal Wire Mesh, PE Tarpaulin
Item Weight116.8 Pounds
ColorSilver (Frame), Grey (Cover), Green (Mesh)
Special FeaturesWaterproof, UV-Resistant Cover, Double Lockable Doors, Thickened Galvanized Steel Frame, Triangular Support Design, Protective Wire Mesh
Recommended Capacity6-10 Chickens (or similar small poultry)
Included ComponentsFrame, Wire Mesh, Cover, Doors, Ground Anchors
Diagram showing the dimensions of the chicken coop: 13.1 ft length, 9.8 ft width, 6.6 ft height, with a chicken for scale.
Image: Product dimensions diagram, illustrating the overall size of the 13.1 x 9.8 x 6.6 FT coop.

Contact and Support

For any questions, concerns, or assistance with your LotFun Large Metal Chicken Coop, please contact LotFun customer support through the retailer's platform or refer to the contact information provided with your purchase documentation.
