1. Introduction
This manual provides essential information for the proper setup, operation, and maintenance of your SAMOLLA MT50W Conventional Reel. Please read these instructions carefully before using your reel to ensure optimal performance and longevity. This reel is designed for right-hand use and is suitable for various fishing techniques, including trolling.
2. Product Overview
The SAMOLLA MT50W Conventional Reel is engineered for durability and performance, featuring a robust construction and precise control mechanisms.
Key Features:
- Lightweight, corrosion-resistant frame and side plates.
- Machined aluminum, smoked anodized spool.
- Stainless steel reinforcement rings.
- Multi-disc carbonite drag system for smooth, powerful drag.
- Ratchet drag star for precise drag adjustments.
- Aircraft-grade aluminum construction for handle and bearings.
- Non-slip, anti-reverse, lightweight, corrosion-resistant, and rust-resistant design.
Components Diagram:
Figure 2.1: Detailed view of the SAMOLLA MT50W reel, showing the release control switch, reinforced stainless steel outlet hole, star-shaped brake force wrench, and oversized handle.
Figure 2.2: Left and right side views of the SAMOLLA MT50W reel, labeling the alarm button switch and the brake force adjustment knob.

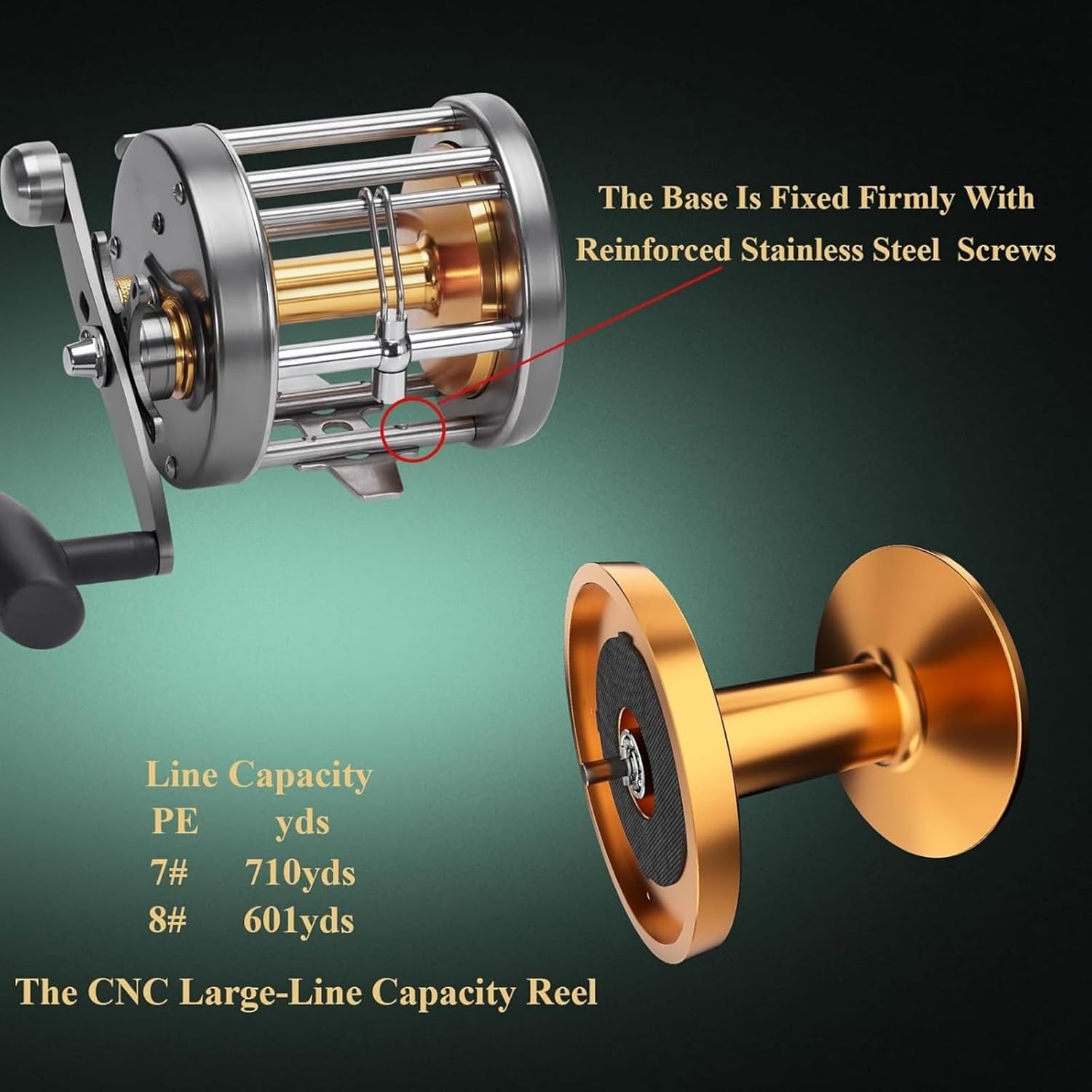

Figure 2.3: Close-up of the SAMOLLA MT50W reel showing the base fixed with reinforced stainless steel screws and line capacity details.
3. Setup
3.1 Mounting the Reel
- Ensure your fishing rod is compatible with a conventional reel.
- Align the reel foot with the reel seat on your rod.
- Tighten the reel seat clamps securely to prevent any movement during use.
3.2 Spooling the Line
Proper line spooling is crucial for optimal casting and retrieval. It is recommended to spool the line before setting the reel parameters.
- Attach the fishing line to the spool using an appropriate knot (e.g., arbor knot).
- Maintain consistent tension while winding the line onto the spool. Avoid overfilling or underfilling the spool.
- Ensure the line lays evenly across the spool.
Figure 3.1: The SAMOLLA MT50W conventional reel properly mounted on a fishing rod.
4. Operating Instructions
4.1 Drag System Adjustment
The multi-disc carbonite drag system allows for precise control over line tension during a fight.
- Brake Force Adjustment Knob: Rotate this knob (refer to Figure 2.2) to adjust the main drag tension. Rotate inward to reduce braking force and outward to increase it.
- Star-shaped Brake Force Wrench: This provides fine-tuning for the drag settings (refer to Figure 2.1).
4.2 Casting and Retrieval
- Casting: Engage the release control switch (refer to Figure 2.1) to put the reel in free spool mode. Use your thumb to control the spool rotation and prevent backlashes during the cast.
- Retrieval: Turn the handle to engage the gears and retrieve the line. The anti-reverse feature prevents the handle from turning backward.
4.3 Alarm Button Switch
The alarm button switch (refer to Figure 2.2) activates an audible alert. When a fish bites the hook and pulls line from the spool, the reel will emit a ticking alarm sound, notifying you of a strike.
5. Maintenance
Regular maintenance ensures the longevity and smooth operation of your SAMOLLA MT50W reel.
5.1 Cleaning After Use
- After each use, especially in saltwater environments, rinse the reel thoroughly with fresh water. Do not submerge the reel.
- Wipe down the exterior with a soft, clean cloth.
- Allow the reel to air dry completely before storage.
5.2 Lubrication
- Periodically apply a small amount of high-quality reel oil to moving parts such as bearings and the handle shaft.
- Apply reel grease to gears as needed.
- Avoid over-lubrication, which can attract dirt and debris.
5.3 Storage
- Store the reel in a dry, cool place away from direct sunlight and extreme temperatures.
- Consider using a reel cover or case to protect it from dust and physical damage.
6. Troubleshooting
If you encounter issues with your reel, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Stiff or grinding retrieve | Lack of lubrication, dirt/debris in gears, damaged bearings. | Clean and lubricate gears and bearings. If problem persists, professional service may be required. |
| Drag slipping or inconsistent | Drag washers are dry, worn, or contaminated. | Clean drag washers and apply appropriate drag grease. Replace if worn. |
| Line tangles or backlashes during casting | Improper spooling, incorrect tension during cast, overfilled spool. | Respool line correctly, practice thumb control during casting, ensure spool is not overfilled. |
| Handle feels loose | Handle screw is loose. | Tighten the handle screw. |
7. Specifications
The following table details the technical specifications for the SAMOLLA MT50W Conventional Reel:

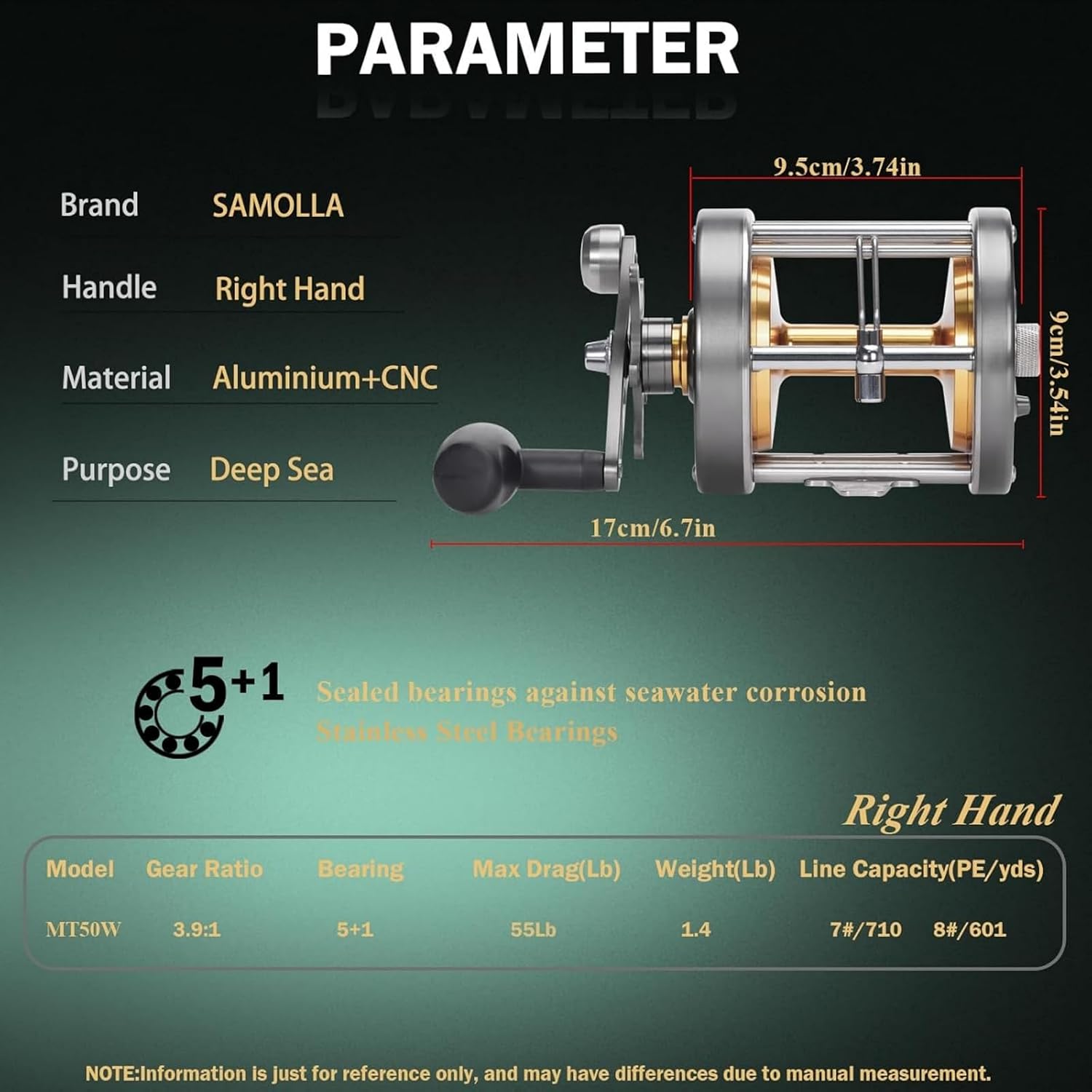

Figure 7.1: Diagram illustrating key specifications and dimensions of the SAMOLLA MT50W reel.
| Feature | Detail |
|---|---|
| Brand | SAMOLLA |
| Model Name | MT50W |
| Hand Orientation | Right Hand |
| Color | Black |
| Material | Aircraft-grade Aluminum |
| Fishing Technique | Trolling |
| Product Weight | 22 Ounces (approximately 623 grams) |
| Special Features | Non-slip, Anti-reverse, Lightweight, Corrosion-resistant, Rust-resistant |
| Handle Material | Aircraft-grade Aluminum |
| Bearing Material | Aircraft-grade Aluminum |
| Bearing System | 5+1 Sealed bearings against seawater corrosion |
| Gear Ratio | 3.9:1 |
| Max Drag | 55 Lb |
| Line Capacity (PE/yds) | 7#/710 yds, 8#/601 yds |
| Compatible Line Types | Fluorocarbon, Monofilament, Braided |
8. Warranty and Support
8.1 Return Policy
This product is eligible for a 30-day free return. Please refer to the retailer's return policy for specific terms and conditions.
8.2 Extended Warranty Options
Extended warranty plans may be available for purchase through third-party providers. These plans typically cover manufacturing defects beyond the standard warranty period. Examples include:
- Assurant - 2 Year Sports Extended Warranty
- Assurant - 3 Year Sports Extended Warranty
- Assurant - 4 Year Sports Extended Warranty
Please check with your retailer for current availability and pricing of extended warranty options.
8.3 Customer Support
For further assistance, technical support, or inquiries regarding your SAMOLLA MT50W Conventional Reel, please contact SAMOLLA Official Store customer service through the retailer's platform or their official website.
