Product Overview

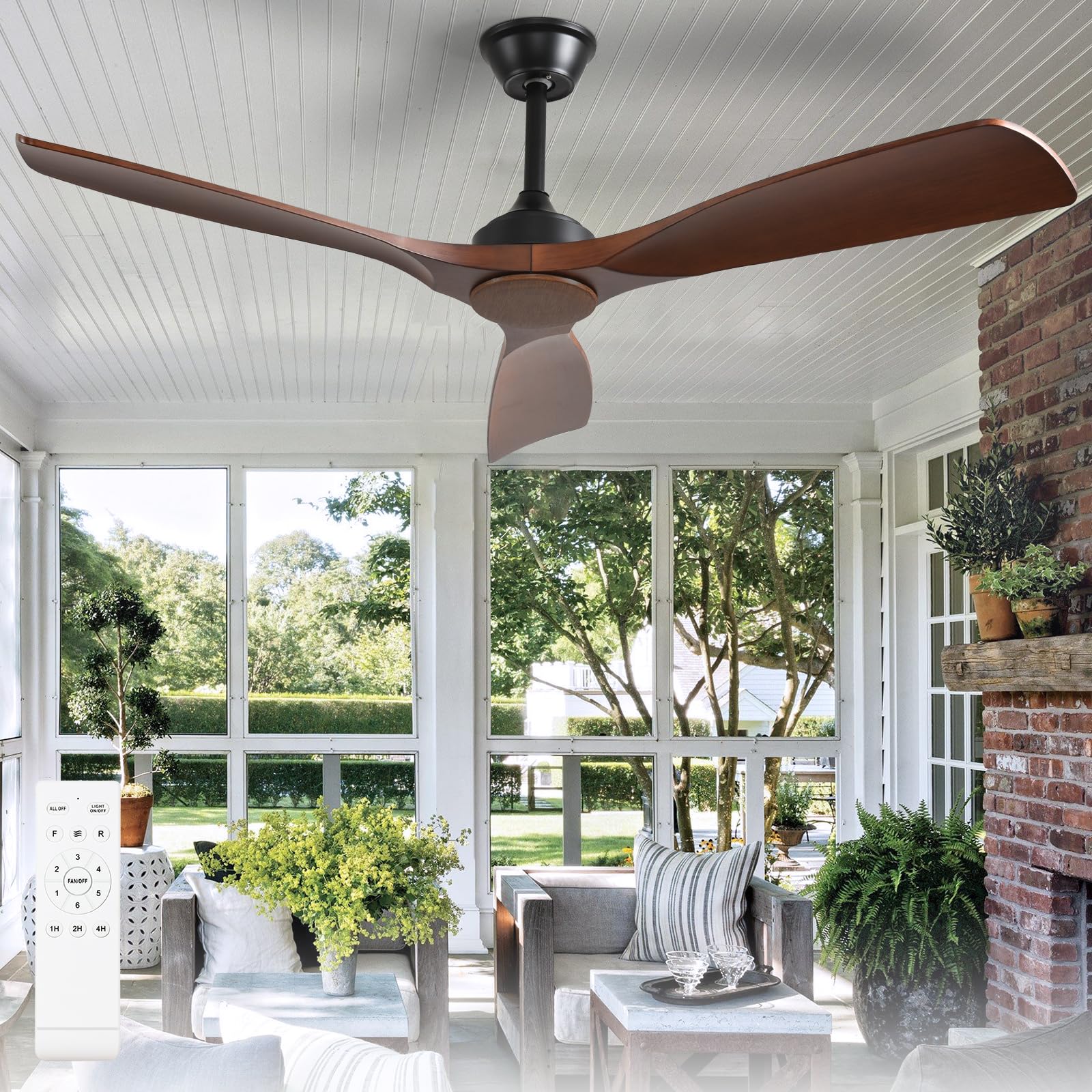

The BvenuBigLite 52-inch walnut ceiling fan is designed for both indoor and outdoor use, offering a modern propeller design and elegant appearance. This fan operates with a quiet DC motor, ensuring a tranquil environment while providing efficient air circulation. It features remote and app control for convenience, allowing you to adjust six-speed settings, reverse airflow direction, and utilize a timer function.
This model, WS-FPZ180-18B-BR-AP, is ideal for various spaces including bedrooms, studies, living rooms, patios, and garages, providing comfort without overcrowding the area.
Important Safety Information
Please read and understand all instructions before beginning installation. This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
- Electrical Safety: Disconnect power at the main circuit breaker before installation or servicing. Ensure all wiring connections are secure and comply with local electrical codes.
- Mounting: The fan must be mounted to a structurally sound ceiling joist or outlet box capable of supporting the fan's weight (7.48 pounds).
- Blade Clearance: Ensure there is adequate clearance between the fan blades and any obstacles, including walls and furniture.
- Fan Operation: Do not insert objects into the path of the fan blades.
- Outdoor Use: This fan is suitable for damp locations (e.g., covered patios) but should not be directly exposed to water.
- ETL Certified: This product is ETL certified for safety.
Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- Ceiling Fan Motor Assembly
- 3 ABS Fan Blades
- Downrod (52-inch model)
- Mounting Bracket
- Canopy
- Remote Control
- Hardware Pack (screws, wire nuts, etc.)
- Instruction Manual
Setup & Installation
Follow these steps for proper installation of your BvenuBigLite ceiling fan. It is recommended to have two people for installation.
- Power Disconnection: Turn off power at the circuit breaker to prevent electrical shock.
- Mounting Bracket Installation: Secure the mounting bracket to the ceiling outlet box or a structurally sound support. Ensure it is firmly attached.
- Wiring Connections: Connect the fan's electrical wires to the household wiring according to the wiring diagram in the manual. Ensure all connections are secure with wire nuts.
- Hang Fan Assembly: Carefully lift the fan motor assembly and hang it onto the mounting bracket.
- Attach Blades: Securely attach each of the three ABS fan blades to the motor housing using the provided screws.
- Canopy Installation: Slide the canopy up to the ceiling and secure it to the mounting bracket, covering all wiring.
Operating Instructions
Your BvenuBigLite ceiling fan can be controlled via the included remote control or a mobile application.
Remote Control & App Functions
- Power On/Off: Turn the fan on or off.
- Speed Control: Select from 6 adjustable fan speeds to suit your comfort level.
- Reversible Function: Switch between downdraft mode (summer) for cooling and updraft mode (winter) for air circulation.
- Timer: Set the fan to operate for a specific duration (e.g., 1, 2, or 4 hours).
- Memory Function: The fan remembers your last settings.
For mobile app control, download the dedicated application and follow the pairing instructions provided in the full manual or at wosk.top/zd.html.
Reversible Airflow
The reversible DC motor allows you to change the direction of the fan blades for year-round comfort.
- Summer Mode (Downdraft): Blades rotate counter-clockwise, pushing cool air down to create a wind-chill effect.
- Winter Mode (Updraft): Blades rotate clockwise, drawing cool air up and pushing warm air down from the ceiling, helping to circulate heat.
Quiet Operation
Equipped with silent technology, the fan operates at a noise level of ≤30dB, making it suitable for quiet environments like bedrooms and studies.
Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Use a soft, damp cloth to clean the fan blades and motor housing. Do not use abrasive cleaners or solvents.
- Blade Inspection: Periodically check the blade screws for tightness. Loose screws can cause wobbling and noise.
- Dust Removal: Dust the fan regularly to prevent buildup, which can affect performance and motor life.
- No Lubrication Needed: The DC motor is permanently lubricated and does not require additional oiling.
Troubleshooting
If you experience issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; loose wiring; remote control not paired. | Check circuit breaker; verify wiring connections; re-pair remote control (refer to manual). |
| Fan wobbles | Loose blade screws; unbalanced blades; improper mounting. | Tighten all blade screws; use balancing kit (if included); ensure mounting bracket is secure. |
| No air movement | Fan speed too low; incorrect blade direction (winter mode in summer). | Increase fan speed; switch to summer (downdraft) mode. |
| Remote control not working | Dead batteries; remote not paired; interference. | Replace batteries; re-pair remote; ensure no obstructions. |
Specifications
| Feature | Detail |
|---|---|
| Brand | BvenuBigLite |
| Model Name | WS-FPZ180-18B-BR-AP |
| Product Dimensions | 52"D x 52"W x 14.6"H |
| Color | Walnut |
| Electric Fan Design | Ceiling Fan |
| Power Source | DC |
| Style | Modern, Contemporary, Farmhouse |
| Room Type | Bedroom, Garage, Home Office, Living Room, Patio |
| Special Features | APP & Remote Control, Memory Function, Quiet DC Motor, Reversible 6 Speed, Timer |
| Recommended Uses | Air Circulation, Cooling |
| Noise Level | ≤30 Decibels |
| Wattage | 40 watts |
| Finish Type | Wooden |
| Number of Blades | 3 |
| Voltage | 120 Volts |
| Included Components | 52 Inch Ceiling Fan without Light, Remote |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Control Method | Remote, App |
| Item Weight | 7.48 pounds |
Warranty & Support
Your BvenuBigLite 52-inch ceiling fan comes with a 1-year after-sales guarantee. This warranty covers defects in materials and workmanship under normal use.
For any questions or concerns regarding your product, before or after purchase, please contact BvenuBigLite customer support. Contact information can typically be found on the manufacturer's website or through your retailer.
