1. Introduction
Thank you for choosing the ALLJOY Shiatsu Massage Cushion DR2. This device is designed to provide a deep-kneading shiatsu massage with optional heat, targeting various body parts such as the neck, back, waist, arms, thighs, and calves. Please read this manual thoroughly before use to ensure safe and effective operation.
2. Important Safety Instructions
To reduce the risk of electric shock, burns, fire, or injury, always follow these basic safety precautions:
- Do not use the massager while sleeping or bathing.
- Avoid direct contact with the heating elements.
- Unplug the device when not in use and before cleaning.
- Consult a physician before use if you have certain medical conditions, including but not limited to: pregnancy, heart disease, high blood pressure, diabetes, osteoporosis, malignant tumors, skin conditions, or if you are using a pacemaker.
- Do not use on swollen, inflamed, or injured skin areas.
- Keep out of reach of children. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities unless supervised.
- Do not operate under a blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
- Do not use pins or other metallic fasteners with this appliance.
- Never operate the appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water.
- Do not carry this appliance by supply cord or use cord as a handle.
- Do not use outdoors.
- Do not use for more than 20 minutes continuously. Allow the device to cool down before next use.
3. Product Features
- Deep-Kneading Shiatsu Massage: Equipped with 4 powerful 3D deep-kneading massage nodes that simulate professional shiatsu techniques.
- Adjustable Speeds: Features 3 selectable speeds to customize your massage intensity.
- Soothing Heat Function: Integrated infrared heating function maintains a comfortable temperature of approximately 45 ℃ (113 ℉), promoting muscle relaxation and blood circulation.
- Bi-directional Rotation: Massage nodes automatically change rotation direction for a comprehensive massage experience.
- Ergonomic and Versatile Design: Contours perfectly to various body parts including neck, back, waist, arms, thighs, and calves.
- Portable: Compact and lightweight design allows for use at home, in the office, or in the car.
- Elastic Strap: An adjustable elastic strap on the back secures the massager to chairs or car seats.
- Safety Auto-Off: Automatically shuts off after 20 minutes of continuous use to prevent overheating and ensure safety.
- Overheat Protection: Built-in mechanism to prevent the device from overheating.
- Removable & Washable Cover: Made with high-quality PU leather and breathable mesh, the cover is removable and washable for easy cleaning.
- Quiet Operation: Equipped with a high-quality brushless motor for silent use.
4. Package Contents
- ALLJOY Shiatsu Massage Cushion DR2
- AC Power Adapter
- Car Adapter
- User Manual
5. Setup
- Unpack: Carefully remove the massage cushion and all accessories from the packaging.
- Connect Power:
- For home/office use: Connect the AC power adapter to the massager's power input port, then plug the adapter into a standard electrical outlet.
- For car use: Connect the car adapter to the massager's power input port, then plug the car adapter into your vehicle's cigarette lighter socket.
- Positioning: Place the massage cushion on the desired body area (neck, back, waist, etc.). Use the elastic strap to secure it to a chair or car seat if needed.
Image: ALLJOY Shiatsu Massage Cushion DR2 with detachable shoulder strap attached to a chair, illustrating how to secure the massager for use.
6. Operating Instructions
The ALLJOY Shiatsu Massage Cushion DR2 features a simple one-button control for ease of use.

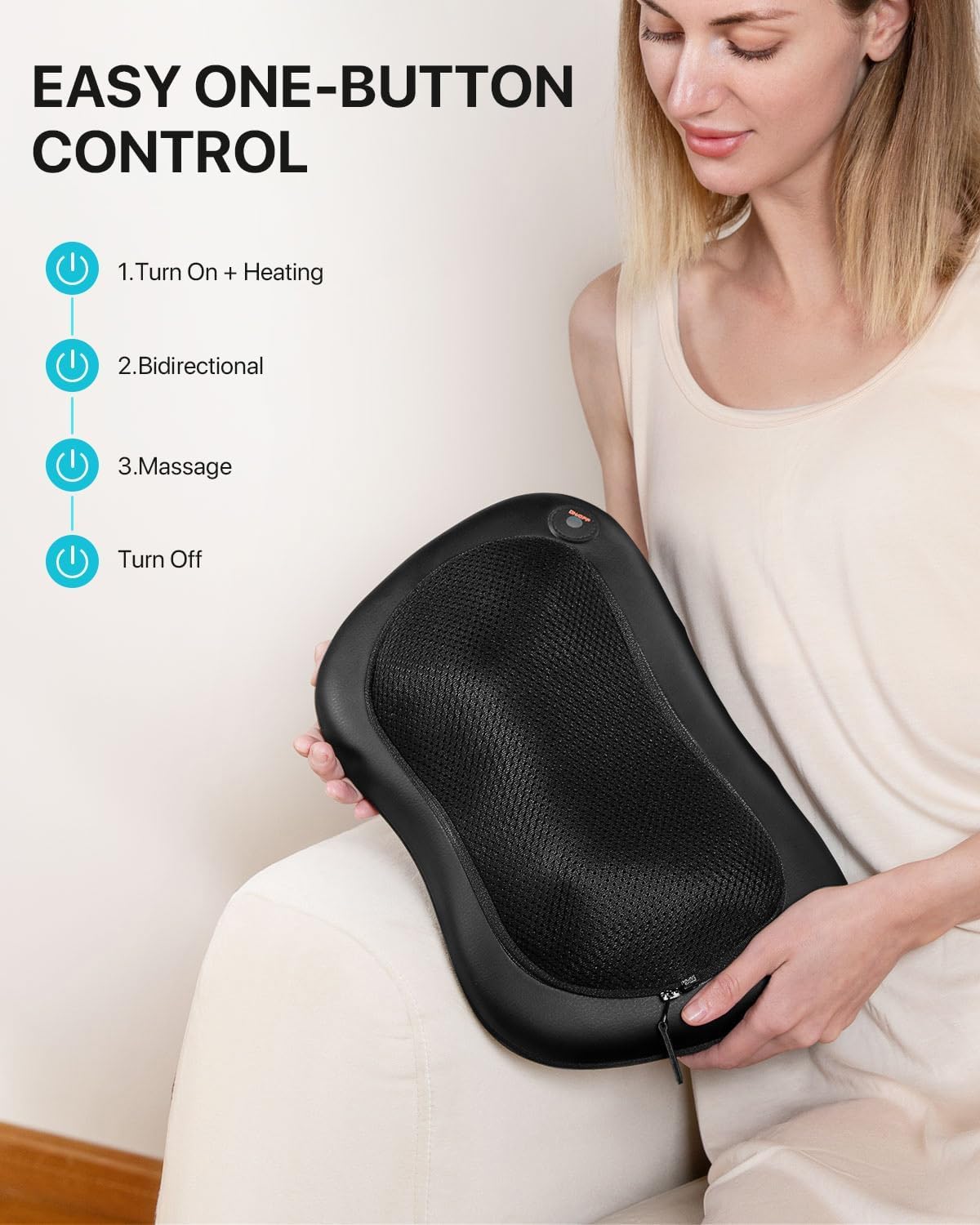

Image: A person holding the ALLJOY Shiatsu Massage Cushion DR2, with an infographic showing the one-button control functions: Turn On + Heating, Bidirectional rotation, Massage, and Turn Off.
- Power On & Heat: Press the power button once to turn on the massager. The massage nodes will begin rotating, and the heat function will activate automatically.
- Change Rotation Direction: Press the power button a second time to reverse the rotation direction of the massage nodes.
- Adjust Speed/Massage Mode: Press the power button a third time to cycle through the available massage speeds or modes. (Refer to product specifications for exact number of speeds).
- Power Off: Press the power button a fourth time to turn off the massager and the heat function.
The massager will automatically shut off after 20 minutes of continuous operation to ensure safety and prevent overuse.
Image: An infographic showing the ALLJOY Shiatsu Massage Cushion DR2 being used on various body parts: neck, arm, abdomen, back, waist, and legs.
7. Maintenance
Proper maintenance ensures the longevity and hygiene of your massage cushion.
- Cleaning the Cover: The breathable mesh cover is removable and washable. Unzip the cover, remove it, and hand wash with mild detergent. Allow it to air dry completely before reattaching.
- Cleaning the Main Unit: Wipe the main unit with a soft, slightly damp cloth. Do not use abrasive cleaners or immerse the unit in water.
- Storage: Store the massager in a cool, dry place away from direct sunlight when not in use.
Image: A person demonstrating the removable cover of the ALLJOY Shiatsu Massage Cushion DR2, highlighting the breathable and soft mesh material.
8. Troubleshooting
If you encounter any issues with your ALLJOY Shiatsu Massage Cushion DR2, please refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Massager does not turn on. | Power cord not properly connected. | Ensure the power adapter is securely plugged into both the massager and the power outlet. |
| Heat function is not working. | Heat function may take a few minutes to warm up. | Allow 2-3 minutes for the heat to become noticeable. If still not working, ensure the massager is powered on correctly. |
| Massage feels too intense or painful. | High speed setting or direct pressure. | Reduce the speed setting. Adjust your body position to lessen direct pressure on the massage nodes. Use a towel between your body and the massager if needed. |
| Massager stops working after 20 minutes. | Automatic shut-off feature. | This is a safety feature. Allow the device to cool down for 30 minutes before restarting. |
If the problem persists after trying these solutions, please contact ALLJOY customer support.
9. Specifications
| Specification | Detail |
|---|---|
| Model Number | DR2 |
| Dimensions (L x W x H) | 30 x 20 x 10 cm (11.8 x 7.9 x 3.9 inches) |
| Weight | 453.59 grams (1 pound) |
| Material | PU Leather |
| Power Source | Corded Electric |
| Massage Nodes | 4 |
| Speed Settings | 3 |
| Heat Function Temperature | Approx. 45 ℃ (113 ℉) |
| Auto-Off Timer | 20 minutes |
| Targeted Body Parts | Neck, Back, Shoulders, Arms, Thighs, Calves |
| Massage Technique | Shiatsu |
| Waterproof Level | Not waterproof |
| Country of Origin | China |
10. Warranty and Support
ALLJOY is committed to providing high-quality products and excellent customer service.
- 2-Year Warranty: Your ALLJOY Shiatsu Massage Cushion DR2 is covered by a 2-year warranty from the date of purchase, covering manufacturing defects.
- 90-Day Free Returns: Enjoy peace of mind with our 90-day free return policy.
- 24-Hour VIP Customer Service: For any questions, concerns, or support needs, please do not hesitate to contact our dedicated customer service team. We are available 24 hours a day to provide a reasonable solution.
Please refer to your purchase documentation or the ALLJOY official website for contact details and further warranty information.
