GCCSJ 1/2HP 1750 RPM Single Phase TEFC Electric Motor User Manual

1. Product Overview

This manual provides essential information for the safe and efficient use of your GCCSJ 1/2HP 1750 RPM Single Phase TEFC Electric Motor. This motor is designed for general purpose applications, including air compressors, and features a robust construction for reliable performance.

Image 1.1: Front view of the GCCSJ 1/2HP 1750 RPM Single Phase TEFC Electric Motor.

Key Features:

• Power: 1/2 Horsepower
• Speed: 1750 RPM
• Phase: Single Phase
• Voltage: 115V/230V
• Frame: 56C
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• IP Rating: IP-55
• Shaft Diameter: 5/8 inches
• Rotation: Clockwise (CW) / Counter-Clockwise (CCW) reversible
• Housing Material: Rolled steel shell

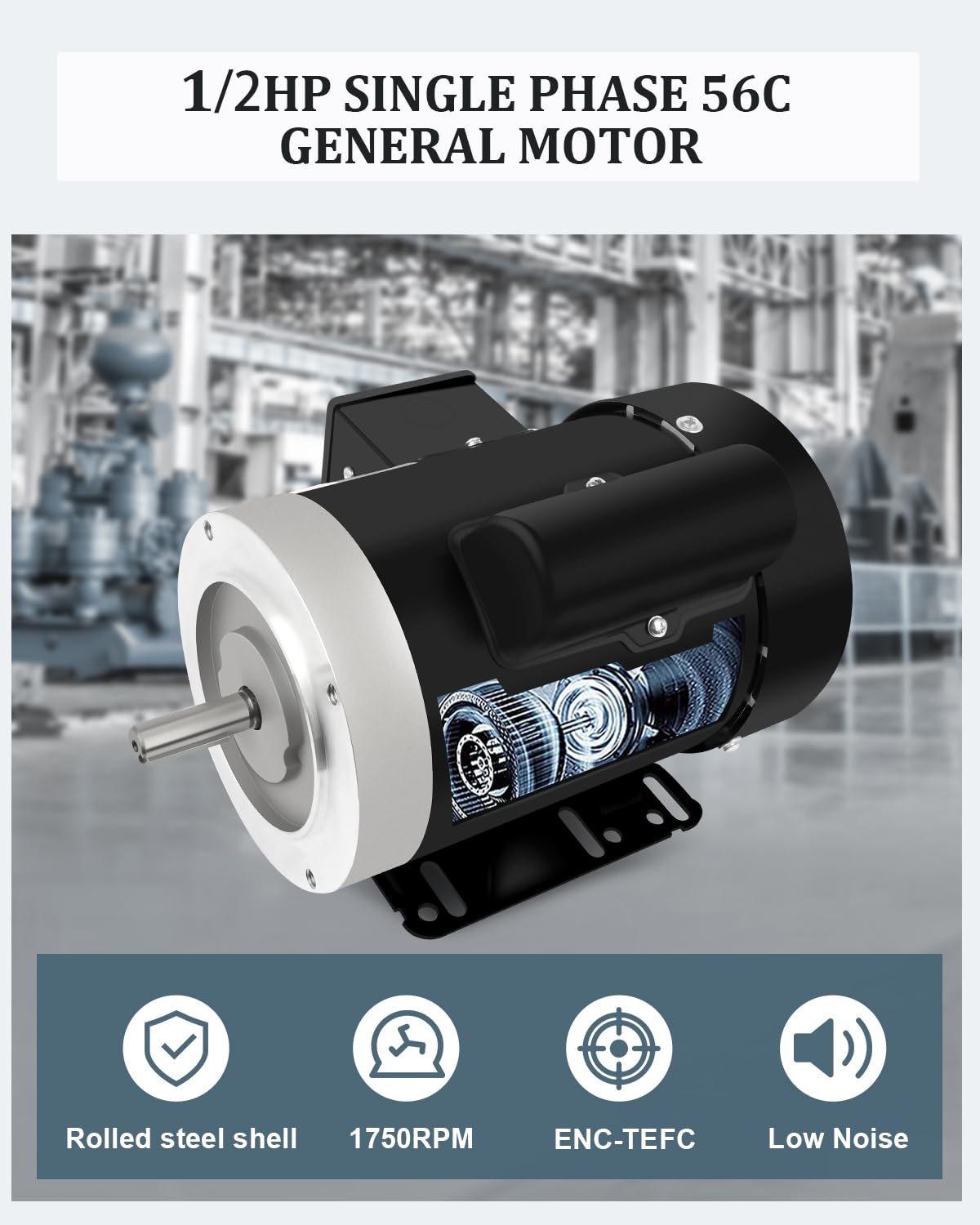

Image 1.2: Features of the 1/2HP Single Phase 56C General Motor, including rolled steel shell, 1750 RPM, TEFC enclosure, and low noise operation.

What's in the Box:

• Air Compressor Duty Electric Motor (1 unit)

2. Safety Information

Read and understand all safety instructions before installing, operating, or maintaining the motor. Failure to follow these instructions may result in electric shock, fire, serious injury, or death.

• Electrical Hazard: Ensure power is disconnected before performing any wiring, installation, or maintenance. Only qualified electricians should perform electrical connections.
• Rotating Parts: Keep hands, clothing, and tools clear of rotating parts during operation.
• Overload Protection: Always use appropriate circuit breakers or overload protection devices as specified in the electrical codes and motor ratings.
• Ventilation: Ensure adequate ventilation around the motor to prevent overheating.
• Mounting: Securely mount the motor to a stable and rigid surface to prevent vibration and movement.
• Environment: Do not operate the motor in explosive atmospheres or where flammable materials are present.

3. Setup and Installation

Proper installation is crucial for the motor's performance and longevity.

Mounting:

The motor features a rigid base mount for secure installation. Ensure the mounting surface is flat, stable, and capable of supporting the motor's weight and operational forces.

Image 3.1: Detail of the rigid base mount for stable installation.

Electrical Wiring:

The motor supports both 115V and 230V operation. Refer to the wiring diagram provided on the motor's nameplate or in the detailed instructions for correct connection. Incorrect wiring can damage the motor and pose safety risks.

• Before connecting, verify the voltage supply matches the motor's requirements.
• Ensure all connections are tight and insulated.
• Install a circuit breaker with a current rating at least three times the motor's rated current for normal starting, without exceeding the load.
• For single-phase to three-phase conversion using a Variable Frequency Drive (VFD), consult a professional electrician. This operation is complex and not recommended for non-professionals.

Image 3.2: Example wiring diagram. Always refer to the specific diagram on your motor's nameplate.

Initial Check:

After wiring, run the motor without load to confirm normal operation and correct rotation direction before connecting it to equipment.

4. Operating Instructions

The GCCSJ electric motor is designed for continuous S1 duty, indicating it can operate at a constant load for an indefinite period.

Starting the Motor:

1. Ensure the motor is securely mounted and all electrical connections are correct.
2. Verify that the connected equipment is ready for operation.
3. Engage the power supply to start the motor.

Changing Rotation Direction (CW/CCW):

This motor supports both clockwise and counter-clockwise rotation. The method for changing direction typically involves altering the wiring connections of the starting winding. Refer to the motor's specific wiring diagram for instructions on reversing rotation.

Image 4.1: Motor shaft indicating CW/CCW rotation capability and shaft dimensions (5/8" diameter, 1.88" length).

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your electric motor.

Bearings:

The motor is equipped with pre-lubricated bearings, designed for long-term operation without requiring additional lubrication under normal conditions.

Cooling System:

The TEFC (Totally Enclosed Fan Cooled) design protects internal components from dust and moisture while a large fan ensures efficient cooling during operation. Periodically inspect the fan and cooling fins for obstructions (dust, debris) and clean as necessary to maintain airflow.

Image 5.1: Illustration of the internal cooling airflow within the motor.

General Inspection:

• Regularly check for unusual noises or vibrations, which may indicate a problem.
• Inspect electrical connections for signs of wear, corrosion, or loosening.
• Ensure the motor housing is free from damage. The housing is constructed from rolled steel for durability.

Image 5.2: The motor housing is made of durable rolled steel.

6. Troubleshooting

If you encounter issues with your GCCSJ electric motor, refer to the following common troubleshooting steps:

• Motor Does Not Start:
  • Check power supply and circuit breaker.
  • Verify all electrical connections are correct and secure according to the wiring diagram.
  • Ensure there is no mechanical obstruction preventing the shaft from turning.
• Motor Overheats:
  • Check for proper ventilation and clear any obstructions from the fan or cooling fins.
  • Ensure the motor is not overloaded beyond its rated capacity.
  • Verify ambient temperature is within operating limits.
• Excessive Noise or Vibration:
  • Check motor mounting for looseness.
  • Inspect connected equipment for imbalance or misalignment.
  • If noise persists, internal component inspection by a qualified technician may be required.

For complex installation or operational issues, please contact GCCSJ support. Providing a clear wiring diagram and a video of the motor's operation can assist in faster resolution.

7. Specifications

8. Warranty and Support

GCCSJ is committed to providing durable equipment. While specific warranty details are not provided in this manual, for any installation or operational issues, please contact GCCSJ customer support. When contacting support, it is helpful to provide a clear wiring diagram of your setup and, if possible, a video demonstrating the issue. This will enable our team to assist you more effectively.

For further assistance, please refer to the GCCSJ brand store on Amazon: GCCSJ Store
