1. Introduction and Overview
The TRENT TRE-CE5X6 Steel Outdoor Storage Shed provides a durable and practical solution for your outdoor storage needs. Constructed from galvanized steel, this shed is designed to withstand various weather conditions, offering a secure space for tools, garden equipment, bicycles, and other items. Its robust design ensures longevity and requires minimal maintenance.
Key features include a weather-resistant galvanized steel construction, an apex roof design to prevent water accumulation, hinged doors with internal locking mechanisms for security, and integrated ventilation to prevent moisture and odors. The shed also includes a foundation base suitable for optional floating floor installation.
Image 1.1: Overview of the TRENT Steel Outdoor Storage Shed, highlighting its spacious interior and robust construction.
2. Safety Information
- Two-Person Assembly: Assembly requires at least two adults for safety and ease of installation.
- Wear Protective Gear: Always wear work gloves during assembly to protect hands from sharp edges of metal panels.
- Choose a Level Site: Ensure the shed is assembled on a firm, level surface to prevent structural instability.
- Secure to Ground: For stability and safety, the shed must be securely anchored to the ground or a suitable foundation. Expansion screws are provided for this purpose.
- Keep Children Away: Keep children and pets away from the assembly area to prevent accidents.
- Check for Damage: Inspect all components for damage before assembly. Do not proceed with assembly if significant damage is found.
3. Parts List
Before beginning assembly, verify that all components listed below are present. If any parts are missing or damaged, please contact customer support.
- Galvanized Steel Panels (various sizes for walls, roof, and doors)
- Frame Components (beams, supports, corner pieces)
- Hinged Door Assembly
- Internal Lock Mechanism
- Foundation Base Components
- Clamping Hooks (2 units) - holds up to 4 kg each
- U-Hooks (2 units)
- Floating Floor Foundations Corners (4 units)
- Expansion Screws (4 units)
- Assembly Hardware (screws, nuts, washers - includes many spare parts)
- Pair of Gloves (for assembly)
- Instruction Manual
Image 3.1: Visual representation of the included components for the shed assembly.
4. Setup and Assembly
Assembly typically requires 5-6 hours with two people. An electric screwdriver is highly recommended for efficient assembly.
- Site Preparation: Select a flat, level area for the shed. Clear any debris or obstacles.
- Foundation Assembly: Assemble the metal foundation base according to the instructions. This base provides a stable platform and allows for the optional installation of a floating floor (e.g., wood or dowel, not included).
- Wall Panel Installation: Attach the galvanized steel wall panels to the foundation and frame components. Ensure panels are correctly oriented and secured with the provided hardware.
- Roof Assembly: Construct and attach the apex roof structure. The apex design is engineered to prevent water accumulation.
- Door Installation: Install the hinged doors, ensuring they open and close smoothly. Attach the internal lock and the security latch for a padlock.
- Anchoring: Securely anchor the shed to the ground using the provided expansion screws or other suitable anchoring methods for your chosen foundation.
- Final Checks: Double-check all screws and connections to ensure they are tight and secure. Verify that doors operate correctly.
Note: Some users have reported having extra parts after assembly. These are often spare hardware or components not explicitly detailed for every step. If the shed is fully assembled and stable, these extra parts are typically not a concern.
Image 4.1: Illustration of floating floor installation within the shed, emphasizing ease of installation and included gloves.
5. Operating Instructions
The TRENT storage shed is designed for straightforward operation and secure storage.
- Door Operation: The shed features hinged doors for easy access. To open, unlatch the internal lock and pull the doors outwards.
- Security: For enhanced security, utilize the internal lock to secure one door and attach a padlock (not included) to the designated security latch on the other door.
- Ventilation: The shed includes top vents to promote air circulation, helping to prevent moisture buildup and odors inside. Ensure these vents remain unobstructed.
- Internal Storage: Use the provided clamping hooks (up to 4 kg capacity) and U-hooks to organize tools and other items on the interior walls.
Image 5.1: Close-up of the shed's security latch for a padlock and internal hooks for hanging items.
Image 5.2: Examples of how the shed can be utilized for storing bicycles, general items, waste, and tools.
6. Maintenance
The galvanized steel construction of your TRENT shed is designed for low maintenance. Follow these guidelines to ensure its longevity:
- Cleaning: Periodically clean the exterior with a soft cloth, mild soap, and water to remove dirt and debris. Avoid abrasive cleaners or harsh chemicals that could damage the galvanized coating.
- Rust Prevention: The galvanized steel is rust-resistant. However, promptly address any deep scratches or chips in the coating with a rust-inhibiting paint to prevent corrosion.
- Door and Hinge Check: Regularly inspect door hinges and latches for proper function. Lubricate if necessary to ensure smooth operation.
- Ventilation: Ensure the top vents remain clear of obstructions (e.g., leaves, debris) to maintain proper airflow.
Image 6.1: Features demonstrating the shed's durability, ease of cleaning, and weather resistance.
7. Troubleshooting
- Difficulty during Assembly: If you encounter difficulties, refer to the detailed assembly instructions provided with the product. Ensure all panels are correctly oriented before tightening screws. It is easy to place a piece incorrectly, requiring reassembly later.
- Missing or Damaged Parts: If any components are missing or damaged upon arrival, please contact TRENT customer support immediately with your purchase details.
- Water Accumulation: The apex roof is designed to prevent water accumulation. If water collects on the roof, ensure the shed is level and that the roof panels are correctly installed and sealed.
- Doors Not Closing Properly: Check that the shed is on a level surface and that the door hinges are properly aligned and tightened. Adjust as necessary.
8. Specifications
| Brand | TRENT |
| Model Number | TRE-CE5X6 |
| Material | Galvanized Steel (Alloy Steel) |
| Material Thickness | 0.25 mm |
| Color | Dark Gray |
| External Dimensions (H x W x D) | 195 cm x 181 cm x 151 cm (76.77"H x 71.26"W x 59.45"D) |
| Internal Dimensions (H x W x D) | 171.5-192 cm x 177.5 cm x 150 cm |
| Total Surface Area | 2.53 m² (2.54 Square Meters) |
| Internal Surface Area | 2.20 m² |
| Door Dimensions (H x W) | 168 cm x 97 cm (66.14"H x 38.19"W) |
| Item Weight | 59 kg (55.5 Kilograms) |
| Ceiling Design | APEX (Prevents water accumulation) |
| Required Assembly | Yes |

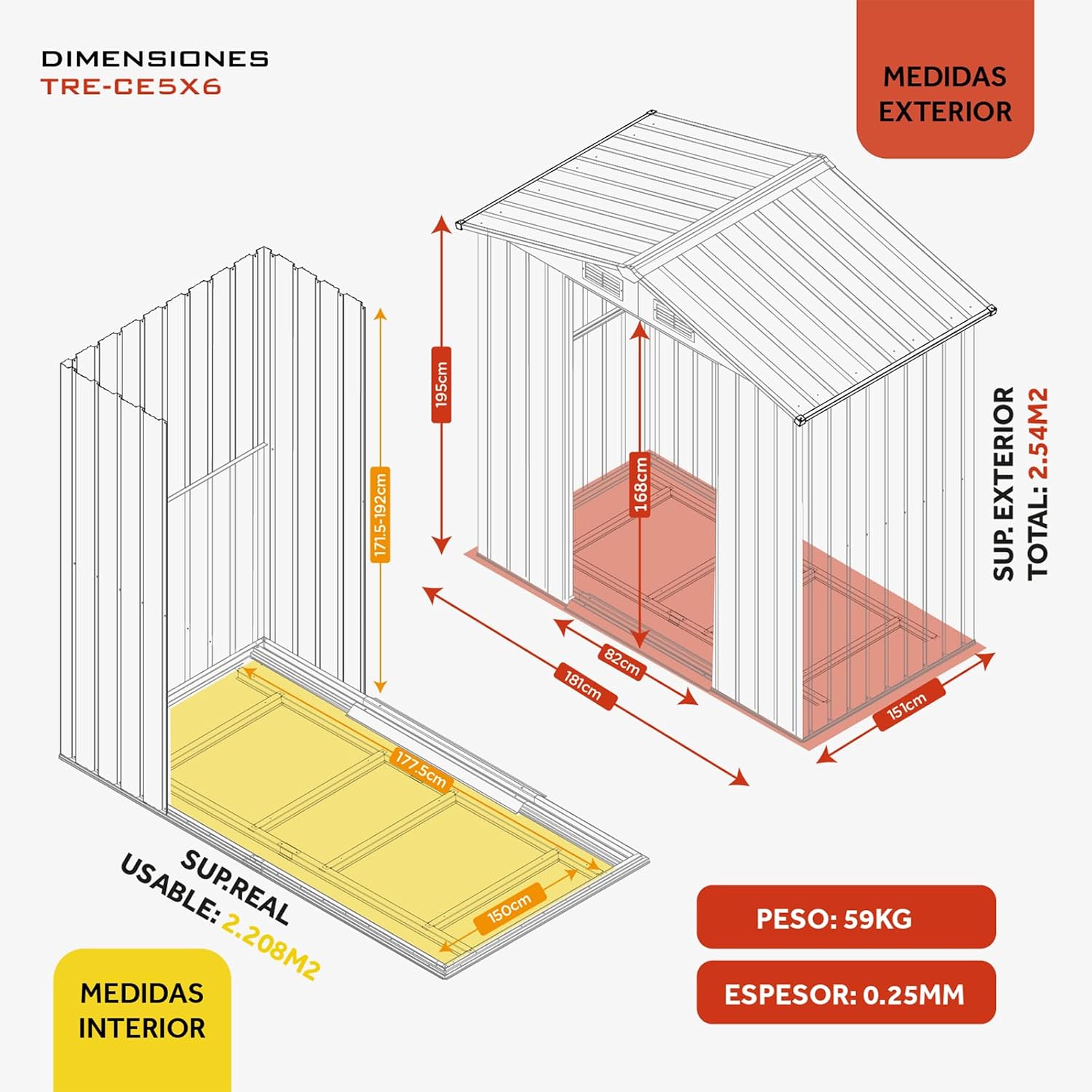

Image 8.1: Dimensional drawing of the shed, illustrating both external and internal measurements.
9. Warranty Information
Specific warranty details for the TRENT Steel Outdoor Storage Shed are typically provided with your purchase documentation. Please refer to these documents for information regarding warranty coverage, terms, and conditions. If you cannot locate this information, please contact TRENT customer support.
10. Customer Support
For any questions, assistance with assembly, troubleshooting, or to report missing/damaged parts, please contact TRENT customer support. Contact information can typically be found on the product packaging, your purchase invoice, or the official TRENT website.
