KNQZE Neck and Shoulder Massager with Heat (Model KNB1) - Instruction Manual

1. Introduction

Thank you for choosing the KNQZE Neck and Shoulder Massager with Heat. This device is designed to provide targeted relief for muscle discomfort in various body areas, including the neck, shoulders, back, waist, and legs. Featuring upgraded 4D shiatsu deep kneading technology and graphene heating, it offers a customizable and soothing massage experience. Please read this manual thoroughly before use to ensure safe and effective operation.

2. Safety Information

It is crucial to adhere to the following safety guidelines:

• Do not use on broken skin.
• Avoid use during pregnancy.
• Do not use for extended periods.
• The massager cannot be used while charging.
• Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition.

3. Package Contents

Upon unpacking, please ensure all items are present:

• KNQZE Neck and Shoulder Massager (Model KNB1)
• Type-C Charging Cable
• User Manual

Figure 1: KNQZE Neck and Shoulder Massager with Heat (Model KNB1).

4. Product Features

• Upgraded 4D Kneading Technology: Mimics professional masseuse hands with 3 massage intensity levels and adjustable massage directions for deep tissue kneading.
• Advanced Graphene Heating: Features graphene moxa carbon heating pads for fast heating (108.7°F - 119.3°F), uniform heat conduction, and strong insulation. Emits 4-14µm far-infrared rays to promote blood circulation.
• Cordless & Hands-Free Design: Equipped with a back buckle and adjustable shoulder straps for a secure fit, allowing use while working, playing, or doing housework. Operates quietly.
• Long-Lasting Battery Life: Built-in 2500mAh battery provides 60-90 minutes of massage on a full charge (approx. 3.5 hours charging time via Type-C cable).
• Versatile Use: Suitable for neck, shoulders, back, waist, and legs.

Figure 2: Advanced Graphene Heating Technology for enhanced comfort.

Figure 3: Illustration of 4D kneading technology and ergonomic design for deep tissue massage.

5. Setup

1. Initial Charge: Fully charge the massager before first use using the provided Type-C charging cable. The battery takes approximately 3.5 hours to fully charge.
2. Adjust Straps: Adjust the shoulder straps and back buckle to fit securely and comfortably around your desired massage area (neck, shoulders, back, etc.).

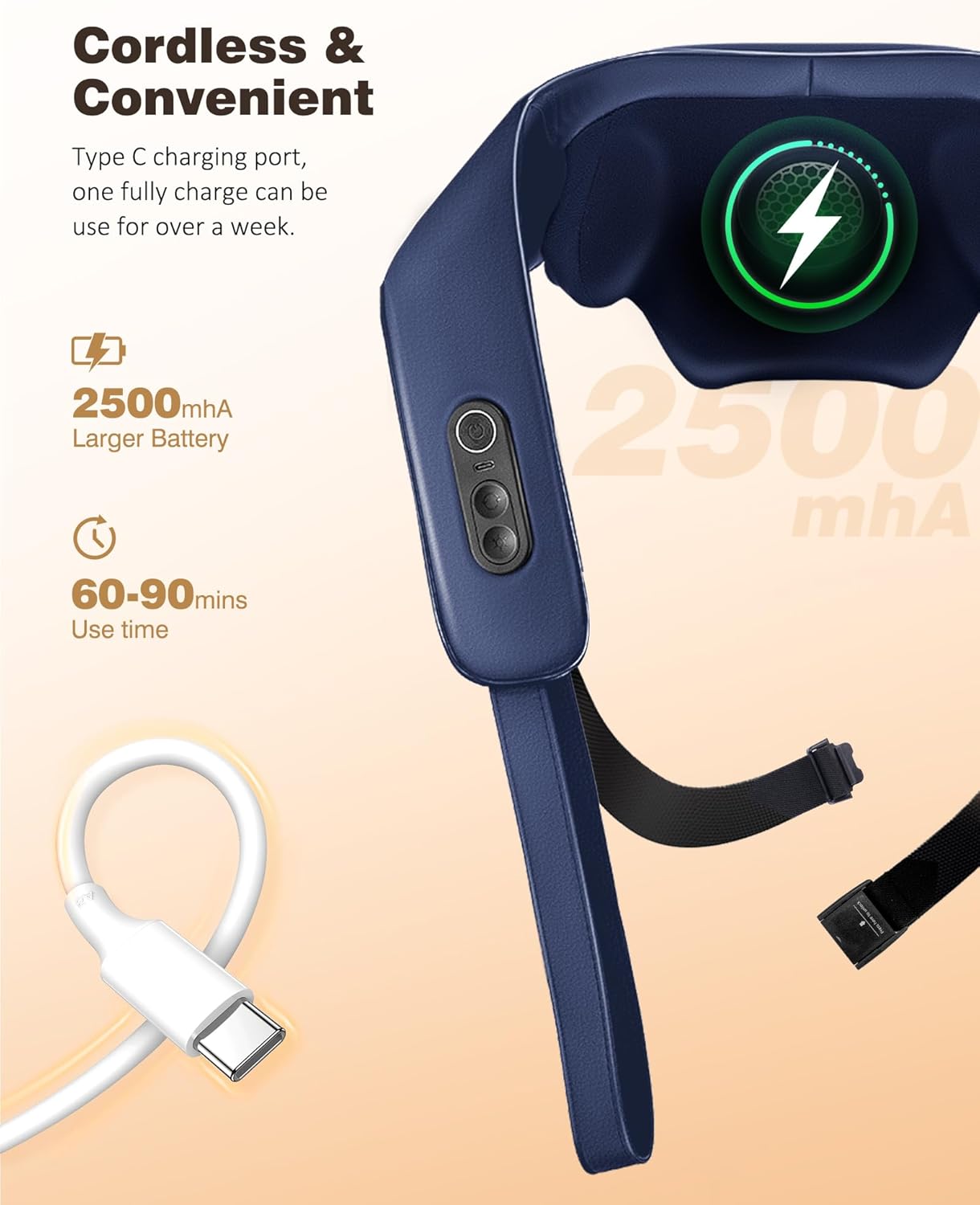

Figure 4: Type-C charging port and battery details.

6. Operating Instructions

1. Power On/Off: Press and hold the power button on the control panel to turn the massager on or off.
2. Select Massage Mode: Use the mode button to cycle through the available massage modes (e.g., continuous, intermittent).
3. Adjust Intensity: Select from 3 massage intensity levels to customize your deep tissue kneading experience.
4. Activate Heat Function: Use the heat button to select from 3 heating settings (Heating Off - 108.7°F - 119.3°F).
5. Adjust Massage Direction: The massager supports adjustable massage directions.
6. Hands-Free Use: Utilize the adjustable shoulder straps and back buckle to secure the massager, allowing for hands-free operation.
7. Targeted Relief: Position the massager on your neck, shoulders, back, waist, or legs for targeted pain relief.

Figure 5: Easy-to-use control panel for power, modes, and heating.

Figure 6: Demonstrating hands-free and hand-pull usage for varied massage intensity.

Figure 7: The massager can be used on various body parts for full-body relief.

7. Charging

The massager is equipped with a built-in 2500mAh large-capacity battery. Use the provided Type-C charging cable to charge the device. A full charge takes approximately 3.5 hours and provides about 60-90 minutes of massage time. The massager cannot be used while charging.

8. Maintenance

To maintain your massager in optimal condition:

• The surface is covered with a constant-temperature silicone pad.
• The fabric cover over the massage nodes is removable and washable for hygiene. (Refer to video for demonstration of removable cover).
• Store the massager in a cool, dry place when not in use.

9. Troubleshooting

If you encounter any issues with your massager, please consider the following:

• Device not turning on: Ensure the device is fully charged. The massager cannot be operated while charging.
• No heat: Verify that the heat function is activated via the control panel.
• Weak massage: Adjust the massage intensity settings on the control panel. Ensure the massager is positioned correctly and securely.

For further assistance, please refer to the warranty and support information.

10. Specifications

11. Warranty and Support

The KNQZE massager comes with a 1-year warranty. If any damage occurs within 1 year, a free replacement is available. For support or warranty claims, please contact KNQZE customer service.
