1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your TABU 24000BTU Mini Split Air Conditioner. Please read this manual thoroughly before installation and use, and retain it for future reference.
Product Overview
The TABU 24000BTU Mini Split Air Conditioner is a versatile 4-in-1 system designed for year-round comfort. It features:
- Cooling Function: Efficiently cools rooms up to 1500 sq.ft.
- Heating Function: Provides powerful heating for colder seasons.
- Dehumidifying Function: Reduces excess moisture in the air for improved comfort.
- Fan Mode: Circulates air without cooling or heating.
Image 1.1: The indoor unit of the TABU Mini Split Air Conditioner seamlessly integrated into a living space.
Image 1.2: Illustration of the rapid cooling and heating capabilities of the unit.
2. Safety Information
Always observe the following basic safety precautions to reduce the risk of fire, electric shock, or injury.
- Professional Installation: Installation must be performed by qualified personnel in accordance with all local and national electrical codes.
- Power Supply: Ensure the unit is connected to a 220-230V power supply with proper grounding. Do not use extension cords.
- Refrigerant: This unit uses R32 refrigerant. Handling and disposal must comply with environmental regulations. Only qualified technicians should service the refrigerant system.
- Clearances: Maintain adequate clearance around both indoor and outdoor units for proper airflow and maintenance.
- Children and Pets: Keep children and pets away from the unit, especially during operation and maintenance.
- Cleaning: Disconnect power before cleaning or performing any maintenance.
- Damage: If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
3. Package Contents
Verify that all components are present in the package:
- Indoor Unit
- Outdoor Unit
- Remote Control
- Installation Kit (includes copper piping, communication cable, drain hose, wall sleeve, etc.)
- User Manual (this document)
4. Installation and Setup
The TABU Mini Split Air Conditioner is a split system that requires professional installation. Improper installation can lead to refrigerant leakage, electric shock, fire, or water leakage. It can also void your warranty.
Key Installation Considerations:
- Location: Choose a location for the indoor unit that allows for even air distribution and is away from direct sunlight or heat sources. The outdoor unit should be placed on a stable surface with adequate clearance for airflow.
- Mounting: The indoor unit is wall-mounted. Ensure the wall can support the unit's weight.
- Electrical Connection: The unit requires a dedicated 220-230V circuit. All electrical work must comply with local codes.
- Refrigerant Lines: The unit comes pre-charged. The installation kit includes the necessary copper piping. Ensure proper vacuuming and leak testing of the refrigerant lines.
- Drainage: Install the drain hose with a downward slope to ensure proper condensate drainage.

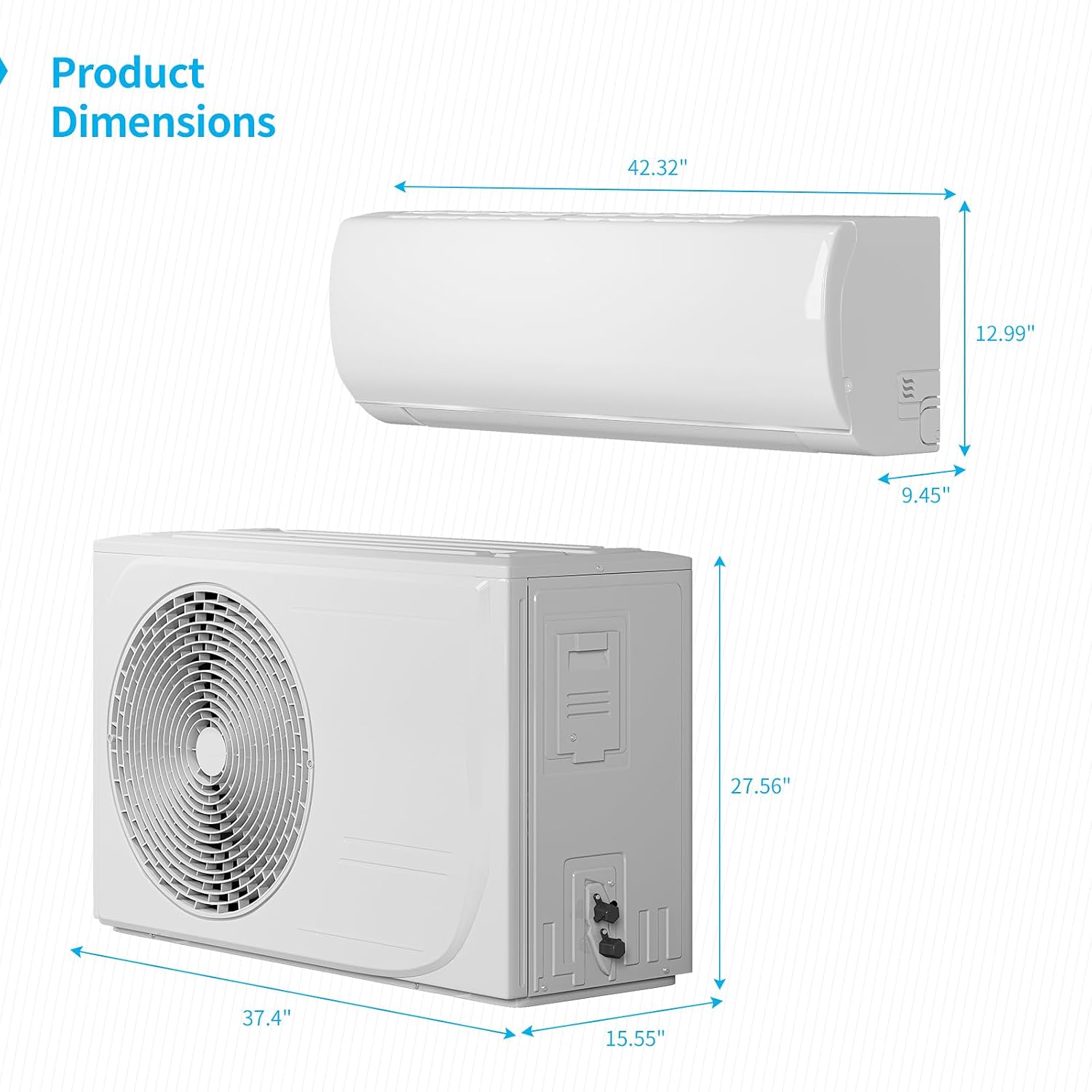

Image 4.1: Product dimensions for planning installation space. Indoor unit: 24D x 107.5W x 33H Centimeters. Outdoor unit dimensions are also shown.
Image 4.2: The outdoor unit of the TABU Mini Split Air Conditioner.
5. Operating Instructions
Your TABU Mini Split Air Conditioner can be controlled via the included remote control or through a Wi-Fi enabled app.
5.1 Remote Control Operation
The remote control allows you to adjust settings from a distance. Ensure the remote has fresh batteries and is pointed towards the indoor unit.
Image 5.1: The remote control with its various functions, including 24H Timer, Turbo, ECO, Sleep, Smart WiFi, and Mode selection.
- Power Button: Press to turn the unit ON or OFF.
- Mode Button: Cycle through Cool, Heat, Dry, and Fan modes.
- Temperature Adjustment: Use the Up/Down arrows to set your desired temperature.
- Fan Speed: Adjust the fan speed (Auto, Low, Medium, High).
- Swing Button: Controls the vertical louver movement for air direction.
- Timer Function: Set the unit to turn ON or OFF automatically after a specified period (up to 24 hours).
- Sleep Mode: Optimizes temperature and fan speed for comfortable sleep and energy saving.
- ECO Mode: Reduces power consumption for energy efficiency.
- Turbo Mode: Provides rapid cooling or heating.
5.2 Wi-Fi Control (Smart WiFi)
The unit is Wi-Fi enabled and compatible with Alexa/Google Assistant. This allows for remote control and monitoring via a smartphone app.
- App Download: Download the official TABU smart home app from your device's app store.
- Pairing: Follow the in-app instructions to pair your air conditioner with your home Wi-Fi network. This typically involves pressing a specific button combination on the remote or indoor unit to activate pairing mode. Refer to the app's guide for detailed steps.
- Voice Control: Once paired, link the TABU app to your Alexa or Google Assistant account to enable voice commands.
5.3 Special Features
Image 5.2: The unit operates quietly, ensuring a peaceful environment.
Image 5.3: The wide air flow range ensures efficient and even temperature distribution across the room.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your air conditioner. Always disconnect power to the unit before performing any maintenance.
6.1 Indoor Unit Maintenance
- Air Filter Cleaning: The air filters should be cleaned every two weeks or more frequently depending on usage and air quality. Open the front panel, remove the filters, wash them with lukewarm water and mild detergent, rinse thoroughly, and let them air dry completely before reinserting.
- Unit Surface Cleaning: Wipe the indoor unit's surface with a soft, dry cloth. For stubborn dirt, use a damp cloth with a neutral detergent, then wipe dry. Do not use harsh chemicals or abrasive cleaners.
6.2 Outdoor Unit Maintenance
- Coil Cleaning: Periodically check the outdoor unit's condenser coils for dirt, leaves, or debris. Gently clean them with a soft brush or vacuum cleaner. Avoid bending the fins.
- Clearance: Ensure that the area around the outdoor unit is free from obstructions to allow for proper airflow.
- Drainage: Check the condensate drain line for blockages.
7. Troubleshooting
Before contacting customer support, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power, circuit breaker tripped, remote control batteries low. | Check power supply, reset circuit breaker, replace remote batteries. |
| Insufficient cooling/heating | Dirty air filters, blocked outdoor unit, wrong mode selected, room too large. | Clean air filters, clear obstructions from outdoor unit, select correct mode, ensure unit capacity matches room size. |
| Unusual noise | Loose parts, foreign objects, unit not level. | Check for loose components, remove foreign objects, ensure unit is level. If noise persists, contact service. |
| Water leakage from indoor unit | Blocked drain hose, improper installation. | Check and clear drain hose. If issue persists, professional inspection is required. |
| Wi-Fi connectivity issues | Incorrect pairing, router issues, app malfunction. | Ensure correct pairing procedure is followed (refer to app guide). Restart router and unit. Reinstall app if necessary. |
If the problem persists after attempting these solutions, please contact TABU customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | TABU |
| Model Number | SF20250910B0FLX5F7YL |
| Capacity | 24000 BTU (2 Tons) |
| Power Source | Corded Electric |
| Voltage | 220-230V |
| Wattage | 7000 Watts |
| SEER (Seasonal Energy Efficiency Ratio) | 21 |
| Special Features | Dehumidifier, Fast Cooling, Heating & Cooling Function, Inverter Compressor, WiFi Enabled |
| Control Method | App, Remote Control |
| Installation Type | Split System |
| Refrigerant Type | R32 (Pre-Charged) |
| Indoor Unit Dimensions (D x W x H) | 24D x 107.5W x 33H Centimeters |
| Cools Up To | 1500 Square Feet |
| Included Components | Installation Kit, Remote Control |
9. Warranty and Support
For warranty information, please refer to the warranty card included with your product or contact TABU customer service. Keep your purchase receipt as proof of purchase.
Customer Support:
If you have any questions, require technical assistance, or need to report a problem, please contact TABU customer support through the official website or the contact information provided in your product packaging.
