Product Overview
The HP OmniDesk Desktop PC M02-0127c is a high-performance computer designed for everyday computing and productivity. It features an AMD Ryzen 7 8700G processor, 32GB DDR5 memory, and a 1TB NVMe SSD, along with integrated AMD Radeon 780M Graphics. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device.
Front-right view of the HP OmniDesk Desktop PC, showcasing its minimalist black design with a wood-inspired front panel.
1. Setup Guide
1.1 Unboxing and Initial Placement
Carefully remove all components from the packaging. Ensure the desktop tower, wireless keyboard, and wireless mouse are present. Place the desktop on a stable, flat surface with adequate ventilation.
1.2 Connecting Peripherals
Connect your monitor, keyboard, mouse, and power cable to the appropriate ports on the desktop.

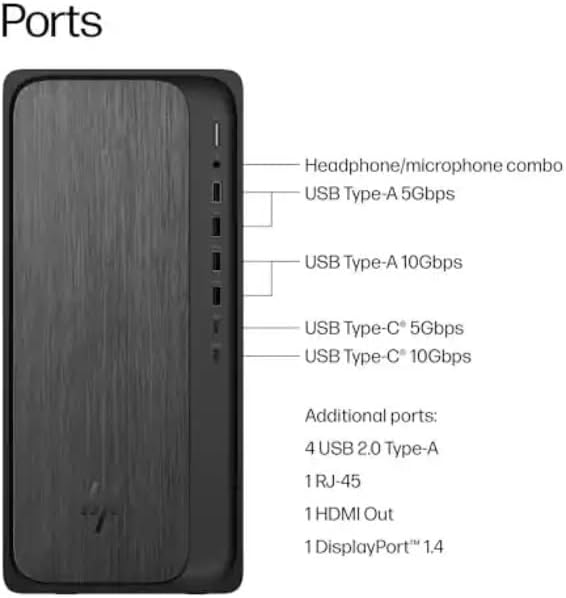

Diagram illustrating the various ports on the front and rear of the HP OmniDesk Desktop PC, including USB Type-A, USB Type-C, HDMI Out, RJ-45, and headphone/microphone combo.
- Power Connection: Connect the power cable to the power input on the rear of the desktop and then to a wall outlet.
- Monitor Connection: Use an HDMI cable to connect your monitor to the HDMI Out port on the rear of the desktop. The system also supports DisplayPort 1.4.
- Keyboard and Mouse: The included HP black wireless keyboard and mouse combo connect wirelessly. Insert the USB receiver into an available USB port on the desktop. Ensure batteries are installed in the keyboard and mouse.
1.3 First Boot and Windows 11 Setup
Press the power button on the front of the desktop. The system will boot into the Windows 11 Home setup process. Follow the on-screen instructions to configure your operating system, including language, region, network connection, and user account.
2. Operating Instructions
2.1 Power On/Off and Sleep Modes
- Power On: Press the power button on the front of the desktop.
- Shut Down: Click the Start button, then Power, and select "Shut down".
- Restart: Click the Start button, then Power, and select "Restart".
- Sleep: Click the Start button, then Power, and select "Sleep". The system will enter a low-power state, allowing for quick resume.
2.2 Connecting to Networks
- Wi-Fi: Click the network icon in the taskbar, select your Wi-Fi network, enter the password, and click "Connect". The system supports Wi-Fi 6 (802.11ax).
- Ethernet: Connect an Ethernet cable from your router or modem to the RJ-45 port on the rear of the desktop for a wired network connection.
2.3 Using Bluetooth Devices
To connect Bluetooth devices, go to Settings > Bluetooth & devices. Ensure Bluetooth is turned on, then click "Add device" and follow the pairing instructions for your device. The system supports Bluetooth 5.4.
2.4 Utilizing the Copilot Key
The included keyboard features a dedicated Copilot key. Press this key to instantly access your AI Assistant for enhanced productivity and quick task management within Windows 11.
3. Maintenance
3.1 Cleaning Your Desktop
Regularly clean the exterior of your desktop with a soft, dry, lint-free cloth. For dust accumulation in vents, use compressed air. Ensure the system is powered off and unplugged before cleaning.
3.2 Software Updates
Keep your Windows operating system and drivers updated to ensure optimal performance and security. Go to Settings > Windows Update to check for and install available updates.
3.3 Storage Management
The 1TB NVMe SSD provides fast storage. Regularly manage your files and uninstall unused applications to maintain free space and system performance.
3.4 Environmental Considerations
The HP OmniDesk PC is designed with recycled materials and is EPEAT Gold Climate+ Registered and ENERGY STAR certified. Ensure proper disposal of electronic waste according to local regulations.
4. Troubleshooting
4.1 No Power
Symptom: The desktop does not power on when the power button is pressed.
Solution:
- Verify the power cable is securely connected to both the desktop and a working wall outlet.
- Test the wall outlet with another device to ensure it has power.
- Ensure the power supply unit (PSU) switch (if present) is in the ON position.
4.2 No Display
Symptom: The desktop powers on, but nothing appears on the monitor.
Solution:
- Check that the monitor is powered on and the video cable (HDMI) is securely connected to both the desktop and the monitor.
- Ensure the correct input source is selected on your monitor.
- If possible, test with a different monitor or video cable.
4.3 System Not Booting (Advanced)
Symptom: The system powers on but fails to load the operating system, or displays error messages.
Solution:
- Attempt to access the BIOS/UEFI settings (usually by pressing F10 or Delete during startup) to check boot order or run diagnostics.
- If installing a new operating system like Linux, ensure any existing drive encryption is disabled and consider updating the BIOS first, as noted by some users.
- If the issue persists, contact HP Support.
4.4 Connectivity Issues
Symptom: Unable to connect to Wi-Fi, Bluetooth, or wired network.
Solution:
- Wi-Fi/Bluetooth: Ensure wireless adapters are enabled in Windows settings. Restart your router/modem.
- Ethernet: Check cable connections. Verify router/modem status.
- Update network drivers if necessary.
5. Technical Specifications
| Feature | Detail |
|---|---|
| Model Name | OmniDesk |
| Model Number | M02-0127c |
| Processor | AMD Ryzen 7 8700G (4.2GHz base, up to 5.1GHz max boost) with AMD Ryzen AI (16 NPU TOPS) |
| Operating System | Microsoft Windows 11 Home (64-bit) |
| Memory | 32 GB DDR5-5200 MT/s (Max 64 GB) |
| Storage | 1 TB PCIe Gen4 NVMe M.2 Solid State Drive |
| Graphics | AMD Radeon 780M Graphics (Integrated) |
| Wireless Connectivity | Wi-Fi 6 (2x2) 802.11ax, Bluetooth 5.4 |
| Wired Connectivity | Integrated 10/100/1000 GbE LAN |
| Ports (Front) | Headphone/microphone combo, USB Type-A 5Gbps, USB Type-A 10Gbps, USB Type-C 5Gbps, USB Type-C 10Gbps |
| Ports (Rear) | 4x USB 2.0 Type-A, 1x RJ-45, 1x HDMI Out, 1x DisplayPort 1.4 |
| Dimensions (L x W x H) | 12.40" x 6.10" x 13.27" (31.5 cm x 15.5 cm x 33.7 cm) |
| Weight | 12.7 Pounds (5.76 kg) |
| Included Peripherals | HP black wireless keyboard and mouse combo |
6. Warranty Information
This HP OmniDesk Desktop PC M02-0127c comes with a 1 Year Limited Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For specific terms and conditions, please refer to the warranty documentation included with your product or visit the official HP support website.
Please retain your proof of purchase for warranty claims.
7. Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact HP Customer Support.
- Online Support: Visit the official HP Support website for drivers, manuals, and troubleshooting guides. support.hp.com
- Phone Support: Refer to the contact information provided in your product documentation for regional phone support numbers.
When contacting support, please have your product model number (M02-0127c) and serial number ready.
