LEVELEVE Heavy Duty 2-in-1 Folding Wagon and Beach Lounger (Model: 400LB)

1. Introduction

This manual provides instructions for the safe and efficient use of your LEVELEVE Heavy Duty 2-in-1 Folding Wagon and Beach Lounger. This versatile product is designed to function as both a robust utility cart and a comfortable beach chair, making it ideal for various outdoor activities.

Key Features:

• Versatile 2-in-1 Design: Seamlessly transforms from a heavy-duty cart to a comfortable beach chair.
• Massive 400 LBS Weight Capacity: Features a reinforced high-strength alloy steel frame for durability and heavy loads.
• Durable Construction: Double-layered 600D Oxford fabric provides waterproofing and abrasion resistance.
• All-Terrain 360° Silent Swivel Wheels: Ensures smooth maneuverability over various surfaces including sand, gravel, grass, and pavement.
• Compact Folding: Designed for quick folding and easy storage.

Image 1.1: The LEVELEVE Heavy Duty Folding Wagon showcasing its dual functionality as a cart and a beach lounger.

2. Setup and Assembly

2.1 Unfolding the Wagon

1. Place the folded wagon on a flat, stable surface.
2. Gently pull the sides of the wagon outwards until the frame extends.
3. Press down on the center of the wagon's base to fully expand the interior. Ensure the base is flat and secure.

Image 2.1: Visual guide for quickly unfolding the wagon from its compact storage state.

2.2 Attaching the Wheels (if detached)

The wheels are designed for easy attachment and detachment. Locate the four wheels and the corresponding slots on the wagon's frame. Align the wheel's shaft with the slot and push firmly until it clicks into place. Ensure all wheels are securely attached before use.

Image 2.2: Detail of the all-terrain wheels, highlighting the robust design and attachment points.

2.3 Converting to Bench/Lounger Mode

1. Ensure the wagon is empty and on a flat surface.
2. Locate the release mechanisms on the sides of the wagon. These typically involve unfastening straps or clips.
3. Carefully lower the side panels to extend the wagon into a flat lounger configuration.
4. Adjust the backrest to your desired angle using the integrated adjustment system.

Video 2.1: Demonstrates the conversion of the LEVELEVE wagon from cart to lounger mode.

Video 2.2: Shows the wagon transforming into a comfortable lounger, highlighting its versatility.

Video 2.3: A detailed demonstration of the 2-in-1 wagon and lounge chair conversion process.

3. Operating Instructions

3.1 Using as a Utility Cart

• Ensure the wagon is fully expanded and the base is secure.
• Load items evenly within the wagon, ensuring the total weight does not exceed 400 LBS.
• Adjust the handle height for comfortable pulling or pushing. The handle features a 90° smooth range and can stretch from 25.6" to 35.4".
• Utilize the 360° swivel wheels for easy maneuverability across various terrains.
• Engage the wheel brakes when parking the wagon to prevent unintended movement.

Image 3.1: The wagon being loaded with various items, demonstrating its utility cart function.

Image 3.2: Illustration of the adjustable handle, showing its height and angle flexibility.

3.2 Using as a Beach Lounger

• After converting the wagon to lounger mode, ensure all locking mechanisms are engaged for stability.
• Position the lounger on a stable surface. Avoid uneven or excessively sloped areas.
• Adjust the backrest to your preferred reclining position.

Image 3.3: The wagon in its lounger configuration, used for relaxation during outdoor activities.

4. Maintenance

• Cleaning: The 600D Oxford fabric is waterproof and abrasion-resistant. Wipe down the fabric with a damp cloth and mild soap as needed. Allow to air dry completely before folding or storing.
• Frame Care: Inspect the alloy steel frame regularly for any signs of damage or wear. Clean any dirt or debris from the frame and moving parts.
• Wheel Maintenance: Check the wheels periodically for debris or damage. Ensure the swivel mechanisms and brakes are functioning correctly.
• Storage: For optimal longevity, store the wagon in a dry, cool place away from direct sunlight when not in use. Fold the wagon compactly to save space.

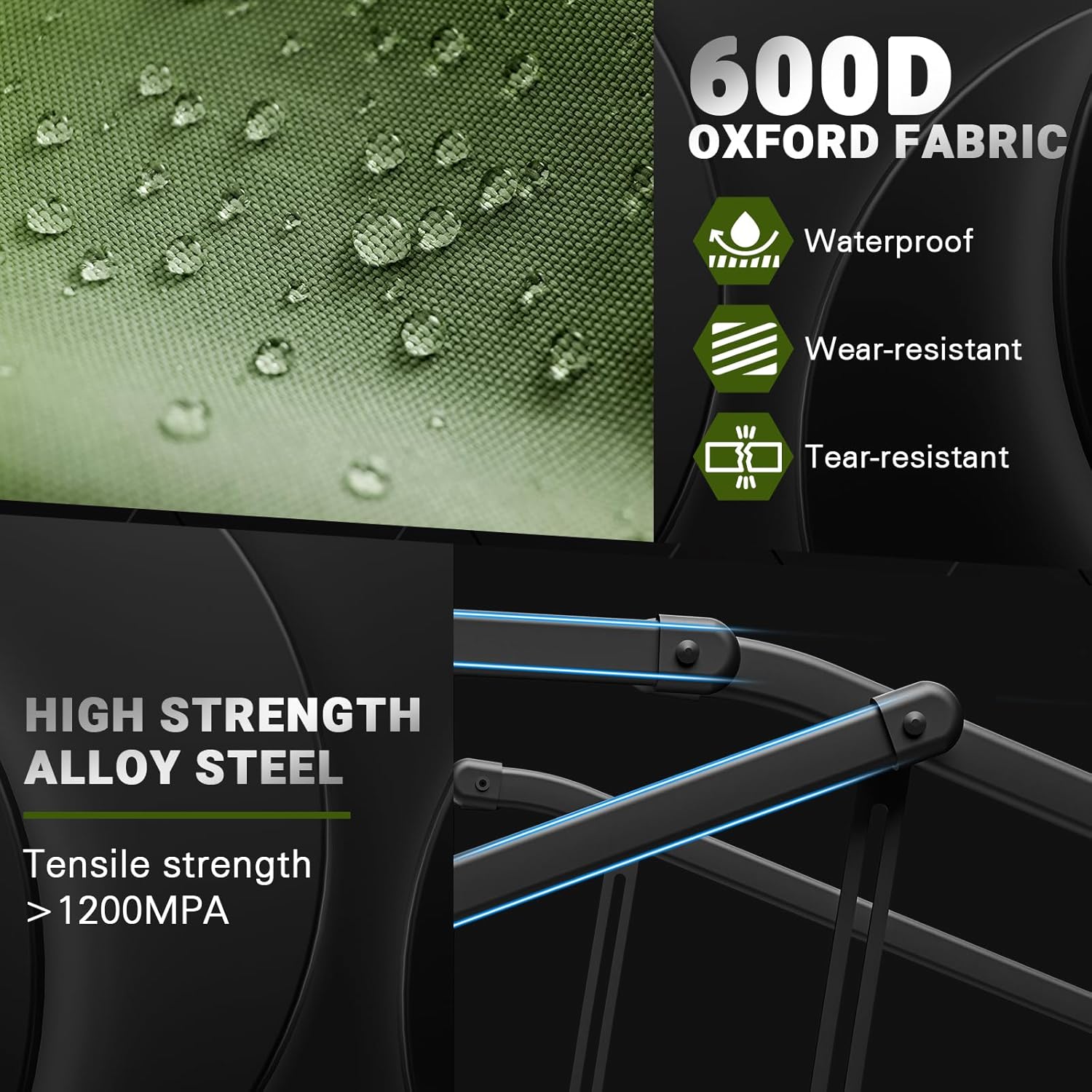

Image 4.1: Details of the durable 600D Oxford fabric and high-strength alloy steel frame, emphasizing material quality for maintenance.

5. Troubleshooting

• Wagon not unfolding/folding smoothly: Check for any obstructions in the folding mechanism. Ensure the central pull strap is properly engaged/disengaged.
• Wheels not swiveling/rolling freely: Inspect wheels for debris (sand, dirt, small stones) lodged in the bearings or swivel mechanism. Clean as necessary. Ensure brakes are disengaged.
• Lounger not stable: Verify that all conversion latches and straps are securely fastened in the lounger configuration. Ensure the wagon is on a level surface.
• Handle not extending/retracting: Check the red release button on the handle. Ensure it is fully pressed when adjusting the handle length.

6. Specifications

Image 6.1: Visual representation of the wagon's dimensions in both cart and lounger configurations, along with folded size and net weight.

7. Warranty and Support

LEVELEVE is committed to ensuring customer satisfaction. If you encounter any problems after receiving your Heavy Duty 2-in-1 Folding Wagon, please do not hesitate to contact our customer service team. We aim to reply within 24 hours to address your concerns and provide support.

For assistance, please refer to the contact information provided with your purchase or visit the official LEVELEVE store on Amazon.

Your shopping experience is our highest priority.
