Electactic JD-4F 4-Burner Propane Gas Grill User Manual

1. Introduction

Thank you for choosing the Electactic JD-4F 4-Burner Propane Gas Grill. This manual provides essential information for the safe assembly, operation, and maintenance of your new grill. Please read all instructions carefully before use and retain this manual for future reference.

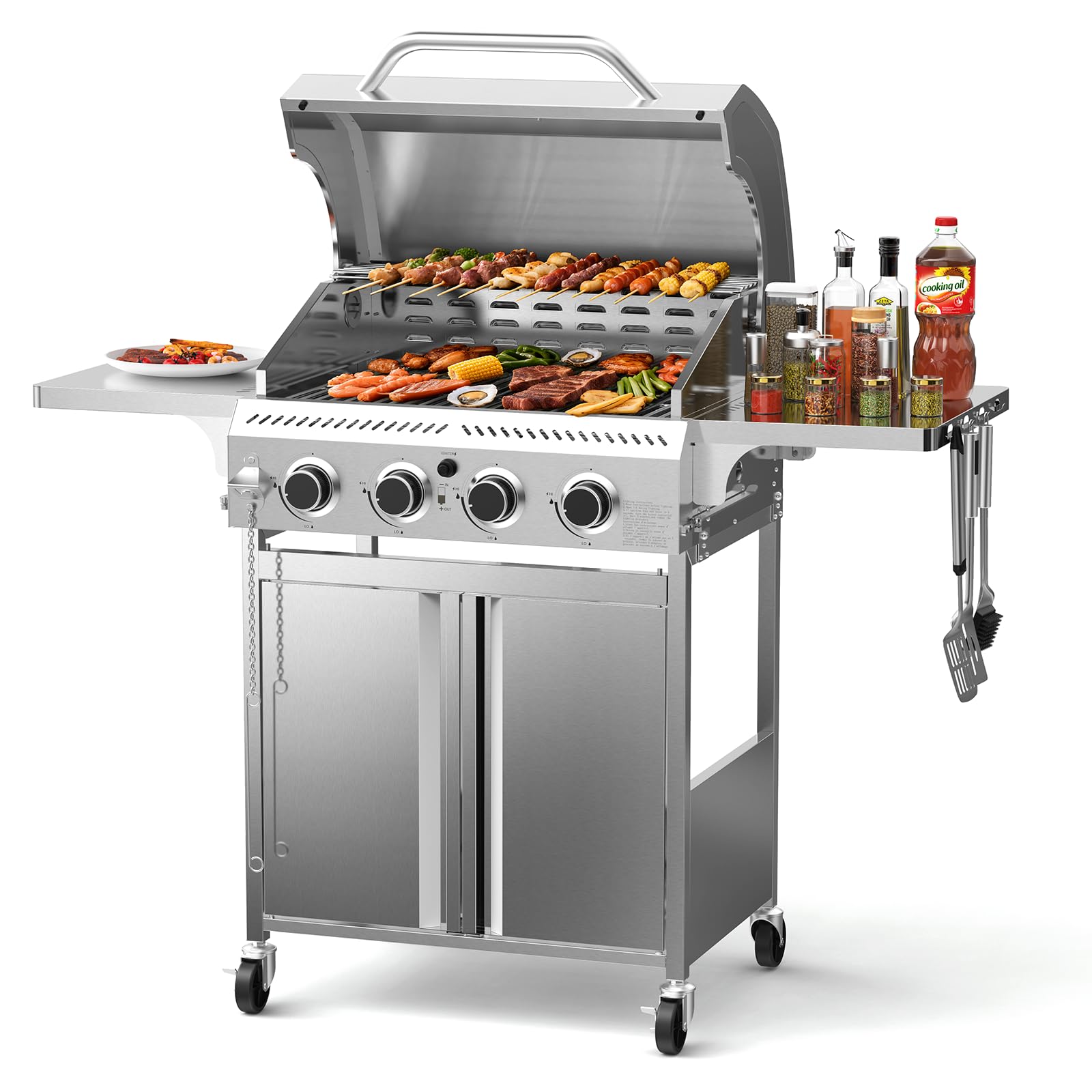

Figure 1: Electactic JD-4F 4-Burner Propane Gas Grill overview.

2. Safety Information

WARNING: Failure to follow these instructions could result in fire, explosion, or burn hazard, which could cause property damage, personal injury, or death.

For outdoor use only. Do not operate this appliance inside any building, garage, or other enclosed area.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Keep the grill area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
Always ensure proper ventilation.
Never operate the grill unattended.
Keep children and pets away from the grill at all times.
Always check for gas leaks before each use.
Use heat-resistant gloves when handling hot components.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

Grill Head Assembly (with 4 burners, control knobs, thermometer)
Left Side Shelf
Right Side Shelf with Tool Hooks
Cooking Grids (304 Stainless Steel)
Warming Rack
Bottom Cabinet Panels and Frame
4 Universal Wheels (2 with brakes)
Oil Drip Tray and Removable Oil Drip Box
Hardware Pack
User Manual (this document)

4. Assembly Instructions

Assembly typically takes approximately 30 minutes. It is recommended to have two people for certain steps. Follow the detailed instructions provided in the included printed manual for best results.

Unpack Components: Carefully remove all parts from the packaging.
Assemble Base Frame: Attach the bottom cabinet panels to the frame, ensuring the propane tank holder is correctly positioned.
Attach Wheels: Secure the four universal wheels to the base frame. Ensure the two locking casters are installed on the front for stability.
Mount Grill Head: With assistance, carefully lift and place the main grill head assembly onto the assembled base frame. Secure it with the provided hardware.
Install Side Shelves: Attach the left and right side shelves to the main grill body. The right shelf includes built-in hooks for tools.
Insert Internal Components: Place the flame tamers over the burners, then position the 304 stainless steel cooking grids. Finally, install the warming rack.
Install Oil Drip System: Slide the oil drip tray and removable oil drip box into their designated slots beneath the cooking area.
Connect Propane Tank: Place your propane tank inside the bottom cabinet and connect it securely to the grill's gas line. Ensure all connections are tight and check for leaks using a soapy water solution.

Figure 2: Unpacking and initial assembly of the grill base.

Figure 3: Grill with side shelves and integrated tool hooks for convenience.

Assembly Video Guide

Video 1: Detailed assembly process for the Electactic 4-Burner Propane Gas Grill. This video demonstrates step-by-step instructions for setting up your grill, from unboxing to final component installation.

5. Operating Instructions

5.1 Pre-Use Checks

Ensure the propane tank is securely connected and the gas valve is open.
Check all gas connections for leaks using a soapy water solution. Bubbles indicate a leak.
Ensure the oil drip tray and box are correctly installed and empty.

5.2 Ignition

Open the grill lid.
Turn one burner control knob to the "HI" position.
Press and hold the IGNITER button until the burner ignites.
Once ignited, release the IGNITER button.
Repeat for other burners as needed.
If the igniter does not work, use the provided extended rod with a match to manually light the burner.

5.3 Temperature Control

Each of the 4 burners provides 8,000 BTU, totaling 32,000 BTU for powerful and evenly distributed heat.
Adjust individual control knobs to achieve desired cooking temperatures.
Monitor the built-in thermometer gauge on the lid for accurate internal grill temperature.

Figure 4: Built-in thermometer for precise temperature monitoring.

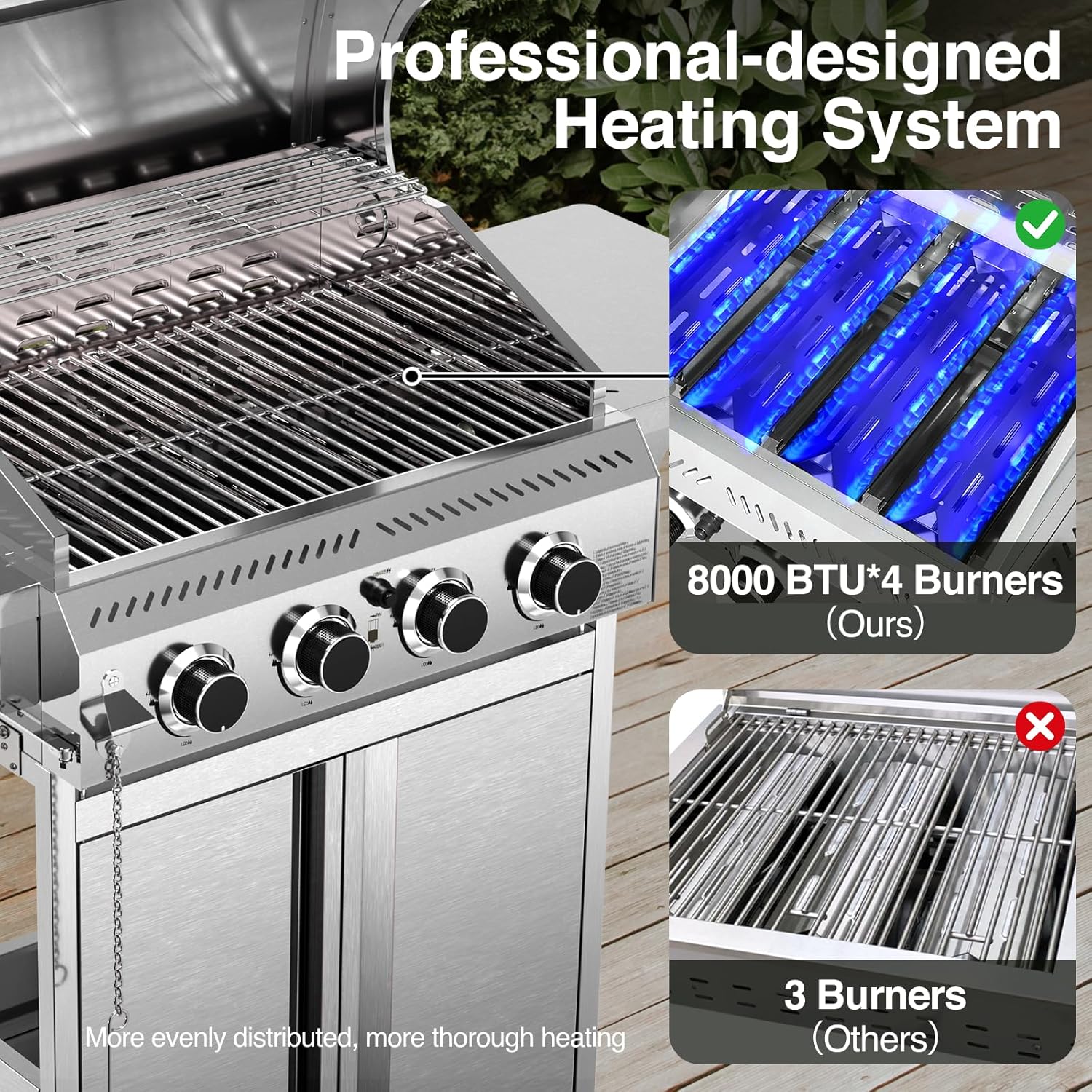

Figure 5: Professional-designed heating system with four 8,000 BTU burners.

5.4 Cooking Area

The main grilling area offers 370.71 sq. in. of space.
A 141.78 sq. in. warming area is available for keeping food warm or indirect cooking.
The 304 stainless steel cooking grids ensure even heat distribution and are easy to clean.

Figure 6: Spacious cooking area with specified dimensions for grilling and warming.

5.5 Shutting Down the Grill

Turn all burner control knobs to the "OFF" position.
Close the gas valve on the propane tank.
Allow the grill to cool completely before cleaning or covering.

6. Maintenance and Cleaning

Regular cleaning and maintenance will extend the life of your grill and ensure optimal performance.

Cooking Grids: After each use, once the grill has cooled slightly but is still warm, use a grill brush to remove food residue from the 304 stainless steel cooking grids. For deeper cleaning, remove the grids and wash with warm soapy water.
Oil Drip Tray and Box: Regularly empty and clean the slide-out oil drip tray and removable oil drip box to prevent grease buildup and flare-ups.
Exterior: Wipe down the 201 stainless steel body with a damp cloth and mild detergent. Avoid abrasive cleaners that can scratch the surface.
Burners: Periodically inspect burner ports for blockages (e.g., spider webs, food debris). Clean with a wire brush if necessary.
Storage: When not in use, especially during inclement weather, cover the grill with a suitable grill cover to protect it from the elements.

7. Troubleshooting

Problem	Possible Cause	Solution
Burner does not ignite with igniter.	No gas flow, igniter electrode dirty/damaged, igniter battery low.	Check propane tank connection and valve. Clean or adjust electrode. Replace igniter battery. Use manual lighting rod.
Uneven heating.	Blocked burner ports, low gas pressure.	Clean burner ports. Check propane tank level.
Excessive flare-ups.	Grease buildup, high heat.	Clean oil drip tray and cooking grids. Reduce heat.
Gas smell.	Gas leak.	Immediately turn off gas. Check all connections with soapy water. If leak persists, do not use and contact qualified service personnel.

8. Specifications

Brand: Electactic
Model Number: JD-4F
Product Dimensions: 21.65"D x 50.39"W x 42.13"H
Fuel Type: Propane Gas
Main Burner Count: 4
Total BTU: 32,000 BTU (8,000 BTU per burner)
Primary Cooking Surface Area: 370.71 sq. in.
Warming Rack Area: 141.78 sq. in.
Total Cooking Surface Area: 512.49 sq. in.
Material: 201 Stainless Steel Body, 304 Stainless Steel Cooking Grid
Special Features: Built-In Thermometer, Locking Casters, Removable Grease Tray, Rust Resistant, Superior Heat Retention, Bottle Opener.
Item Weight: 81.4 pounds

Figure 7: Detailed product dimensions for planning placement.

9. Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or contact Electactic customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, visit the Electactic Store on Amazon.
