1. Introduction
Thank you for choosing Herdio 6.5 Inch 240W Waterproof Marine Speakers. This manual provides essential information for the proper installation, operation, and maintenance of your new speakers. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product. These speakers are designed for durability and high-quality audio in various outdoor and marine environments.
2. Safety Information
- Electrical Safety: Ensure all wiring is correctly connected and insulated to prevent short circuits. Disconnect power before installation or maintenance.
- Mounting: Securely mount speakers to a stable surface to prevent detachment during operation, especially in moving vehicles or boats.
- Volume Levels: Prolonged exposure to high volume levels can cause hearing damage. Adjust volume to a comfortable level.
- Water Exposure: While these speakers are waterproof, avoid submerging them. Ensure proper sealing during installation to maintain water resistance.
- Temperature: Avoid exposing speakers to extreme temperatures outside their operating range.
3. Package Contents
Verify that all items are present in your package:
- Marine Waterproof Speaker x 2
- Instruction Manual x 1
- Speaker Cables x 2 (9.8 feet each)
- LED Light Cables x 2
- Mounting Hardware (screws, foam gasket)
Figure 3.1: Included components in the Herdio Marine Speaker package.
4. Product Features
The Herdio 6.5 Inch Marine Speakers are engineered for robust audio performance and durability in challenging environments.
- 240-Watt Audio Performance: Delivers 60 watts RMS and 240 watts max power, with a frequency response of 40Hz-18kHz and 4-ohm impedance. Equipped with 2-way full-range audio for rich, balanced stereo sound.
- 6.5-Inch Marine Speaker Pair: Includes 2 component speakers, each with a standard 6.5-inch size. Built with water-resistant and weather-resistant construction, they stand up to splashes and outdoor conditions—suitable for multiple vehicles.
- Built-in Blue LED Lights: Features integrated blue LED lights to enhance ambiance. Designed with durability in mind, including an ABS machined gasket and grill to resist sun damage from UV rays.
- Slim, Low-Profile Design: Constructed with a slim, low-profile build for easy installation on boats, marine watercraft, and off-road vehicles. The classic black finish adds a clean, stylish touch. Suitable for Boat, RV, ATV, UTV, Golf Cart.
- Easy Installation: Comes with 2 pieces of 9.8-foot speaker wire for straightforward setup. Fits universal OEM replacement standards.
Figure 4.1: Herdio 6.5 Inch Marine Speakers with LED illumination.

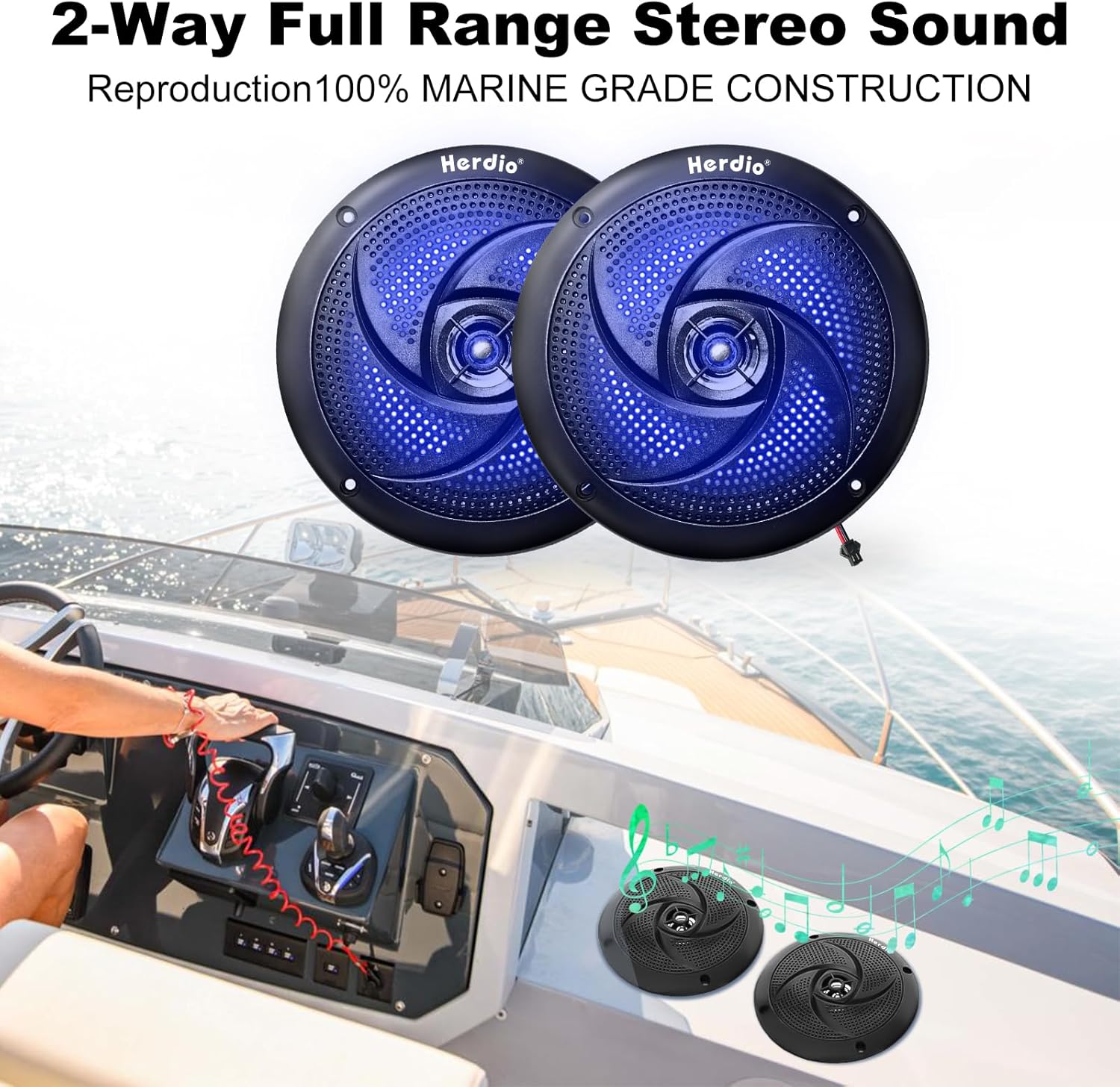

Figure 4.2: Illustration of 2-Way Full Range Stereo Sound capability.
Figure 4.3: Slim design and power rating of the waterproof speaker.
Figure 4.4: Rugged marine-grade construction with IPX5 waterproof rating.
Figure 4.5: Blue LED lights providing ambient illumination.
5. Installation
5.1 Mounting Location
These speakers are designed for versatile installation in various vehicles and marine craft. Choose a mounting location that is flat, stable, and provides sufficient clearance behind the speaker for wiring and proper air circulation. Ensure the location is protected from direct, prolonged submersion.
Figure 5.1: Examples of suitable installation environments.
5.2 Mounting Procedure
- Prepare the Surface: Ensure the mounting surface is clean and free of obstructions.
- Mark Cutout: Use the provided template (if applicable) or measure the speaker dimensions to mark the cutout area. The speaker dimensions are approximately 168mm (6.6 inches) diameter with a mounting depth of 40mm (1.57 inches).
- Cut Opening: Carefully cut the opening in the mounting surface.
- Drill Screw Holes: Mark and drill pilot holes for the mounting screws.
- Install Gasket: Apply the foam gasket around the speaker's edge to ensure a tight seal and reduce vibration.
- Secure Speaker: Place the speaker into the opening and secure it with the provided screws. Do not overtighten.
Figure 5.2: Speaker installation process.
6. Wiring Instructions
Proper wiring is crucial for optimal sound quality and LED functionality. Refer to your audio source's manual for specific wiring diagrams if needed.
- Speaker Wiring: Connect the included speaker cables to the speaker terminals. Ensure correct polarity (positive to positive, negative to negative) from your amplifier or head unit. The included speaker wires are 9.8 feet long.
- LED Light Wiring: The blue LED lights require a separate power connection. Connect the LED light cables to a 12V DC power source. This allows independent control of the LED lighting.
- Insulation: Secure all connections with appropriate electrical tape or heat shrink tubing to prevent short circuits and protect against moisture.
7. Operation
Once installed and wired, operating your Herdio marine speakers is straightforward:
- Power On: Turn on your audio source (e.g., marine stereo, amplifier).
- Adjust Volume: Start with a low volume and gradually increase it to a comfortable listening level.
- LED Control: If wired to a separate switch, activate the blue LED lights as desired.
- Audio Source: Select your preferred audio input on your head unit or amplifier.
8. Maintenance
Regular maintenance ensures the longevity and performance of your speakers:
- Cleaning: Clean the speaker grilles and surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the material.
- Inspection: Periodically check mounting screws for tightness and wiring connections for corrosion or damage.
- Weather Protection: Although weather-resistant, covering the speakers when not in use, especially during prolonged storage or harsh weather, can extend their lifespan.
Figure 8.1: All-weather durability comparison.
9. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No Sound |
|
|
| Distorted Sound |
|
|
| LED Lights Not Working |
|
|
10. Specifications
| Feature | Detail |
|---|---|
| Model Name | HE-HMS-X6LT-BK |
| Speaker Type | Outdoor, Marine |
| Special Feature | Waterproof, Built-in LED Lights |
| Recommended Uses | Boat, RV, ATV, UTV, Golf Cart, Outdoor |
| Unit Count | 2.0 Count (Pair) |
| Color | Black |
| Product Dimensions (As listed) | 1"D x 1"W x 1"H (Please refer to actual dimensions below) |
| Actual Speaker Diameter | 168mm / 6.6 inches |
| Mounting Depth | 40mm / 1.57 inches |
| Item Weight (Pair) | 4.41 pounds (2000 Grams) |
| Speaker Maximum Output Power | 240 Watts (Pair) |
| RMS Power | 60 Watts (Pair) |
| Impedance | 4 Ohms |
| Frequency Response | 40Hz-18kHz |
| Sensitivity | 91dB |
| Connectivity Technology | Wired |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Manufacturer | Herdio |
Figure 10.1: Key technical specifications.
Figure 10.2: Product dimensions for installation planning.
11. Warranty and Support
Herdio products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Herdio website. For technical support, troubleshooting assistance, or replacement parts, please contact Herdio customer service through the contact information provided on the product packaging or the official website.
Online Resources: For additional support and product information, you may visit the Herdio Store on Amazon.
