LEVELEVE Heavy Duty 2-in-1 Folding Wagon and Lounger Instruction Manual

1. Product Overview

The LEVELEVE Heavy Duty 2-in-1 Folding Wagon is a versatile utility cart designed for various outdoor activities and transport needs. It features a robust construction, high weight capacity, and the unique ability to transform into a comfortable lounger. This manual provides essential information for safe and effective use, setup, operation, and maintenance of your wagon.

• Versatile 2-in-1 Design: Easily converts from a heavy-duty cart to a comfortable lounger.
• Massive 650 LBS Weight Capacity: Features a reinforced high-strength alloy steel frame for durability.
• All-Terrain 360° Silent Swivel Wheels: Designed for smooth maneuverability over various surfaces, including sand, gravel, grass, and pavement. Includes brakes for stability.

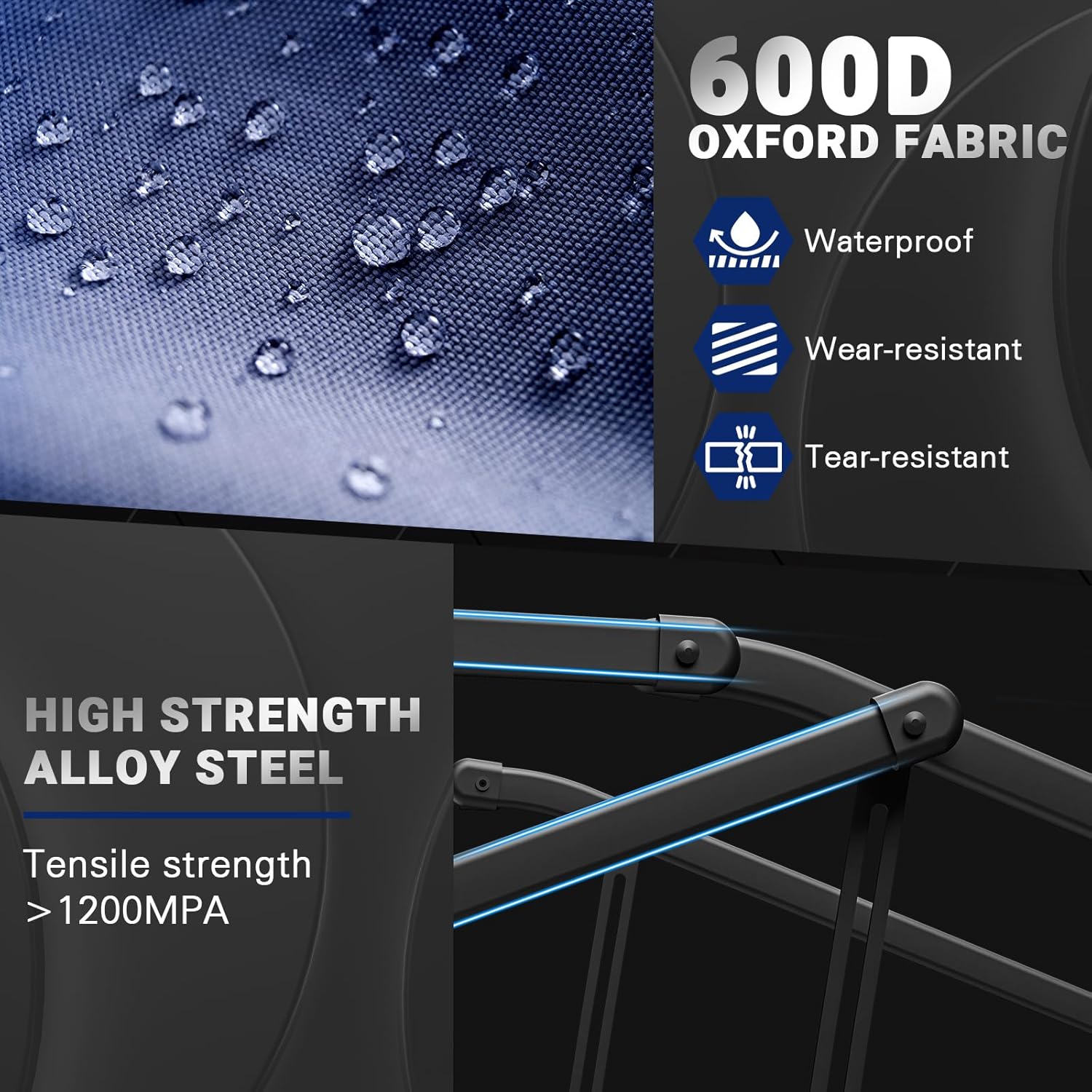

• Durable Fabric: Constructed with double-layered 600D Oxford fabric, offering waterproofing, abrasion resistance, and tear resistance.
• Compact Storage: Quick and easy folding mechanism for convenient storage and transport.

2. Safety Information

• Always ensure the wagon is fully unfolded and locked before loading or using.
• Do not exceed the maximum weight capacity of 650 lbs (295 kg).
• Distribute weight evenly within the wagon to maintain stability.
• Engage wheel brakes when parking the wagon, especially on inclines.
• Keep hands and fingers clear of moving parts during folding and unfolding.
• Do not allow children to play in or on the wagon unsupervised.
• Avoid using the wagon on extremely steep slopes or unstable terrain where tipping may occur.
• Regularly inspect the frame, fabric, and wheels for any signs of wear or damage. Do not use if damaged.

3. Setup and Assembly

The LEVELEVE wagon is designed for quick and easy setup. No complex assembly is required.

3.1 Unfolding the Wagon

1. Place the folded wagon on a flat, stable surface.
2. Grasp the top handles and pull them apart to begin unfolding the frame.
3. Push down on the center of the wagon's base until it lies flat and the frame is fully extended. Ensure all locking mechanisms click into place.
4. Adjust the fabric sides to ensure they are properly seated within the frame.

Figure 1: Unfolding the wagon for use.

3.2 Attaching Securing Straps

The wagon includes two adjustable straps to secure items during transport.

1. Locate the two adjustable straps.
2. Clip the straps onto the designated attachment points on the wagon's frame.
3. Use these straps to secure taller or bulkier items, preventing them from shifting or falling out during movement.

Video 1: Demonstrates securing items with straps and general wagon use.

4. Operating Instructions

4.1 Using as a Wagon

• Ensure the wagon is fully assembled and any items are securely loaded.
• Adjust the handle to a comfortable height by pressing the retractable button and extending or retracting the handle. The handle offers a 90° smooth range of motion.
• The all-terrain wheels provide 360° rotation for easy steering. Push or pull the wagon as needed.
• To engage the brakes, press down on the "LOCK" lever located on each wheel. To release, lift the "UNLOCK" lever.

Figure 2: Adjustable handle for ergonomic pulling or pushing.

Figure 3: Detail of the all-terrain wheels with locking mechanism.

4.2 Converting to a Lounger

1. Ensure the wagon is empty and on a flat surface with brakes engaged.
2. Locate the red release levers on the sides of the wagon.
3. Press the release levers and carefully extend the sides of the wagon outwards.
4. Continue extending until the wagon transforms into a flat lounger configuration. Ensure all parts are securely locked in the extended position.
5. The backrest of the lounger can be adjusted to various angles for comfort.

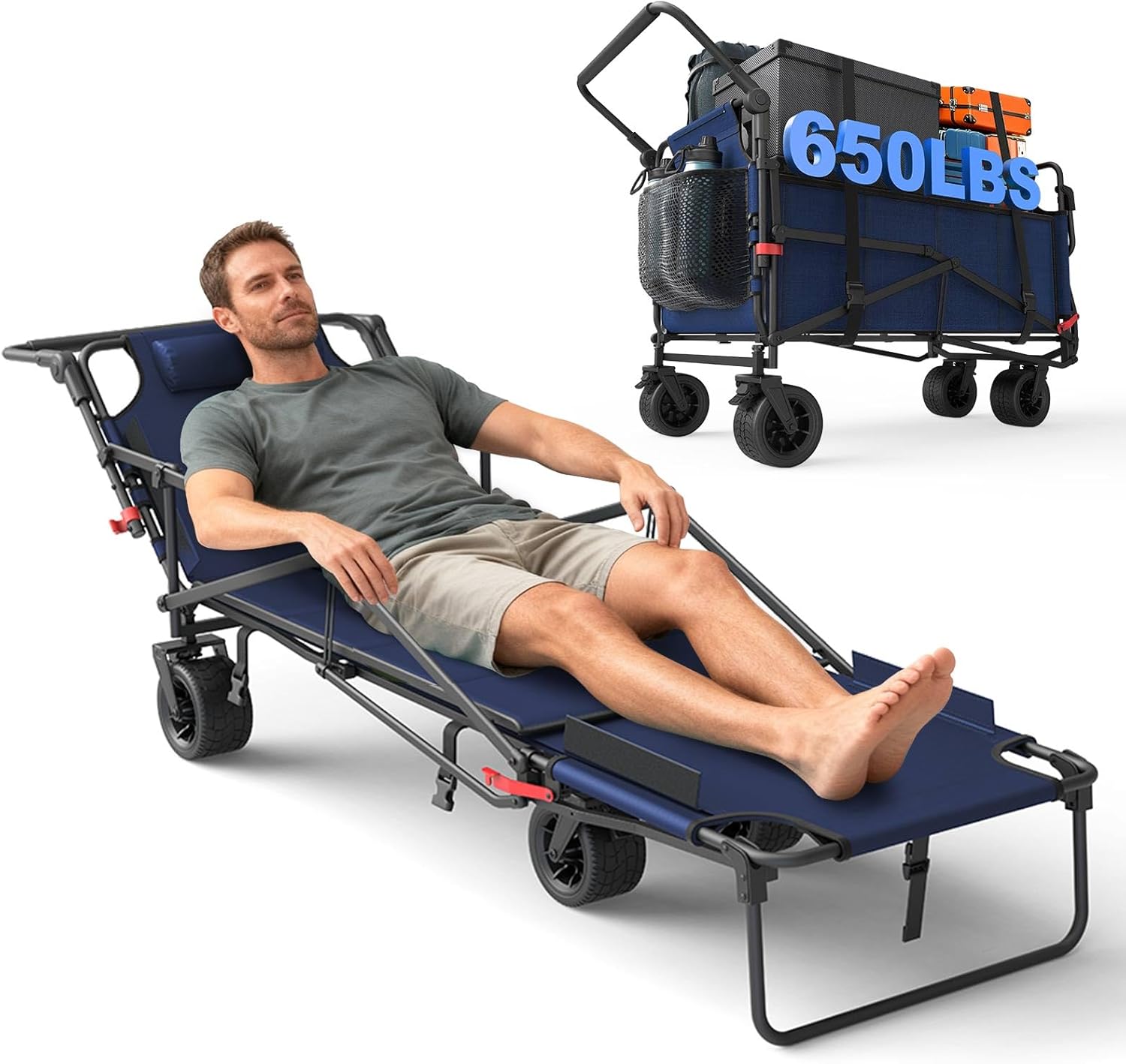

Figure 4: The 2-in-1 design, showcasing both wagon and lounger modes.

Video 2: Detailed demonstration of converting the wagon into a lounger.

4.3 Folding for Storage

1. Ensure the wagon is empty and in its cart configuration.
2. Locate the pull strap in the center of the wagon's base.
3. Pull the strap upwards to initiate the folding process. The sides of the wagon will begin to collapse inwards.
4. Continue pulling until the wagon is fully folded into a compact size. Secure with any integrated straps or clips if available.

Figure 5: Quick folding for compact storage.

5. Maintenance

• Cleaning: Wipe down the fabric with a damp cloth and mild soap. For stubborn stains, use a soft brush. Rinse thoroughly and allow to air dry completely before folding or storing. Do not use harsh chemicals or abrasive cleaners.
• Frame Care: Periodically check the alloy steel frame for any signs of rust or damage. Clean with a damp cloth and dry thoroughly. Lubricate moving joints if necessary with a silicone-based spray.
• Wheel Maintenance: Inspect wheels for debris, wear, or damage. Clean any dirt or sand from the wheel mechanisms. Ensure brakes are functioning correctly.
• Storage: Store the folded wagon in a dry, cool place away from direct sunlight and extreme temperatures to prolong its lifespan.

6. Troubleshooting

• Wagon not unfolding/folding smoothly: Check for any obstructions in the folding mechanism. Ensure all fabric is clear of the frame. Apply a small amount of lubricant to hinges if movement is stiff.
• Wheels not rotating freely: Inspect wheels for trapped debris (e.g., sand, small stones). Clean thoroughly. Check if brakes are partially engaged.
• Wagon feels unstable: Ensure the wagon is fully unfolded and all locking mechanisms are engaged. Verify that weight is distributed evenly and not exceeding the maximum capacity.
• Brakes not engaging/disengaging: Check for debris around the brake mechanism. Ensure the lever moves freely between "LOCK" and "UNLOCK" positions.

7. Specifications

Figure 6: Product dimensions and specifications.

8. Warranty and Support

For any issues or inquiries regarding your LEVELEVE Heavy Duty 2-in-1 Folding Wagon, please contact customer support. The manufacturer is committed to ensuring customer satisfaction.

• Customer Service: Refer to your purchase documentation or the official LEVELEVE website for contact information.
• Warranty Information: Specific warranty details are typically provided with the product packaging or available on the manufacturer's website. Please retain your proof of purchase for warranty claims.
