WSTER WS-560 Modern Tractor Bluetooth Replica Speaker User Manual

Introduction

This manual provides detailed instructions for the operation and maintenance of your WSTER WS-560 Modern Tractor Bluetooth Replica Speaker. Please read this manual thoroughly before use to ensure proper function and longevity of the device.

Figure 1: WSTER WS-560 Modern Tractor Bluetooth Replica Speaker (Green variant shown).

What's in the Box

Upon unboxing, please verify that all items listed below are present:

• WS-560 Modern Tractor Bluetooth Replica Speaker
• Power Cable (USB-C)
• Quick Start Guide

Figure 2: Contents of the WS-560 package.

Product Overview

Familiarize yourself with the speaker's components and controls.

Controls and Ports

Figure 3: Rear panel controls and ports.

• M/U Button: Mode switch (Bluetooth, FM, USB, TF, AUX). Long press for power on/off.
• Play/Pause Button: Play/pause music. Short press to answer/end calls. Long press to initiate automatic FM station search.
• Previous Track/Volume Down Button: Short press for previous track. Long press to decrease volume.
• Next Track/Volume Up Button: Short press for next track. Long press to increase volume.
• DC5V Port: For charging the speaker.
• USB Port: For USB music playback.
• TF Card Slot: For TF card music playback.
• AUX Port: For auxiliary audio input.

Setup

Charging the Speaker

Before initial use, fully charge the speaker. Connect the provided power cable to the DC5V port on the speaker and a compatible USB power source. The charging indicator light will show the charging status.

Power On/Off

• To Power On: Long press the M/U button until you hear a power-on prompt.
• To Power Off: Long press the M/U button until you hear a power-off prompt.

Operating Instructions

Bluetooth Pairing

1. Ensure the speaker is powered on and in Bluetooth mode (indicated by a "Bluetooth Mode" voice prompt).
2. On your mobile device, enable Bluetooth and search for available devices.
3. Select "WS-560" from the list to pair. A confirmation tone will sound upon successful connection.

Figure 4: Bluetooth pairing process.

TWS (True Wireless Stereo) Function

To achieve stereo sound, two WS-560 speakers can be paired together:

1. Ensure both WS-560 speakers are powered on and in Bluetooth mode, but not yet paired to any device.
2. Double-click the Play/Pause button on one of the speakers. You will hear a "beep" sound.
3. The two speakers will automatically connect to each other. A confirmation tone will indicate successful TWS pairing.
4. Once TWS is established, connect your mobile device to one of the speakers via Bluetooth as described above. Both speakers will now play synchronized stereo audio.

Figure 5: TWS pairing setup.

USB/TF Card Playback

• Insert a USB drive or TF card (with MP3 audio files) into the respective port.
• The speaker will automatically switch to USB or TF card mode and begin playing music.
• Use the Previous/Next Track buttons to navigate songs.

FM Radio

1. Press the M/U button repeatedly until you hear the "FM Mode" voice prompt.
2. Long press the Play/Pause button to initiate an automatic search for FM stations. The speaker will scan and save available stations.
3. Once scanning is complete, use the Previous/Next Track buttons to switch between saved FM stations.

Hands-Free Calling

When connected via Bluetooth, the speaker supports hands-free calling:

• Answer Call: Short press the Play/Pause button.
• End Call: Short press the Play/Pause button during a call.
• Reject Call: Long press the Play/Pause button.

Volume and Track Control

• Increase Volume: Long press the Next Track/Volume Up button.
• Decrease Volume: Long press the Previous Track/Volume Down button.
• Next Track: Short press the Next Track/Volume Up button.
• Previous Track: Short press the Previous Track/Volume Down button.

Selfie Mode (Remote Camera Shutter)

When connected via Bluetooth, the speaker can act as a remote shutter for your phone's camera:

1. Ensure the speaker is paired with your phone via Bluetooth.
2. Open your phone's camera application.
3. Press the Play/Pause button on the speaker to remotely trigger the camera shutter.

Official Product Videos

Watch these official videos for visual guidance on setup and features.

Specifications

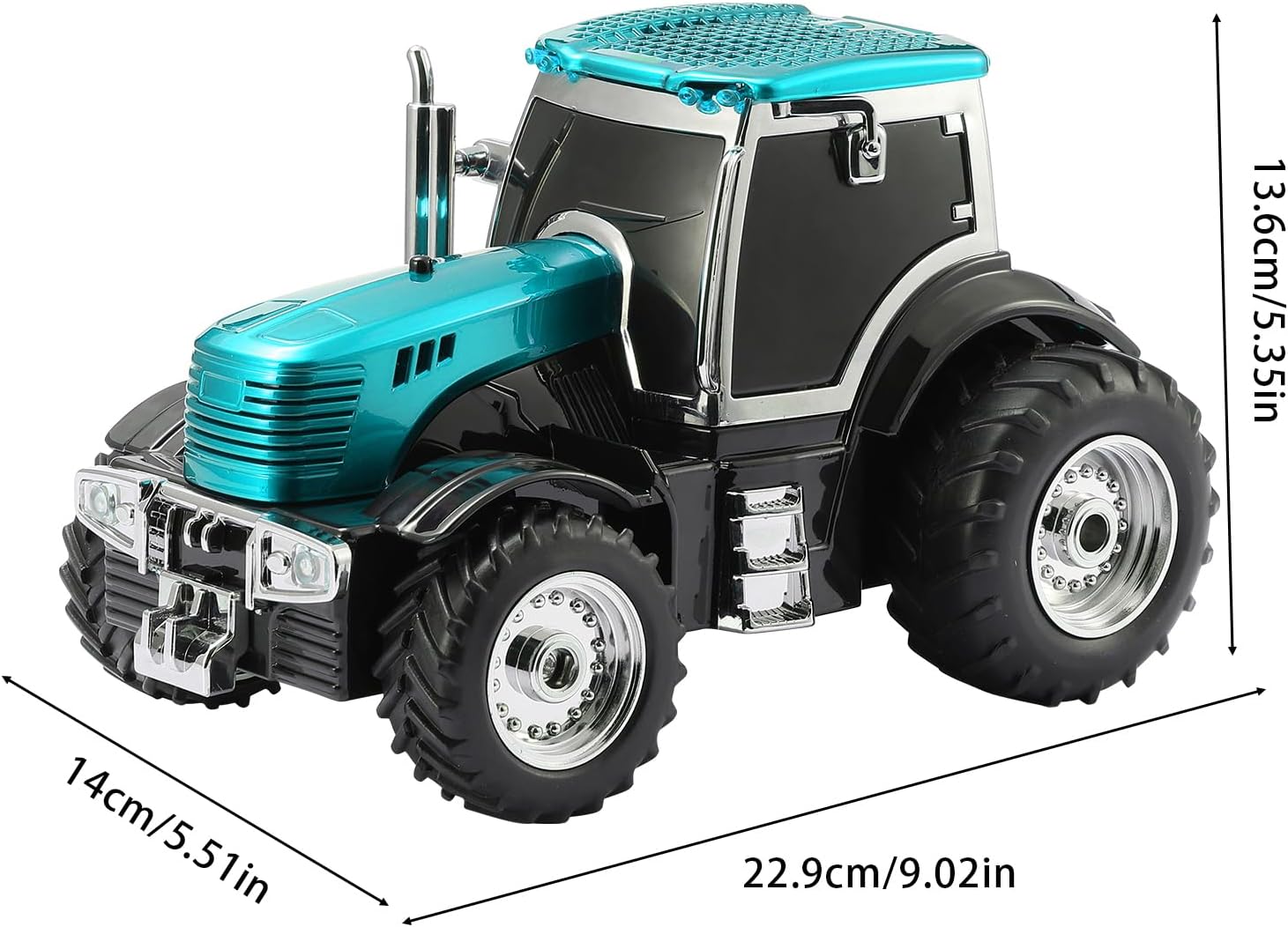

Figure 6: Product dimensions.

Maintenance

• Keep the speaker dry and away from moisture.
• Clean the speaker with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Avoid exposing the speaker to extreme temperatures.
• Store the speaker in a cool, dry place when not in use for extended periods.

Troubleshooting

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official WSTER website. Keep your proof of purchase for warranty claims.
