Introduction
This manual provides instructions for the safe operation and maintenance of your Cuisinart Dual Basket Air Fryer, Model ADZ-085. This appliance features two 4.25-quart baskets, totaling 8.5 quarts capacity, allowing for simultaneous cooking of different foods. It includes four cooking functions: Air Fry, Roast, Bake, and Keep Warm, along with features like Sync Finish, Sync Settings, Toss Reminder, Auto Warm Mode, and Auto-Pause.
The Cuisinart Dual Basket Air Fryer ADZ-085, designed for versatile cooking.
Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following:
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or housing in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Do not use the appliance for other than intended use.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Oversized foods or metal utensils must not be inserted in a dual basket air fryer as they may create a fire or risk of electric shock.
- A fire may occur if the appliance is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
- Do not place any of the following materials in the appliance: paper, cardboard, plastic, and the like.
- Do not store any materials other than manufacturer's recommended accessories in this appliance when not in use.
- Do not use this appliance on a boat or in a vehicle.
Product Overview & Components
The Cuisinart Dual Basket Air Fryer ADZ-085 is designed for efficient and versatile cooking. Familiarize yourself with its main components:
- Main Unit: Houses the heating elements and control panel.
- Control Panel: Digital display with touch controls for functions, time, and temperature.
- Air Fry Baskets (2): Two 4.25-quart capacity baskets for cooking.
- Crisper Plates (2): Nonstick ceramic coated plates that fit inside the baskets for optimal air circulation.
- Handles: Integrated handles for safely removing and inserting baskets.
Side view of the air fryer, showing its compact design.
Setup
Before first use, follow these steps:
- Unpack: Remove all packaging materials, stickers, and labels from the appliance.
- Clean Components: Wash the air fry baskets and crisper plates in warm, soapy water. Rinse and dry thoroughly. The ceramic nonstick crisper plate and air fry basket are dishwasher safe.
- Wipe Main Unit: Wipe the exterior of the main unit with a clean, damp cloth. Do not immerse the main unit in water.
- Placement: Place the air fryer on a stable, heat-resistant surface, away from walls or other appliances to ensure proper air circulation. Ensure there is at least 6 inches of space around the unit.
- Insert Crisper Plates: Place the crisper plates into the bottom of each air fry basket.
- Insert Baskets: Slide the air fry baskets back into the main unit until they click into place.
- Power On: Plug the power cord into a grounded electrical outlet. The unit will beep, and the display will illuminate.
Operating Instructions
The Cuisinart Dual Basket Air Fryer features an intuitive digital control panel for easy operation.
Control Panel
The digital display allows you to select functions, adjust time and temperature, and utilize special features.
The digital control panel with adjustable temperature and time settings.
Cooking Functions
Select from four primary cooking functions:
- Air Fry: For crispy results with little to no oil.
- Roast: Ideal for meats and vegetables.
- Bake: Suitable for cakes, breads, and other baked goods.
- Keep Warm: Maintains food temperature after cooking.
Additionally, three air fry presets are available for quick selection:
- Wings: Optimized settings for chicken wings.
- Fries: Optimized settings for French fries.
- Frozen Snacks: Optimized settings for various frozen snack items.
Overview of cooking functions and presets.
Sync Finish & Sync Settings
- Sync Finish: This feature ensures that two different foods, cooked at potentially different times and temperatures in separate baskets, finish cooking simultaneously. Select your desired settings for each basket, then activate Sync Finish. The air fryer will automatically adjust the start times to ensure both meals are ready together.
- Sync Settings: Use this feature to easily duplicate the function, time, and temperature settings from one basket to the other. This is ideal when cooking the same food type in both baskets.

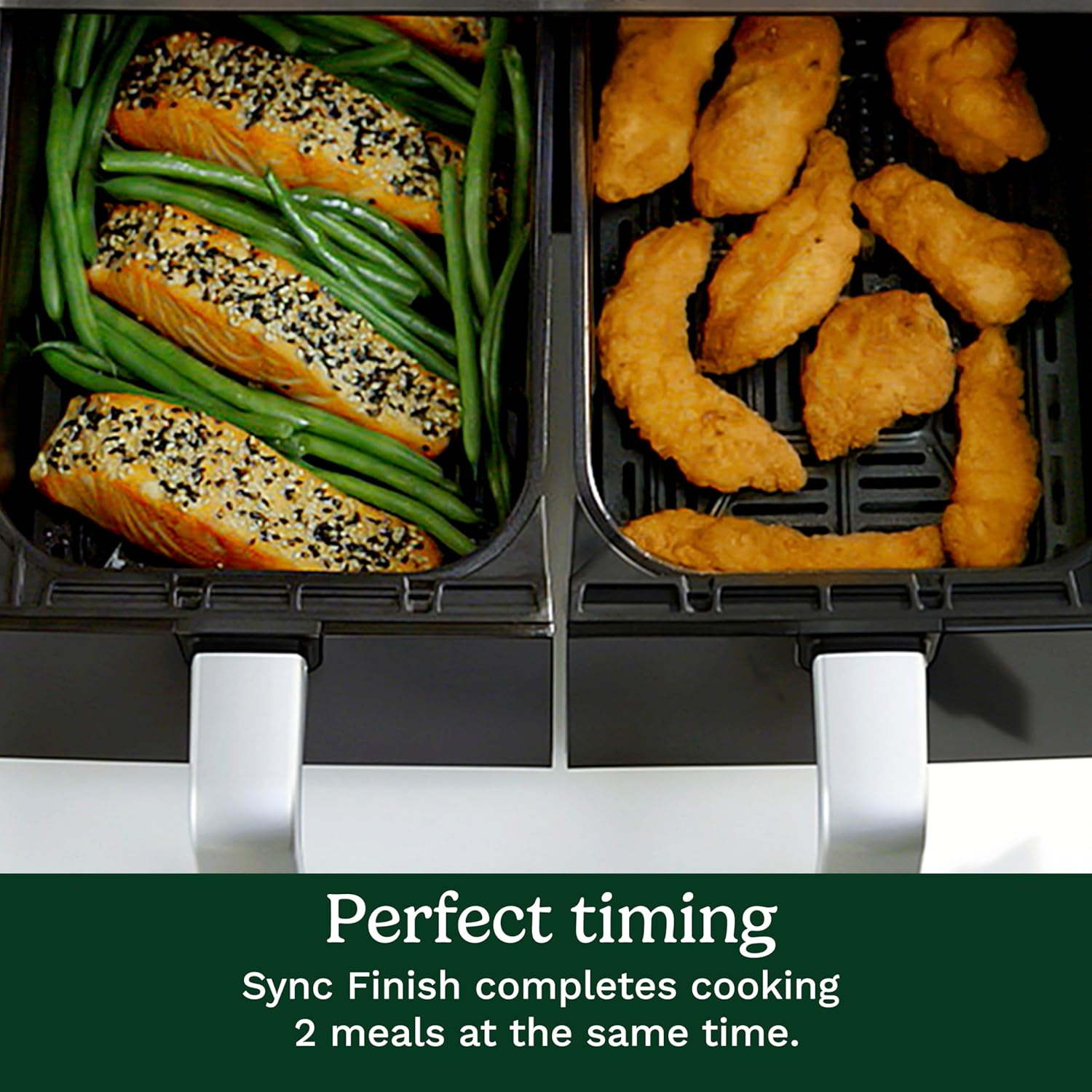

The Sync Finish feature ensures meals are ready at the same time.
Toss Reminder
The Toss Reminder feature prompts you to shake or toss the contents of the basket during the cooking cycle. This helps ensure even cooking and crispiness. When the reminder appears, carefully remove the basket, shake or toss the food, and reinsert the basket to resume cooking.
The Toss Reminder helps achieve even cooking and crispiness.
Auto-Pause
The Auto-Pause feature automatically stops the cooking cycle when a basket is removed. The heat stops while the basket is open, and cooking resumes once the basket is reinserted.
Auto-Warm Mode
After a cooking cycle is complete, the air fryer can automatically switch to Auto-Warm Mode to keep your food hot until you are ready to serve.
How-To Video
Watch this video for a demonstration on how to use the Cuisinart Dual Basket Air Fryer ADZ-085.
Cooking Guide
The dual baskets allow for flexible cooking. Each 4.25-quart basket can accommodate:
- Approximately 1 lb of fries.
- Approximately 1.5 lb of wings.
- Up to a 4 lb whole chicken.
- Up to 4 salmon fillets.
- A standard 8"x5" loaf pan.

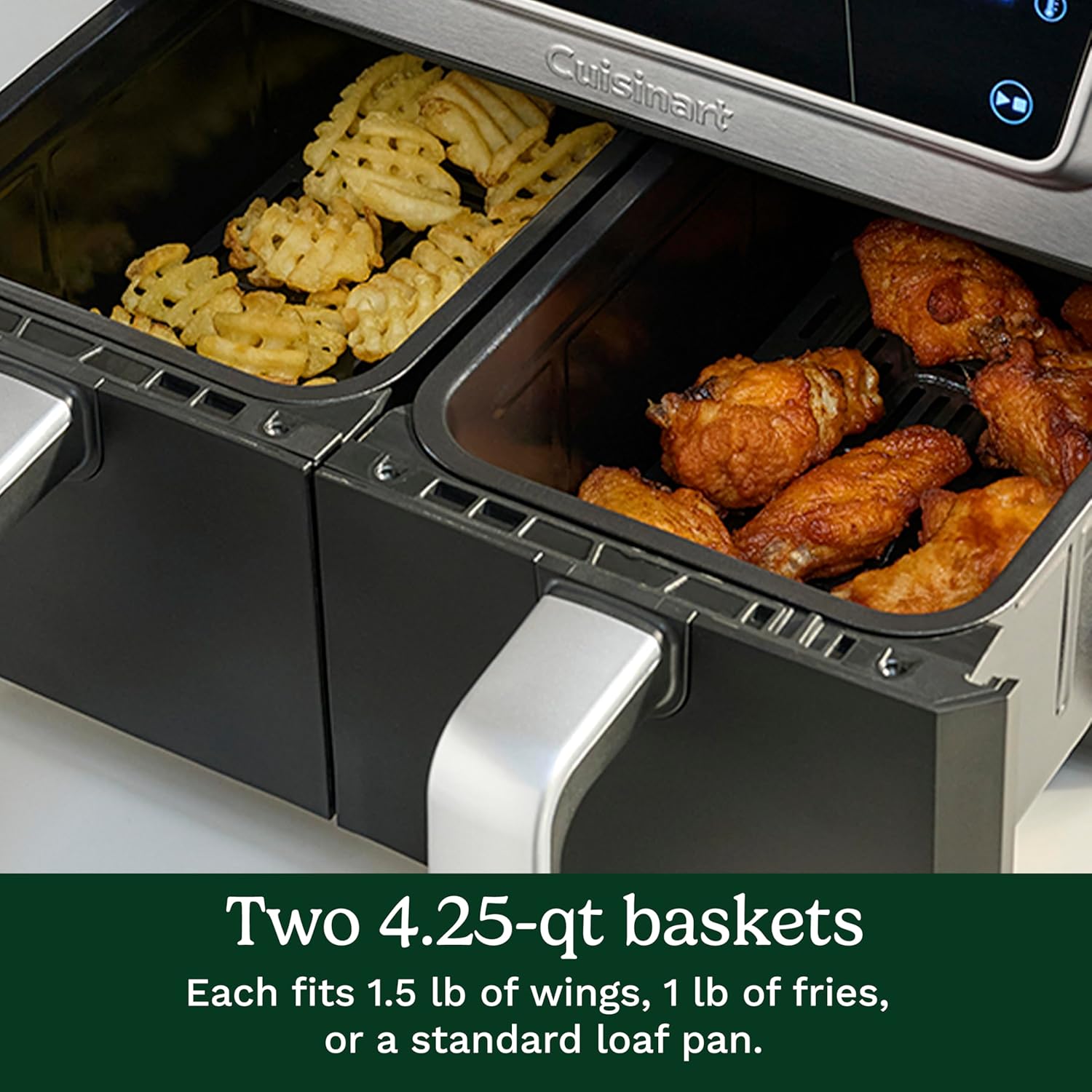

Example of cooking different foods simultaneously in the dual baskets.
The dual zone cooking capability allows for preparing two different meals at once.
Product Overview Video
This video provides an overview of the Cuisinart Dual Zone Basket Air Fryer's features and capabilities.
Cleaning & Maintenance
Regular cleaning ensures optimal performance and extends the life of your air fryer.
- Unplug and Cool: Always unplug the appliance and allow it to cool completely before cleaning.
- Dishwasher Safe Parts: The ceramic nonstick crisper plates and air fry baskets are dishwasher safe for easy cleaning.
- Hand Washing: For hand washing, use warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely before storage.
- Clean Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not use abrasive cleaners or scouring pads, as they may damage the finish. Never immerse the main unit in water or any other liquid.
- Interior Cleaning: For the interior, wipe with a damp cloth. If necessary, a small amount of mild dish soap can be used. Ensure all soap residue is removed.
- Storage: Store the clean and dry air fryer in a cool, dry place.
Troubleshooting
If you encounter any issues with your Cuisinart Dual Basket Air Fryer, refer to the following table for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet not working; unit not properly assembled. | Ensure the power cord is securely plugged into a working outlet. Check if the baskets are fully inserted. |
| Food is not cooked evenly. | Basket overloaded; food not tossed/shaken; incorrect temperature/time. | Do not overload baskets. Use the Toss Reminder feature. Adjust cooking time and temperature as needed. |
| Food is not crispy. | Too much moisture; not enough oil (for some foods); basket overloaded. | Pat food dry before air frying. Lightly coat some foods with oil. Do not overload baskets. |
| White smoke coming from the appliance. | Grease residue from previous use; fatty foods cooking. | Clean baskets and crisper plates thoroughly after each use. This is normal for fatty foods. |
| Unit smells like burning plastic. | New unit odor; plastic packaging not fully removed. | Initial use may produce a slight odor, which is normal. Ensure all packaging is removed. If odor persists, contact customer support. |
Specifications
Key technical specifications for the Cuisinart Dual Basket Air Fryer ADZ-085:
| Feature | Value |
|---|---|
| Model Number | ADZ-085 |
| Capacity | 8.5 Quarts (2 x 4.25-quart baskets) |
| Output Wattage | 1800 Watts |
| Max Temperature Setting | 450 Degrees Fahrenheit |
| Timer | Up to 60 minutes |
| Control Method | Touch |
| Special Features | Digital, Dual Zone, Timer, Touchscreen, Sync Finish, Sync Settings, Toss Reminder, Auto Warm Mode, Auto-Pause |
| Product Dimensions | 15"D x 16.3"W x 12"H |
| Item Weight | 16.3 Pounds |
| Material | Plastic |
| Nonstick Coating | Yes |
| Dishwasher Safe Parts | Baskets and Crisper Plates |
| UPC | 086279255341 |
Warranty & Support
The Cuisinart Dual Basket Air Fryer ADZ-085 comes with a limited 3-year warranty. For warranty claims, technical support, or service inquiries, please refer to the contact information provided in your product registration materials or visit the official Cuisinart website.
Please retain your purchase receipt as proof of purchase for warranty purposes.
