1. Introduction

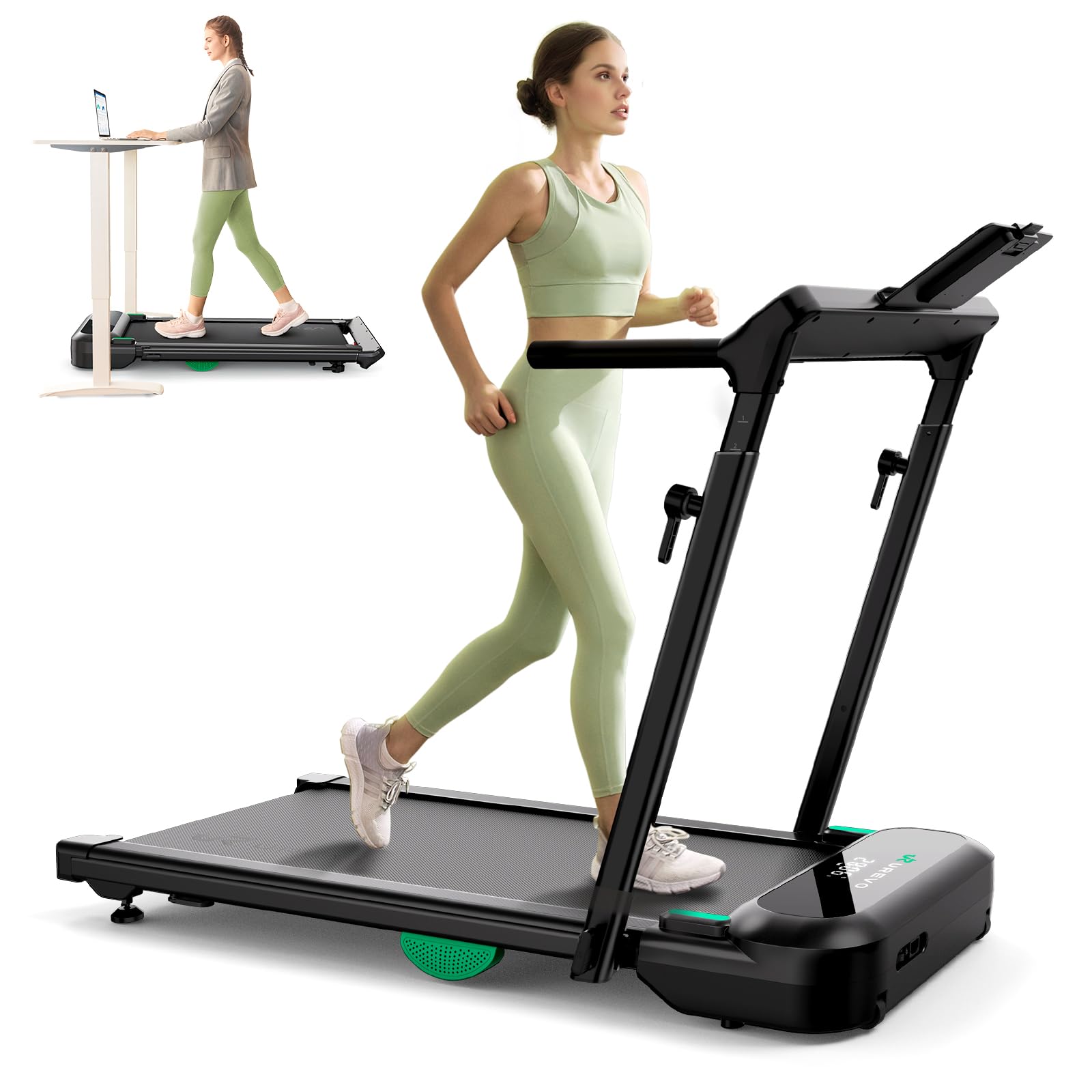

Thank you for choosing the UREVO Foldimix 5 Treadmill. This 2-in-1 foldable treadmill is designed to provide a versatile fitness solution for your home, functioning as both a walking pad and a full treadmill with an adjustable handle bar and multi-functional workstation. With its dual brushless motor, 14-point shock absorption, and compact design, the Foldimix 5 offers a quiet and comfortable workout experience. Please read this manual thoroughly before operation to ensure safe and effective use of your new fitness equipment.
2. Safety Information
Before using the UREVO Foldimix 5 Treadmill, please observe the following safety precautions:
- Always consult with a physician before starting any new exercise program.
- Ensure the treadmill is placed on a flat, stable surface with adequate clearance around it.
- Keep children and pets away from the treadmill during operation.
- The maximum user weight capacity for this treadmill is 400 pounds (181 kg). Do not exceed this limit.
- Wear appropriate athletic footwear. Avoid using the treadmill barefoot or in socks only, despite the comfortable shock absorption.
- Use the safety key at all times. Attach the clip to your clothing before starting your workout.
- Do not step on or off the treadmill while the belt is moving.
- If you feel faint, dizzy, or experience pain, stop exercising immediately.
- Unplug the treadmill from the power outlet when not in use or before cleaning/maintenance.
3. What's in the Box
Upon unpacking your UREVO Foldimix 5 Treadmill, please verify that all components are present:
- UREVO Foldimix 5 Treadmill Unit
- User Manual (this document)
- Power Cord
- Safety Key
- Assembly Tools (if required)
4. Setup
Follow these steps to set up your UREVO Foldimix 5 Treadmill:
- Unpacking: Carefully remove all packaging materials and place the treadmill on a clear, level surface.
- Unfolding the Treadmill: Gently lift the handle bar until it locks into the upright position. Ensure all locking mechanisms are securely engaged.
- Adjusting the Handle Bar: The handle bar can be adjusted to your preferred height for comfortable use during walking or running. Refer to the specific instructions for adjusting the handle bar height.
- Power Connection: Plug the power cord into a grounded electrical outlet.
- Safety Key: Attach the safety key to the designated slot on the console. The treadmill will not operate without the safety key in place.
5. Operating Instructions
The UREVO Foldimix 5 Treadmill offers various modes and features for a customized workout.
5.1 Basic Operation
- Power On: Press the power button on the console. The display will illuminate.
- Attach Safety Key: Ensure the safety key is properly attached to the console and your clothing.
- Start Workout: Press the 'Start' button. The belt will begin to move at a low speed.
- Adjust Speed: Use the '+' and '-' buttons to increase or decrease the belt speed. The speed range is 0.6 to 7.6 mph.
- Adjust Incline: If your model supports it, use the incline buttons to adjust the incline level.
- Stop Workout: Press the 'Stop' button or pull the safety key to immediately stop the treadmill.
5.2 Multi-Functional Workstation
The UREVO Foldimix 5 features a height-adjustable workstation, allowing you to work or engage in other activities while walking. Adjust the desk to a comfortable height for your posture and activity.
5.3 UREVO APP Integration
Enhance your workout experience by connecting to the UREVO APP. The app provides access to rich content, tracks your wellness data, and helps you manage your fitness goals. Download the UREVO APP from your device's app store and follow the in-app instructions for pairing.
5.4 AI Rhythm Tempo Run
The AI Rhythm Tempo Run feature adapts to your pace, providing an engaging and dynamic workout. This intelligent system helps maintain your rhythm and optimize your exercise intensity.
5.5 Workout Modes (4-in-1 Functionality)
The Foldimix 5 supports various exercise needs:
- Working Mode: Use the workstation for light activity while performing tasks.
- Walking Mode: Ideal for low-impact cardio and increasing daily step count.
- Climbing Mode: Utilize incline features for a more intense leg and glute workout.
- Running Mode: Engage in higher intensity cardio workouts.
6. Key Features
The UREVO Foldimix 5 Treadmill is engineered with advanced features for performance and comfort:
- Dual Brushless Motor: Equipped with a 3.0HP megapower dual brushless motor, ensuring ultra-quiet operation (below 35dB), dust-free performance, and a long lifespan of up to 6,000 hours.
- 2-in-1 Foldable Design: Easily transitions between a walking pad and a full treadmill, offering flexibility for various workout styles and space-saving storage.
- High Load Capacity: Supports users up to 400 lbs, providing a robust and stable platform for diverse body types.
- 12-Point Shock Absorption System: Features 8-point silicone shock absorption combined with a suspended running board and 4-point support design, protecting your joints during exercise.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your treadmill:
- Cleaning: Wipe down the console and other surfaces with a damp cloth after each use. Avoid abrasive cleaners.
- Belt Lubrication: Periodically lubricate the running belt according to the instructions provided with your lubricant. This typically involves applying silicone lubricant under the belt.
- Belt Tension and Alignment: Check the running belt tension and alignment regularly. Adjust as needed following the specific instructions in this manual or contact customer support.
- Storage: When not in use, fold the treadmill for compact storage. Ensure it is stored in a dry, safe place.
8. Troubleshooting
If you encounter issues with your UREVO Foldimix 5 Treadmill, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Treadmill does not power on. | Power cord not connected; Safety key not in place; Power switch off. | Ensure power cord is securely plugged in; Insert safety key; Turn on power switch. |
| Running belt stops or slips. | Belt too loose; Insufficient lubrication. | Adjust belt tension; Lubricate the running belt. |
| Unusual noise during operation. | Loose parts; Motor issue; Belt friction. | Check for loose screws and tighten; Lubricate belt; If noise persists, contact support. |
| Display not working correctly. | Loose connection; Software glitch. | Power cycle the treadmill; Check cable connections; Contact support if issue continues. |
For issues not listed here or if solutions do not resolve the problem, please contact UREVO customer support.
9. Specifications
| Feature | Specification |
|---|---|
| Brand | UREVO |
| Model Name | Foldimix 5 |
| Model Number | URTM048 |
| Color | Black |
| Product Dimensions (D x W x H) | 52.4"D x 24.6"W x 5.3"H |
| Item Weight | 66.6 Pounds |
| Material | Alloy Steel |
| Maximum Speed | 7.6 Miles per Hour |
| Maximum Horsepower | 2.5 Horsepower |
| Maximum Weight Recommendation | 400 Pounds |
| Special Features | AI Rhythm Tempo Run, Foldable, With Brushless Motor |
10. Warranty and Support
The UREVO Foldimix 5 Treadmill comes with a 1-year warranty. For warranty claims, technical assistance, or any questions regarding your product, please contact UREVO customer support through the official UREVO website or your retailer's support channels.
11. Product Video
Watch this video for a demonstration of the UREVO Foldimix 5 Treadmill in action:
