Target TT-IK-DST 1130 Tower Speaker User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation of your Target TT-IK-DST 1130 Tower Speaker. Please read this manual thoroughly before using the product and retain it for future reference. The Target TT-IK-DST 1130 is a versatile audio system featuring 130W RMS output, an 8-inch subwoofer, Bluetooth connectivity, FM radio, USB playback, and karaoke functionality with a wireless microphone.

2. Important Safety Information

Observe the following safety precautions to prevent electric shock, fire, or damage to the unit:

• Do not expose this appliance to rain or moisture.
• Do not block any ventilation openings.
• Ensure proper grounding for the power supply.
• Do not open the speaker cabinet; refer all servicing to qualified personnel.
• Avoid placing the unit near heat sources or in direct sunlight.
• Clean only with a dry cloth.

3. Package Contents

Verify that all items listed below are included in your package:

• Target TT-IK-DST 1130 Tower Speaker
• Wireless Microphone
• Remote Control
• Power Cord
• User Manual (this document)

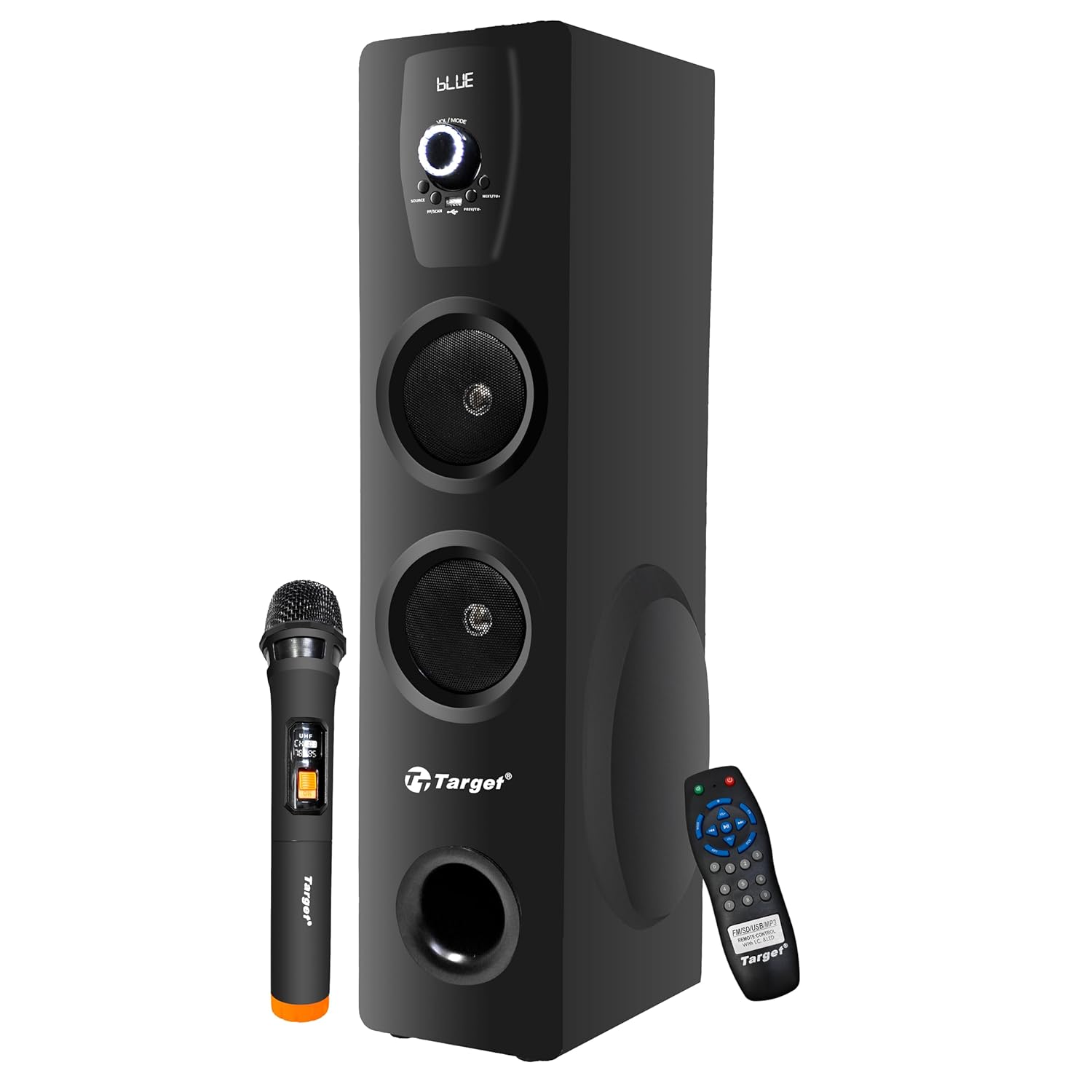

Figure 3.1: Target TT-IK-DST 1130 Tower Speaker with included wireless microphone and remote control.

4. Product Overview

The Target TT-IK-DST 1130 Tower Speaker is designed for a comprehensive audio experience. It features multiple input options and a user-friendly interface.

4.1 Key Features

• Powerful Audio Output: 130 Watts RMS with dual drivers and an 8-inch subwoofer for deep bass.
• Multiple Connectivity: Bluetooth for wireless streaming, USB port for media playback, and FM radio.
• Karaoke Functionality: Includes a wireless microphone for vocal performances.
• Intuitive Interface: LED display for status indication and a full-function remote control.
• Computer Compatibility: Plug-and-play setup for direct connection to PCs.

Figure 4.1: Visual representation of the speaker's main features.

4.2 Control Panel

The main controls are located on the front panel of the speaker. These include the master volume knob, input selection buttons, and playback controls.

Figure 4.2: Detailed view of the speaker's control panel.

4.3 Remote Control

The included remote control allows for convenient operation of all speaker functions from a distance.

Figure 4.3: Remote control and key feature icons.

5. Setup Instructions

5.1 Placement

Place the tower speaker on a stable, flat surface. Ensure there is adequate space around the speaker for proper ventilation and optimal sound dispersion. Avoid placing it in enclosed spaces or directly against walls if possible.

5.2 Power Connection

1. Connect the power cord to the power input port on the rear of the speaker.
2. Plug the other end of the power cord into a standard AC power outlet.
3. Press the power button on the speaker or remote control to turn on the unit. The LED display will illuminate.

5.3 Connecting Audio Sources

The speaker supports various audio input methods:

• Bluetooth: For wireless connection to smartphones, tablets, or other Bluetooth-enabled devices.
• USB: For playing audio files directly from a USB flash drive.
• AUX/Line-In: For wired connection to devices using a 3.5mm audio cable.
• FM Radio: Built-in tuner for receiving FM broadcasts.
• HDMI: For digital audio connection from compatible devices.

6. Operating Instructions

6.1 Power On/Off

Press the POWER button on the control panel or remote control to turn the speaker on or off.

6.2 Mode Selection

Press the MODE button on the control panel or remote control to cycle through available input modes: Bluetooth, USB, FM Radio, AUX, HDMI.

6.3 Bluetooth Operation

1. Turn on the speaker and select Bluetooth mode. The LED display will show "BLUE" or a similar indicator.
2. Enable Bluetooth on your mobile device and search for available devices.
3. Select "TT-IK-DST 1130" (or similar name) from the list to pair.
4. Once paired, you can play audio from your device through the speaker.

6.4 USB Playback

1. Insert a USB flash drive containing audio files into the USB port on the speaker.
2. Select USB mode. The speaker will automatically detect and begin playing audio files.
3. Use the playback controls (Play/Pause, Next, Previous) on the speaker or remote control.

6.5 FM Radio

1. Select FM mode.
2. Press the SCAN button (if available) on the remote or speaker to automatically search and save available radio stations.
3. Use the PREV/NEXT buttons to navigate through saved stations.

6.6 Karaoke Function

1. Ensure the wireless microphone is powered on and within range of the speaker.
2. Play your desired background music through any input mode (Bluetooth, USB, AUX, HDMI).
3. Adjust the microphone volume using the dedicated control (if available) or the main volume.

Figure 6.1: Using the wireless microphone for karaoke.

7. Maintenance and Care

• Cleaning: Use a soft, dry cloth to clean the exterior of the speaker. Do not use liquid cleaners or abrasive chemicals.
• Storage: When not in use for extended periods, store the speaker in a cool, dry place, away from direct sunlight and extreme temperatures.
• Ventilation: Ensure that the ventilation openings are not blocked to prevent overheating.

8. Troubleshooting

If you encounter issues with your speaker, refer to the following common problems and solutions:

9. Technical Specifications

Note: Specifications are subject to change without prior notice.

10. Warranty and Customer Support

For warranty information, service, or technical support, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase for warranty claims.

Manufacturer: Target
