TeckNet EKB035 Foldable Bluetooth Keyboard User Manual

1. Introduction

Thank you for choosing the TeckNet EKB035 Foldable Bluetooth Keyboard. This portable wireless keyboard is designed for convenience and versatility, featuring a tri-fold design, integrated multi-touch touchpad, and a numeric keypad. It supports seamless connection across multiple devices and operating systems, making it an ideal companion for various computing needs.

2. Package Contents

• TeckNet EKB035 Foldable Bluetooth Keyboard
• USB-C Charging Cable
• Protective Pouch
• Phone Stand
• User Manual

3. Product Features

• Foldable & Space-Saving Design: This keyboard features a tri-fold design with a 64-key QWERTY layout. It folds into a compact size, saving desk space and making it easy to carry. The sturdy construction and magnetic closure ensure it stays securely closed when not in use, ideal for travel and remote work.
• Touchpad & Numeric Keypad: No need for an extra mouse. This wireless keyboard includes a built-in multi-touch touchpad that supports gestures like tap, scroll, and swipe. Easily switch between touchpad and numeric keypad modes by pressing Fn + Space for versatile input. Note: Gesture support may be limited on systems older than Windows 10.
• Multi-Device Connection: Equipped with 3 Bluetooth 5.2 channels, this keyboard allows seamless pairing and switching between up to three devices. Enjoy smooth and stable connections within a 33-foot range. Compatible with iPads, iPhones, phones, tablets, laptops, and Bluetooth-enabled computers. Works with Android, iOS, iPadOS, macOS, and Windows systems.
• Type-C Rechargeable: Features a built-in 150mAh lithium battery, providing up to 120 days of standby time or 40 hours of active use with a two-hour charge. The keyboard includes an automatic sleep function and easy on/off control to conserve power. Charge effortlessly via the included USB-C cable.
• Lightweight, Portable & Travel-Ready: Designed for mobility, this portable wireless keyboard folds down to just 7.2 × 4.2 × 0.63 inches. It includes a protective pouch and an additional phone stand, making it easy to carry in your backpack, briefcase, or handbag for use during trips, in cafes, or for remote meetings.

4. Setup

4.1 Charging the Keyboard

Before initial use, fully charge the keyboard. Connect the provided USB-C cable to the keyboard's charging port and to a USB power source (e.g., computer, wall adapter). The charging indicator light will show the charging status and turn off when fully charged. A full charge takes approximately 2 hours.

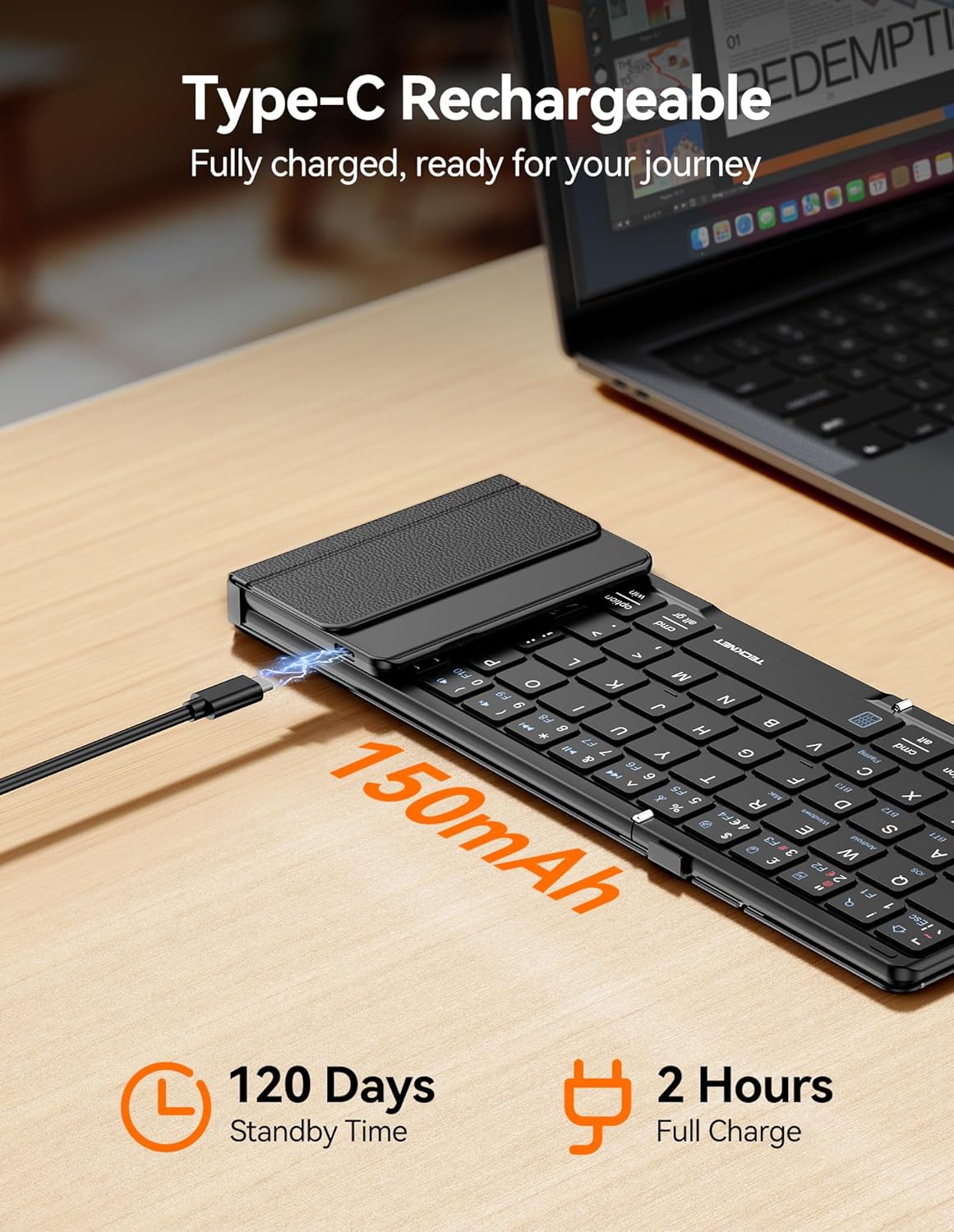

Image: TeckNet EKB035 keyboard being charged via USB-C cable.

4.2 Powering On/Off

To power on the keyboard, unfold it. The keyboard will automatically power on. To power off, fold the keyboard. It will automatically enter sleep mode or power off to conserve battery.

4.3 Bluetooth Pairing

1. Unfold the keyboard to power it on.
2. Press the Fn + BT1, Fn + BT2, or Fn + BT3 keys simultaneously to select a Bluetooth channel. The corresponding indicator light will flash.
3. Press Fn + C to enter pairing mode. The selected Bluetooth indicator will flash rapidly.
4. On your device (smartphone, tablet, computer), enable Bluetooth and search for available devices.
5. Select "TeckNet EKB035" from the list of found devices.
6. Follow any on-screen prompts to complete the pairing process. The indicator light will stop flashing once successfully paired.

Image: TeckNet EKB035 keyboard connected to multiple devices.

4.4 Switching Between Paired Devices

To switch between devices, simply press Fn + BT1, Fn + BT2, or Fn + BT3 corresponding to the channel your device is paired with.

4.5 Operating System Layout Switching

For optimal key functionality, switch the keyboard layout to match your device's operating system:

• Fn + Q for Android devices
• Fn + W for Windows devices
• Fn + E for iOS/macOS devices

5. Operating Instructions

5.1 Basic Keyboard Use

The keyboard functions like a standard QWERTY keyboard. Type as you normally would. Special function keys (F1-F12) can be accessed by pressing the Fn key in combination with the desired function key.

5.2 Touchpad and Numeric Keypad Modes

The right section of the keyboard serves as both a multi-touch touchpad and a numeric keypad.

Image: TeckNet EKB035 keyboard showing touchpad and numeric keypad.

• Switching Modes: Press Fn + Space to toggle between touchpad mode and numeric keypad mode.
• Touchpad Gestures: In touchpad mode, use standard multi-touch gestures for navigation, scrolling, and clicking. (Specific gesture support may vary by OS).
• Numeric Keypad: In numeric keypad mode, the keys function as a standard 10-key numeric pad for efficient data entry.

6. Maintenance

• Keep the keyboard away from liquids and extreme temperatures.
• Clean the keyboard with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
• When not in use, fold the keyboard to protect the keys and touchpad.
• Store in a cool, dry place.

7. Troubleshooting

7.1 Keyboard Not Connecting/Pairing

• Ensure the keyboard is powered on and fully charged.
• Make sure Bluetooth is enabled on your device.
• Ensure the keyboard is in pairing mode (Fn + C, indicator flashing rapidly).
• Try unpairing and re-pairing the keyboard from your device's Bluetooth settings.
• Ensure the keyboard is within the 33-foot Bluetooth range of your device.
• Restart both the keyboard (fold and unfold) and your device.

7.2 Keyboard Not Typing

• Check if the keyboard is successfully connected to your device (Bluetooth indicator solid).
• Ensure the correct operating system layout is selected (Fn + Q/W/E).
• Verify the battery level and charge if necessary.

7.3 Touchpad/Numeric Keypad Not Responding

• Ensure you are in the correct mode by pressing Fn + Space.
• Clean the touchpad surface to remove any dirt or debris.
• Remember that gesture support may be limited on older Windows 10 systems.

8. Specifications

9. Warranty and Support

TECKNET products are designed to provide reliable performance. For warranty information, technical support, or customer service inquiries, please refer to the warranty card included with your product or visit the official TECKNET website. Please retain your proof of purchase for warranty claims.
