TuTu TF25Q1
TuTu 25-inch F-Series FHD Smart TV (Model TF25Q1) User Manual
Brand: TuTu | Model: TF25Q1
Introduction
This user manual provides essential information for the setup, operation, and maintenance of your new TuTu 25-inch F-Series FHD Smart TV. Please read this manual thoroughly before using your television to ensure proper functionality and to maximize your viewing experience. Keep this manual for future reference.
Important Safety Information
Always follow basic safety precautions when using this television to reduce the risk of fire, electric shock, and injury.
- Do not expose the TV to rain or moisture.
- Do not block ventilation openings.
- Ensure proper grounding for the power cord.
- Unplug the TV during lightning storms or when unused for long periods.
- Refer all servicing to qualified service personnel.
What's in the Box
Verify that all components are present upon unpacking:
- TuTu 25-inch F-Series FHD Smart TV (x1)
- TV Stand (x2)
- User Manual (x1)
- Accessories Bag (x1)
- Remote Control (x1)
- AAA Batteries (x2)
Setup
1. Physical Setup
Carefully place the TV screen-down on a soft, flat surface. Attach the two stand pieces to the bottom of the TV using the provided screws. Alternatively, the TV can be wall-mounted using a compatible VESA mount (not included).
Image: Rear view of the TuTu 25-inch Smart TV, highlighting the VESA mounting holes for wall installation and the ventilation grilles.
2. Connecting Peripherals
Connect your external devices such as cable boxes, gaming consoles, or Blu-ray players to the TV's input ports. The TV offers various connectivity options:
Image: Detailed view of the TV's connectivity panel, showing ports for HDMI, USB, Optical Audio, Composite Video (L-IN-R), RF antenna, and Ethernet (RJ45).
| Port Type | Description |
|---|---|
| HDMI (eARC) | Connect high-definition devices (e.g., gaming consoles, Blu-ray players). eARC supports enhanced audio return channel. |
| USB (USB1, USB2) | Connect USB storage devices for media playback. |
| Optical | Digital audio output for soundbars or home theater systems. |
| Video (L-IN-R) | Composite video input for older devices. |
| RF | Connect an antenna or cable TV. |
| RJ45 (Ethernet) | Wired network connection for internet access. |
3. Initial Power On & Samsung Account Activation
After connecting all necessary cables, plug in the TV's power cord. Press the power button on the remote control. During the initial setup, you will be prompted to activate the TV with a Samsung account. A Samsung account is required for TV activation. If you do not have one, please register on the Samsung official website before proceeding. You may be prompted to bind a credit card; this step can be skipped if you only plan to use free services like Samsung TV Plus. Credit card binding is only necessary for paid features or content and can be added later in your account settings.
4. Network Connection
To access smart features and streaming services, connect your TV to the internet. You can choose between Wi-Fi or a wired Ethernet connection via the RJ45 port. Navigate to the TV's settings menu, select 'Network', and follow the on-screen instructions to connect to your home network.
Operating the TV
1. Remote Control Overview
The included remote control provides easy navigation and access to all TV functions. It features dedicated buttons for popular streaming services and essential controls.
Image: The TuTu Smart TV remote control, showing buttons for power, input, volume, channel, and direct access to streaming apps like Netflix and Disney+.
2. Tizen OS Navigation
Your TuTu Smart TV runs on Tizen OS, offering an intuitive and sleek interface. Use the remote's directional pad and 'OK' button to navigate through menus, apps, and settings. The home screen provides quick access to your favorite content and features.
Image: The Tizen OS interface on the TuTu Smart TV, showcasing the user-friendly layout with app shortcuts and content recommendations.
Image: An illustration emphasizing the TuTu TV's integration with Samsung's Tizen OS, including features like Samsung TV Plus, Gaming Hub, SmartThings, and Bixby voice assistant.
3. Streaming Services
Access a wide range of streaming content directly from your TV. Popular apps like YouTube, Netflix, and Disney+ are pre-installed or easily downloadable. Samsung TV Plus offers free live TV channels without subscription fees or credit card requirements.
4. Audio Settings (Dolby Audio)
Experience enhanced audio quality with Dolby Audio. Adjust sound modes and settings in the TV's audio menu to optimize for movies, music, or dialogue. For an immersive experience, consider connecting external audio systems via the optical port or Bluetooth.
Image: A graphic illustrating the immersive 3D surround sound capabilities of Dolby Audio on the TuTu TV, showing sound movement on screen.
5. Picture Settings (FHD, HDR, Color Enhancement)
Your TV features Full High Definition (1080p) resolution for clear visuals. High Dynamic Range (HDR) provides brighter highlights, deeper blacks, and a wider color range. Adjust picture modes (e.g., Standard, Movie, Dynamic) and fine-tune brightness, contrast, and color settings to suit your preferences.
Image: A visual demonstration of HDR technology on the TuTu TV, comparing a scene with and without HDR to show improved contrast and detail.
Image: A graphic explaining the color enhancement feature of the TuTu TV, showing how a wider color gamut results in more vibrant and accurate colors compared to conventional displays.
6. Gaming Hub
The integrated Gaming Hub provides a centralized location for your gaming needs, offering quick access to cloud gaming services and connected consoles. Optimize your gaming experience through dedicated game modes in the settings.
7. SmartThings Integration
Connect your TuTu Smart TV with other SmartThings-compatible devices for a seamless smart home experience. Control your TV and other smart appliances from a single interface.
8. Bluetooth Connectivity
Pair Bluetooth-enabled devices such as headphones, soundbars, or game controllers directly to your TV for a personalized and wire-free experience. Access Bluetooth settings in the connectivity menu.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your TV.
- Cleaning the Screen: Gently wipe the screen with a soft, lint-free cloth. For stubborn marks, slightly dampen the cloth with water or a specialized screen cleaner. Avoid harsh chemicals.
- Cleaning the Body: Use a soft, dry cloth to wipe the TV's frame and stand.
- Software Updates: Ensure your TV's software is up-to-date for the best performance and security. The TV may prompt you for updates, or you can check manually in the settings menu.
- Ventilation: Ensure the TV's ventilation openings are not blocked to prevent overheating.
Troubleshooting
If you encounter issues with your TV, refer to the following common solutions:
| Problem | Solution |
|---|---|
| No Power | Check if the power cord is securely plugged into both the TV and the wall outlet. Try a different outlet. |
| No Picture, but Sound is Present | Ensure the correct input source is selected. Check cable connections (HDMI, etc.) for looseness or damage. |
| No Sound, but Picture is Present | Check the volume level and mute status. Verify external audio device connections if applicable. |
| Wi-Fi Connection Issues | Restart your router and modem. Re-enter the Wi-Fi password in the TV's network settings. Ensure the TV is within range of your Wi-Fi signal. |
| Remote Control Not Working | Replace the batteries. Ensure there are no obstructions between the remote and the TV's IR sensor. |
Specifications
Key technical specifications for your TuTu 25-inch F-Series FHD Smart TV:
| Feature | Detail |
|---|---|
| Model Number | TF25Q1 |
| Screen Size | 25 Inches |
| Display Technology | LED & LCD |
| Resolution | FHD (1080p) |
| Refresh Rate | 60 Hz |
| Operating System | Tizen OS Powered by Samsung |
| Audio Technology | Dolby Audio |
| Connectivity | Wi-Fi, Bluetooth, Ethernet, HDMI, RCA, RF, Optical, USB |

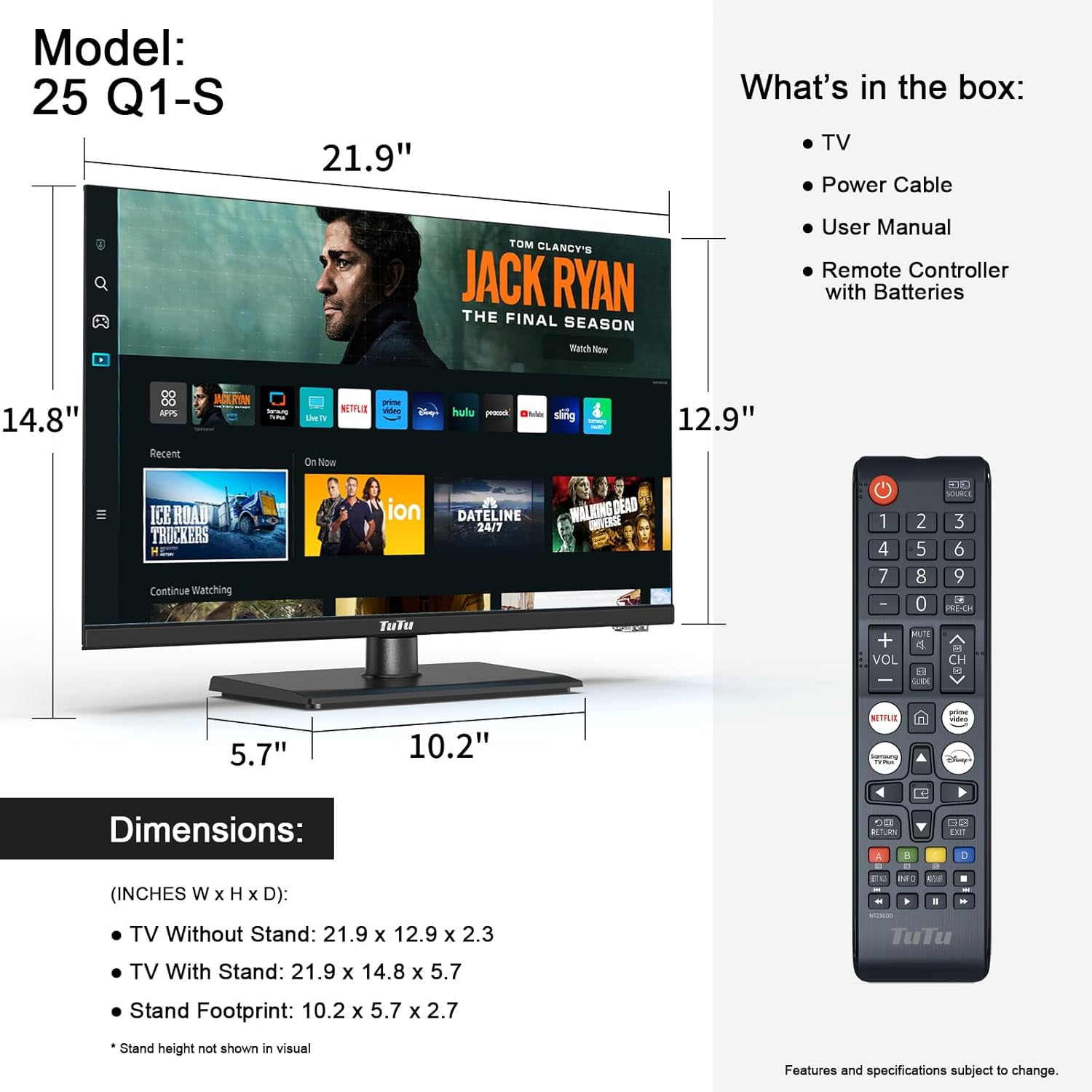

| Product Dimensions (with stand) | 24"W x 15"H x 5.7"D |
| Item Weight | 7 Pounds |
| Special Features | Browser, Built-In Speaker, Flat, Game Mode |
Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official TuTu website. Keep your proof of purchase for any warranty claims.
