G GX9 In-Ground Basketball Hoop 48IN Instruction Manual

Introduction

This manual provides detailed instructions for the safe assembly, installation, operation, and maintenance of your G GX9 In-Ground Basketball Hoop. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Proper installation and maintenance will ensure the longevity and safe use of your basketball system.

Safety Information

Adhering to these safety guidelines is crucial for preventing injury and damage to the product.

• Read and understand all instructions before assembly and use.
• Ensure all parts are present and undamaged before assembly. Do not use damaged components.
• Two or more adults are recommended for assembly and installation due to the size and weight of the components.
• Always wear appropriate safety gear, such as gloves and eye protection, during installation.
• Do not hang on the rim or backboard. This can cause serious injury and damage the system.
• Ensure the concrete foundation is fully cured (typically 72 hours or more, depending on concrete type and weather) before attaching the pole system and using the hoop.
• Regularly inspect the system for loose hardware, cracks, or other damage. Tighten all bolts and nuts as needed.
• Keep children away from the assembly area during installation.

Components List

Please verify that all the following components are present in your package before beginning assembly.

• Shatterproof Backboard (48-inch)
• Shock-absorbing Rim (18-inch standard)
• Basketball Net
• Multi-section Pole System (Powder-coated steel)
• Anchor Kit (for concrete foundation)
• Crank Mechanism for height adjustment
• Mounting Hardware (Bolts, nuts, washers, etc.)
• Pole Pad (if included)

Setup and Installation

Proper installation is critical for the stability, safety, and performance of your in-ground basketball system. This system requires a concrete foundation.

Step 1: Site Selection

Choose a level, clear area for installation, free from overhead obstructions (e.g., power lines, tree branches) and underground utilities (e.g., water pipes, electrical cables). Ensure there is adequate space around the playing area for safe movement.

Step 2: Digging the Anchor Hole

Dig a hole for the anchor pole according to the recommended dimensions. The stability of your system depends heavily on this foundation.

Image description: A diagram illustrating the recommended dimensions for the anchor hole. The hole should be 18 inches in diameter and 21.5 inches deep. The anchor plate, which is 6.5 inches high, sits at the bottom, leaving 15 inches for the main pole section. A cross-section view shows the anchor bolts embedded in concrete, 4 inches from the edge of the 18-inch diameter.

Step 3: Installing the Anchor System

Place the anchor system into the dug hole. Ensure it is perfectly level and correctly oriented before pouring concrete. Use high-quality concrete (approximately 9-14 bags of 80-lb concrete, depending on the exact hole size and desired stability). Allow the concrete to cure completely, which typically takes 72 hours or more, before proceeding to the next steps. Do not rush this process.

Step 4: Assembling the Pole System

Connect the pole sections according to the included hardware and instructions. Ensure all bolts are securely tightened, but do not overtighten to avoid stripping threads.

Step 5: Attaching the Backboard and Rim

Carefully attach the backboard to the upper pole section using the provided hardware. Then, attach the rim to the backboard, ensuring the shock-absorbing springs are correctly installed.

Image description: A close-up view of the basketball rim's mounting mechanism, highlighting the double shock absorption springs designed to absorb impact during play. The image also shows the 18-inch standard rim.

Step 6: Mounting the System to the Anchor

Once the concrete is fully cured, carefully lift and mount the assembled pole, backboard, and rim onto the anchor system. Secure it firmly with the provided hardware. Double-check all connections for tightness.

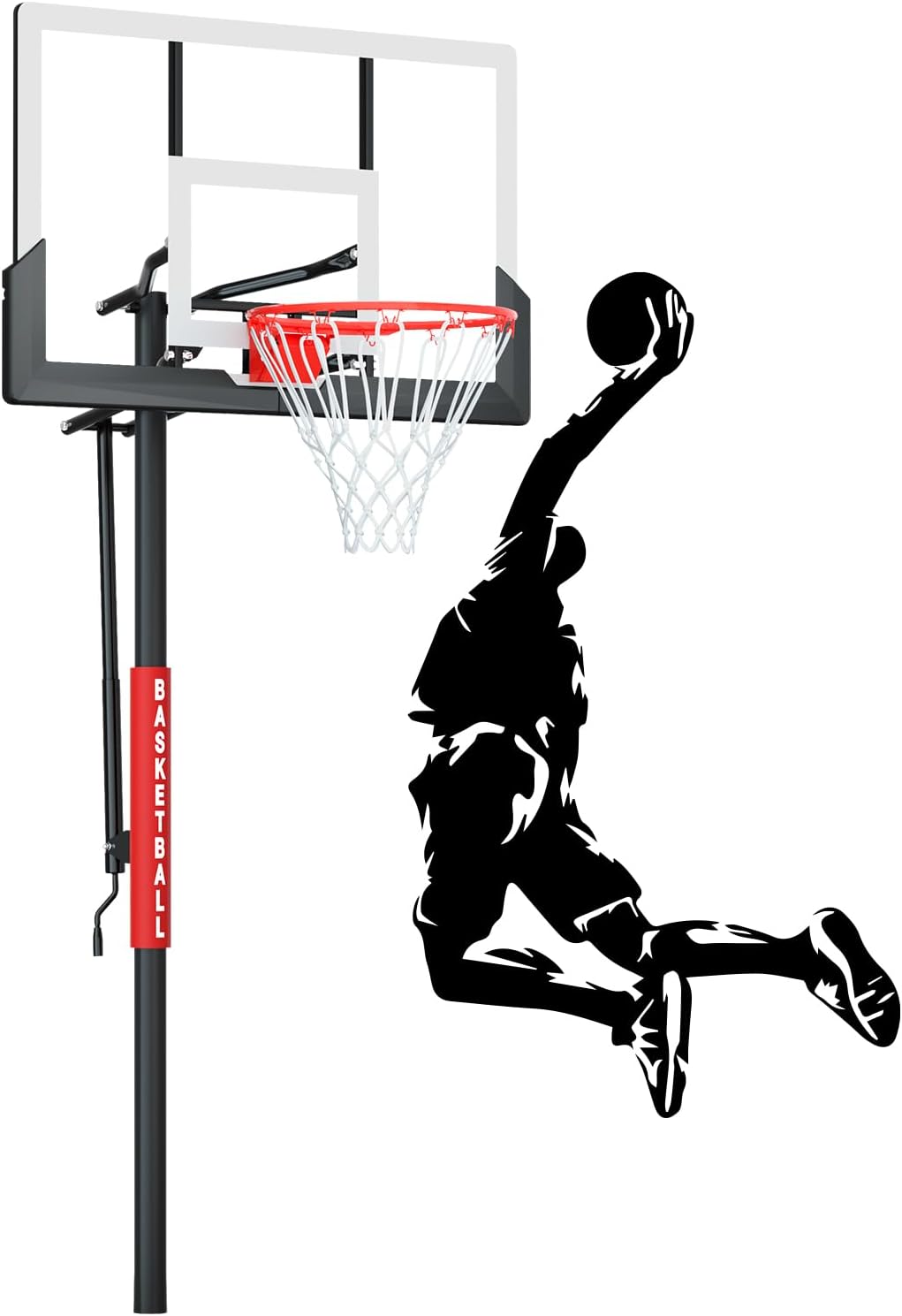

Image description: A fully assembled G GX9 in-ground basketball hoop featuring a black pole, a clear shatterproof backboard with a white frame, and a red rim with a white net. A silhouette of a basketball player is shown mid-dunk, demonstrating the hoop in use.

Operating Instructions

Height Adjustment

The G GX9 basketball hoop features a convenient crank mechanism for effortless height adjustment, accommodating players of all ages and skill levels from 7.5 feet to 10 feet.

Image description: A person's hand is shown turning a black crank handle located on the basketball hoop's main pole. An inset diagram illustrates the rotational movement of the crank, indicating its function in adjusting the hoop's height.

1. Locate the hand crank on the main pole of the basketball system.
2. To raise the backboard and rim, turn the crank clockwise.
3. To lower the backboard and rim, turn the crank counter-clockwise.
4. Ensure the desired height is securely set and the crank is not left in a position where it could be accidentally turned during play.

Image description: A graphic illustrating the adjustable height range of the basketball hoop, from 7.5 feet to 10 feet. Two silhouettes of the hoop show the lowest and highest positions, with an arrow indicating a 2.5-foot adjustment range. A silhouette of a 180cm (approximately 5'11") person stands next to the hoop for scale.

Maintenance

Regular maintenance will extend the life of your basketball system and ensure safe play.

• Regular Inspection: Periodically (e.g., monthly or before each season of heavy use) check all bolts, nuts, and connections for tightness. Tighten any loose hardware using appropriate tools.
• Cleaning: Clean the backboard with a mild soap and water solution and a soft cloth. Avoid abrasive cleaners or harsh chemicals that could damage the backboard material. Rinse thoroughly with clean water.
• Rust Prevention: The pole system is constructed from powder-coated steel for enhanced weather resistance. If any scratches or chips occur in the coating, touch up the affected areas with rust-inhibiting paint to prevent corrosion.
• Net Replacement: Inspect the net for wear, tears, or damage. Replace the net if it becomes worn or damaged to ensure consistent play and appearance.
• Crank Mechanism: Apply a silicone-based lubricant to the moving parts of the height adjustment crank mechanism annually or if it becomes stiff to operate.

Troubleshooting

Here are solutions to common issues you might encounter.

Issue: Hoop is unstable after installation.

Solution: Ensure the concrete foundation has fully cured for the recommended time. Verify that all anchor bolts and pole connections are securely tightened. Re-check the foundation dimensions against the manual's recommendations to ensure adequate support.

Issue: Height adjustment crank is stiff or difficult to turn.

Solution: Apply a silicone-based lubricant to the moving parts of the crank mechanism. Check for any physical obstructions or debris that might be impeding its movement. Ensure the system is not under excessive load during adjustment.

Issue: Backboard appears scratched or damaged.

Solution: For minor scratches, a plastic polish designed for acrylic or polycarbonate surfaces may help. For significant damage, contact G GX9 customer support for replacement options. Avoid using abrasive materials for cleaning.

Specifications

Warranty and Support

The G GX9 In-Ground Basketball Hoop comes with a 2-year warranty from the date of purchase, covering manufacturing defects. This warranty does not cover damage resulting from improper installation, misuse, abuse, or normal wear and tear.

For warranty claims, technical support, replacement parts, or any other inquiries, please contact G GX9 customer service. Refer to your purchase documentation or the official G GX9 website for the most current contact information.

Customer Service: Please visit the G GX9 store on Amazon or their official website for contact details.
