1. Introduction
The Babysense MaxView PRO Baby Monitor provides a secure and reliable way to monitor your baby. Featuring a 5.5-inch Full HD display and non-WiFi FHSS technology, it ensures a private and interference-free connection. This system includes a 6-color night light, white noise, and sound machine functions to create a calming environment. The monitor is expandable, supporting up to four cameras for comprehensive coverage.
Image 1.1: Babysense MaxView PRO Baby Monitor, showing the parent unit and camera.
2. What's in the Box
- Parent Unit (5.5” Full HD Monitor)
- 1 Full HD PTZ Camera
- 3 Power Adapters
- Mounting Screw
- User Manual
3. Setup
- Charge the Parent Unit: Before first use, fully charge the parent unit using one of the provided power adapters.
- Position the Camera: Place the camera in your baby's room on a flat surface or mount it to a wall using the included mounting screw. Ensure a clear view of the crib.
- Connect Power: Plug the camera into a power outlet using a power adapter. The camera is corded electric.
- Power On: Turn on the parent unit and camera. The units should automatically pair. If not, refer to the pairing instructions in the Operating Instructions section.
4. Operating Instructions
4.1 Parent Unit Overview
The 5.5-inch Full HD display provides a clear view of your baby. Use the navigation buttons to access menus and control camera functions.

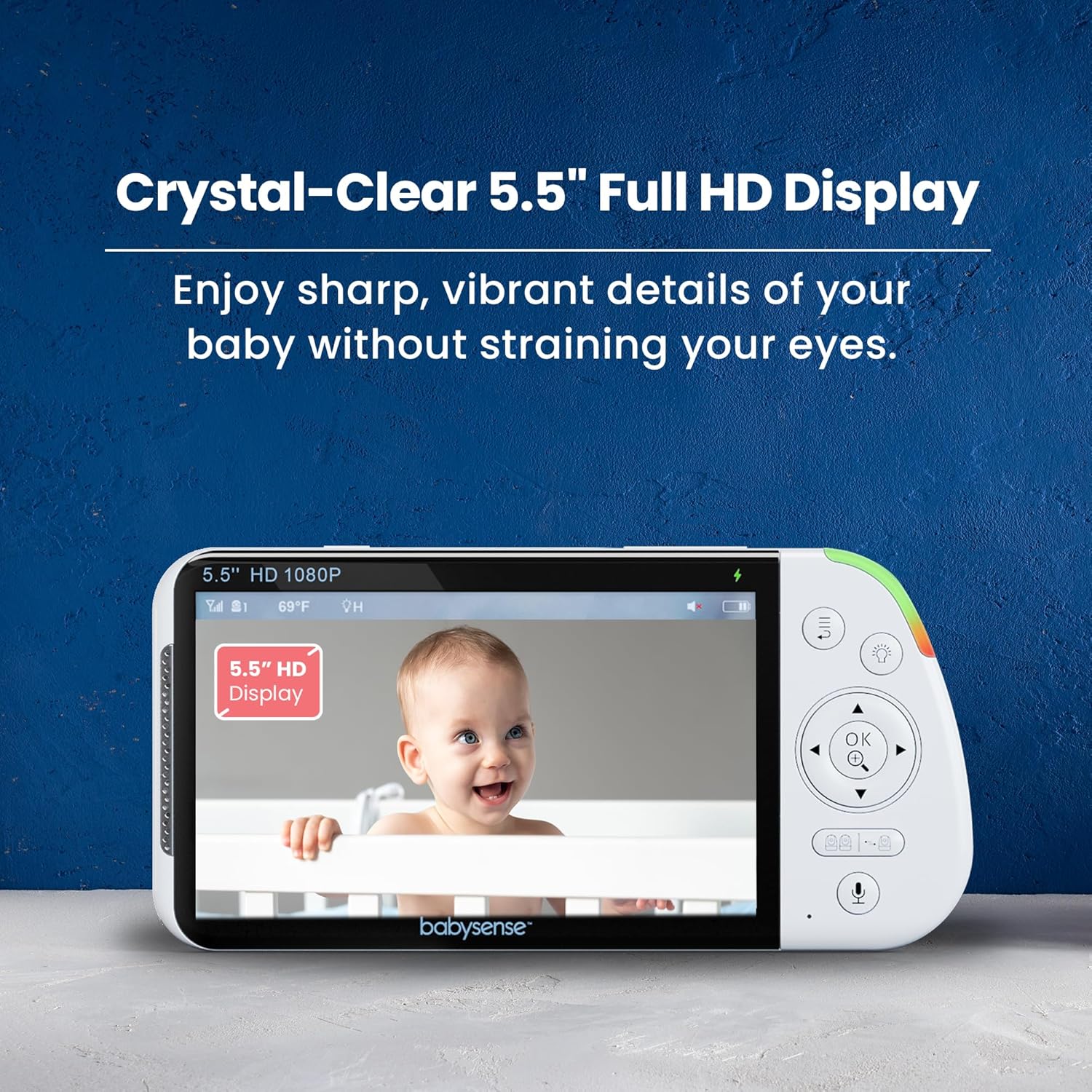

Image 4.1: The parent unit's 5.5-inch Full HD display showing a baby.
4.2 Camera Features
The camera offers pan, tilt, and digital zoom capabilities, allowing you to adjust the viewing angle remotely from the parent unit. Automatic night vision ensures clear images in low-light conditions.
Image 4.2: The camera's night vision capability, showing a baby in a crib in a dark room.
4.3 Audio Features
Utilize the two-way talk feature to communicate with your baby. The monitor also includes built-in lullabies and white noise options to soothe your child. VOX mode (Voice Operated Exchange) can be enabled to activate the screen and audio only when sound is detected, conserving battery life.
Image 4.3: The parent unit demonstrating the two-way talk function.
4.4 Night Light
The camera features an integrated 6-color night light with adjustable brightness settings to provide a gentle glow in the nursery.
Image 4.4: The camera unit showcasing its 6-color night light options.
4.5 Split Screen & Multi-Camera Support
The system supports up to four cameras, allowing you to monitor multiple rooms or children simultaneously using the split-screen view on the parent unit.

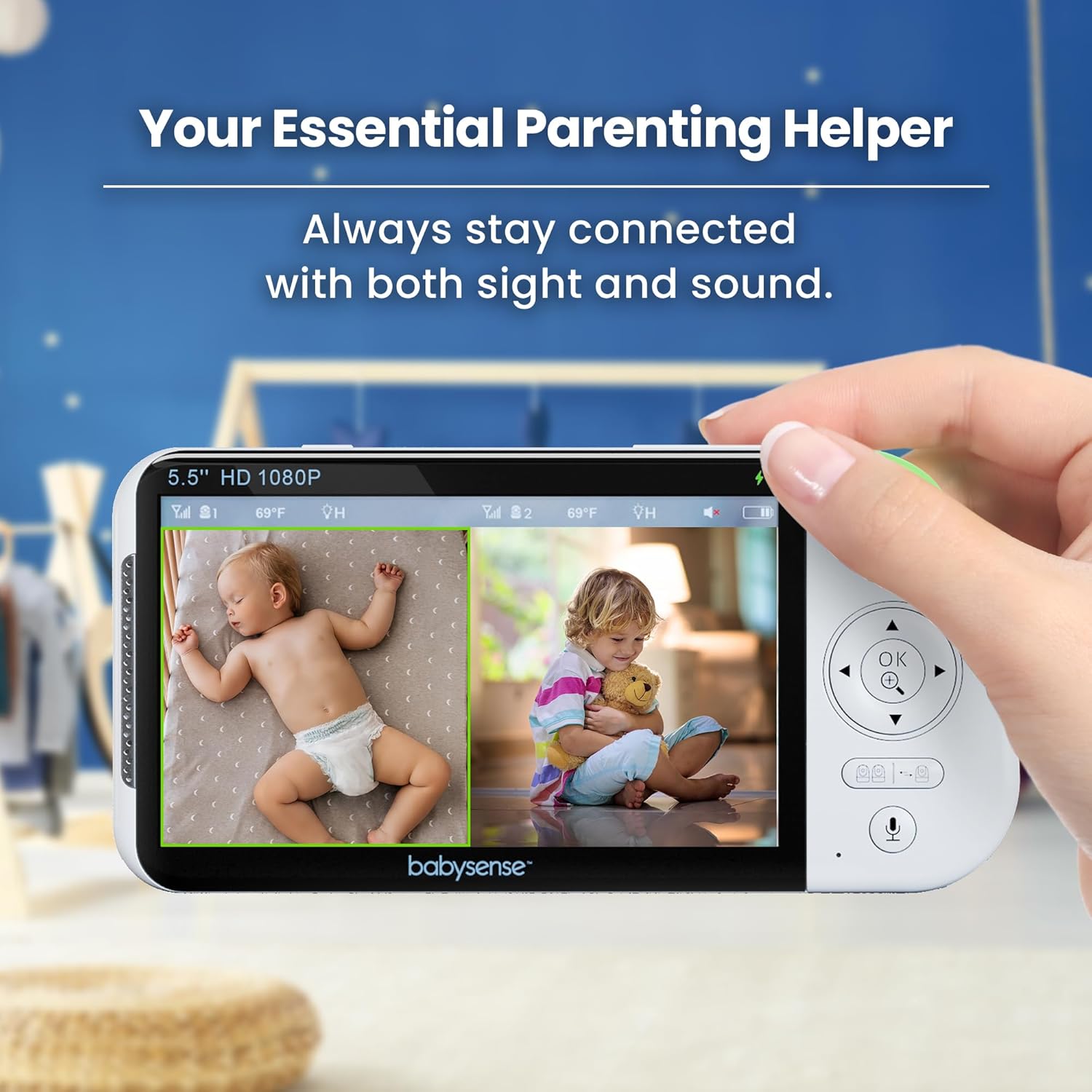

Image 4.5: The parent unit displaying a split-screen view from two cameras.

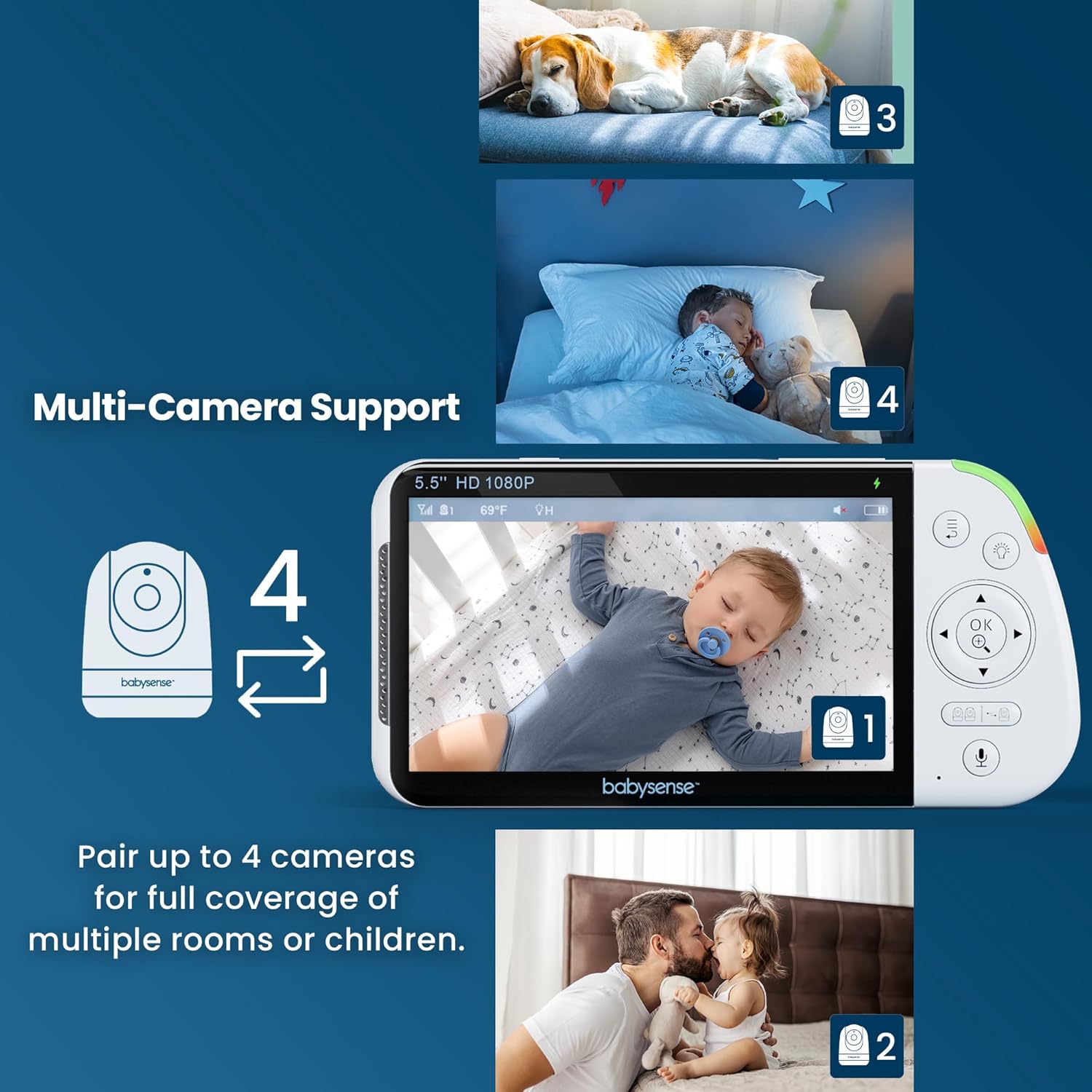

Image 4.6: The parent unit demonstrating the ability to connect up to four cameras.
4.6 Battery Life
The parent unit's large rechargeable battery provides up to 20 hours of continuous monitoring in Eco Mode and up to 12 hours in Regular Mode.

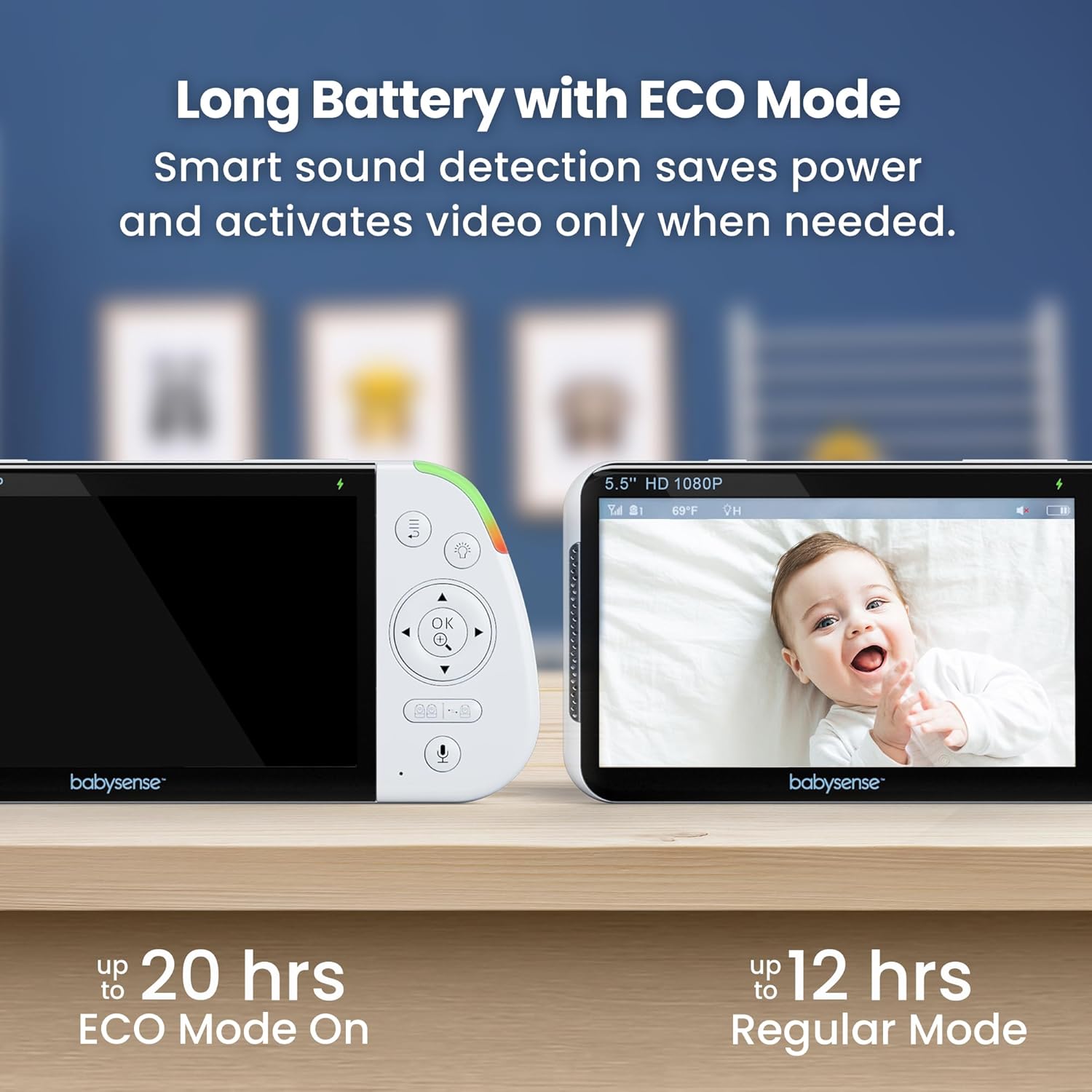

Image 4.7: Visual representation of battery life in Eco Mode (up to 20 hours) and Regular Mode (up to 12 hours).
4.7 Secure Connection
The monitor uses FHSS (Frequency Hopping Spread Spectrum) non-WiFi technology, ensuring a private, hack-proof, and interference-free connection.
Image 4.8: Diagram showing the secure FHSS connection between the monitor and camera.
4.8 Official Product Videos
Video 4.8.1: An overview of the Babysense 5.5" 1080p Full HD Split-Screen Baby Monitor, highlighting its features and benefits.
Video 4.8.2: A demonstration of the non-WiFi large split-screen baby monitor, focusing on its secure connection and dual-view capabilities.
Video 4.8.3: A review highlighting the high-quality camera and monitor features for baby safety.
5. Maintenance
- Cleaning: Use a soft, dry cloth to clean the monitor and camera surfaces. Do not use abrasive cleaners or solvents.
- Battery Care: To prolong battery life, avoid extreme temperatures and fully charge the parent unit regularly.
- Storage: Store the unit in a cool, dry place when not in use for extended periods.
6. Troubleshooting
| Problem | Solution |
|---|---|
| No image/sound | Ensure both units are powered on and within range. Check power connections. Re-pair units if necessary. |
| Poor image quality | Check for obstructions between camera and monitor. Adjust camera position. Ensure sufficient lighting for optimal night vision. |
| Short battery life | Ensure parent unit is fully charged. Use Eco Mode to conserve battery. Reduce screen brightness. |
| Interference | Move units away from other electronic devices that may cause interference. |
7. Specifications
- Model Name: MVPRO-1CAM USA
- Display: 5.5" Full HD (1080p)
- Connectivity: 2.4GHz FHSS Wireless Technology (Non-WiFi)
- Battery Life (Parent Unit): Up to 20 hours (Eco Mode), Up to 12 hours (Regular Mode)
- Camera Features: Pan, Tilt, Digital Zoom, Automatic Night Vision, 6-Color Night Light
- Audio Features: Two-Way Talk, Lullabies, White Noise, VOX Mode
- Expandability: Supports up to 4 cameras (sold separately)
- Power Source: Cameras are Corded Electric, Parent Unit is Battery Powered
- Product Dimensions: 4 x 8 x 8 inches
- Item Weight: 2.29 pounds
- UPC: 810114530436
8. Warranty and Support
For any product-related questions, missing components, or warranty inquiries, please refer to the user manual included in the package or visit the official Babysense website for customer service information. You may also find a QR code for customer service on the packaging or included materials.
Manufacturer: Hisense Ltd.
