1. Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your Caroma Peak Q3 Electric Scooter with Seat. Please read this manual thoroughly before first use to ensure optimal performance and safety.
2. Safety Information
Your safety is paramount. Always wear a helmet and appropriate protective gear when riding. Adhere to local traffic laws and regulations. This scooter is UL 2272 certified, indicating compliance with electrical safety standards.
- Always inspect the scooter before each ride for any loose parts, tire pressure, and brake functionality.
- Do not ride in wet conditions, heavy rain, or on slippery surfaces.
- Avoid riding on steep inclines or declines that exceed the scooter's capabilities.
- Maintain a safe distance from other vehicles and pedestrians.
- Ensure the handlebar is securely locked in place before riding.
- Do not exceed the maximum load capacity of 265 pounds.
3. Package Contents
Verify that all items are present in the package:
- 1 x Caroma Peak Q3 Electric Scooter
- 1 x Power Adapter
- 1 x Toolkit
- 1 x User Manual (this document)
4. Assembly and Setup
The Caroma Peak Q3 Electric Scooter requires minimal assembly. Follow the included instructions for initial setup.
- Unfolding the Scooter: Carefully unfold the main frame and handlebar stem until they lock into position. Ensure all locking mechanisms are secure.
- Attaching the Seat: Insert the seat post into the designated slot and adjust the height to your preference. Secure it with the quick-release lever.
- Attaching the Rear Basket: Secure the detachable rear basket to the frame using the provided hardware.
- Initial Charge: Before first use, fully charge the scooter's battery. Connect the power adapter to the charging port and a power outlet. The charging time is approximately 7 hours.
5. Operating Instructions
5.1 Powering On/Off
To power on the scooter, insert the key into the electric lock and turn it. The HD LED display will illuminate. To power off, turn the key to the off position and remove it.
5.2 Speed Modes
The scooter features three speed modes, selectable via the controls on the handlebar:
- Eco Mode: Speed limit of approximately 7 mph (11 km/h). Ideal for beginners or crowded areas.
- Tour Mode: Speed limit of approximately 13 mph (21 km/h). Suitable for moderate cruising.
- Sport Mode: Maximum speed of approximately 20 mph (32 km/h). For experienced riders on open paths.
5.3 LED Display Functions
The HD LED monitor provides real-time information:
- Battery Level: Indicates remaining battery charge.
- Current Speed: Displays your riding speed.
- Speed Mode: Shows the active riding mode (Eco, Tour, Sport).
- Mileage: Tracks the distance traveled.
5.4 Braking System
The scooter is equipped with a dual disc braking system (front and rear) for effective stopping power. Apply both brakes gently and evenly for controlled deceleration.
5.5 Lighting
High-brightness headlights and rear brake lights are integrated for visibility and safety, especially during night riding. The rear light also functions as a turn signal.
5.6 Adjustable Seat and Folding Mechanism
The scooter features a cushioned, breathable seat with a user-friendly height adjustment system for rider comfort. The handlebar is foldable, and the rear basket is detachable, allowing for compact storage and transport.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your scooter.
- Cleaning: Wipe the scooter with a damp cloth. Do not use high-pressure water or corrosive cleaners.
- Tires: Check tire pressure regularly. The 12-inch pneumatic tires require proper inflation for optimal performance and shock absorption.
- Brakes: Periodically inspect brake pads and cables for wear. Adjust as necessary to maintain effective braking.
- Battery: Charge the battery regularly, even if the scooter is not in use, to prolong its lifespan. Avoid completely draining the battery.
- Fasteners: Check all screws and bolts for tightness before each ride.
7. Troubleshooting
If you encounter issues with your Caroma Peak Q3 Electric Scooter, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on | Low battery; loose battery connection; faulty power switch. | Charge the battery; check battery connections; contact support if issue persists. |
| Reduced range or speed | Low tire pressure; heavy load; riding uphill; aged battery. | Inflate tires to recommended pressure; reduce load; consider battery replacement if significantly degraded. |
| Brakes feel weak | Worn brake pads; loose brake cable. | Inspect and replace brake pads; adjust brake cable tension. |
| Unusual noises during operation | Loose components; foreign object in wheel; motor issue. | Check all fasteners; inspect wheels for obstructions; contact support for motor issues. |
For issues not listed here or if solutions do not resolve the problem, please contact Caroma customer support.
8. Specifications
Detailed technical specifications for the Caroma Peak Q3 Electric Scooter:
| Feature | Specification |
|---|---|
| Brand | Caroma |
| Model Name | Q3 |
| Motor Power | 750W (Peak 1200W) Brushless Hub Motor |
| Max Speed | 20 MPH (32 km/h) |
| Max Range | Up to 30 Miles (48 km) |
| Battery | 48V Lithium Battery |
| Charging Time | Approximately 7 Hours |
| Weight Limit | 265 Pounds (120 kg) |
| Tire Size | 12 Inches |
| Tire Type | Pneumatic |
| Brake Style | Front and Rear Disc Brakes |

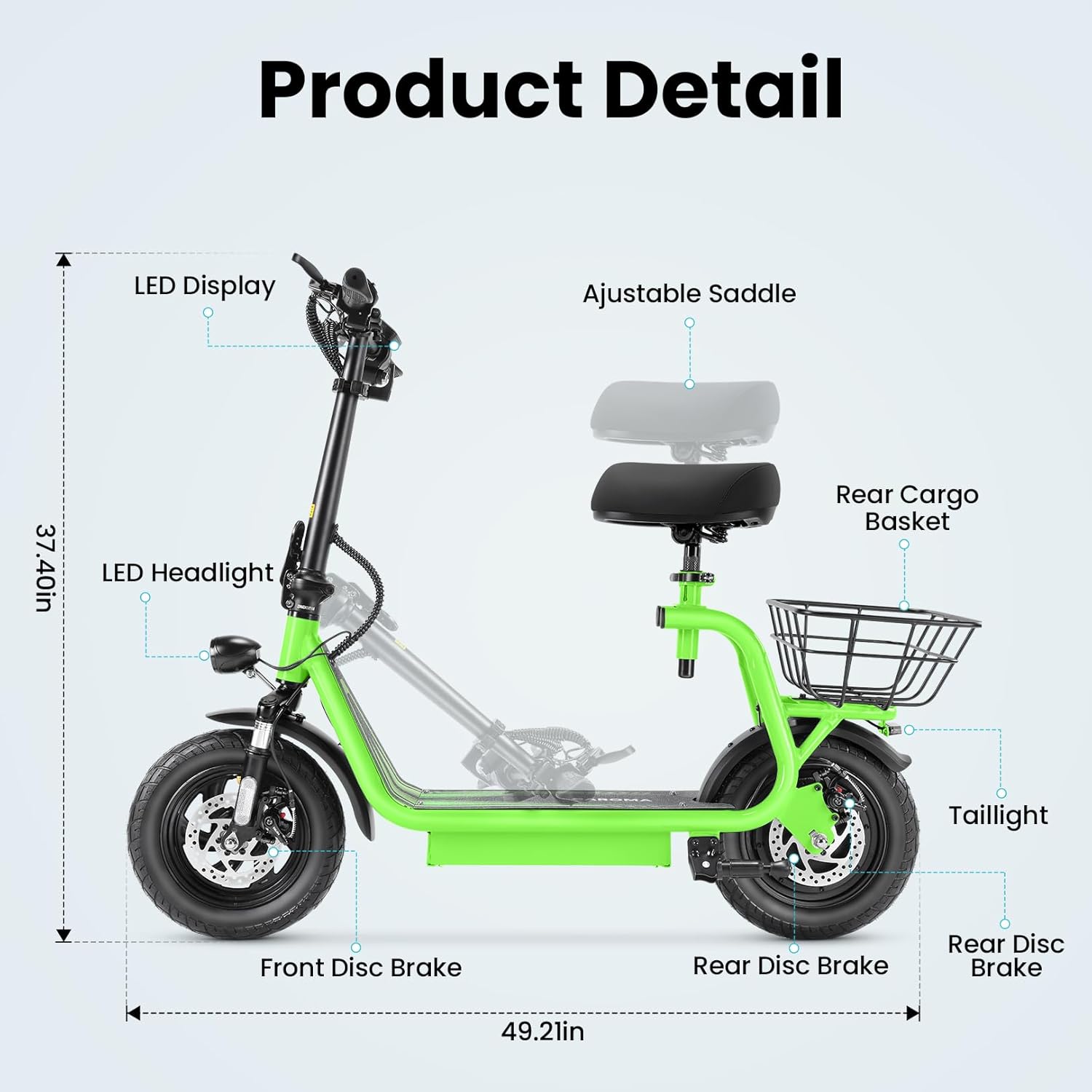

| Product Dimensions (LxWxH) | 49.2" x 23.6" x 37.4" (125cm x 60cm x 95cm) |
| Item Weight | 23 Kilograms (50.7 lbs) |
| Frame Material | Metal (Iron) |
| Special Features | Foldable Design, Adjustable Seat, LED Display with Speed Control, Rear Storage Basket |
9. Warranty and Support
Caroma provides a 12-month warranty for the Peak Q3 Electric Scooter. If you encounter any problems or have questions, please do not hesitate to contact our customer service team.
Customer Support Email: caromaservices@outlook.com
