1. Introduction
Thank you for choosing the PASIION EDC Tactical Flashlight. This compact and durable flashlight is designed for various applications, including home use, camping, and emergency situations. It features a powerful LED main beam, versatile side lights, and a digital display for battery status. Please read this manual carefully to ensure proper use and maintenance of your device.
2. Safety Information
- Do not look directly into the light beam to avoid eye injury.
- Keep out of reach of children.
- Do not disassemble the flashlight; this may void the warranty and cause damage.
- Avoid exposing the flashlight to extreme temperatures or direct sunlight for prolonged periods.
- When using high brightness modes, the flashlight head may become warm. Handle with care and avoid direct contact with hot surfaces.
- Ensure the USB-C port cover is securely closed to maintain IPX5 water resistance.
3. Package Contents
Verify that all items are present in your package:
- PASIION EDC Tactical Flashlight (FL05T-A-WH)
- USB-C Charging Cable
- User Manual
4. Product Overview
The PASIION EDC Tactical Flashlight features a durable stainless steel body and a compact design for easy portability. It includes a main LED light, a side COB light, and a digital display for battery percentage.
Image: The PASIION EDC Tactical Flashlight highlighting its multiple lighting modes and features.

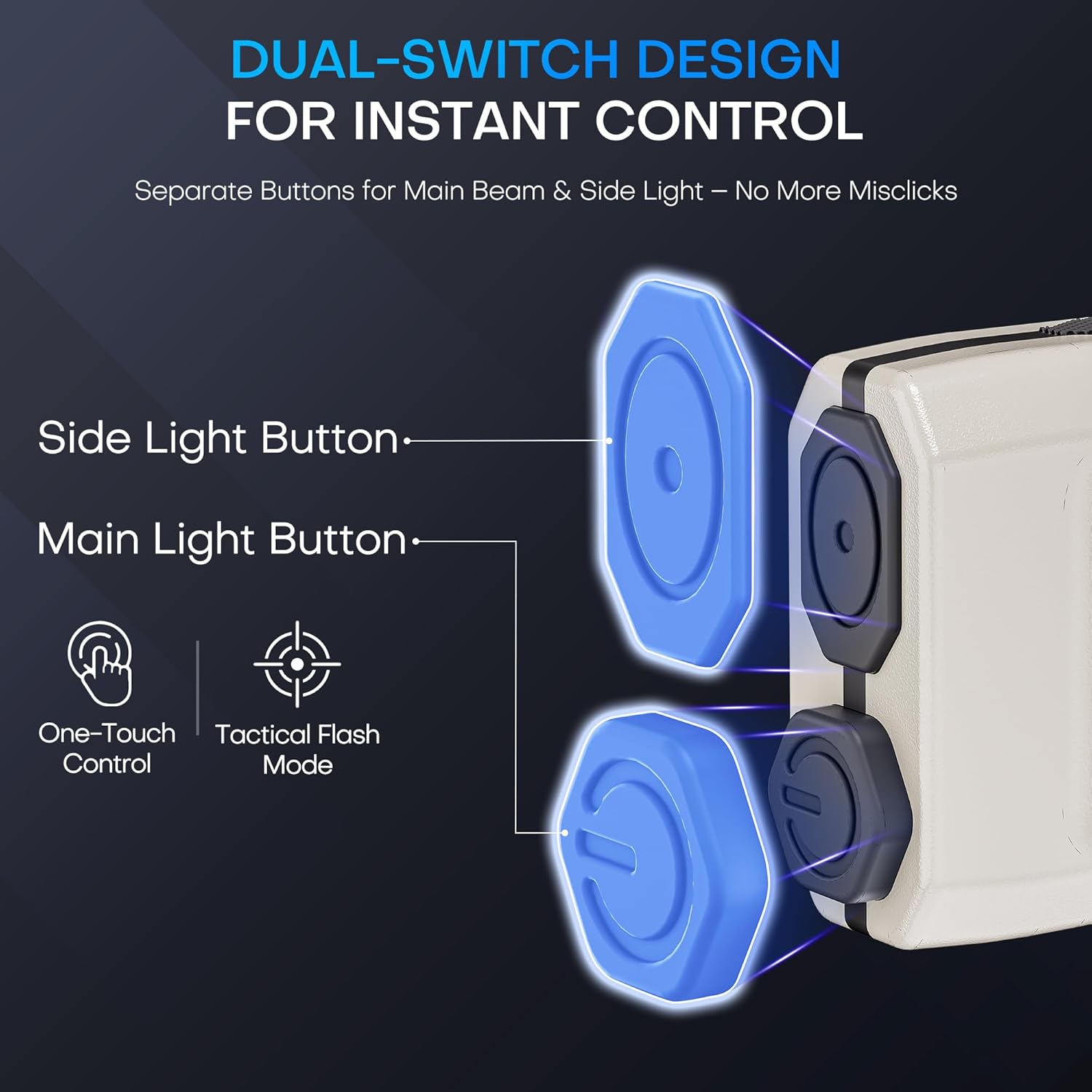

Image: A detailed view of the dual-switch design for independent control of the main and side lights.
Image: The dimensions of the flashlight, illustrating its compact size and portability for pocket or belt carry.
5. Setup
5.1. Initial Charging
Before first use, fully charge the flashlight. Connect the provided USB-C cable to the flashlight's charging port and to a compatible USB power source (e.g., car charger, laptop, power bank). The digital display will show the battery percentage and charging status.
Image: The flashlight being charged via USB-C, with the digital display indicating battery level.
Video: An overview of the PASIION EDC Flat Flashlight, demonstrating its features including charging and various light modes.
6. Operating Instructions
The flashlight features dual switches for intuitive control of the main and side lights.
6.1. Main Light Operation
- Turn On/Off: Press the main light button once.
- Cycle Modes: With the main light on, press the main light button to cycle through High, Low.
- Turbo Mode: Double-click the main light button from any state.
- Strobe Mode: Long press the main light button from any state.
- SOS Mode: From Strobe mode, press the main light button again.
6.2. Side Light Operation (COB)
- Turn On/Off: Press the side light button once.
- Cycle Modes: With the side light on, press the side light button to cycle through White, Red, UV.
- Red Flashing Mode: Double-click the side light button from any state.
6.3. Mode Memory
The flashlight remembers your last used setting for both the main and side lights, activating it automatically upon the next power-on.
6.4. Lockout Mode
To prevent accidental activation, the flashlight features a lockout mode. Triple-click the main light button quickly to lock or unlock the device. A small green indicator light will flash to confirm the lock/unlock status.
Video: Demonstration of the dual-switches and digital display features of the flashlight.
7. Maintenance
7.1. Cleaning
Wipe the flashlight with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the charging port is free of debris.
7.2. Storage
Store the flashlight in a cool, dry place away from direct sunlight. For long-term storage, charge the battery to approximately 50% every 3-6 months to prolong battery life.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Flashlight does not turn on. | Low battery; Lockout mode active. | Charge the battery; Triple-click the main light button to unlock. |
| Light output is dim. | Low battery; Incorrect mode selected. | Charge the battery; Cycle through modes to select a brighter setting. |
| Flashlight gets hot during use. | Normal operation in high brightness modes. | This is normal. Reduce brightness if discomfort occurs. |
9. Specifications
| Feature | Detail |
|---|---|
| Model | FL05T-A-WH |
| Material | Stainless Steel |
| Light Source Type | LED |
| White Brightness | Up to 1500 Lumens |
| Beam Distance | Up to 200 meters |
| Power Source | Battery Powered (Lithium-Ion, built-in, rechargeable) |
| Charging Port | USB-C |
| Water Resistance Level | IPX5 |
| Product Dimensions | 0.85"D x 1"W x 3.2"H |
| Item Weight | 0.16 Kilograms |
Image: The flashlight illuminating a distant area, showcasing its 200-meter beam capability.
Image: An exploded view illustrating the multi-layered stainless steel construction of the flashlight, highlighting its durability.
10. Warranty and Support
10.1. Warranty Information
This product comes with a limited lifetime manufacturer warranty. For specific details regarding warranty coverage and claims, please refer to the warranty card included in your product packaging or contact PASIION customer support.
10.2. Customer Support
If you have any questions, concerns, or require assistance with your PASIION EDC Tactical Flashlight, please visit the official PASIION store on Amazon or contact their customer service directly. You can find more information and contact details at the PASIION Store.
