Rowenta GentleBald Head Shaver TN3110E0 User Manual

1. Introduction

Welcome to your Rowenta GentleBald Head Shaver TN3110E0. This manual provides essential information for safe and effective use, maintenance, and troubleshooting of your new head shaver. Please read these instructions carefully before using the device and keep them for future reference.

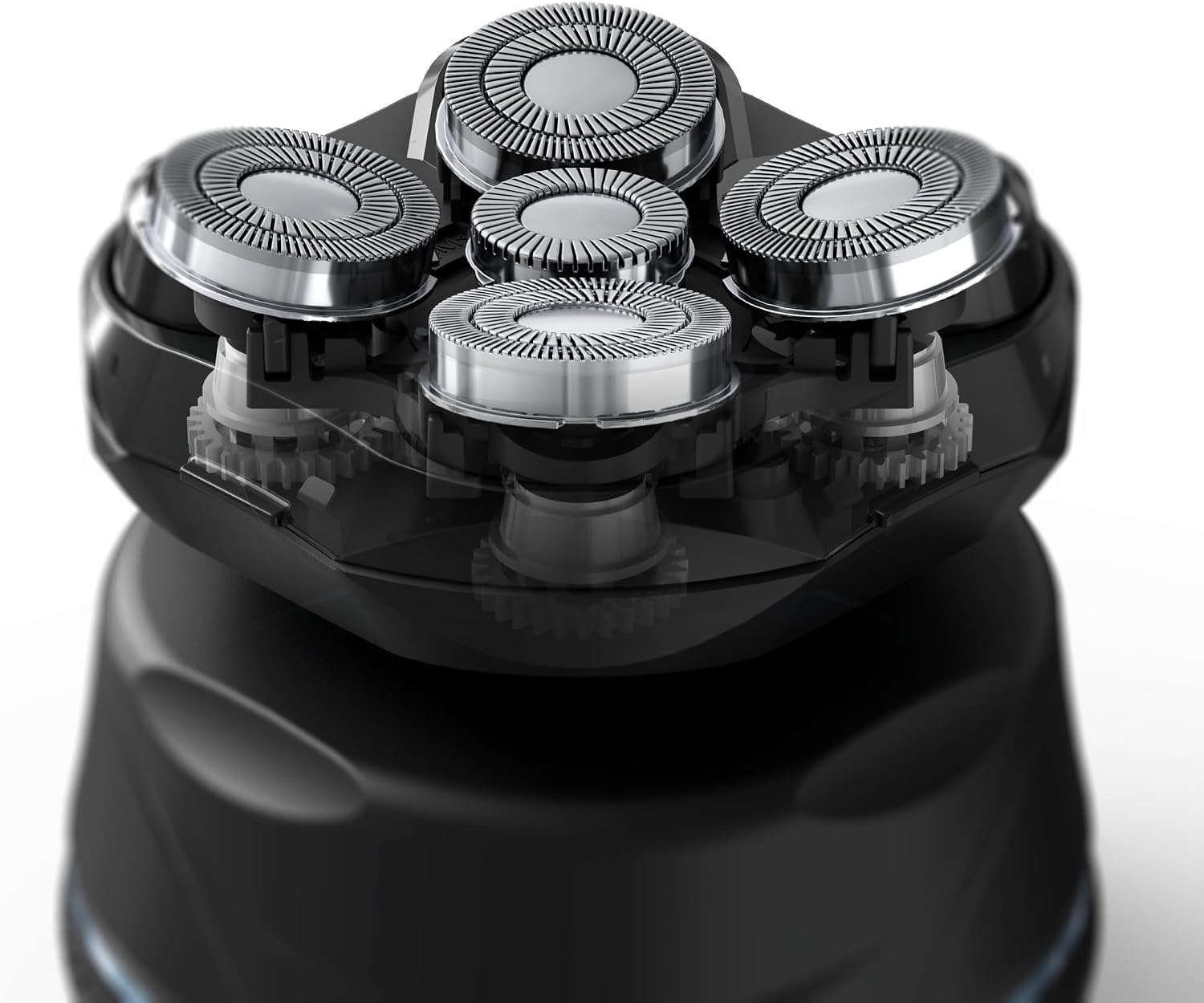

Image 1.1: The Rowenta GentleBald Head Shaver TN3110E0.

2. Important Safety Instructions

To ensure safe operation and prevent injury or damage, please observe the following safety precautions:

• Use with caution to avoid cuts or skin irritation.
• Do not use the device near water or while it is charging.
• Follow all cleaning and maintenance instructions to prevent bacterial growth.
• In case of battery damage, immediately stop using the product and contact customer service.
• Keep the device out of reach of children.
• Do not attempt to repair or modify the device yourself. Contact authorized service personnel for any repairs.

3. Package Contents

Verify that all items are present in the package:

• Rowenta GentleBald Head Shaver
• Power Cable
• Protective Cap
• Cleaning Brush
• Travel Case (Vanity)

Image 3.1: Included accessories with the Rowenta GentleBald Head Shaver.

4. Setup

4.1 Charging the Device

1. Connect the power cable to the shaver's charging port.
2. Plug the other end of the power cable into a suitable power outlet.
3. Allow the device to fully charge before its first use. The advanced lithium-ion battery provides up to 80 minutes of cordless operation on a single charge.
4. The charging indicator light will show the charging status. Refer to the device's display for battery level.

4.2 Initial Use

1. Ensure your scalp is clean and dry for optimal shaving results.
2. Press the power button located on the shaver to turn it on.

5. Operating Instructions

5.1 Shaving Technique

For best results, follow these steps:

1. Gently press the shaver against your scalp. The 5 flexible shaving heads are designed to adapt to the contours of your head, ensuring maximum contact.
2. Move the shaver in small, circular motions across your scalp for an even and thorough shave.
3. The titanium-coated blades ensure high-performance cutting and precision, providing a close shave.
4. The GentleSkin technology helps prevent irritation, pulling, and cuts, offering a comfortable shaving experience.

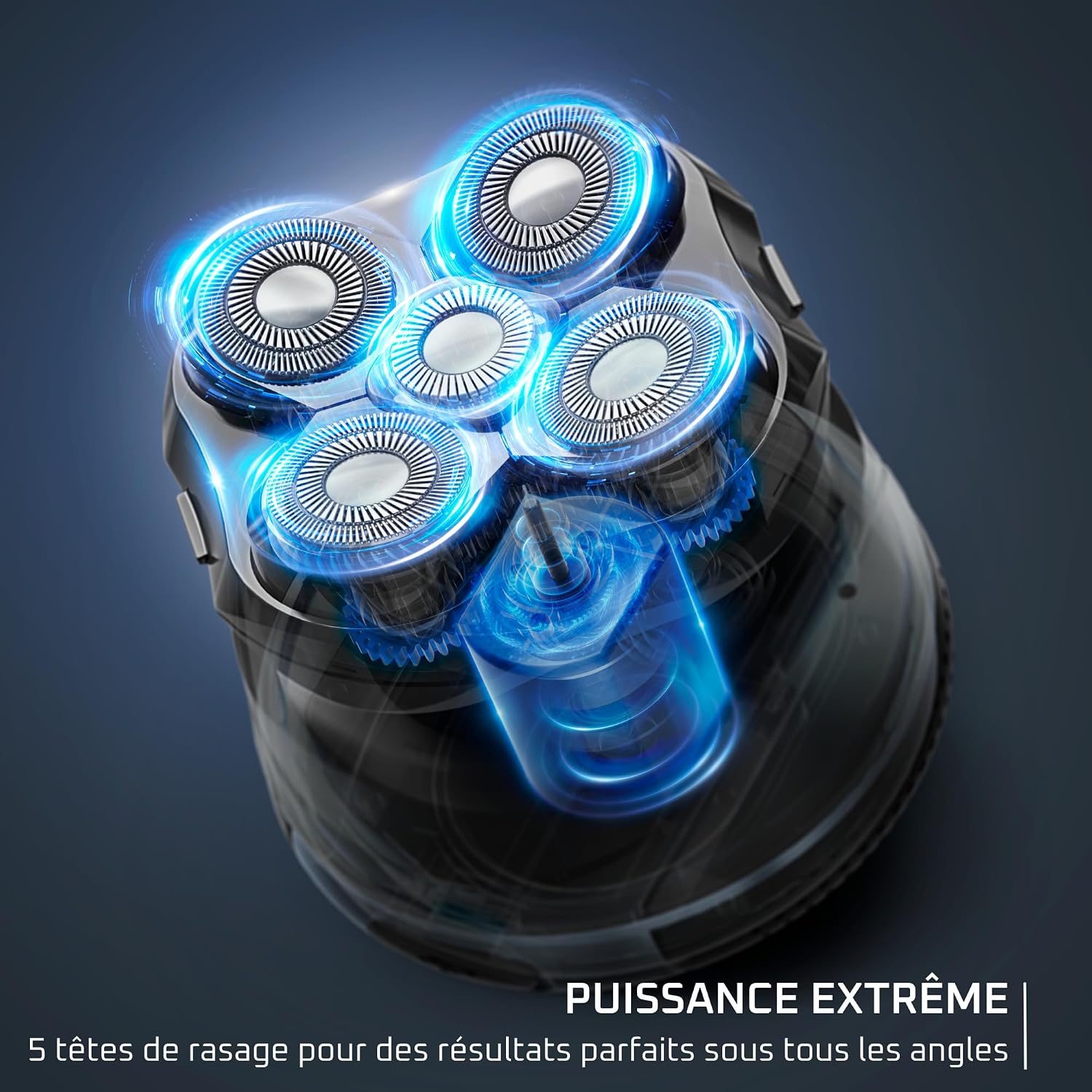

Image 5.1: The shaver's 5 flexible heads and powerful motor for efficient shaving.

Image 5.2: The titanium-coated blades provide precision and durability.

Image 5.3: GentleSkin technology ensures a comfortable shave without irritation.

Image 5.4: The ergonomic design allows for easy and effortless shaving.

5.2 Wet or Dry Shaving

• This shaver is designed for both wet and dry use, offering versatility.
• For a wet shave, apply shaving foam or gel to your scalp before use to enhance glide and comfort.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and hygiene of your shaver.

6.1 Daily Cleaning

1. After each use, turn off the shaver.
2. Remove the shaving head assembly from the shaver body.
3. Rinse the shaving heads thoroughly under running water to remove hair clippings.
4. Use the provided cleaning brush to remove any stubborn hair from the blades and internal components.
5. Allow the shaver heads to air dry completely before reattaching them to the shaver body or storing.

Image 6.1: The shaver heads can be rinsed under water for easy cleaning.

6.2 Deep Cleaning

• Periodically, disassemble the individual shaving heads for a more thorough cleaning. Refer to the visual guide in the full product manual for proper disassembly and reassembly.
• Ensure all parts are completely dry before reassembling the shaver.

6.3 Storage

• Always place the protective cap over the shaving heads when the shaver is not in use to prevent damage.
• Store the device in its travel case for protection during transport or when not in use for extended periods.
• Keep the shaver in a dry place, away from direct sunlight and extreme temperatures.

Image 6.2: Proper storage of the shaver and its accessories.

7. Troubleshooting

If you encounter any issues with your Rowenta GentleBald Head Shaver, refer to the table below for common problems and their solutions.

8. Technical Specifications

• Model Number: TN3110E0
• Dimensions (L x W x H): 8 x 8 x 7.7 cm
• Weight: 220 grams
• Brand: Rowenta
• Country of Origin: China
• Recommended Use: Head
• Special Features: GentleSkin Technology, Ultra-powerful, High performance, Exceptional durability
• Power Source: Battery powered
• Battery Type: Lithium-ion (integrated/rechargeable)
• Battery Life: Up to 80 minutes
• Color: Black
• Blade Material: Titanium
• Head Type: Flex | Pivoting
• Number of Blades: 5

Image 8.1: Product dimensions for the Rowenta GentleBald Head Shaver.

9. Warranty and Support

9.1 Warranty Information

This Rowenta product comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for any warranty claims. The warranty covers defects in materials and workmanship under normal use.

Rowenta is committed to product reparability for 15 years at a fair price, supported by a network of 6200 repair centers worldwide. This commitment ensures the longevity of your product.

9.2 Customer Support

For further assistance, product information, or to locate a repair center, please visit the official Rowenta website or contact Rowenta customer service in your region. Contact details can typically be found on the product packaging or the official website.

When contacting support, please have your product model number (TN3110E0) and proof of purchase ready.
