COOKLEE Dough Mixer with Fermentation Function

Introduction

This COOKLEE Dough Mixer is a multifunctional kitchen appliance designed for efficient dough kneading and controlled fermentation. Featuring a smart touch panel, a durable 5-quart stainless steel bowl, and a powerful 230W motor, it is ideal for preparing various dough types for pasta, bread, cakes, and cookies. This manual provides essential information for safe and effective operation of your appliance.

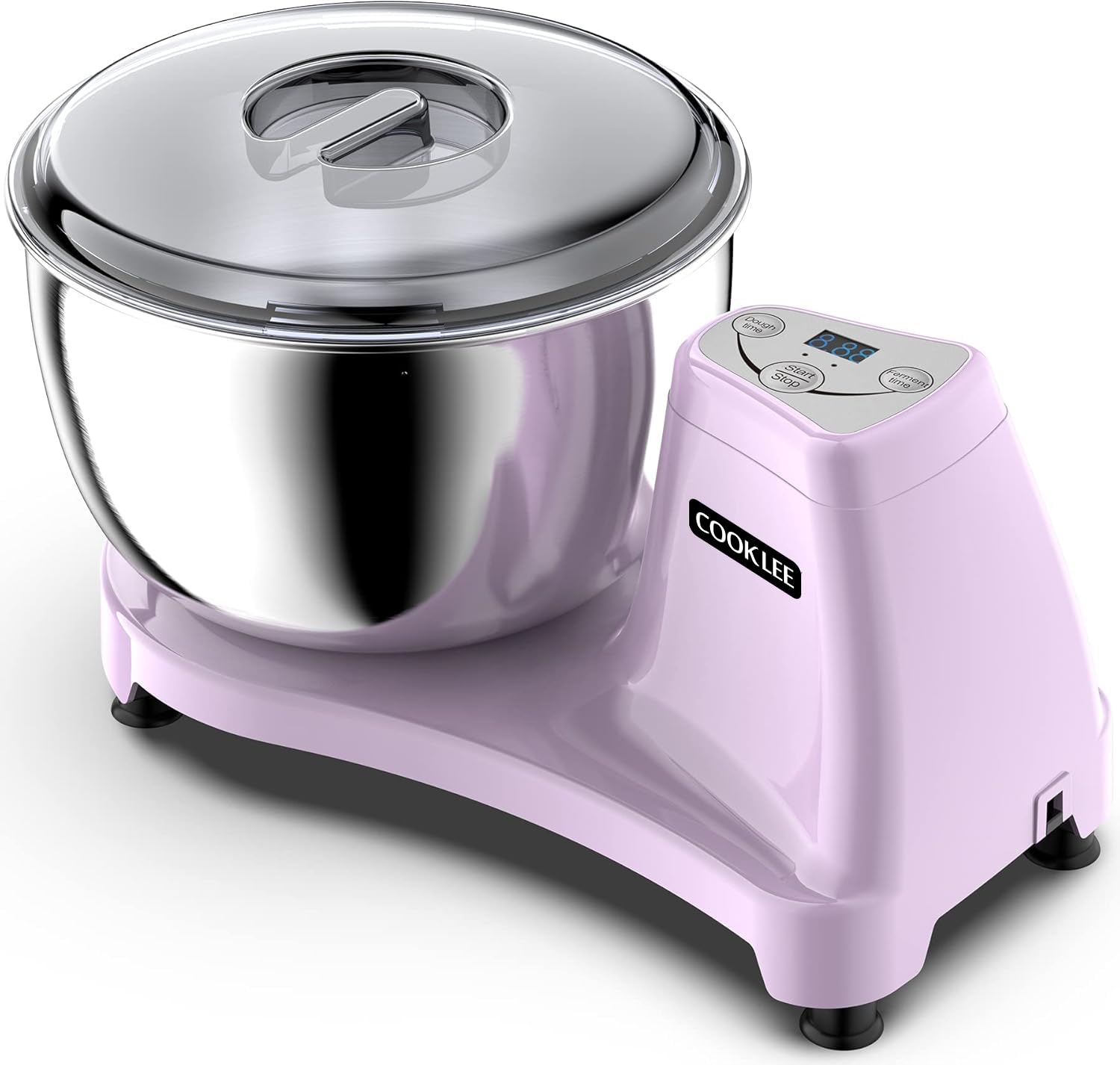

Image: The COOKLEE Dough Mixer, showcasing its compact design and purple finish with a stainless steel mixing bowl.

Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions:

• Read all instructions before using the appliance.
• Do not immerse the main unit, cord, or plug in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter.
• Place the appliance on a stable, dry, and level surface during operation.

Product Overview and Components

Familiarize yourself with the parts of your COOKLEE Dough Mixer:

Image: Exploded view diagram of the COOKLEE Dough Mixer, showing its main components labeled for easy identification.

1. Bowl Cover
2. Kneading Blade
3. Mixing Bowl (5 QT, 304 Stainless Steel)
4. Control Panel
5. Main Housing
6. Power Cord

Setup

Before first use, follow these steps:

1. Unpack all components and remove any packaging materials.
2. Wash the mixing bowl, kneading blade, and bowl cover with warm, soapy water. Rinse thoroughly and dry completely.
3. Wipe the main housing with a damp cloth. Do not immerse the main housing in water.
4. Place the main housing on a clean, dry, and stable countertop. Ensure the non-slip silicone suction cups on the base are securely attached to the surface to prevent movement during operation.
5. Insert the kneading blade into the center shaft of the mixing bowl.
6. Place the mixing bowl onto the base of the main housing, ensuring it is properly seated.
7. Place the bowl cover onto the mixing bowl.

Operating Instructions

The COOKLEE Dough Mixer features an intelligent touch panel for easy operation.

Image: The COOKLEE Dough Mixer's smart touch panel, illustrating the 'Dough time', 'Ferment time', and 'Start/Stop' buttons for intuitive control.

Kneading Function

1. Ensure the appliance is properly assembled and plugged into a 120V power outlet.
2. Add your ingredients to the mixing bowl. The mixer can handle 1 to 5 liters of dough at a time.
3. Secure the bowl cover.
4. On the control panel, press the 'Dough time' button. The display will show a default time.
5. Adjust the kneading time using the '+' and '-' buttons. The mixer offers four gear settings for flexibility.
6. Press the 'Start/Stop' button to begin the kneading process. The mixer will automatically stop once the set time is complete.

Fermentation Function

After kneading, you can use the fermentation function to proof your dough directly in the bowl.

Image: Comparison of dough before ('Undone') and after ('Finish') using the fermentation function, demonstrating the dough's rise.

1. Once kneading is complete, ensure the dough is in the mixing bowl with the cover on.
2. Press the 'Ferment time' button on the control panel.
3. Adjust the fermentation time as needed using the '+' and '-' buttons.
4. Press the 'Start/Stop' button to begin fermentation. The mixer will gently warm the dough to facilitate the proofing process.
5. The appliance will automatically stop when the fermentation time is finished.

Cleaning and Maintenance

Regular cleaning ensures the longevity and hygiene of your dough mixer.

1. Always unplug the appliance from the power outlet before cleaning.
2. Remove the bowl cover, kneading blade, and mixing bowl from the main housing.
3. Wash the 304 stainless steel mixing bowl, kneading blade, and bowl cover with warm, soapy water. These parts are dishwasher safe, but hand washing is recommended for best care.
4. Wipe the exterior of the main housing with a soft, damp cloth. Do not use abrasive cleaners or scourers.
5. Never immerse the main housing or power cord in water or any other liquid.
6. Ensure all parts are completely dry before reassembling or storing the appliance.

Image: The 304 stainless steel mixing bowl, emphasizing its food-grade material and capacity for ingredients.

Troubleshooting

If you encounter issues with your dough mixer, refer to the following common problems and solutions:

• Appliance does not start: Ensure the power cord is securely plugged into a working 120V outlet. Check if the bowl and cover are correctly assembled and seated.
• Dough is not mixing effectively: Verify that the amount of dough is within the recommended capacity (1-5 liters). Ensure the kneading blade is properly installed.
• Appliance wobbles during operation: Make sure the mixer is placed on a flat, stable, and dry surface. The non-slip silicone suction cups on the base should be firmly engaged with the countertop.
• Overheating protection activated: The mixer has built-in overload and overheating protection. If the unit stops unexpectedly, unplug it and allow it to cool down for at least 30 minutes before resuming operation. Reduce the load if consistently overheating.

For further assistance, please contact COOKLEE customer support.

Specifications

Warranty and Support

COOKLEE is committed to providing quality products and customer satisfaction. Your COOKLEE Dough Mixer comes with a worry-free after-sales commitment.

For any questions, concerns, or support needs regarding your appliance, please contact COOKLEE customer service. Refer to the product packaging or the official COOKLEE website for specific contact details.
