GHTENS TENS Machine Pads 50x50mm User Manual

1. Introduction

Thank you for choosing GHTENS TENS Machine Pads. These electrode pads are designed for use with most Transcutaneous Electrical Nerve Stimulation (TENS) and Electrical Muscle Stimulation (EMS) units, providing a reliable interface for effective therapy. This manual provides essential information for the safe and proper use, care, and maintenance of your GHTENS TENS Machine Pads.

Please read this manual thoroughly before first use and retain it for future reference.

2. Important Safety Information

WARNING: Always consult with a healthcare professional before using TENS/EMS devices and electrode pads, especially if you have pre-existing medical conditions, are pregnant, or have a pacemaker.

• Do not apply pads over open wounds, broken skin, or areas with skin irritation.
• Do not place pads on the head, face, neck (especially carotid sinus area), or directly over the heart.
• Keep out of reach of children.
• Discontinue use immediately if you experience any discomfort, skin irritation, or adverse reactions.
• These pads are for external use only.
• The pads are CE certified, indicating compliance with European medical device standards.

3. Product Features

GHTENS TENS Machine Pads are designed for optimal performance and user comfort:

• Size: Each pad measures 50mm x 50mm, providing ample coverage for various body areas.
• Quantity: This pack contains 20 reusable electrode pads.
• Connector: Equipped with a standard 2mm pin connector, ensuring wide compatibility with most TENS and EMS units.
• Material: Crafted with low-impedance hydrogel for strong adhesion and excellent electrical conductivity. The pads feature skin-friendly materials and a breathable backing for comfort, even on sensitive skin.
• Reusability: Designed for multiple uses with proper care and storage.

Image: Universal 2mm Pin Connector and 50x50mm dimensions.

Image: Exploded view of the electrode pad layers, highlighting flexibility, conductivity, and adhesion.

4. Preparation and Setup

1. Clean Skin: Ensure the skin area where the pads will be applied is clean, dry, and free from oils, lotions, or hair. This maximizes adhesion and conductivity.
2. Connect Pads: Insert the 2mm pin lead wires from your TENS/EMS unit into the connectors on the electrode pads.
3. Remove Protective Film: Carefully peel the electrode pads from their protective liner. Retain the liner for storage.

5. Application Instructions

Apply the pads firmly to the targeted skin area. Ensure the entire surface of the pad is in contact with the skin. Refer to your TENS/EMS unit's manual for specific program settings and intensity levels.

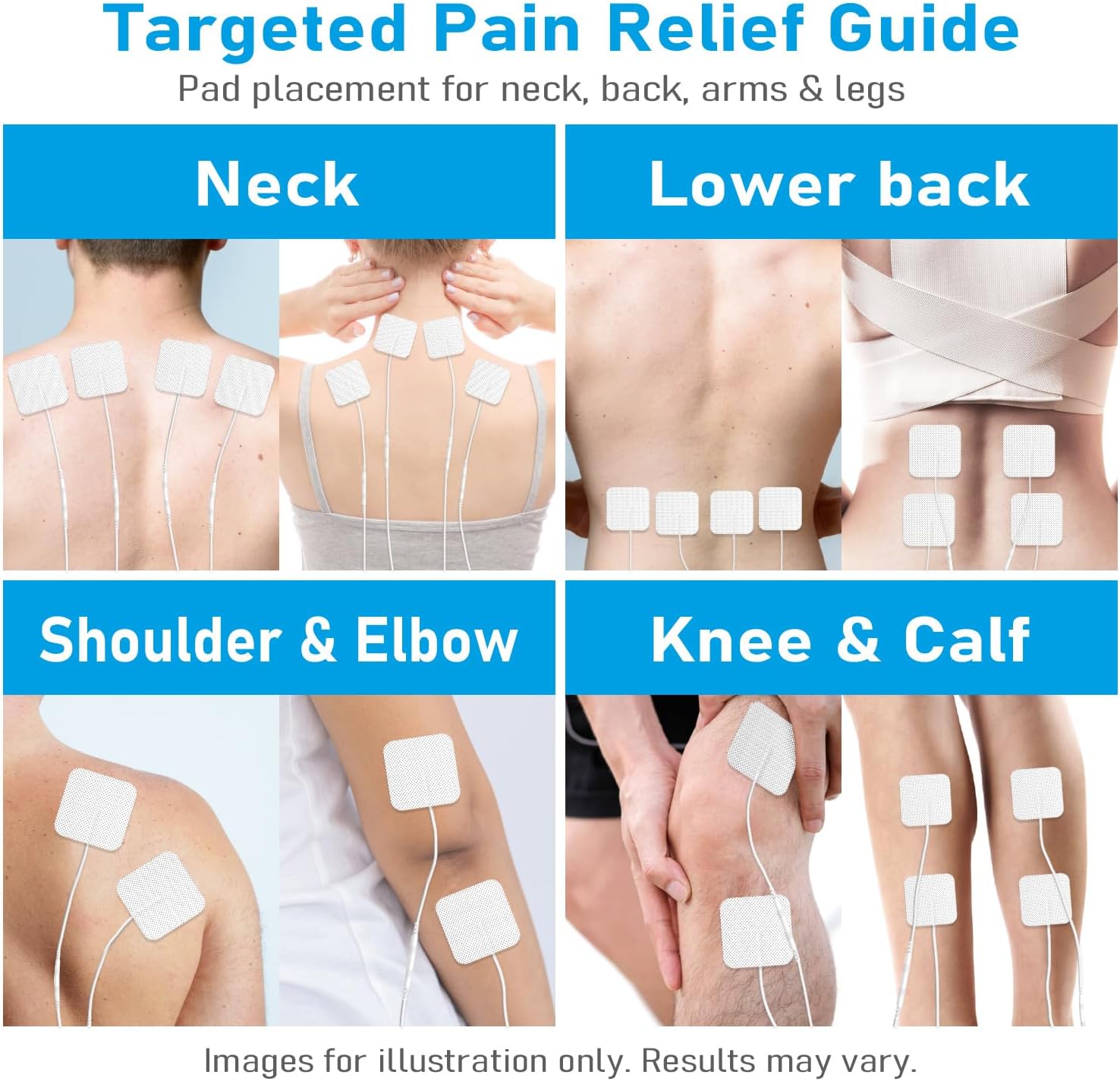

Image: Targeted pad placement guide for various body parts.

6. Removal Instructions

To ensure the longevity of your pads and prevent skin irritation, follow these removal steps:

• Turn off your TENS/EMS unit before removing pads.
• Gently lift one corner of the pad and slowly peel it off the skin.
• DO NOT pull the pad off by yanking the cable or using the lead as leverage, as this can damage the pad or lead wire.

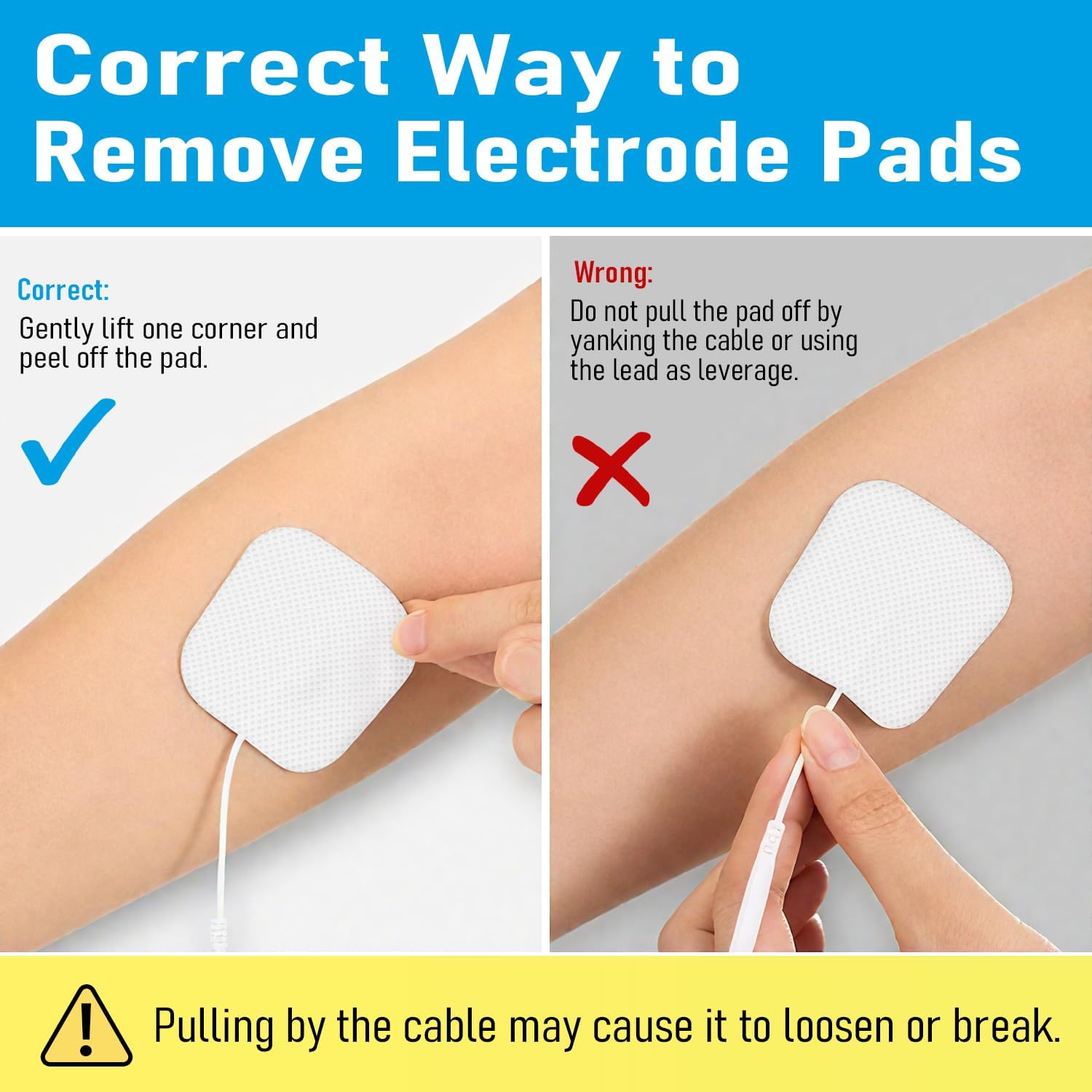

Image: Correct and incorrect methods for removing electrode pads.

7. Care and Maintenance

Proper care extends the life of your GHTENS TENS Machine Pads:

• Cleaning: If the adhesive surface becomes dirty or loses stickiness, gently wipe it with a damp cloth (water only). Do not use soap, alcohol, or abrasive cleaners.
• Storage: After each use, reattach the pads to their protective film and store them in the original resealable pouch. Store in a cool, dry place away from direct sunlight.
• Replacement: Replace pads when they no longer adhere well to the skin or if you notice a decrease in conductivity.

Image: Pad care guide for cleaning, application, reattachment, and storage.

8. Troubleshooting

If you encounter issues with your TENS Machine Pads, consider the following:

• Poor Adhesion: Ensure skin is clean and dry. If pads are old or dirty, clean them or consider replacement.
• No Sensation/Weak Sensation: Check that the pads are firmly attached to the skin and the lead wires are securely connected to both the pads and the TENS/EMS unit. Ensure your TENS/EMS unit is powered on and set to an appropriate intensity.
• Uneven Sensation: Check pad placement and ensure both pads are making full contact with the skin. Uneven wear or damage to one pad may require replacement.
• Skin Irritation: Discontinue use immediately. Ensure skin is clean before application. If irritation persists, consult a healthcare professional.

9. Specifications

10. Warranty and Support

For warranty information or product support, please refer to the documentation provided with your purchase or contact GHTENS customer service directly. Contact details can typically be found on the product packaging or the official GHTENS website.
