domyfan N2 16.1-inch Portable Monitor User Manual

1. Introduction and Overview

The domyfan N2 16.1-inch Portable Monitor is designed to extend your laptop's display, offering a Full HD 1200P IPS screen with a 16:10 aspect ratio. It features a 360-degree rotating detachable stand and VESA mount support for versatile positioning. This monitor is compatible with various operating systems and devices, providing a plug-and-play solution for enhanced productivity and entertainment.

Image 1.1: The domyfan N2 portable monitor in use, extending a laptop display.

Image 1.2: Visual comparison highlighting the 16.1-inch screen size and display features like 120% sRGB, 16:10 aspect ratio, 360-degree rotation, 60Hz refresh rate, IPS panel, and 178-degree viewing angle.

2. Package Contents

Please verify that all items are present in the package:

• 1x domyfan N2 Portable Monitor
• 1x User Manual
• 1x USB-C to USB-C Cable
• 1x HDMI to Mini HDMI Cable
• 1x USB-A to USB-C Cable
• 1x Portable Stand (pre-attached or separate)

Image 2.1: All components included in the domyfan N2 portable monitor package.

3. Setup Instructions

Follow these steps to set up your domyfan N2 portable monitor:

1. Detach Screen: Hold the circular base and slide forward to remove the screen from the stand.
2. Extend Stand: Open the stand behind the frame and extend it to a 90-degree maximum angle.
3. Attach Screen: Align the holes on the screen with the magnetic mount on the stand and attach securely.
4. Rotate Screen: Rotate the screen 360 degrees for full laptop compatibility and desired orientation.
5. Adjust Height: Freely adjust the screen height with the 9cm vertical sliding range.
6. Rotate Stand: Utilize the 360-degree rotatable stand for optimal viewing angles.

Image 3.1: Detailed steps for assembling and adjusting the monitor with its stand.

4. Connection Methods

The domyfan N2 monitor supports two primary connection methods:

A. Full-featured Type-C (Single-Cable Setup)

This method provides both video signal and power through a single USB-C cable.

• Verify Port: Ensure your laptop has a full-feature Type-C port (supporting Thunderbolt 3.0/4.0, DisplayPort Alternate Mode, and power delivery).
• Connect: Use one USB-C to USB-C cable to connect between your laptop's full-feature Type-C port and the extender's Type-C1 or Type-C2 port.

B. HDMI + USB-A (Dual-Cable Setup)

This method is used when your laptop's USB-C port does not support video output or when using an HDMI-only device.

• Video Connection: Insert the HDMI to Mini HDMI cable into the extender's Mini HDMI port and your laptop's HDMI port.
• Power Connection: Plug the USB-A to USB-C cable into the extender's Type-C1 or Type-C2 port (for power only) and a USB-A port on your laptop or a power adapter.
• Note: Plug in the USB-A cable first, then the HDMI cable for proper detection.

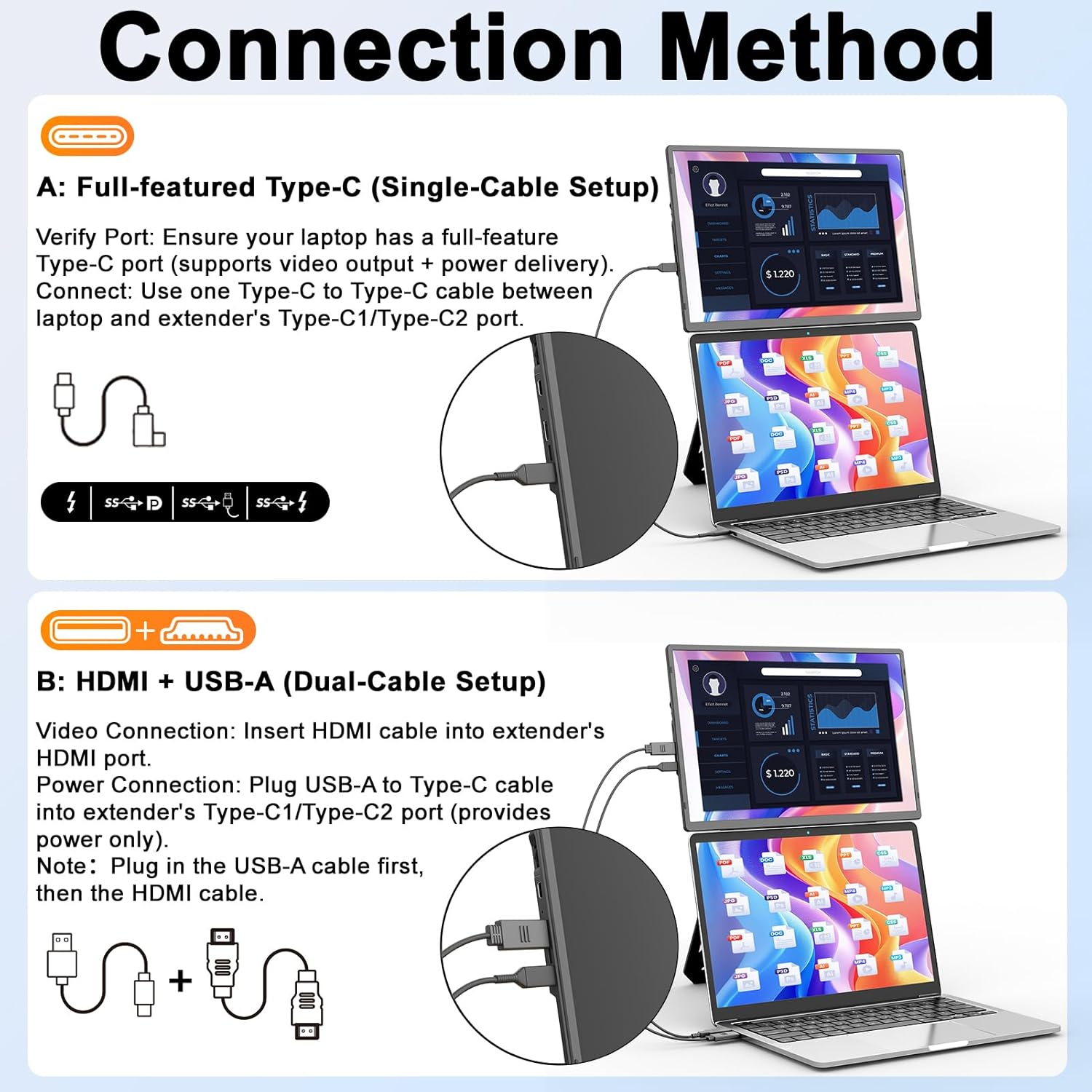

Image 4.1: Illustrations of connecting the monitor using a single USB-C cable or a combination of HDMI and USB-A cables.

5. Operating Modes

The domyfan N2 monitor supports various display modes to suit your workflow:

• Mirror Mode: Duplicates your primary screen's content onto the portable monitor.
• Extend Mode: Expands your desktop across both screens, allowing for multitasking.
• Portrait Mode: Rotates the display vertically, ideal for reading documents or coding.
• Mobile Casting Mode: Connects to compatible smartphones for a larger display experience.

Image 5.1: Visual examples of the different display modes available with the monitor.

6. VESA Mounting

The domyfan N2 monitor is VESA compatible, allowing for flexible mounting options.

• VESA Standard: Supports 75x75mm VESA mounts.
• Screws: Use M4*4pcs screws for secure attachment.
• Installation: Securely attach the monitor to a compatible desk arm or wall mount for ergonomic positioning.

Image 6.1: Example of the monitor mounted on a VESA-compatible arm for various applications.

7. Compatibility

The domyfan N2 portable monitor offers broad compatibility with various devices and operating systems:

• Operating Systems: macOS, Windows, Android.
• Devices: PC, Laptops, PS5, Xbox, Nintendo Switch, and most other devices with compatible video output.

Image 7.1: Visual representation of the monitor's wide compatibility with different platforms.

8. Specifications

9. Troubleshooting

If you encounter issues with your domyfan N2 portable monitor, refer to the following common solutions:

• "No Signal" Message with USB-C: If the screen displays "No Signal" when connected via USB-C, it indicates that your laptop's USB-C port may only support power delivery and not video output. In this case, you must use the HDMI to Mini HDMI cable for video signal and a USB-A to USB-C cable for power.
• No Display/Power:
  • Ensure all cables are securely connected.
  • Verify that your laptop's USB-C port supports video output and power delivery if using a single USB-C cable.
  • If using HDMI, ensure the USB-A to USB-C power cable is connected to a sufficient power source (laptop USB-A port or wall adapter).
  • Try a different USB-C port on your laptop, or a different cable if available.
• Image Quality Issues:
  • Check your laptop's display settings to ensure the resolution is set to 1920x1200 for the external monitor.
  • Adjust brightness and contrast settings on the monitor using its control buttons.
• Sound Issues:
  • Ensure the monitor's volume is not muted or set too low.
  • Check your computer's sound output settings to ensure the domyfan N2 monitor is selected as the audio output device.

10. Warranty and Support

domyfan is committed to providing reliable products and customer service.

• After-Sales Support: For any issues regarding screen functionality, missing accessories, compatibility, or connectivity, please refer to the contact information provided in your product packaging.
• We offer 24/7 after-sales support to assist you with any concerns and provide satisfactory solutions.
