FABATO Round Lift Top Coffee Table User Manual

1. Introduction

Thank you for choosing the FABATO Round Lift Top Coffee Table. This manual provides essential information for the safe assembly, operation, and maintenance of your new coffee table. Please read all instructions carefully before assembly and use.

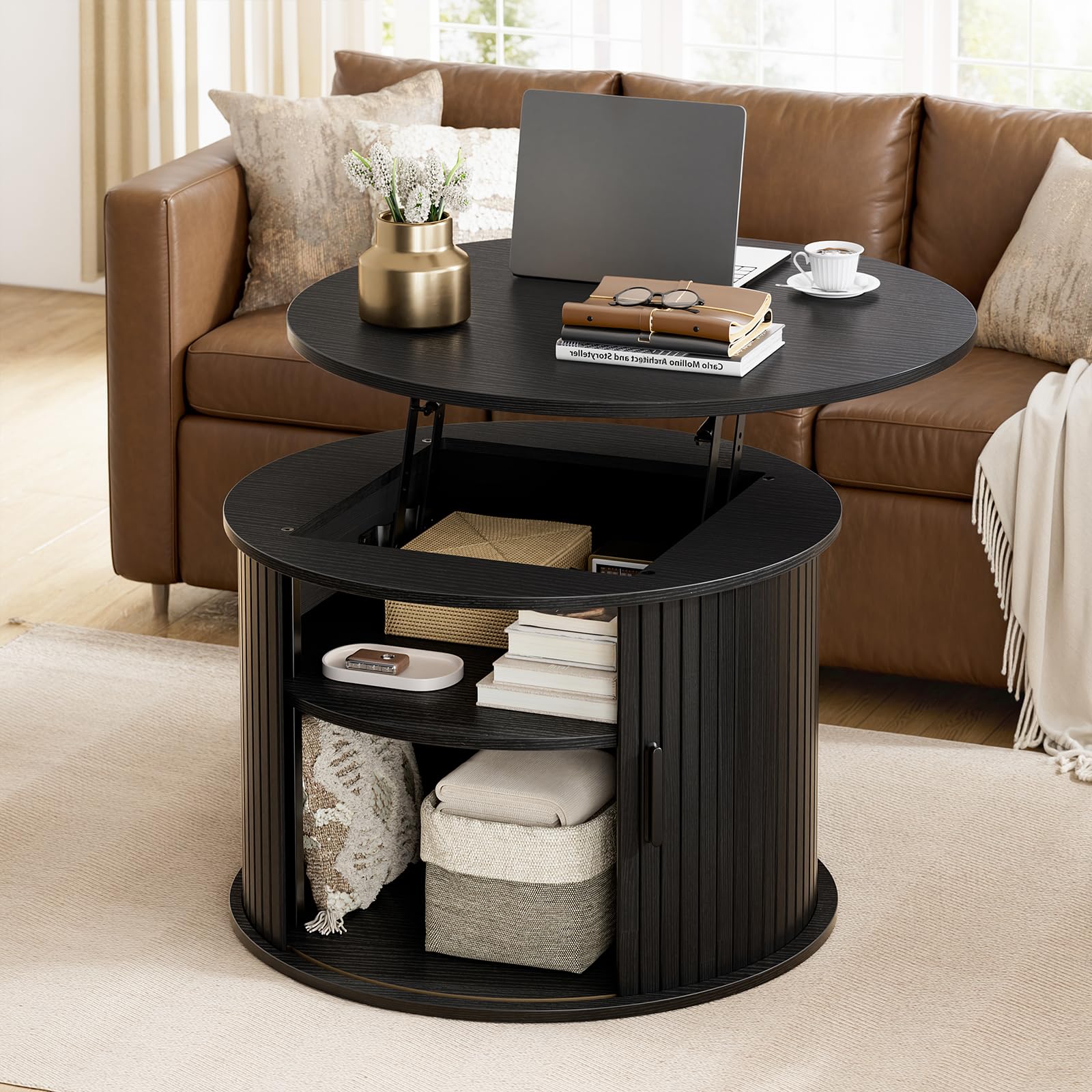

Image 1.1: FABATO Round Lift Top Coffee Table (Black)

2. Safety Information

WARNING:

• Always follow the assembly instructions carefully to avoid injury.
• Be cautious when using the lift-top feature to prevent pinch points.
• This product may require proper anchoring to prevent tipping or collapse.
• Do not overload the table or storage compartments. Refer to specifications for weight limits.
• Keep small parts away from children during assembly.

3. Product Features

The FABATO Round Lift Top Coffee Table is designed for versatility and functionality in your living space. Key features include:

• Lift-top Mechanism: The desktop height can be raised from 19 inches to 25.2 inches, providing a comfortable surface for working, dining, or other activities while seated on a sofa.
• Hidden Storage: A spacious compartment is located beneath the lift-top, ideal for storing remote controls, books, or other small items to keep your living area tidy.
• Curved Sliding Door: Features fluted tambour doors that slide smoothly along a curved groove, revealing two-tier shelf space for additional storage or display.
• Fluted Style Design: The table boasts smooth lines and natural wood grain, with black fluted details adding texture and charm.
• Multifunctional Use: Can serve as a coffee table, cocktail table, end table, sofa table, accent table, work table, or even a storage cabinet in a bedroom.

Image 3.1: Key Features Diagram

Image 3.2: Smooth Sliding Tambour Door

4. Specifications

Image 4.1: Product Dimensions

5. Assembly Instructions

Assembly is required for this coffee table. All necessary parts and tools (Allen Key, Screwdriver) are included. Follow the detailed steps provided in the included assembly guide. For a visual walkthrough, please refer to the official assembly video below:

General Assembly Steps:

1. Unpack all components and verify against the parts list.
2. Attach the support panels to the base plate using the provided screws and tools.
3. Secure the top support frame to the vertical posts.
4. Install the fluted side panels, ensuring they slide smoothly into their grooves.
5. Attach the lift-top mechanism to the internal structure.
6. Carefully align and attach the main tabletop to the lift mechanism.
7. Tighten all screws securely once the table is fully assembled and stable.

6. Operating Instructions

Using the Lift-Top:

• To raise the tabletop, gently pull the front edge of the table upwards. The hydraulic mechanism will assist in lifting it to the desired height.
• To lower the tabletop, apply gentle downward pressure on the front edge. Guide it slowly back into the closed position, being mindful of fingers to avoid pinch points.

Accessing Storage:

• Hidden Compartment: The compartment under the lift-top is accessible when the top is raised.
• Side Shelves: Use the convenient handle on the fluted side panel to slide the door open, revealing the two-tier shelves. Slide the door back to conceal the contents.

Image 6.1: Lift-Top in Use

7. Maintenance and Care

• Cleaning: Wipe the table surface with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish.
• Spills: Clean up spills immediately to prevent staining.
• Protection: Use coasters for drinks and placemats for hot items to protect the tabletop.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
• Movement: When moving the table, lift it rather than dragging it to prevent damage to the legs and floor.

8. Troubleshooting

• Lift-top is stiff or difficult to operate: Ensure no obstructions are present in the mechanism. The mechanism may loosen with regular use. If issues persist, check the hydraulic lifters for proper installation.
• Sliding door is stiff: Check for any debris in the curved groove. Ensure the door is properly aligned. Applying a small amount of silicone-based lubricant to the track may help.
• Table feels wobbly: Verify that all assembly screws are fully tightened. Ensure the table is placed on a flat, even surface.
• Missing parts or hardware: If any parts are missing or damaged upon arrival, please contact customer support immediately for assistance.

9. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or contact FABATO customer service. If you encounter any issues or have questions regarding your FABATO Round Lift Top Coffee Table, please reach out to our support team for assistance.
